General characteristics
| Drilling capacy mild steel | 23 mm |
| Taper | MK 3 |
| Distance spindle - column | 260 mm |
| Revs | 20 - 2000 r.p.m. |
| Motor | 1 kW |
| Tapping capacity | M16x1 |
| max. drilling depth | 115 mm |
| Column diameter | 110 mm |
| Distance spindle - table | 230 - 850 mm |
| Table | 420 x 340 mm |
Dimensions and weight
| Length | 430 mm |
| Width | 715 mm |
| Height | 1800 mm |
| Weight | 290 kg |
Description
Drilling capacity / normal drilling Performance 23/25 (in E335/ST60)
Main switch
Thread cutting device

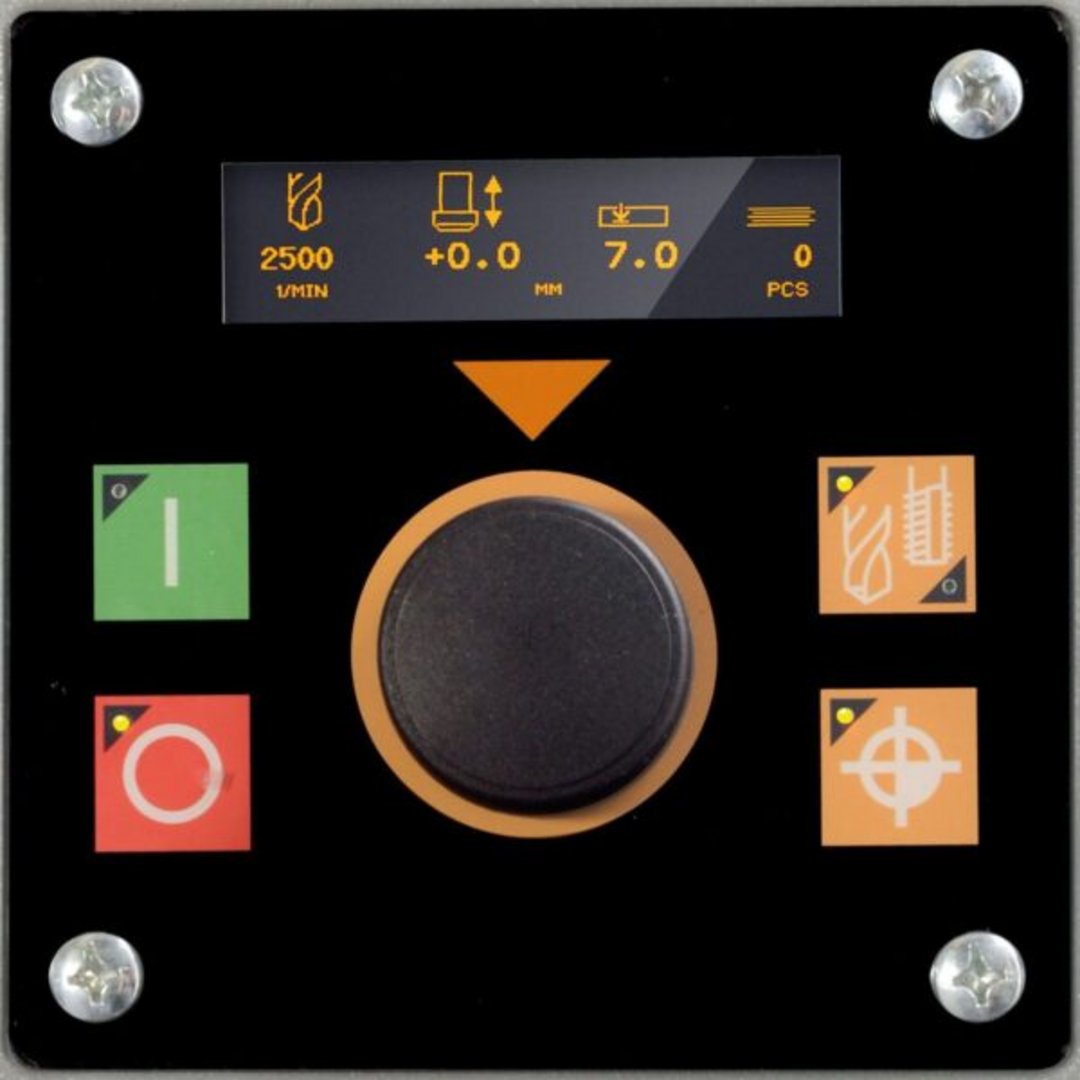

Control panel with OLED display
Robust, high quality drill head hood with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic drill depth stop
Stepless speed control via central rotary knob
EMERGENCY STOP pushbutton
Thermal overload protection
Spindle stop
Drill protection with electr. Fuse
Connection cable with CEE plug
3 years warranty for single shift operation
Options (prices on request):
Drill package 3 (vice & keyless chuck)
Coolant device
LED lighting with pivot arm
Further information
Product video

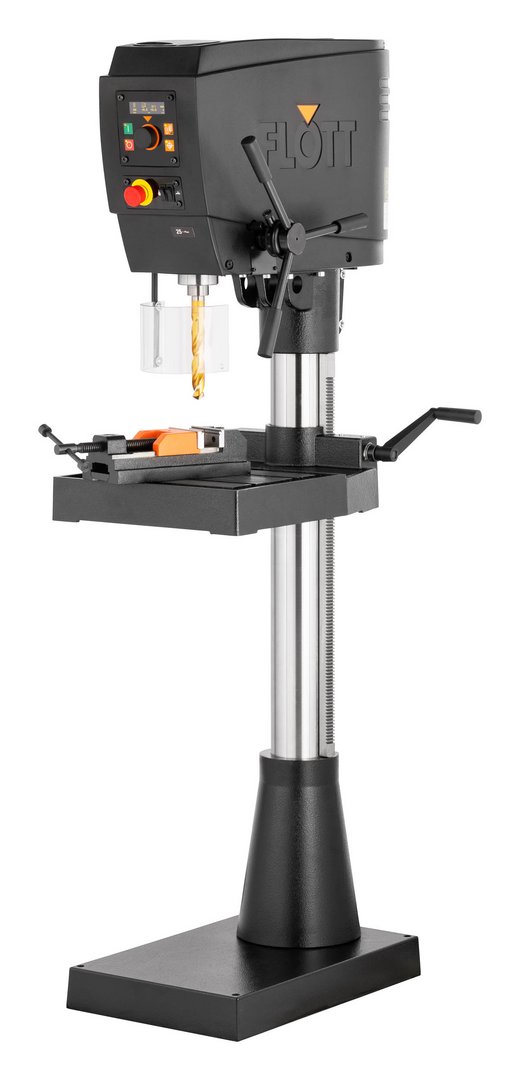

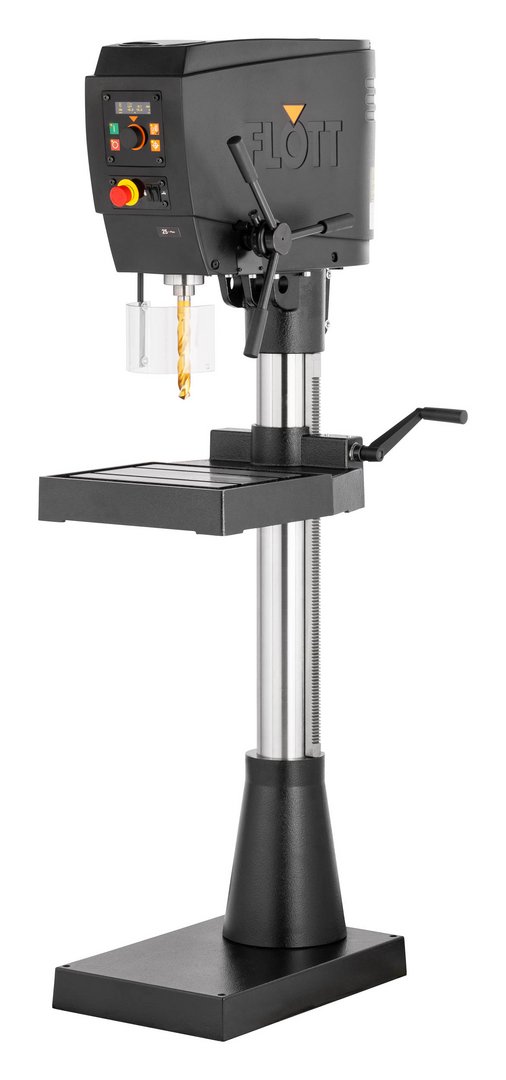

Column drilling machine SB 25 Plus R1
