General characteristics
| Drilling capacy mild steel | 25 mm |
| Taper | MK 3 |
| Distance spindle - column | 280 mm |
| Revs | 125 - 4000 (2 Stufen) r.p.m. |
| Motor | 0,9 / 1,45 kW |
| Tapping capacity | M20 |
| max. drilling depth | 125 mm |
| Column diameter | 110 mm |
| Distance spindle - table | 240 - 790 mm |
| Table | 420 x 340 mm |
Dimensions and weight
| Length | 520 mm |
| Width | 820 mm |
| Height | 1900 mm |
| Weight | 275 kg |
Description
Drilling capacity / normal drilling performance 25/30 (in E335/ST60)
Drilling depth adjustment with fine adjustment
Emergency stop pushbutton
Undervoltage release
electr. Drilling machine guard
Manual reversing switch for clockwise and anticlockwise rotation
Connection cable (1.5 m) with CEE plug
Thermal overload protection
Options (prices on request):
Drill package (vice & keyless chuck)
Coolant device
LED lighting with pivot arm
Further information
Product video

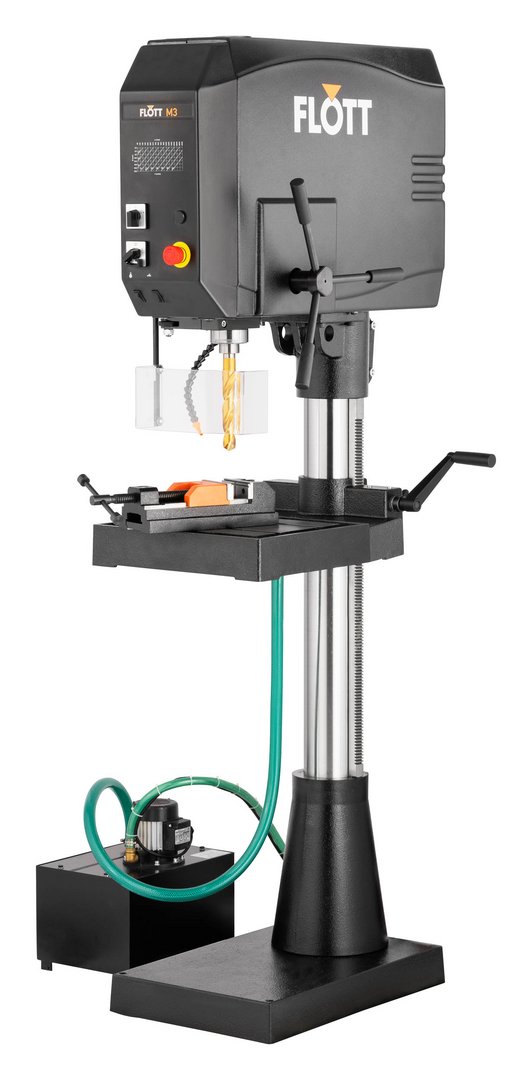

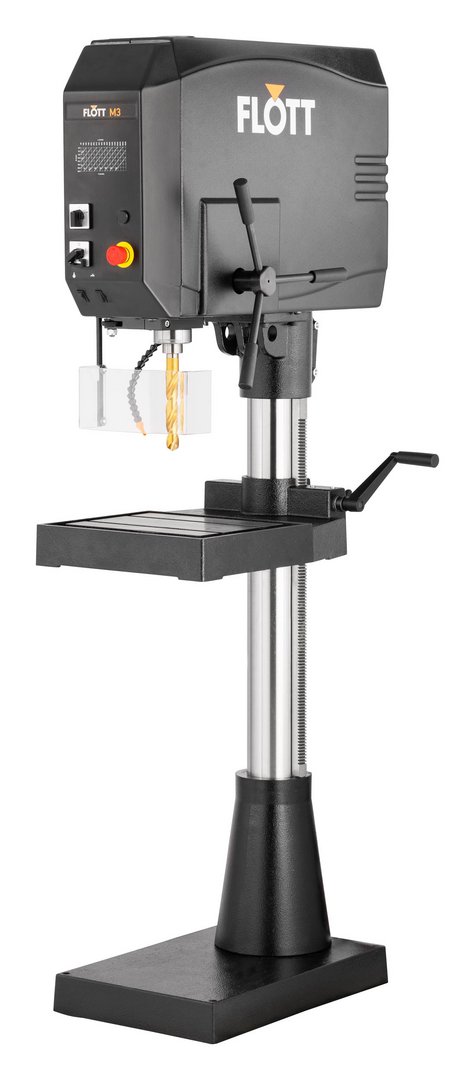

Column drilling machine SB M3 ST
