General characteristics
| Drilling capacy mild steel | 40 mm |
| Taper | MK 4 |
| Distance spindle - column | 300 mm |
| Motor | 1,5 / 3,0 kW |
| Tapping capacity | M30 |
| Feeds | 0 - 300 mm/r |
| max. drilling depth | 160 mm |
| Column diameter | 125 mm |
| Distance spindle - table | 150 - 700 mm |
| Table | 590 x 450 mm |
Dimensions and weight
| Length | 610 mm |
| Width | 850 mm |
| Height | 1920 mm |
| Weight | 440 kg |
Description

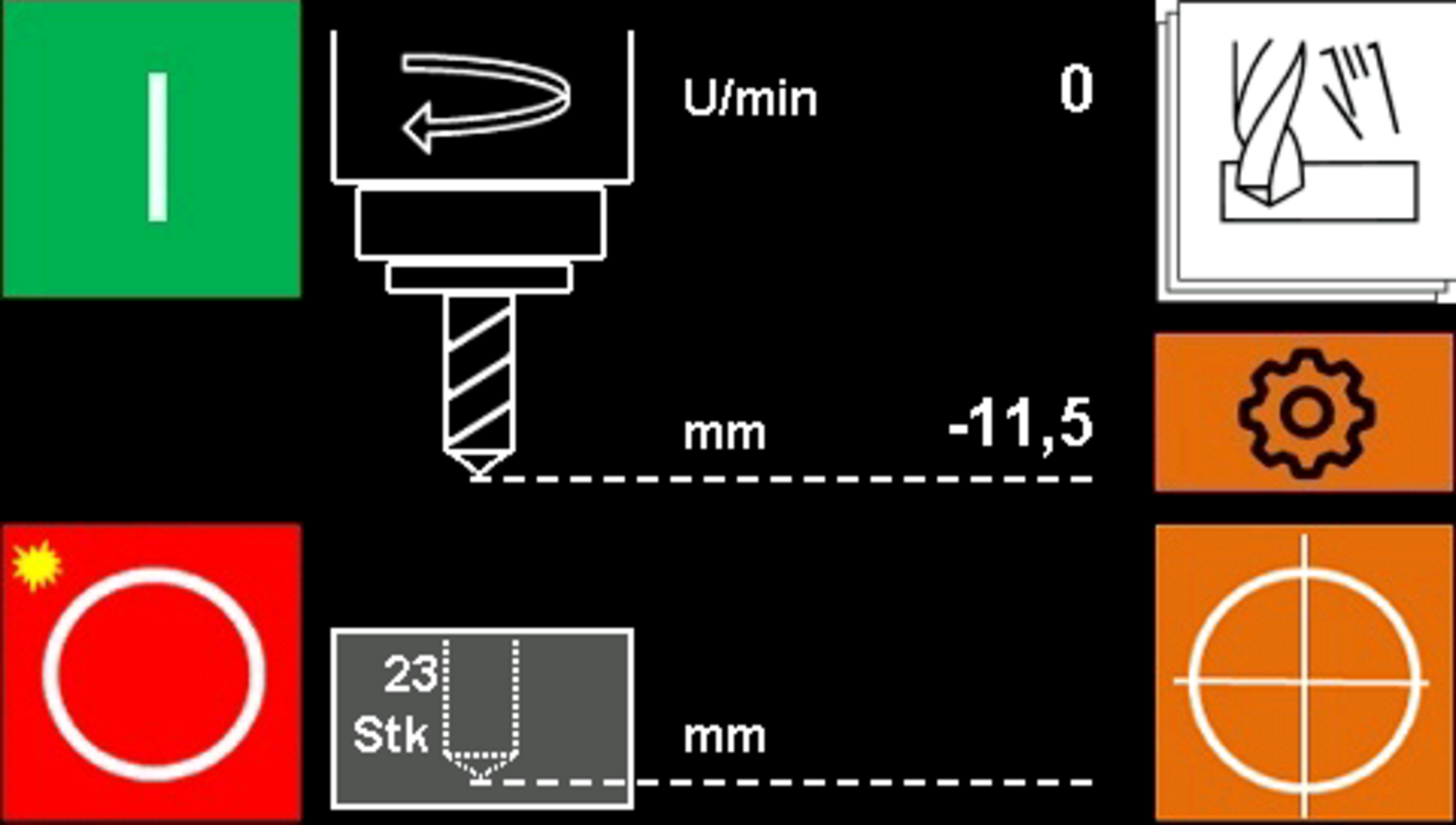

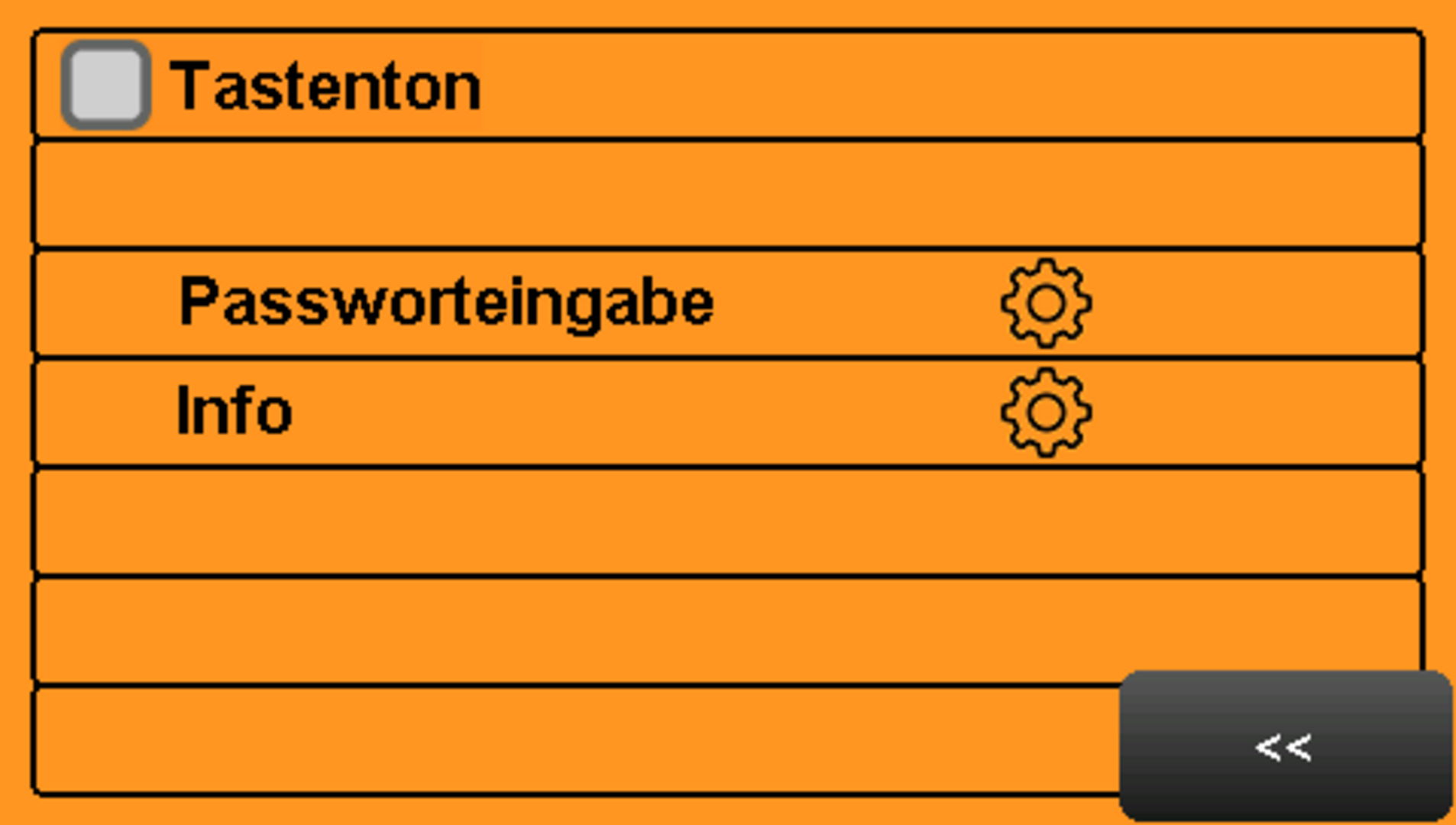

PV - display with following functions:
- Display
- Operation via function keys and rotary/push button

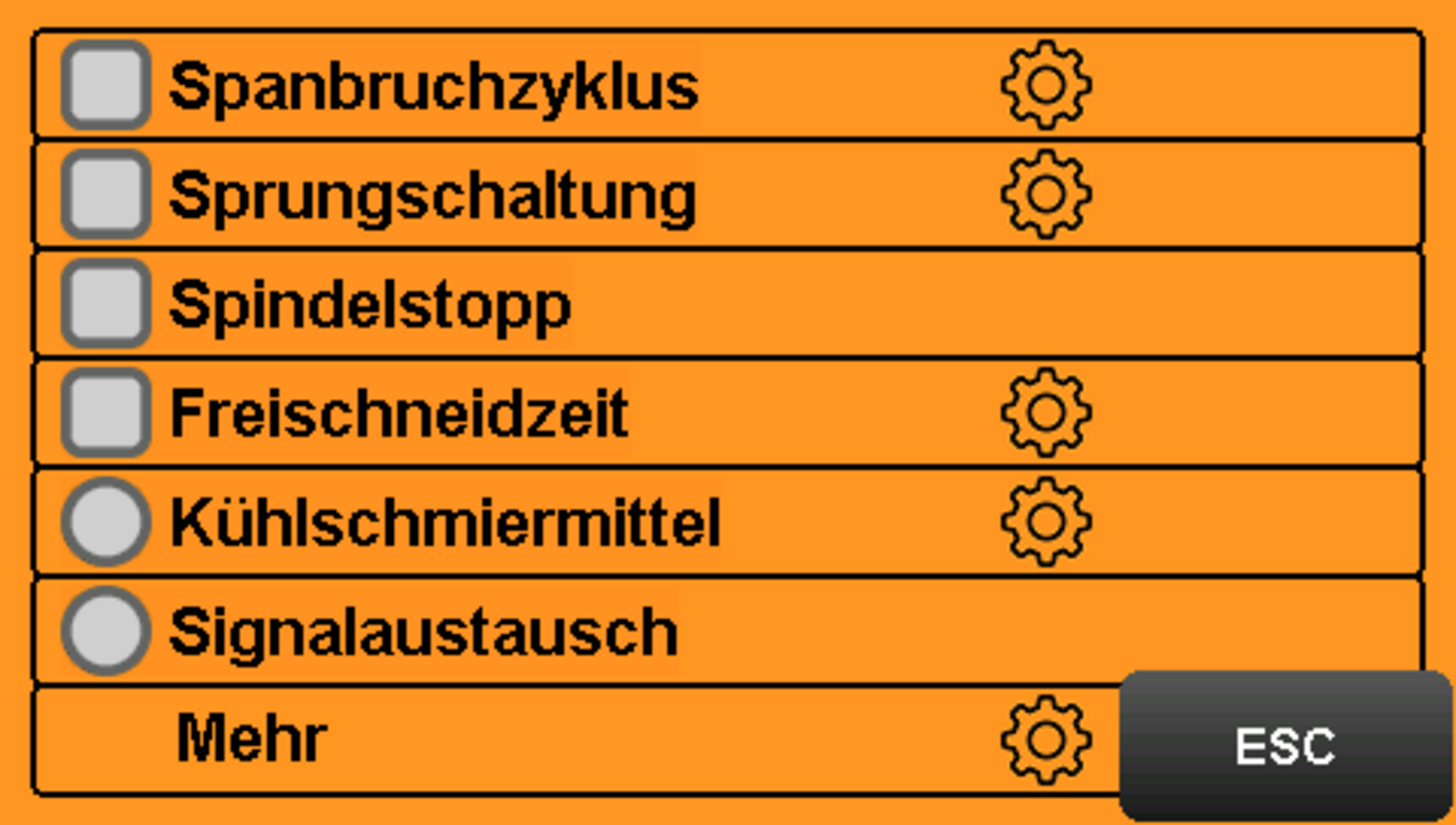

- Selection of operating mode: manual drilling / drilling with feed / tapping
- Infinitely variable speed adjustment
- Feed rate setting
- Zero point setting

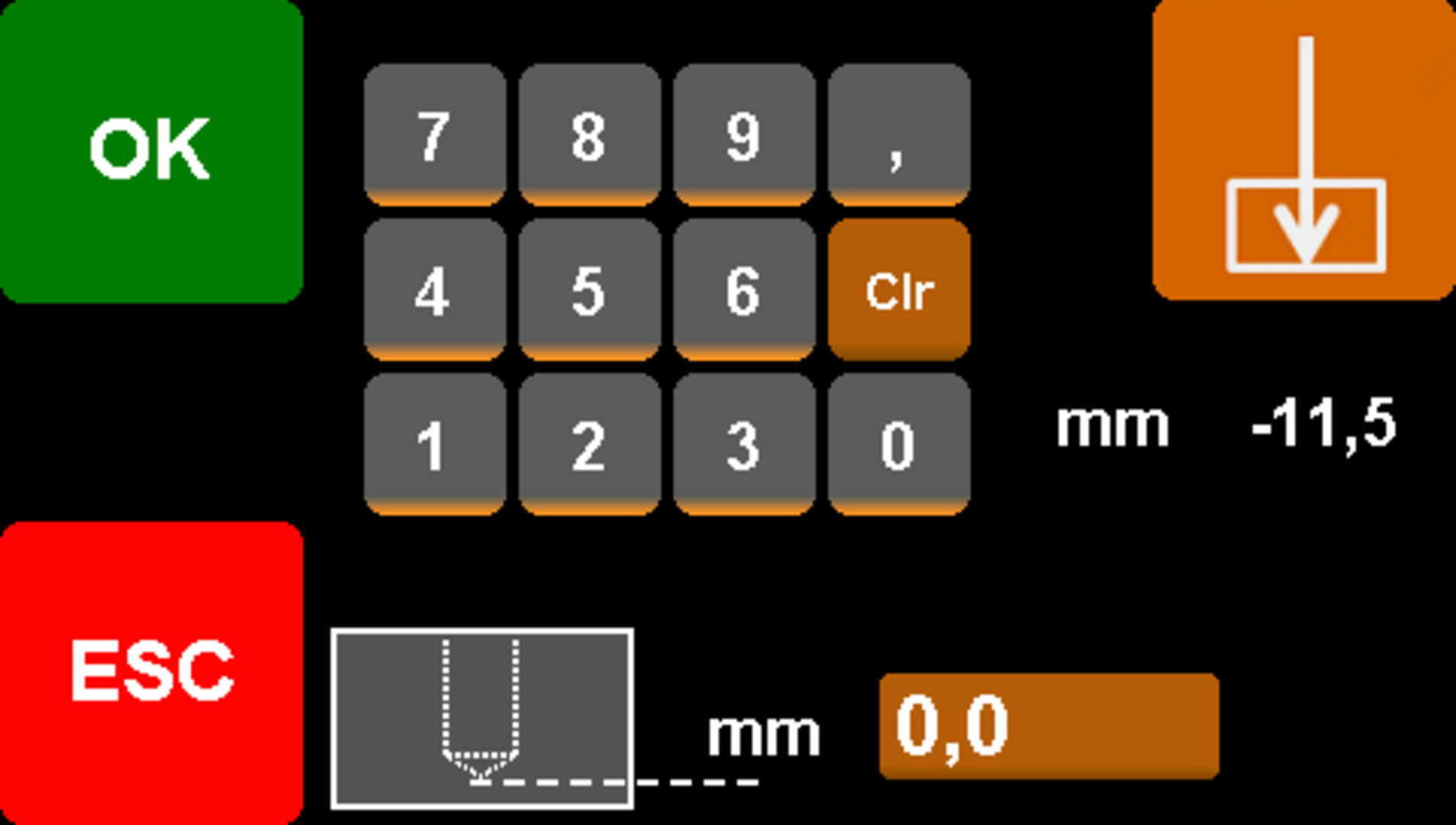

- Drilling depth setting
- Piece counter
- Spindle stop (automatically stops the spindle after the drilling cycle)
- Free cutting time mode
- Chip breaking mode (option, price on request)

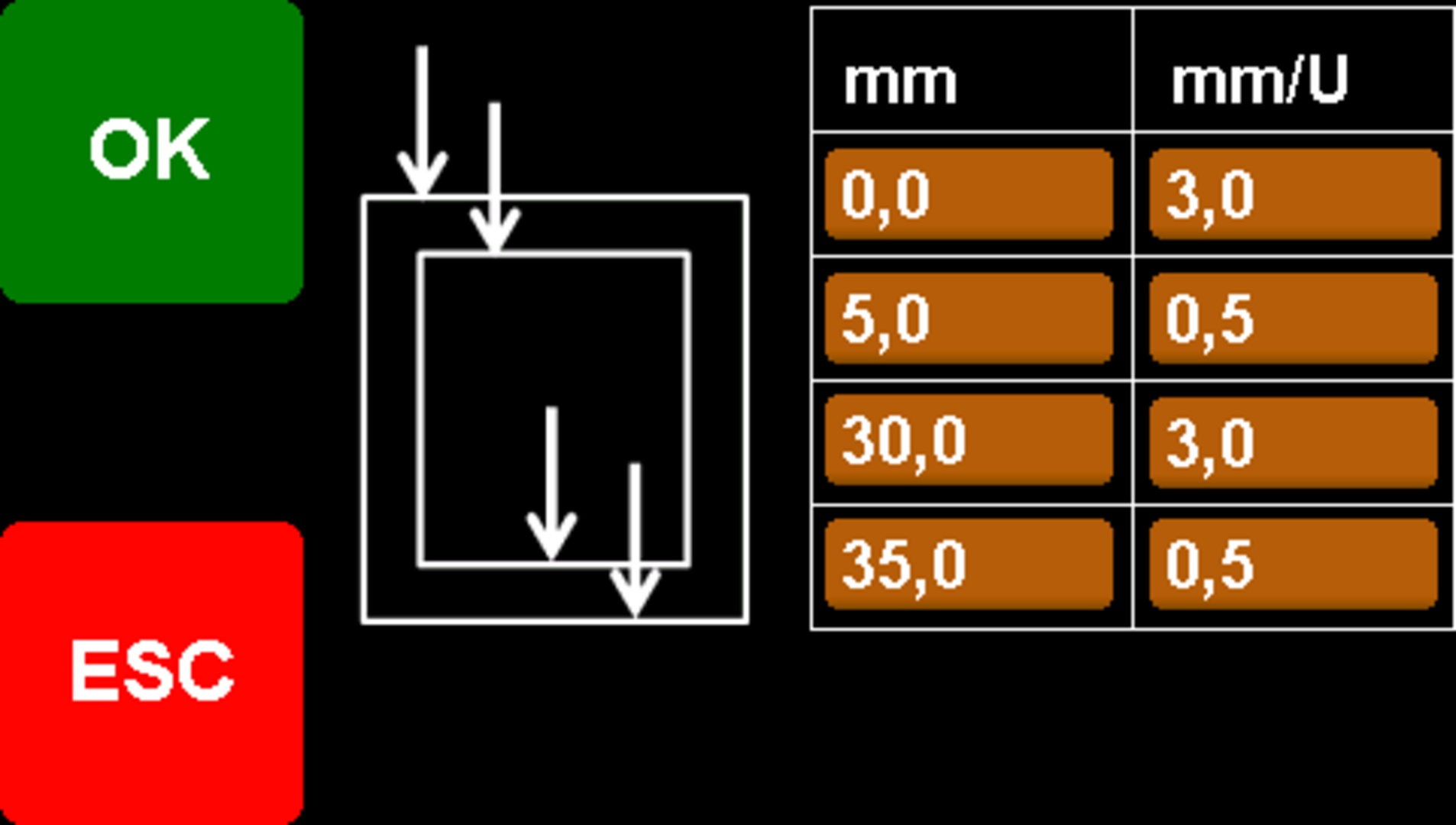

- Jump switch mode, for efficient drilling of square tubes (option, price on request)
Drilling capacity / normal drilling performance 35/40 (in E335/ST60)
Automatic feed
Drilling depth adjustment with fine adjustment and undervoltage trigger
EMERGENCY STOP pushbutton
Stepless speed control
Connection cable (1.5 m) with CEE plug
Drill protection with electr. Fuse
Thermal overload protection
3 years warranty for single shift operation
Digital drilling depth, speed and feed rate display
Electronically infinitely variable feed incl. Spindle monitoring
Free cutting device
Thread cutting device, thread cutting capacity max. M30, setting the thread cutting depth via digital depth display
Drilling depth shut-off; programmable; easy operation
Drilling cross with pushbutton for feed on/off switching
LED lighting as standard
Art. – Nr. 207.208 R1(100-2.000 1/min) + cover black
Art. – Nr. 207.226 R1(100-2.000 1/min) + cover transparent
Art. – Nr. 207.209 R2 (70-.1.400 1/min) + cover black
Art. – Nr. 207.227 R2 (70-.1.400 1/min) + cover transparent
Options:
Drill package (vice & keyless chuck)
Coolant device
LED lighting with pivot arm
Further information
Product video

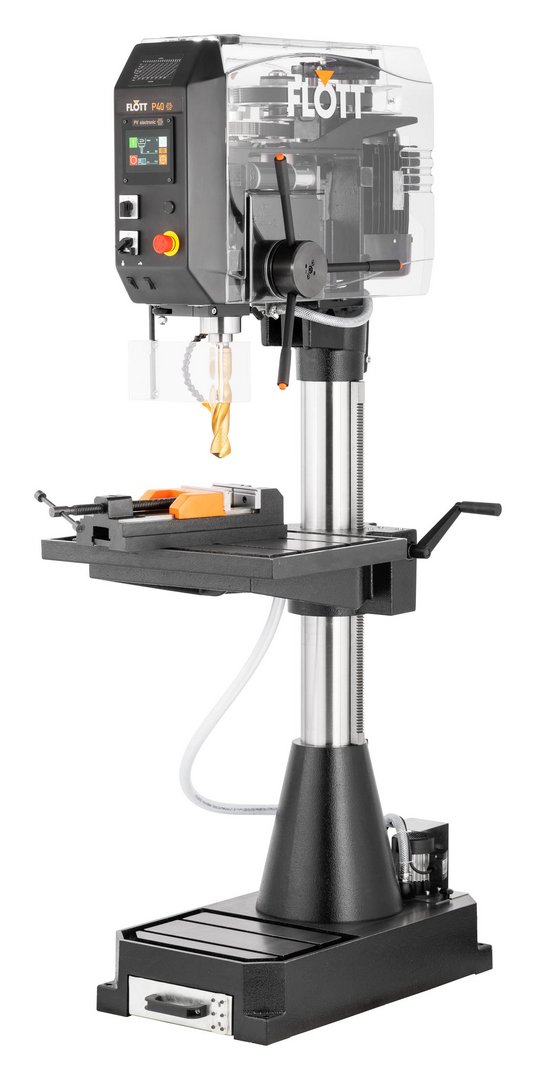

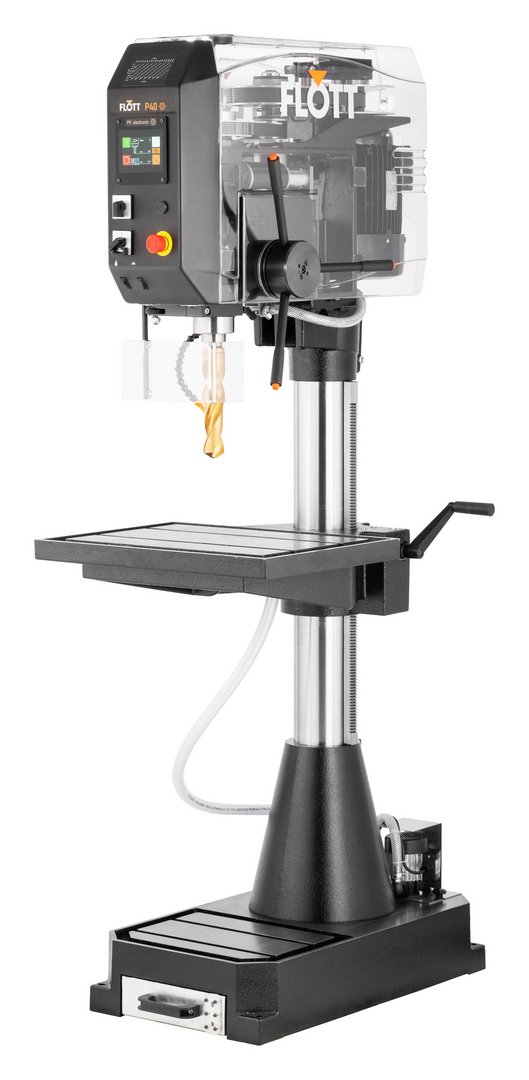

Column drilling machine SB P40 STG PV electronic
