General characteristics
| Drilling capacy mild steel | 30 mm |
| Taper | MK 3 |
| Distance spindle - column | 300 mm |
| Revs | 0 - 4000 r.p.m. |
| Motor | 3 kW |
| Tapping capacity | M30x3,5 |
| Feeds | 0,10 / 0,16 / 0,25 mm/r |
| Column diameter | 125 mm |
| Distance spindle - table | 150 - 700 mm |
| Table | 590 x 450 mm |
| Quill travel | 125 mm |
Dimensions and weight
| Length | 900 mm |
| Width | 610 mm |
| Height | 1980 mm |
| Weight | 385 kg |
Description
Drilling capacity / normal drilling capacity 30/35 (in E335/ST60)
Main switch
Dispositif de taraudage

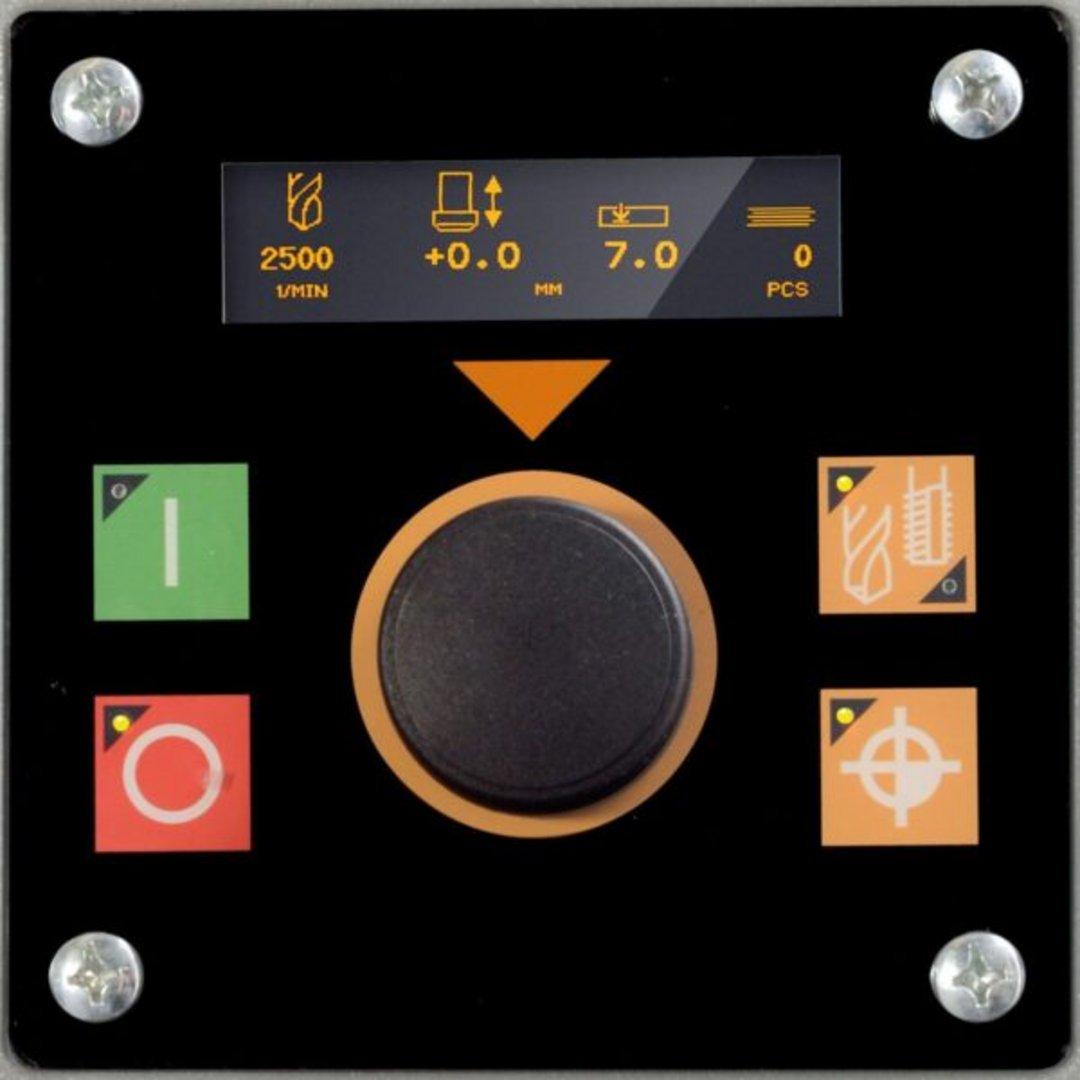

Control panel with OLED display
Robust, high quality drill head hood with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic drill depth stop
Stepless speed control via central rotary knob
Emergency stop button
Thermal overload protection
Spindle stop
Drill protection with electr. Fuse
Connection cable with CEE plug
3 years warranty for single shift operation
Mechanical feed of the Z-axis incl. electromagnetic clutch for (3) feed rates
Drilling cross with pushbutton (on/off) for feed rate
In tapping mode: Right-left lifting via drill cross switch or optional foot switch
Options:

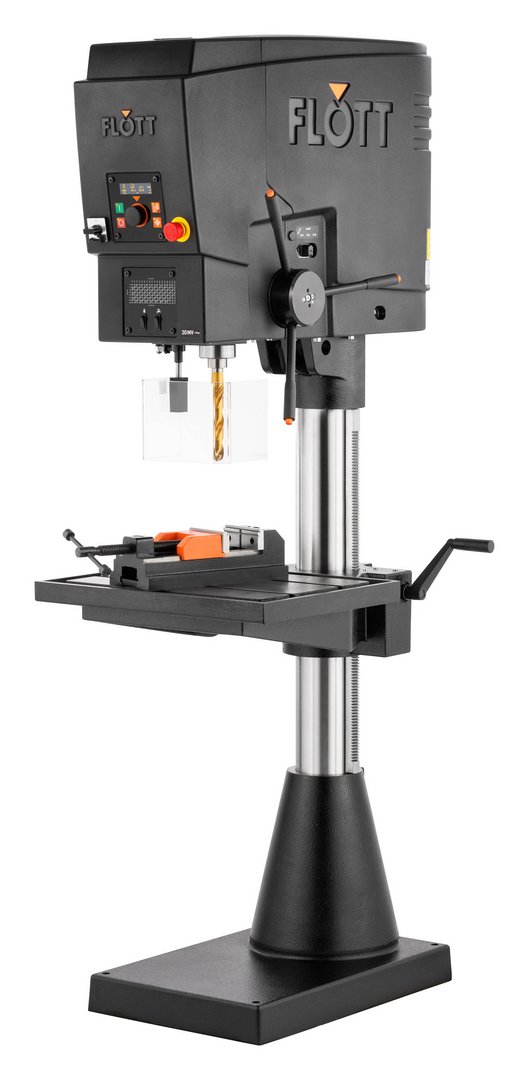

Drill package 5 (vice & keyless chuck)
Coolant device
LED lighting with pivot arm
Further information
Product video

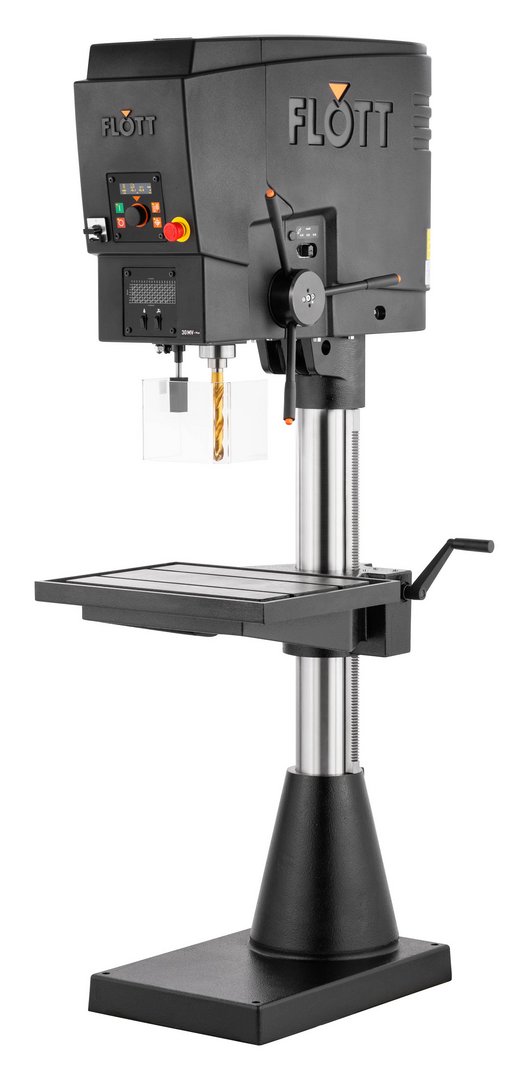

Column drilling machines SB 30 MV Plus R3
