General characteristics
| Drilling capacy mild steel | 12 mm |
| Taper | 19 mm Weldon |
| Motor power | 0.45 kW |
| Max. drilling capacity | 12 mm |
| Max. core drill capacity | 36 mm |
| Max. cutting depth | 50 mm |
| Stroke | 70 mm |
| Motor speed | 260 rpm |
| Min. workpiece thickness | 6 mm |
Dimensions and weight
| Length | 316 mm |
| Width | 235 mm |
| Height | 328 mm |
| Weight | 115 kg |
Description

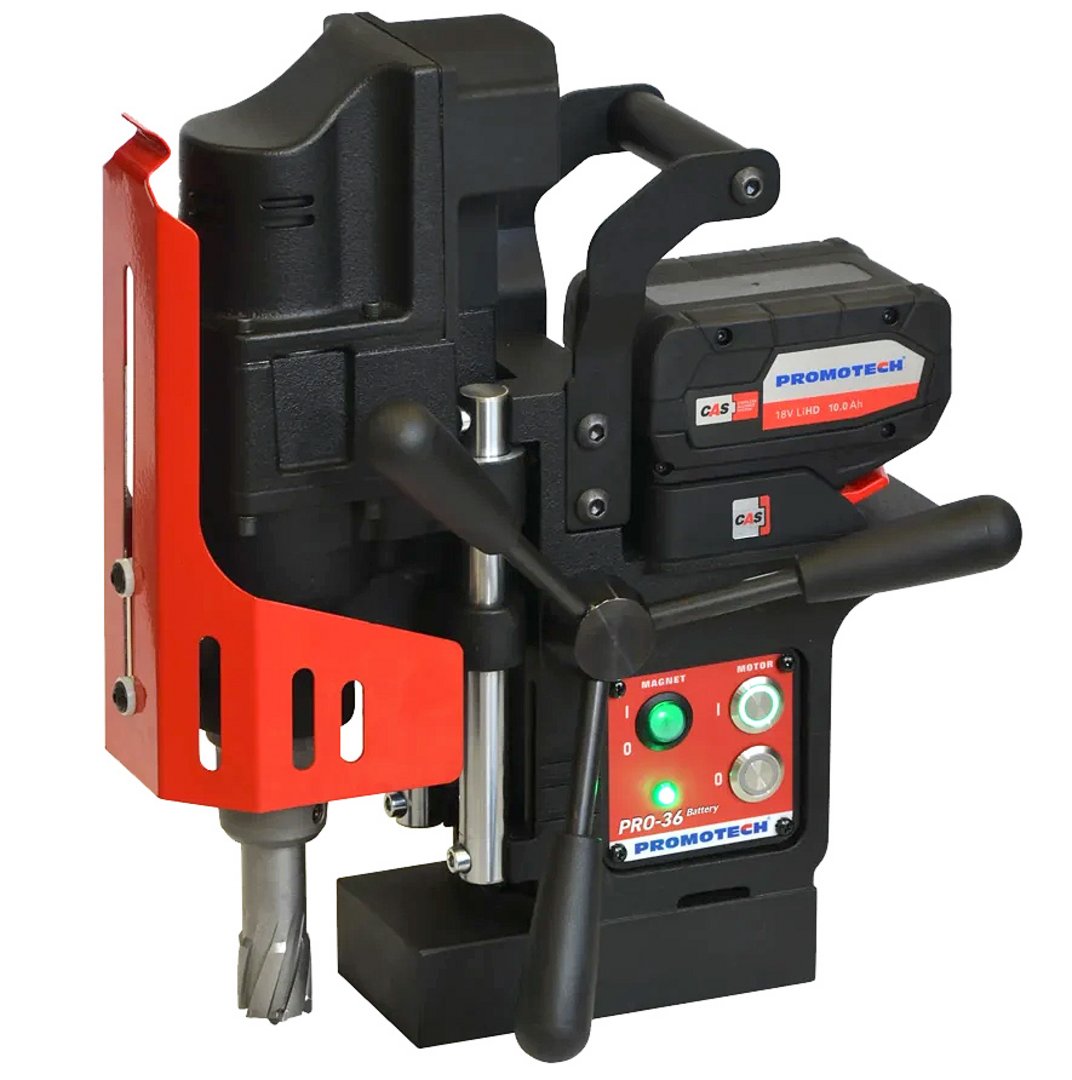

The PRO-36 Battery is a drilling machine designed to drill holes of diameters up to 36 mm (1 7/16”) by using annular cutters.
The machine can also drill holes of diameters up to 12 mm (0.47”) by using twist drill bits.
Cordless drill is equipped with LED monitoring system that generates signals in green and red colours to indicate current
condition of the drill and give safety information.
Control panel is equipped with so called „vandal resistant” illuminated start/stop switches (green/red)
Features and benefits:
• LED Monitoring System indicates current condition of the drill and gives safety information
• LED interface flashes green when inadequate adhesion is detected due to e.g. gap or thin work piece
• dual bars guide system ensures extraordinary stiffness and adjustment free operation
• overload protection
• Tilt sensor stops the motor if machine breaks away
• Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
• Energy Saving Base(ESB) uses only 50% of its power when motor is not running
• innovative smart magnet with reduced weight

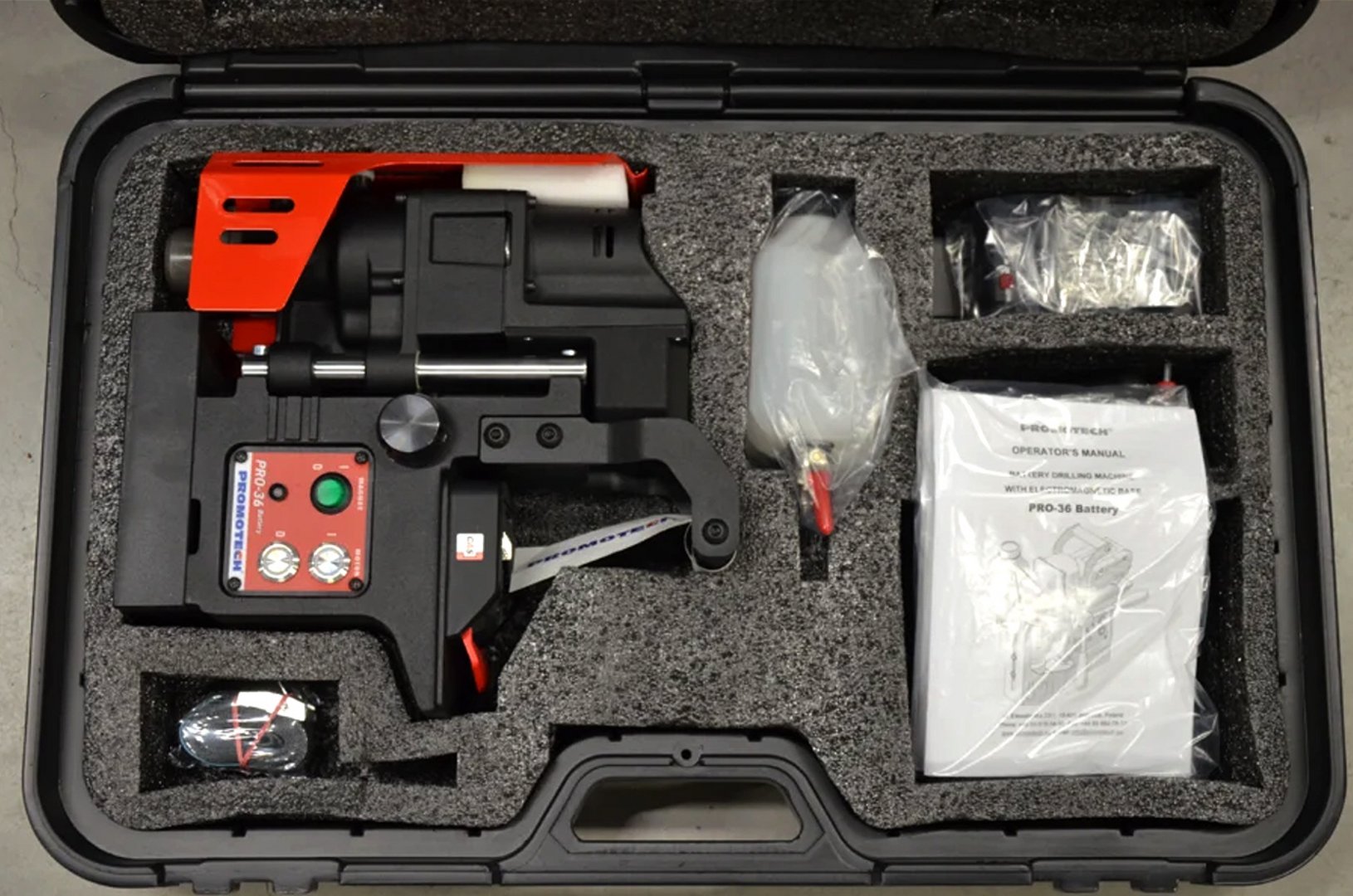

Standard shipping set:
• Cordless drilling machine
• Plastic box
• Battery 4.0 Ah
• Handle (3 pcs)
• Safety strap
• Cooling system
• 4 mm hex wrench with a handle
• Operator’s Manual
Optional equipment (prices on request):
Battery charger
Pipe attachment
Pressure cooling system
Vacuum pad
Vaccum pump
Compressed air ejecto
Further information
Product video
Magnetic drilling machine PRO-36 Battery
