General characteristics
| Drilling capacy mild steel | 12 mm |
| Taper | 19 mm Weldon |
| Motor power | 0.1 kW |
| Max. drilling capacity | 12 mm |
| Max. core drill capacity | 36 mm |
| Max. cutting depth | 51 mm |
| Stroke | 70 mm |
| Motor speed | 350 rpm |
Dimensions and weight
| Length | 175 mm |
| Width | 250 mm |
| Height | 312 mm |
| Weight | 10 kg |
Description

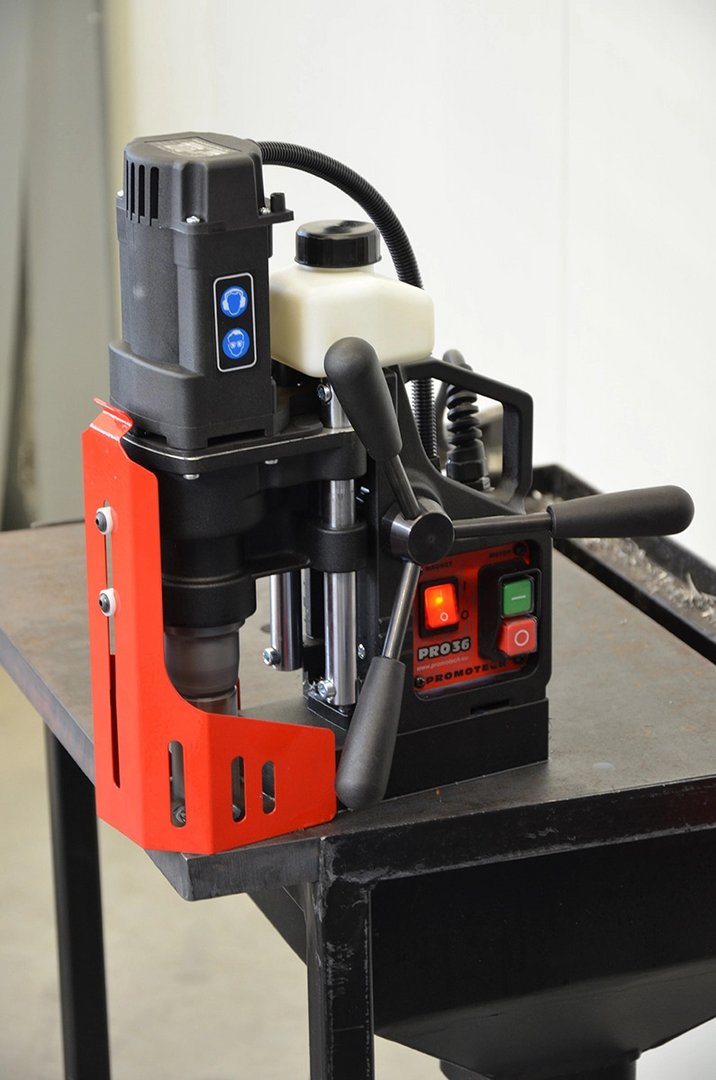

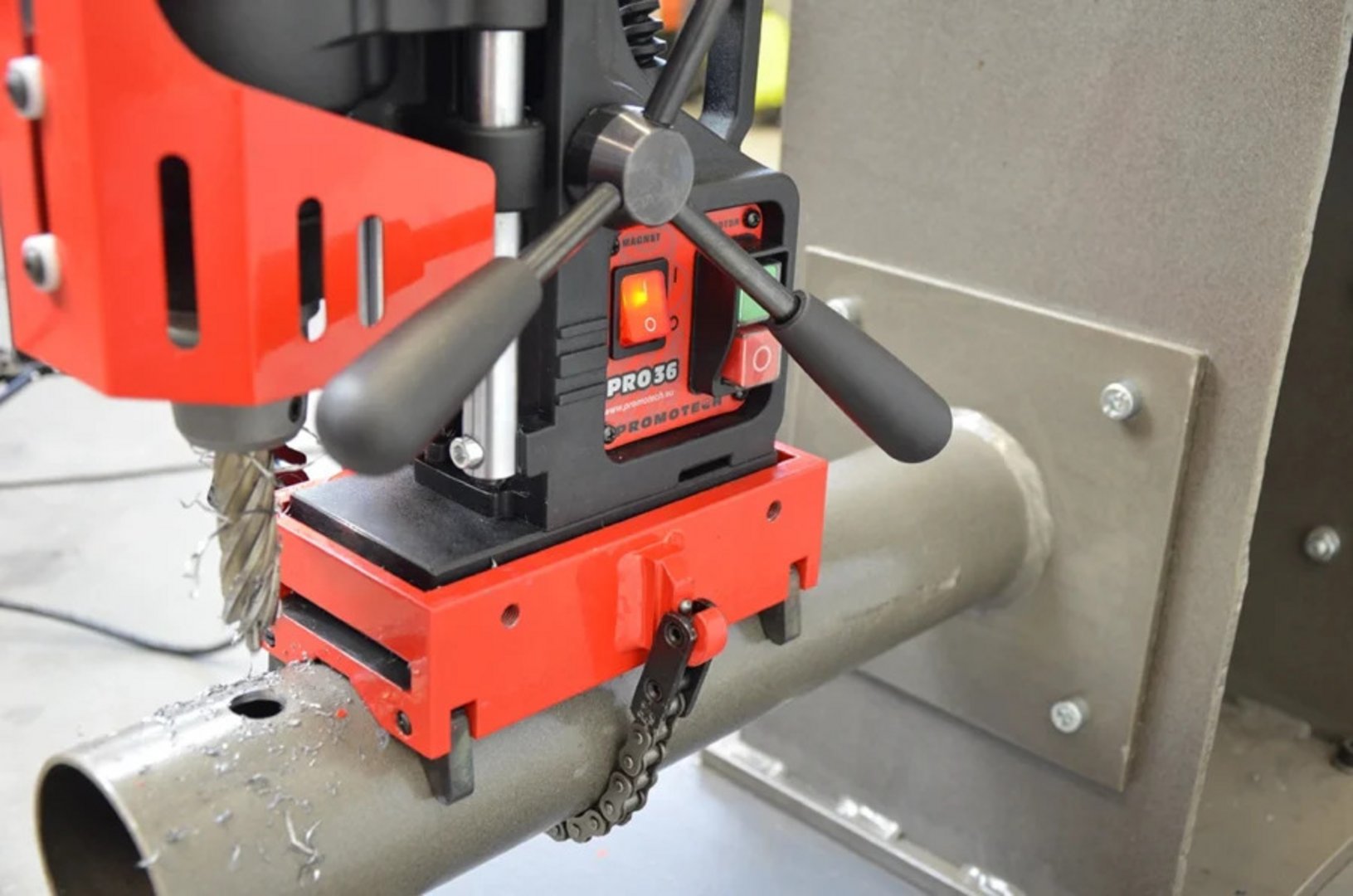

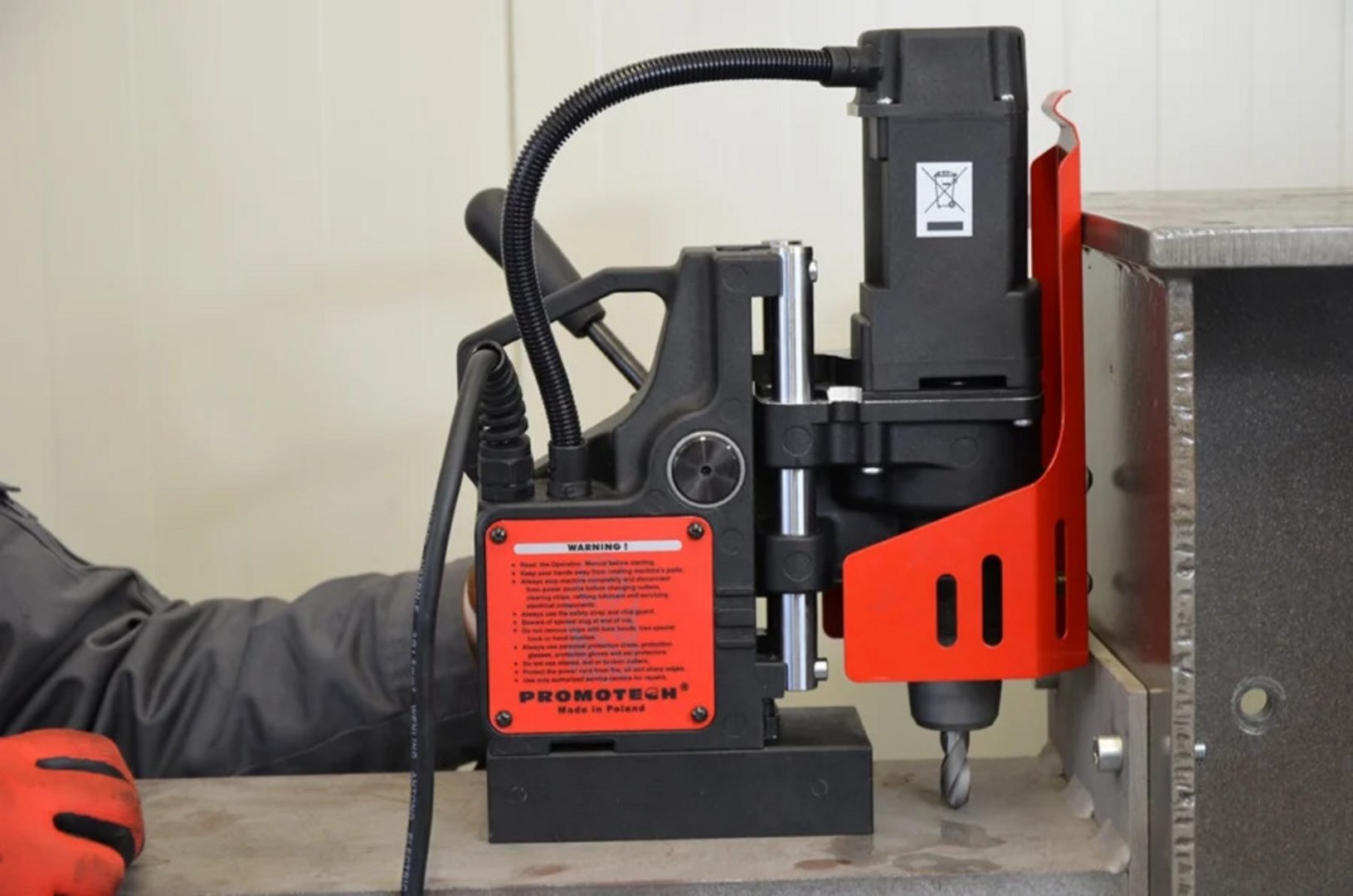

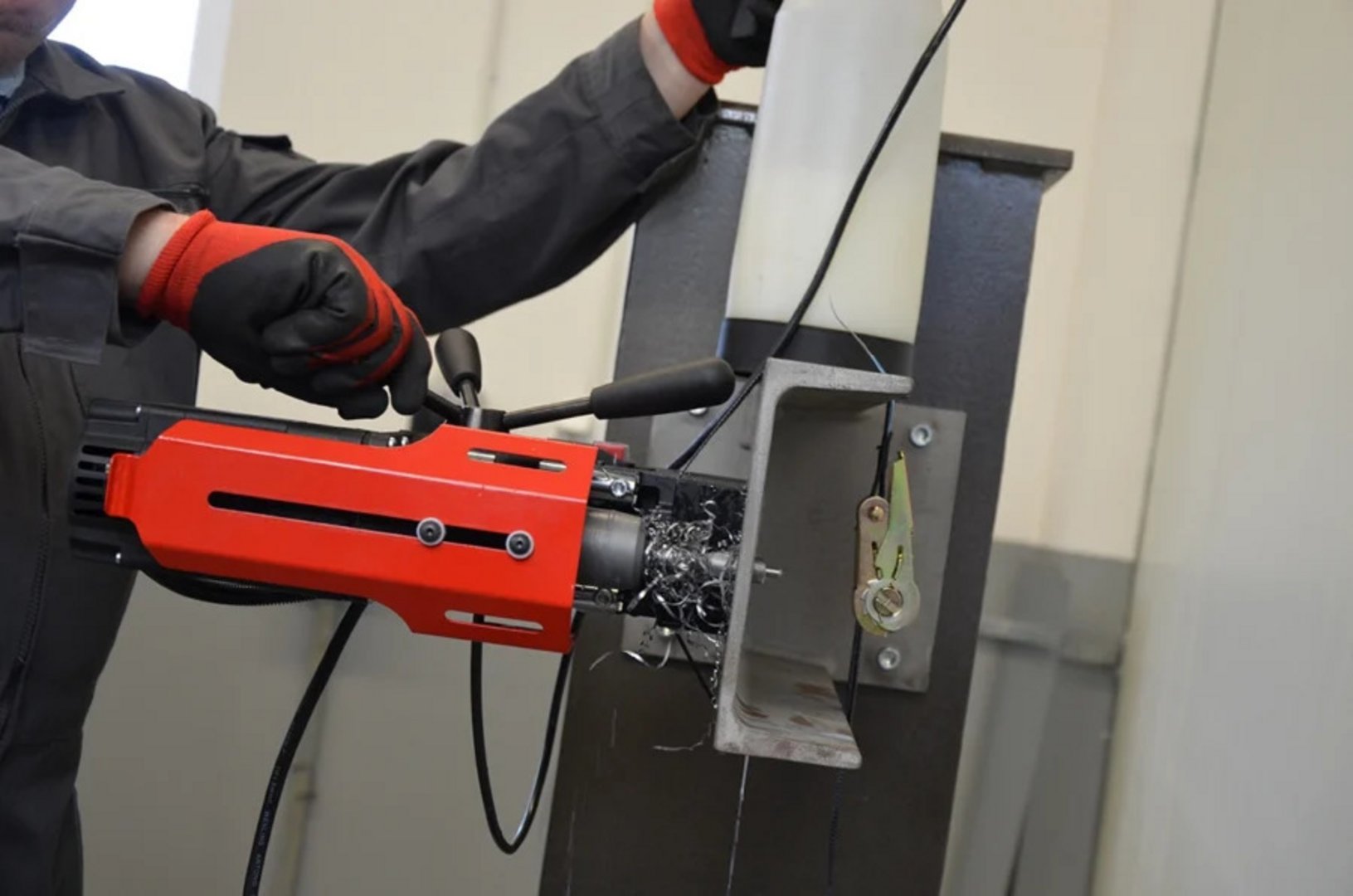

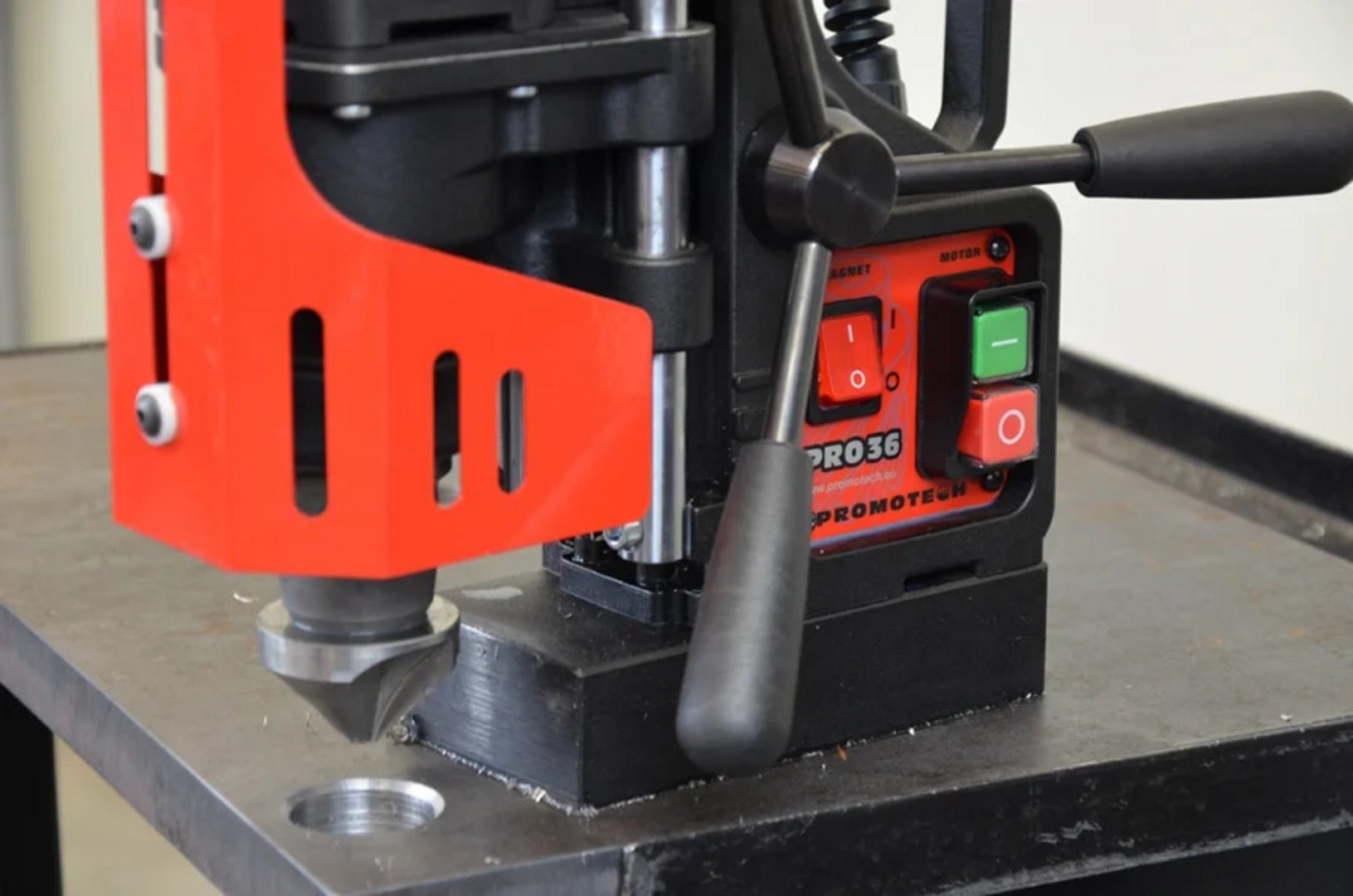

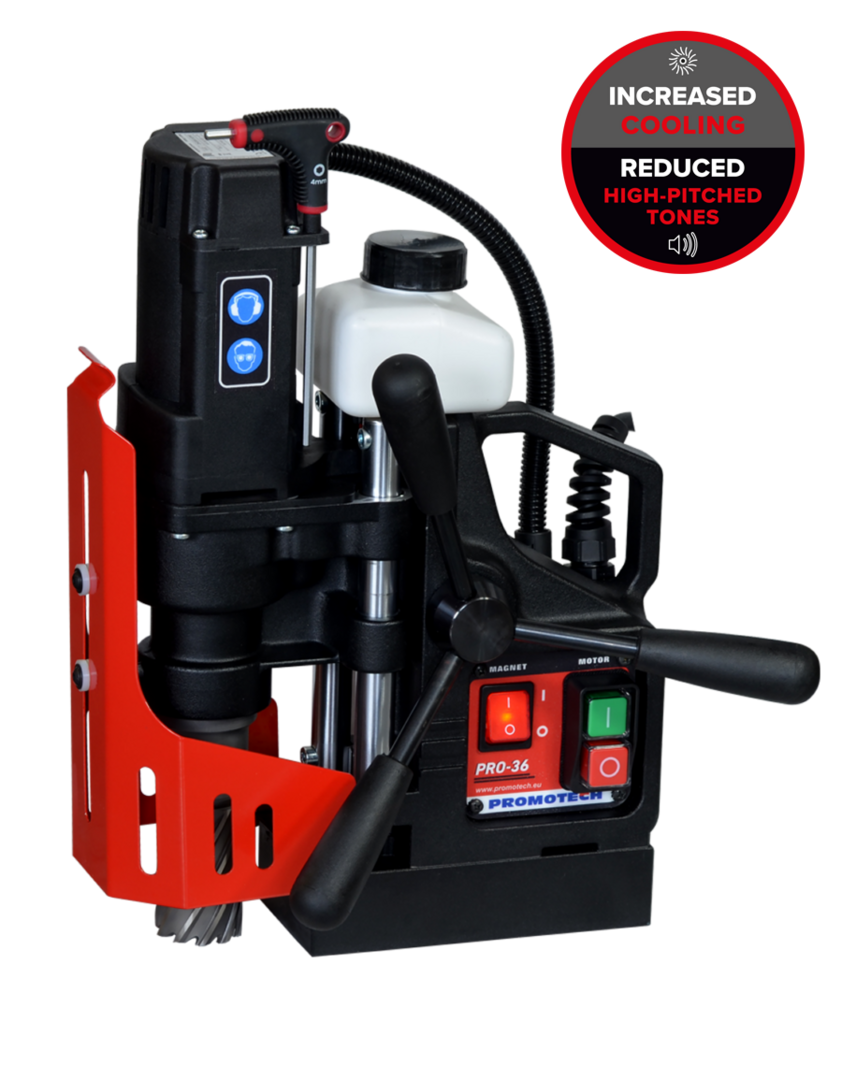

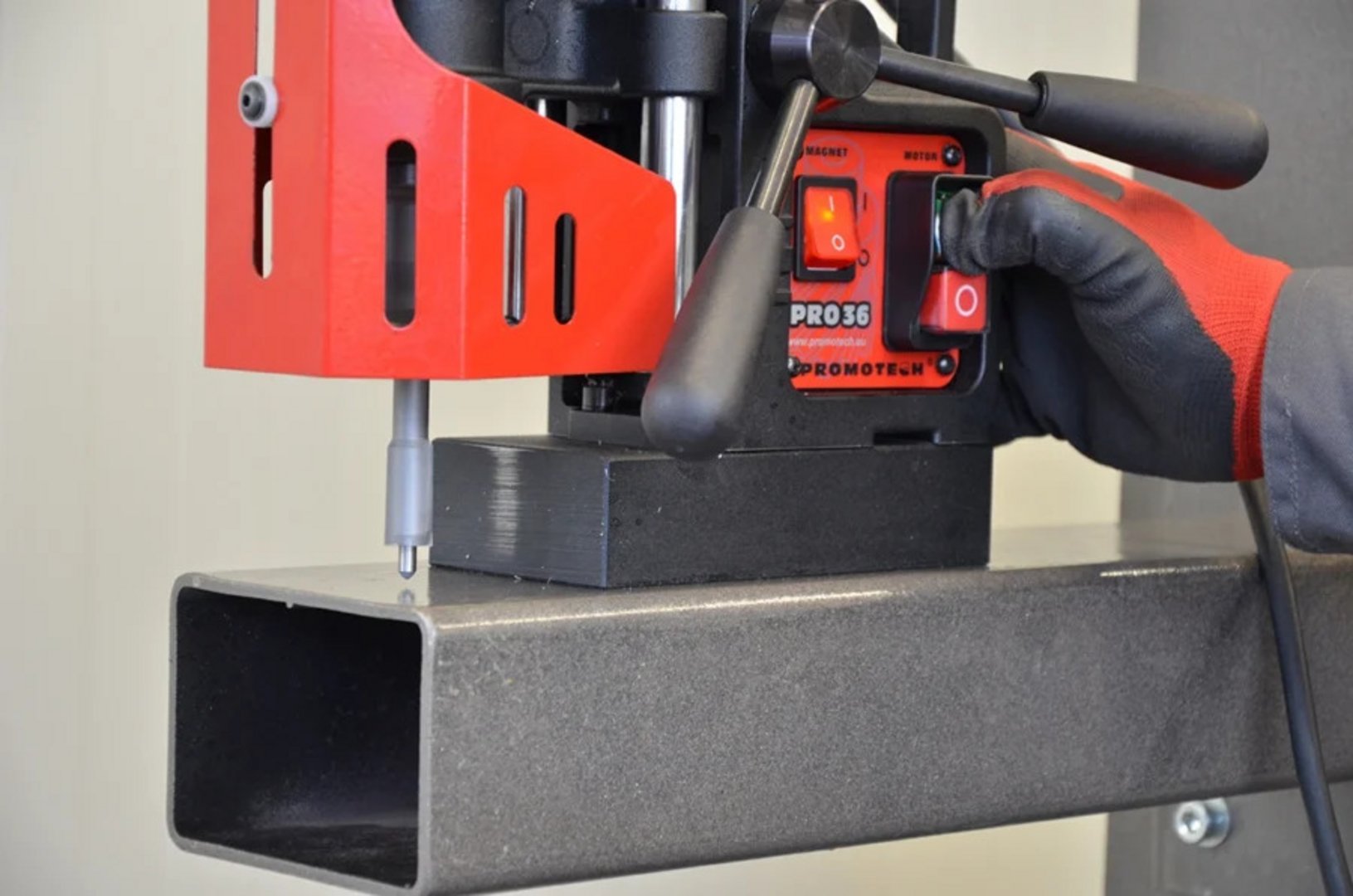

The PRO-36 makes holes up to 36 mm in diameter by using annular cutters. The machine can also drill holes up to 12 mm in diameter
by means of twist drill bits with Weldon shank 19mm (3/4’’).
Compact design and excellent ratio weight/power make this mag drill a very popular choice for customers.
Features & benefits:
• Dual bars guide system ensures extraordinary stiffness
and adjustment free operation
• Compact size and ultra-lightweight – ideal for site work
• Rugged one piece slide and gear box for extra stability
• Purpose designed motor with heavy duty gear box
• Maintenance-friendly design makes it easy to use
• Magnetic Field Shape Control (MFSC) provides maximum holding power on thin materials
• Magnetic Power Adhesion Control (MPAC) detects adhesive force of electromagnetic base and protects
both the machine and the operator from work on too thin work piece
Standard shipping set:
• Magnetic Base Drilling Machine
• Plastic Box
• Swarf Shield/Cutter Guard
• Coolant Bottle Assembly
• Safety Chain with Snap Hook
• Allen wrench hex s=4
• Operator’s Manual
• Standard shipping weight – 16,7 kg (36 lbs
Options (prices on request):
Coolant system 2 lt
Vacuumpad
Compressed air ejector
Pipe attachment
Further information
Product video
Magnetic drilling machine PRO-36
