General characteristics
| Drilling capacy mild steel | 12 mm |
| Taper | 19 mm Weldon |
| Motor power | 0.4 kW |
| Max. drilling capacity | 12 mm |
| Max. core drill capacity | 36 mm |
| Max. cutting depth | 50 mm |
| Stroke | 70 mm |
| Motor speed | 260 rpm |
| Min. workpiece thickness | 6 mm |
Dimensions and weight
| Length | 361 mm |
| Width | 238 mm |
| Height | 352 mm |
| Weight | 145 kg |
Description

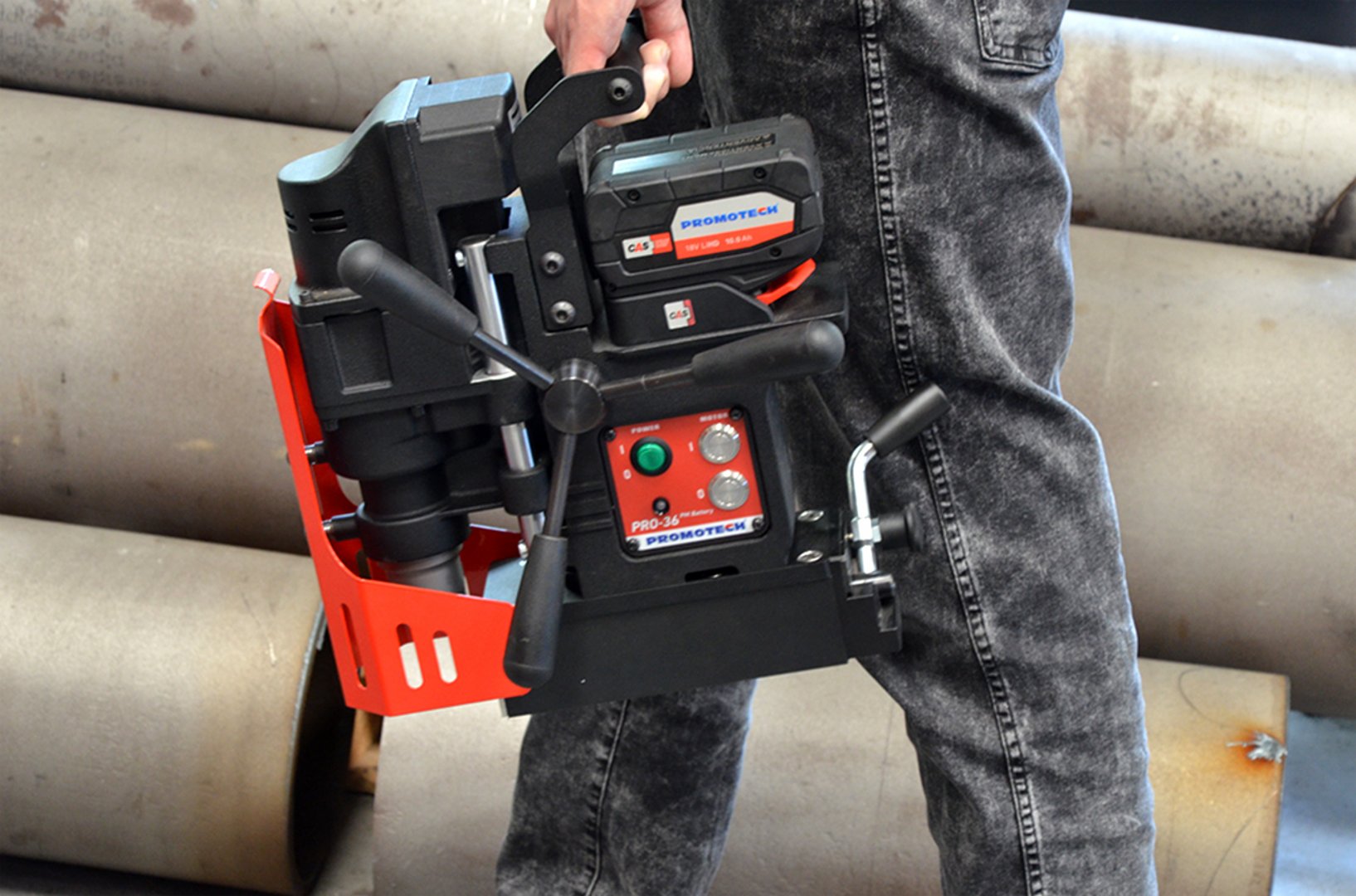

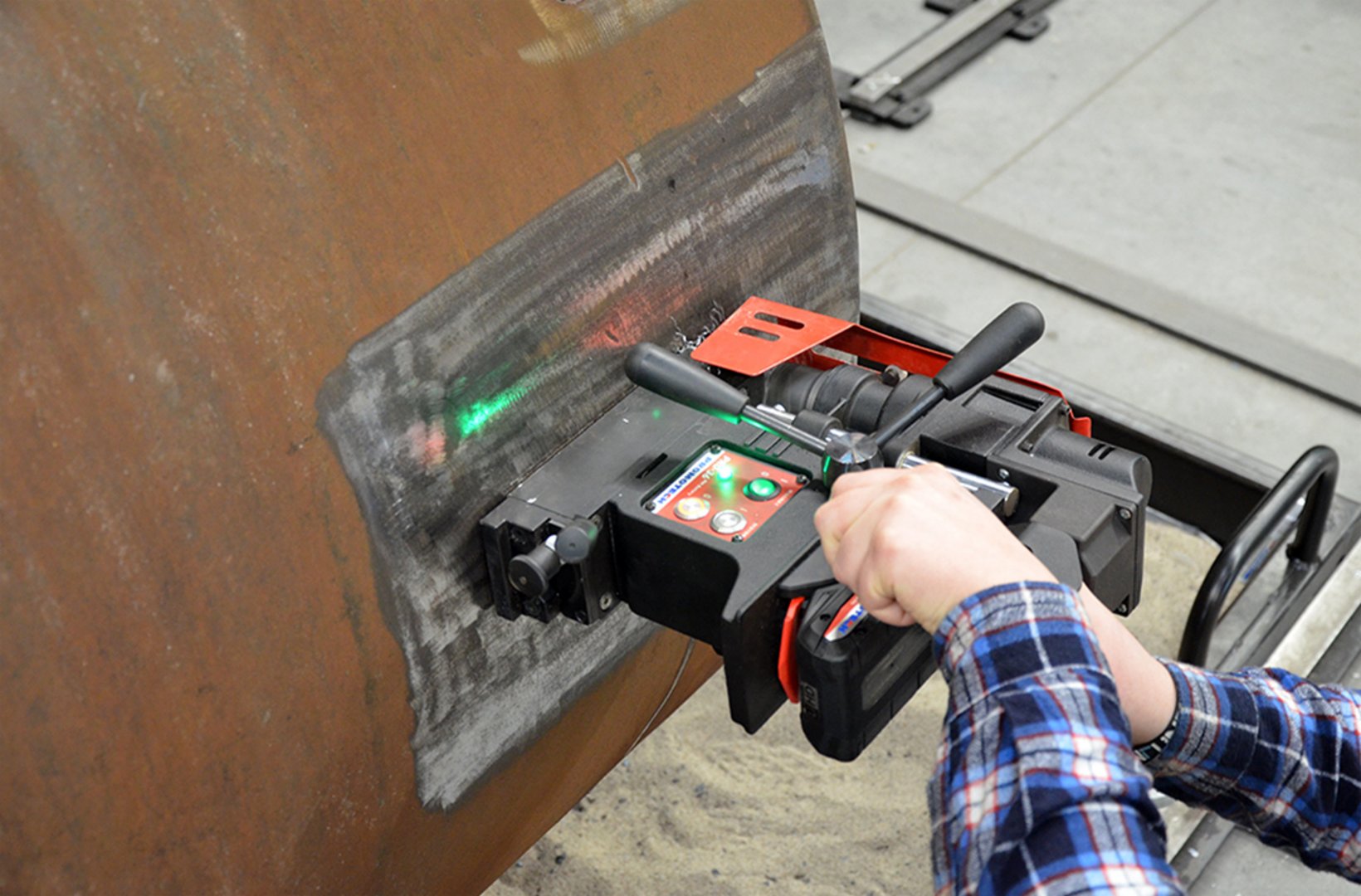

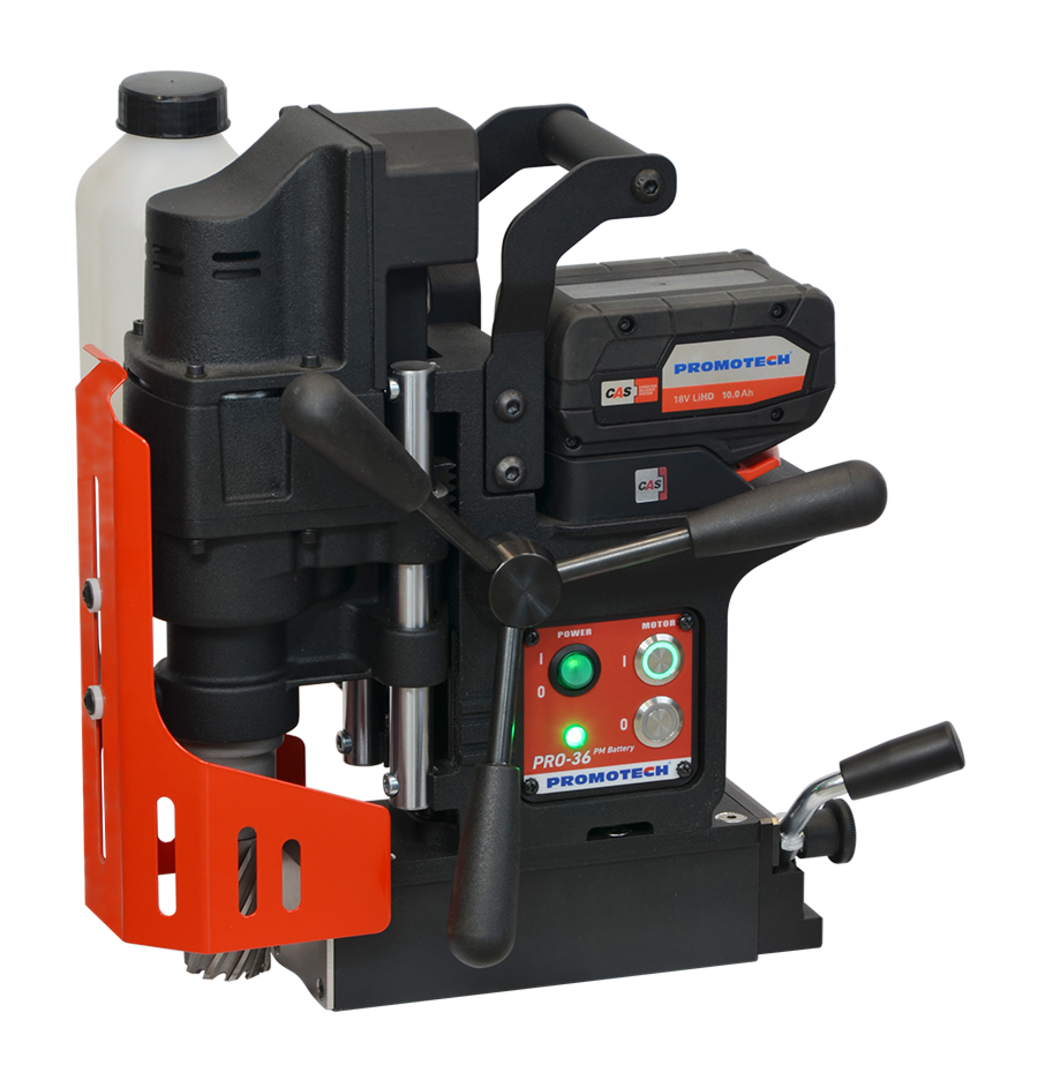

This special design battery-operated drilling machine equipped with permanent magnetic base is dedicated to operate
in remote areas, where no power supply is available.
The base includes very strong neodymium magnets and does not require any electricity to operate.
PRO-36 PM Battery is equipped with LED monitoring system that generates signals in green and red colors to indicate
the current status of the drill and provide safety information.
The drill can be used with convex (min diameter – 80 mm) and concave (min diameter 1000 mm) materials.

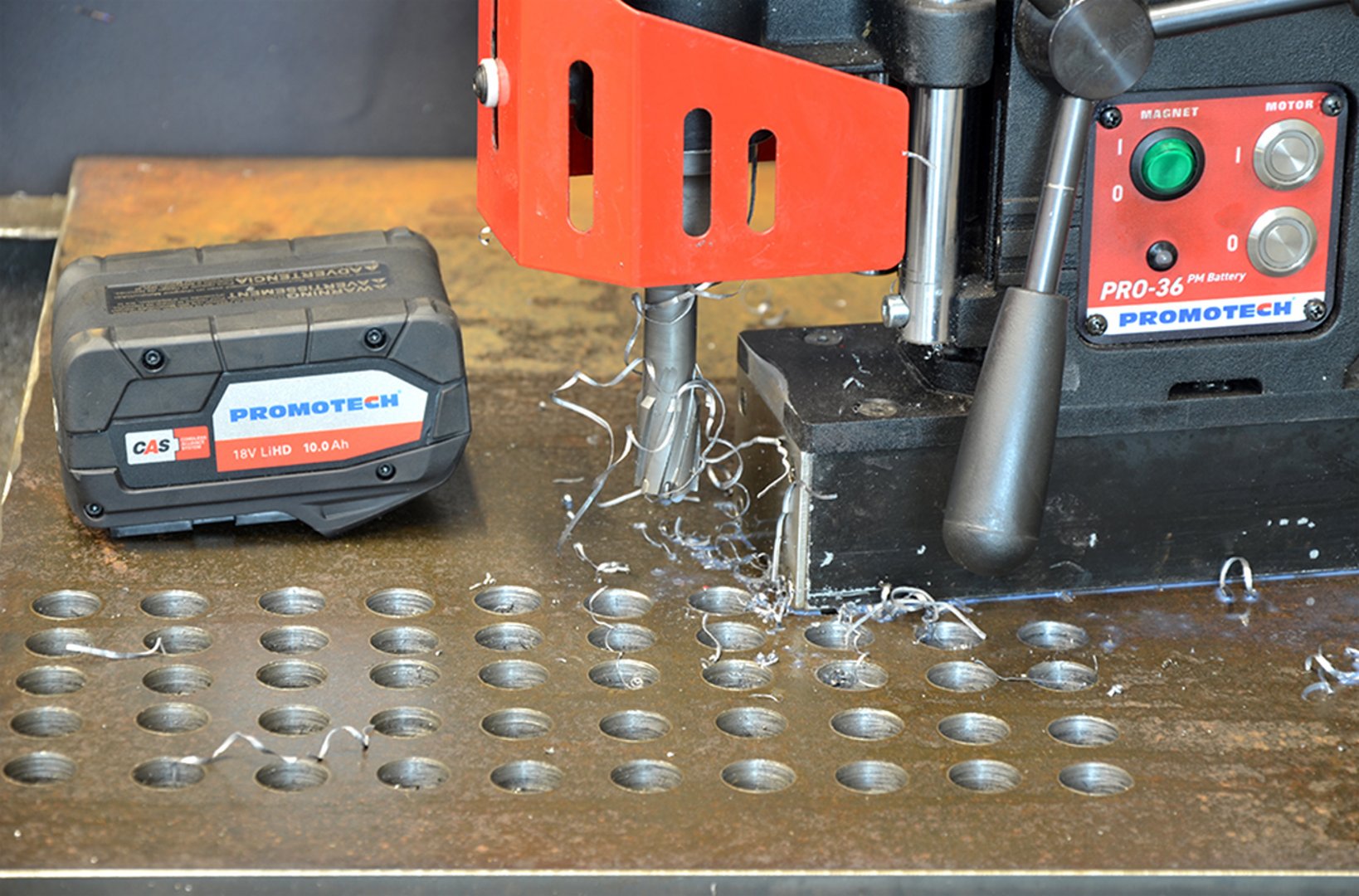

Up to 47 holes fi 20 mm in 10 mm thick plate can be made when PRO-36 PM Battery is equipped with CAS LiHD 10.0 Ah
battery pack.
Features and benefits:
• LED interface flashes green when
inadequate adhesion is detected due to e.g. gap or thin work piece
• dual bars guide system ensures extraordinary stiffness and adjustment free operation
• overload protection
• tilt sensor stops the motor if machine breaks away
• control panel is equipped with so called „vandal resistant” illuminated start/stop motor buttons.
Standard shipping set:
• Cordless Drilling Machine with coolant container
• Plastic Box
• Battery 4.0 Ah
• Handle (3 pcs)
• Safety strap
• Allen wrench hex s=4 with handle
• Operator’s Manual
Options (prices on request):
Battery charger
Pressure cooling system
Vacuumpad
Vacuumpump
Compressed air ejector
