General characteristics
| Drilling capacy mild steel | 32 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 220 – 950 mm |
| Revs | 73 – 1.247 (6) r.p.m. |
| Tapping capacity | Steel: M 25; Cast iron: M 32 |
| Distance table - spindle underside | 350 – 1.210 mm |
| automatic feed | 0,05 – 0,15 (3) mm/min |
| Spindle motor | 1.5 kW |
| Column diameter | 210 mm |
| Quill travel | 220 mm |
| Table | 1.260 x 640 x 160 mm |
| Box table dimensions | 600 x 445 x 380 mm |
| max. height | 2320 mm |

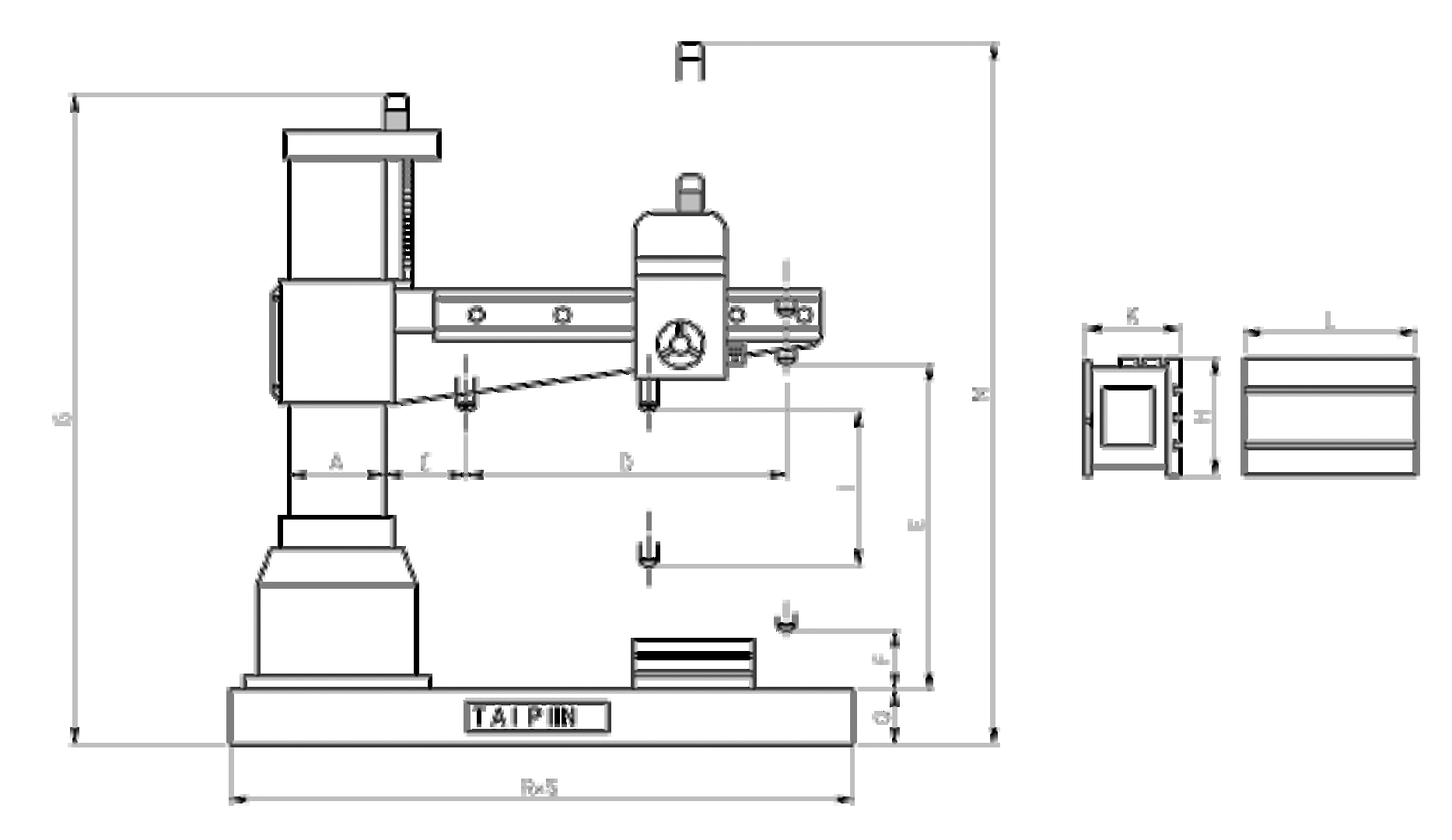

Dimensions and weight
| Length | 1800 mm |
| Width | 830 mm |
| Height | 2190 mm |
| Weight | 1250 kg |
Description
left/right rotation
automatic feed
drilling depth limit
manual headstock adjustment with mechanical clamping
electric height adjustment of extension arm and mechanical clamping
mechanical clamping of swivel movement of extension arm

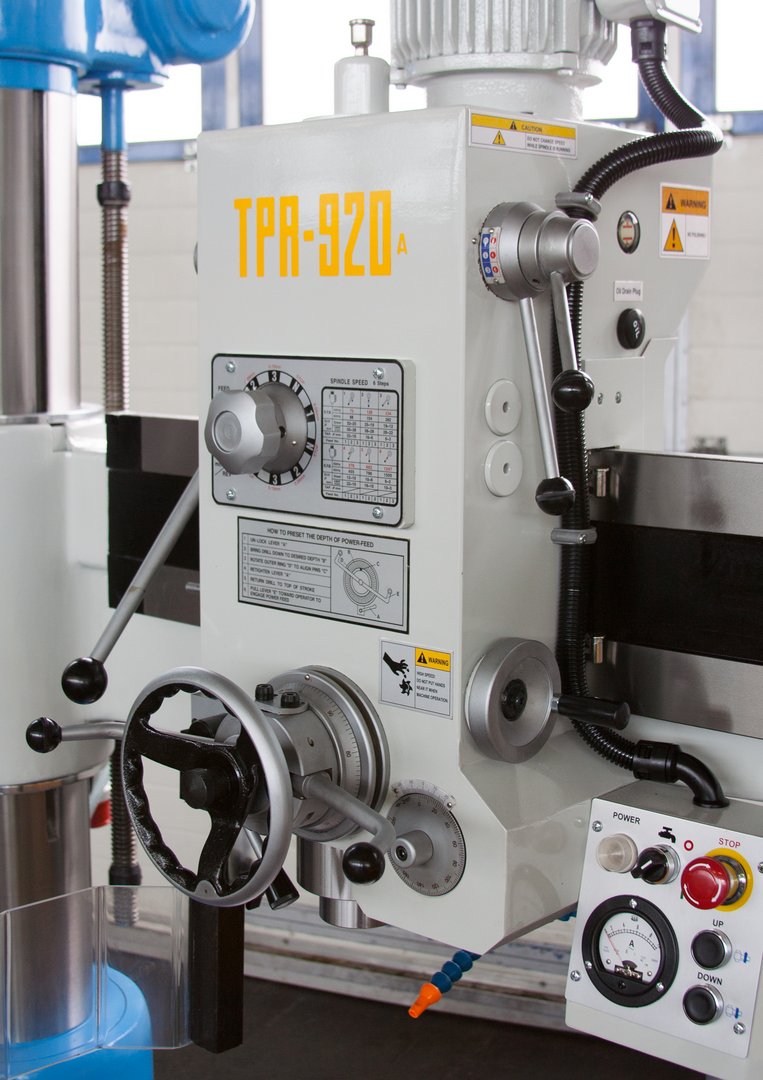

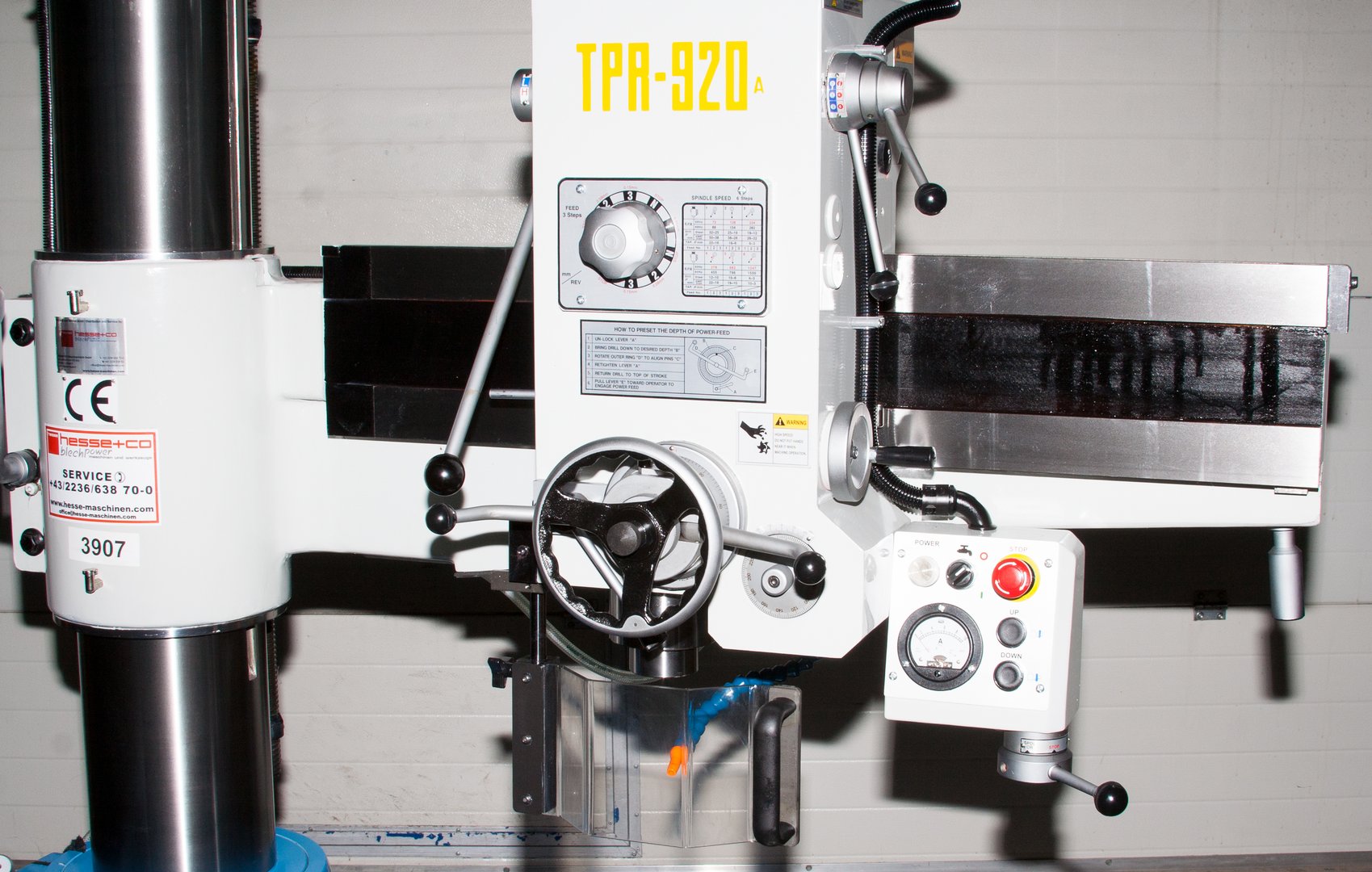

central operation panel on the front side
power load readout for drilling spindle

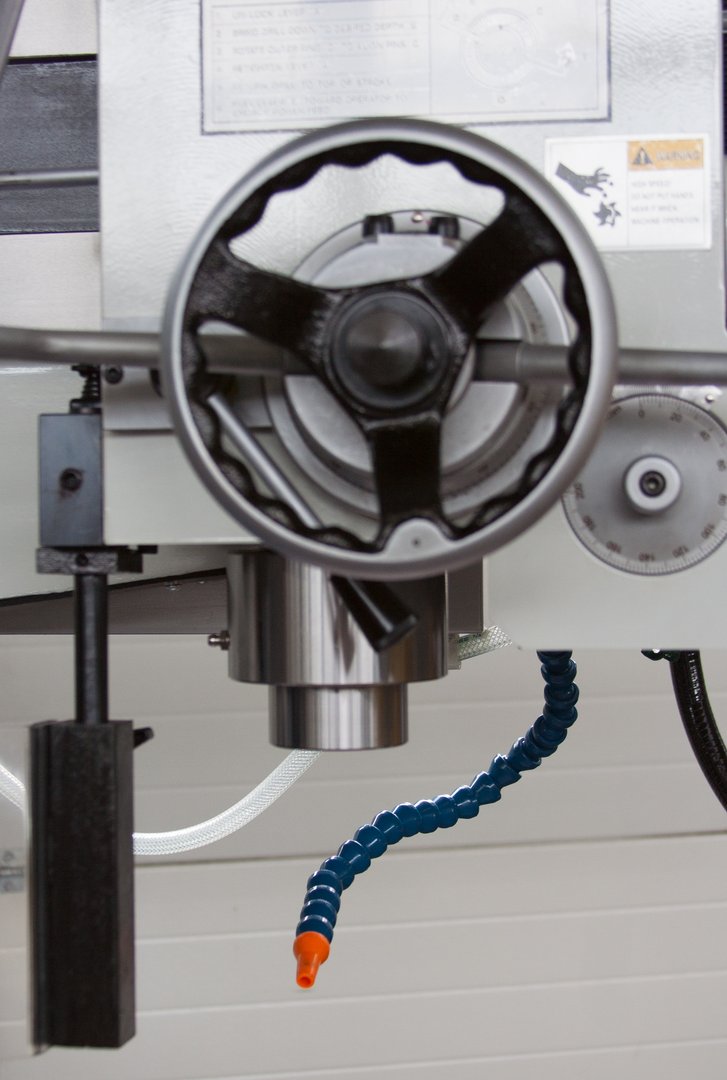

hand wheel for spindle fine feed
coolant equipment
machine lamp

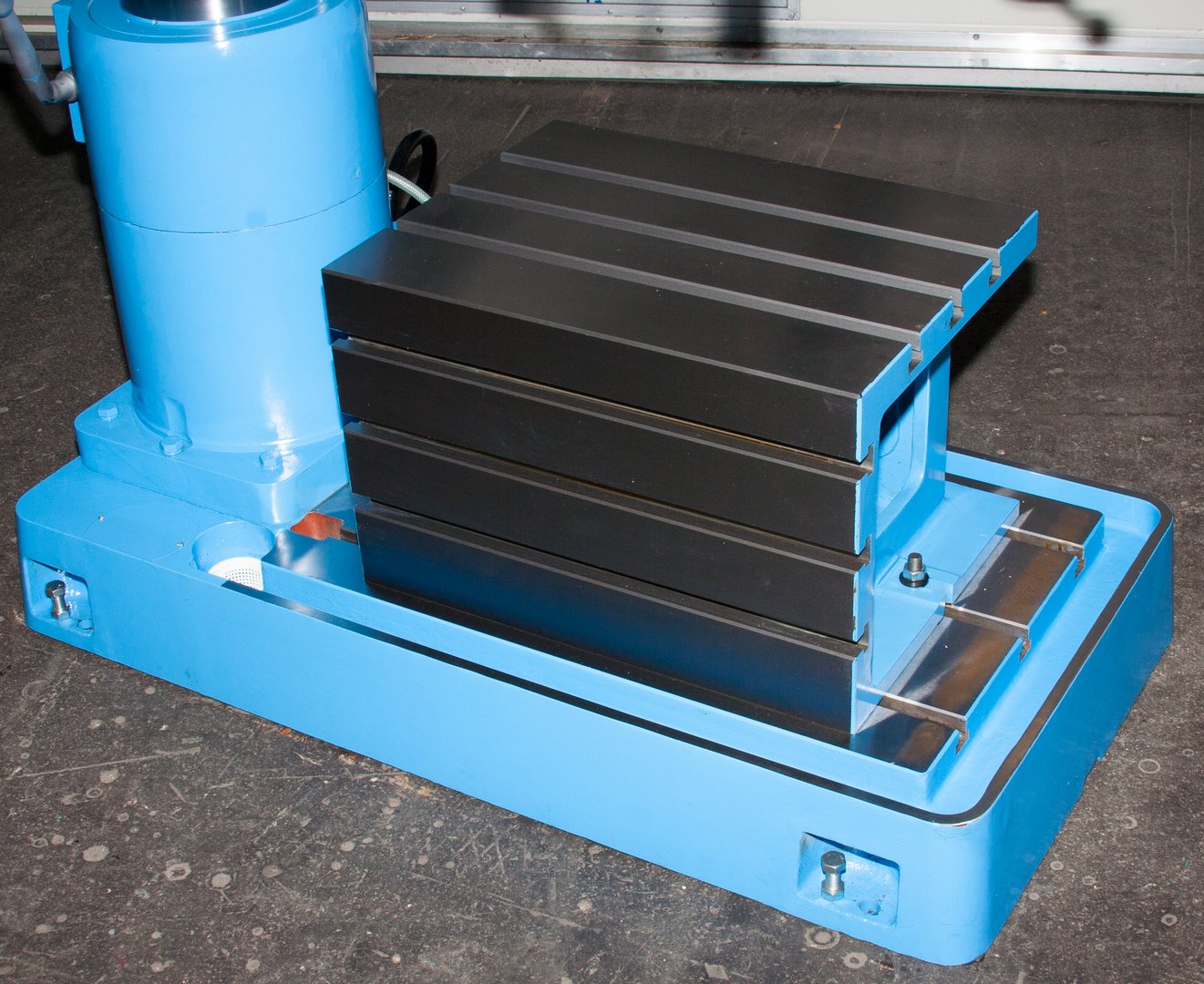

box table
machine and equipment according to the CE-regulations
operating manual in GERMAN and ENGLISH
Further information
Brochures
Product video

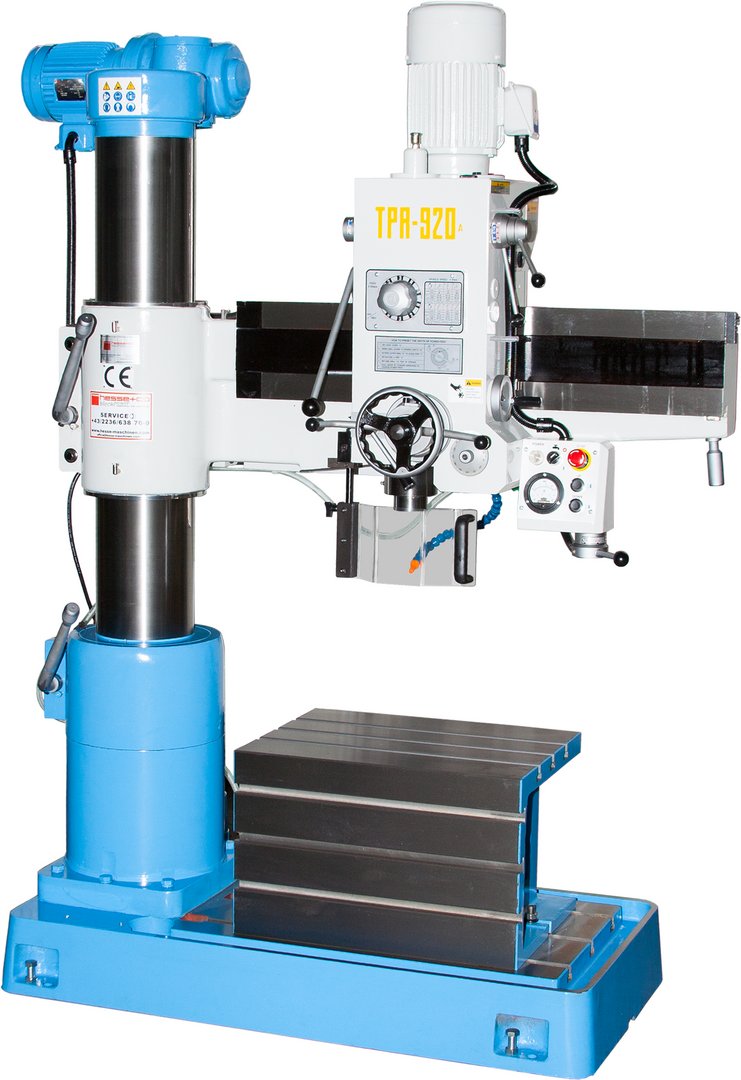

Radial drilling machine TPR-920A
