C-frame eccentric press HESSE by FRESAN FP 10 P
| Model | FP 10 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| Year of manufacture | 2026 |
| pressing capacity | 10 to |
| Strokes | 200 1/min |
| Stock number | 70223 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 10 to |
| Tonnage rating point | 1.4 mm |
| Table length | 270 mm |
| Table width | 370 mm |
| Hole in table | 100 mm |
| Stroke | 1 - 40 mm |
| Strokes | 200 1/min |
| Ram guides | 4 |
| Ram adjustment | 35 mm |
| Ram hole | 25 mm |
| Throat depth | 160 mm |
| Daylight | 180 mm |
| Motor | 0.75 kW |
Dimensions and weight
| Length | 1170 mm |
| Width | 1180 mm |
| Height | 1700 mm |
| Weight | 590 kg |
Description
Welded steel frame construction
4-fold ram guide
Pneumatic clutch-brake combination

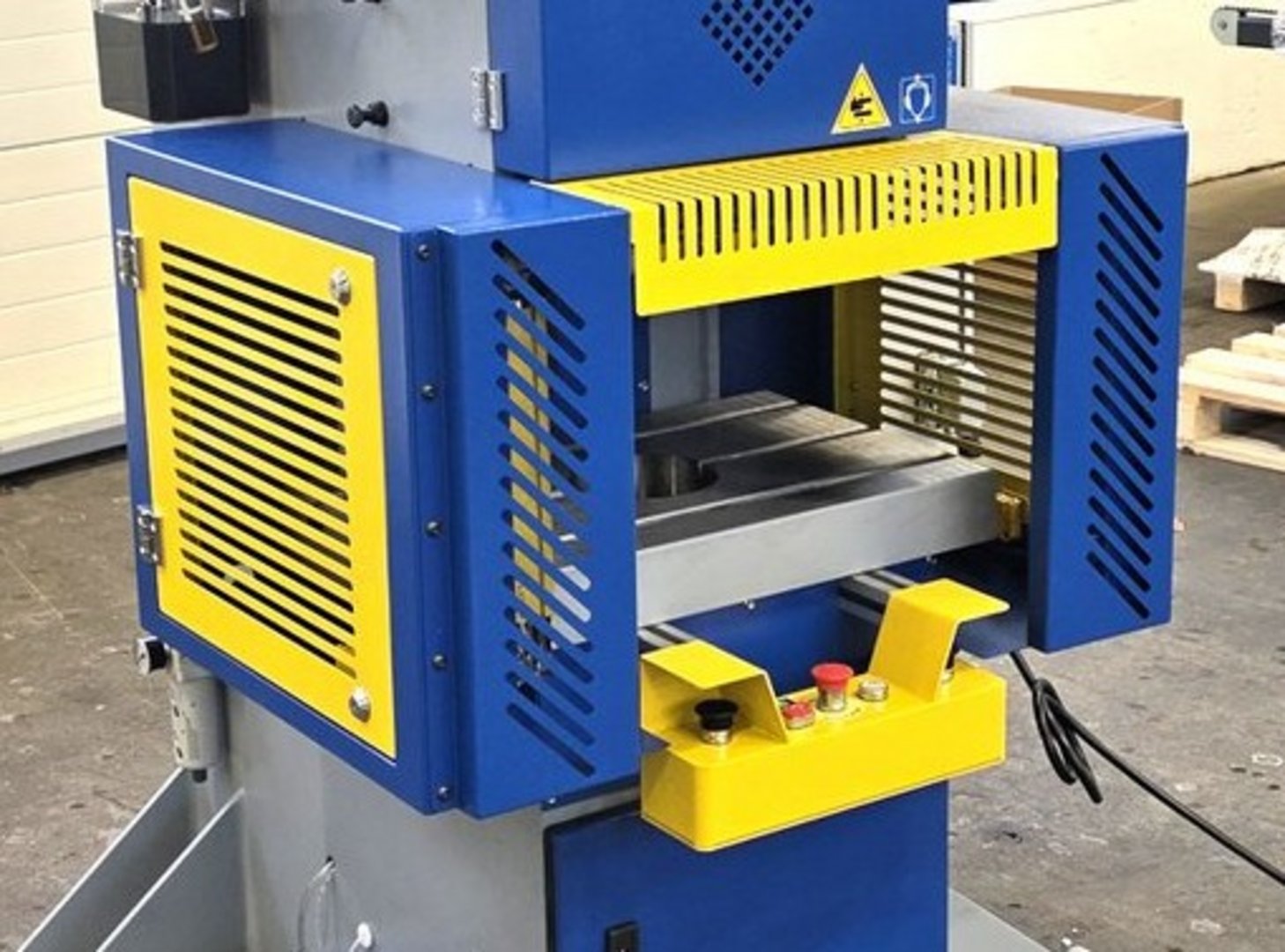

Protective enclosure with light barriers and side doors
Two-hand and foot pedal operation
Manual stroke adjustment
Manual ram adjustment
Variable stroke rate via frequency converter
Operating modes:
- Adjustment mode
- Two-hand release
- Foot release
- 2-stroke operation via light barriers
- Continuous operation
Touchscreen for
- Stroke counter with preselection for continuous operation
- Stroke rate adjustment
- Lubrication intervals and duration
- Alarm messages
- Motor direction of rotation
- Monitoring of inputs and outputs
2 free cams for connecting peripherals
Automatic central lubrication
Equipment in accordance with CE regulations
Options:
| vibrations pads | € | 132,- |
| bolster plate | € | 220,- |

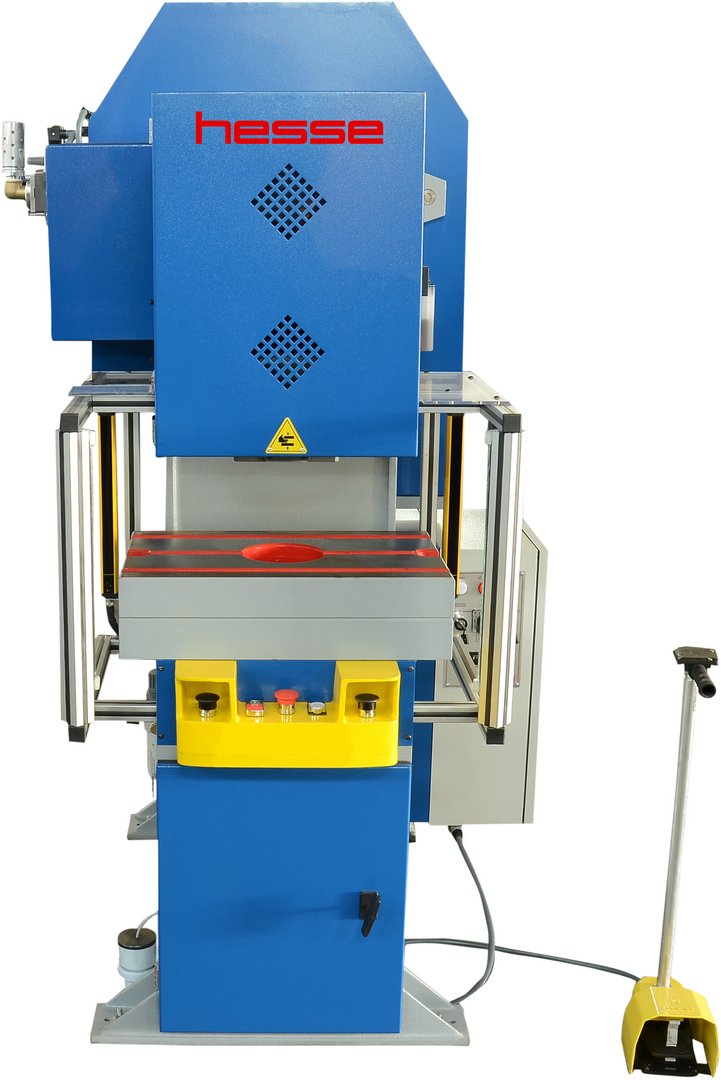

Symbolic photos, picture incl. optional available bolster plate
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
