C-frame eccentric press HESSE by FRESAN FP 80 P
| Model | FP 80 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| pressing capacity | 80 to |
| Strokes | 60 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 80 to |
| Tonnage rating point | 4 mm |
| Table length | 600 mm |
| Table width | 900 mm |
| Hole in table | 200 mm |
| Stroke | 1 - 110 mm |
| Strokes | 60 1/min |
| Ram guides | 6 |
| Ram adjustment | 80 mm |
| Ram hole | 50 mm |
| Throat depth | 300 mm |
| Daylight | 400 mm |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 1600 mm |
| Width | 1500 mm |
| Height | 2750 mm |
| Weight | 5700 kg |
Description
Welded steel frame construction
6-fold ram guide
Pneumatic clutch-brake combination
Protective enclosure with light barriers and side doors
Mechanical overload protection
Two-hand and foot pedal operation
Manual stroke adjustment
Motorized ram adjustment
Variable stroke rate via frequency converter
Operating modes:
Adjustment mode
Two-hand release
Foot release
2-stroke operation via light barriers
Continuous operation
Touchscreen for
Stroke counter with preselection for continuous operation
Stroke rate adjustment
Lubrication intervals and duration
Alarm messages
Motor direction of rotation
Monitoring of inputs and outputs
2 free cams for connecting peripherals
Automatic central lubrication
Equipment in accordance with CE regulations

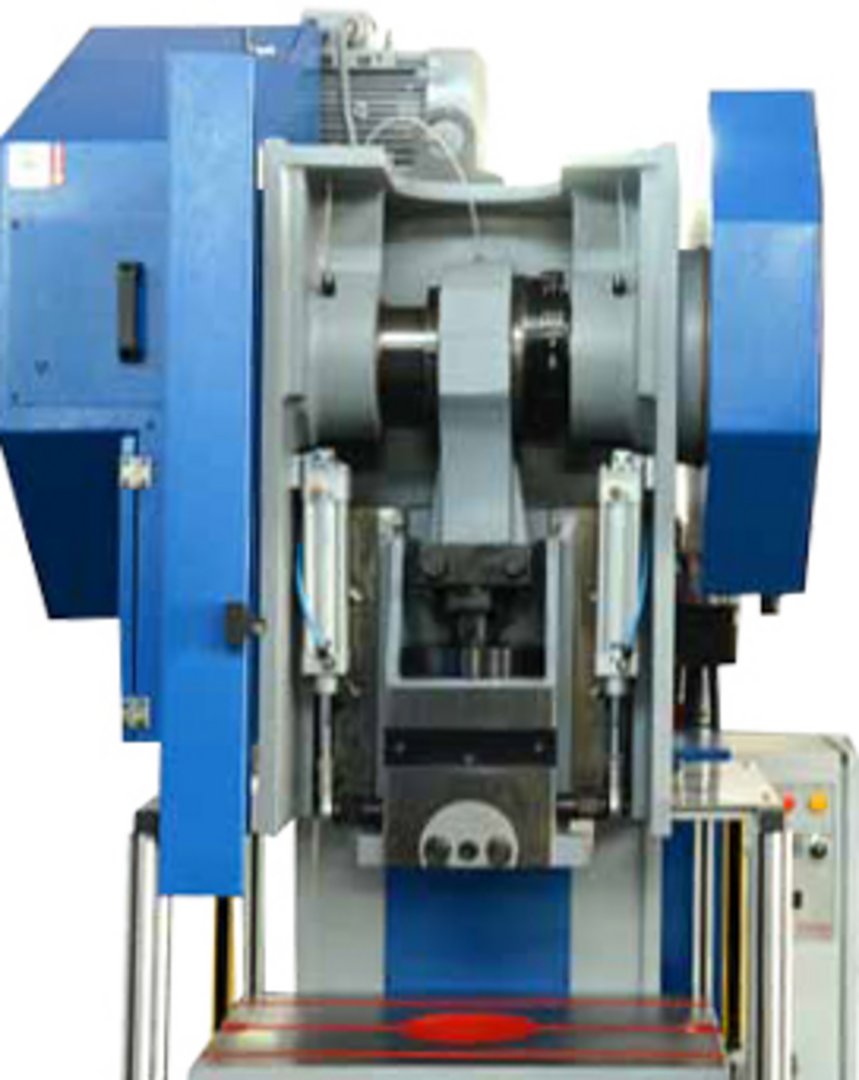

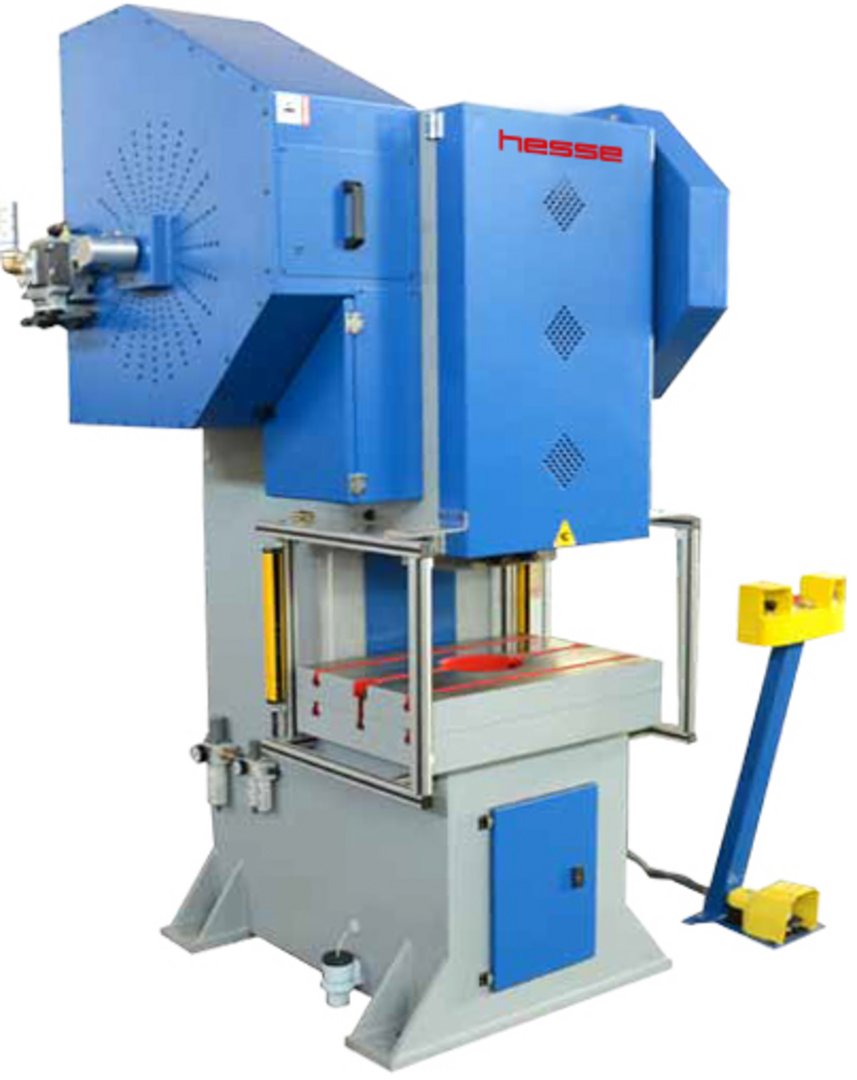

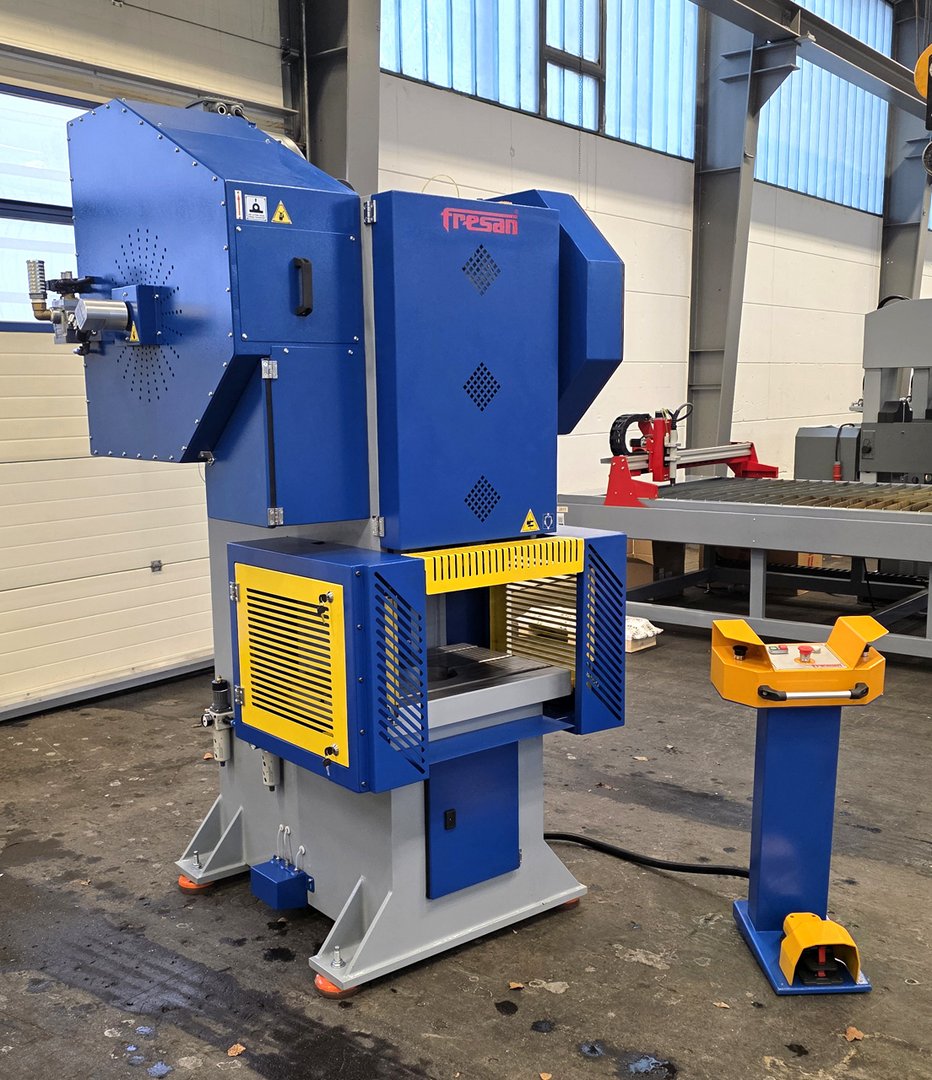

(sample photos)
Options:
| vibration pads | € 192,00 |
| bolster plate | o.r. |
| hydr. overload safety device | o.r. |
etc.
