C-frame eccentric press HESSE by FRESAN FP 130 P
| Model | FP 130 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| pressing capacity | 130 to |
| Strokes | 50 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 130 to |
| Tonnage rating point | 4.5 mm |
| Table length | 650 mm |
| Table width | 950 mm |
| Hole in table | 220 mm |
| Stroke | 1 - 132 mm |
| Strokes | 50 1/min |
| Ram guides | 6 |
| Ram adjustment | 95 mm |
| Ram hole | 70 mm |
| Throat depth | 325 mm |
| Daylight | 500 mm |
| Motor | 11 kW |
Dimensions and weight
| Length | 1800 mm |
| Width | 1725 mm |
| Height | 3020 mm |
| Weight | 8000 kg |
Description
Welded steel frame construction
6-fold ram guide
Pneumatic clutch-brake combination
Protective enclosure with light barriers and side doors
Mechanical overload protection
Two-hand and foot pedal operation
Manual stroke adjustment
Motorized ram adjustment
Variable stroke rate via frequency converter
Operating modes:
- Adjustment mode
- Two-hand release
- Foot release
- 2-stroke operation via light barriers
- Continuous operation
Touchscreen for
- Stroke counter with preselection for continuous operation
- Stroke rate adjustment
- Lubrication intervals and duration
- Alarm messages
- Motor direction of rotation
- Monitoring of inputs and outputs
2 free cams for connecting peripherals
Automatic central lubrication
Equipment in accordance with CE regulations

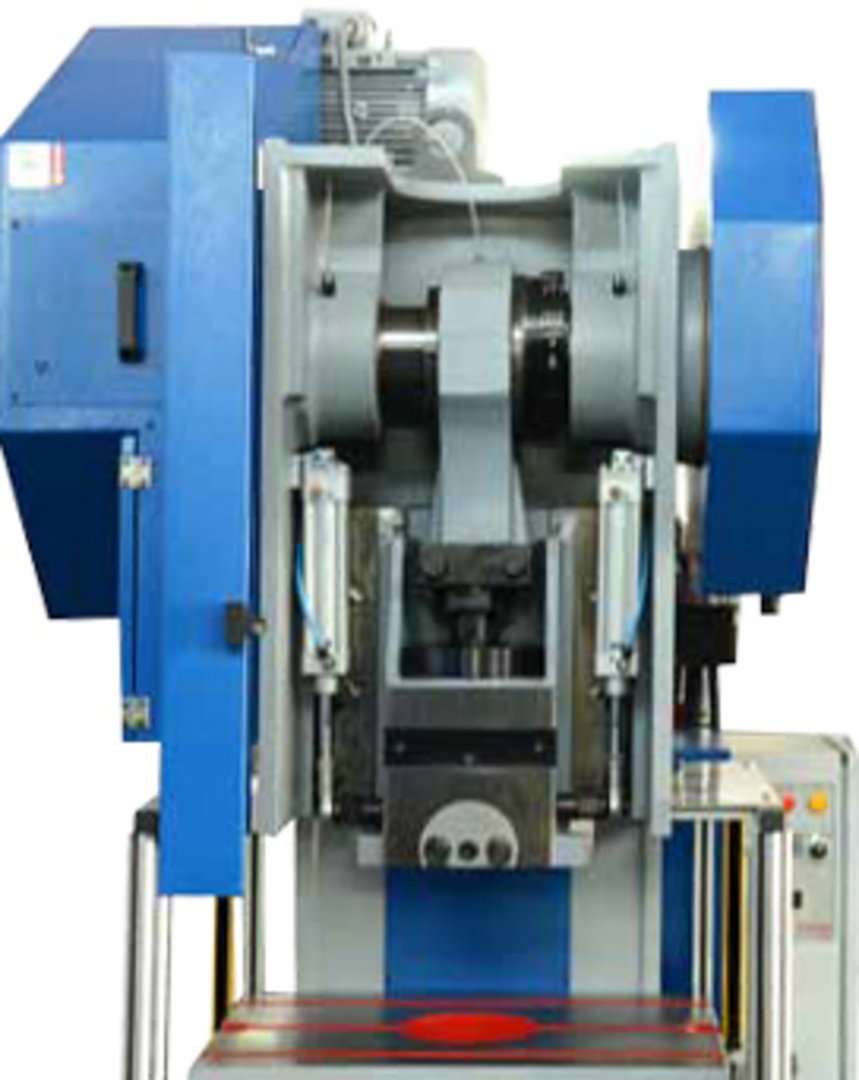

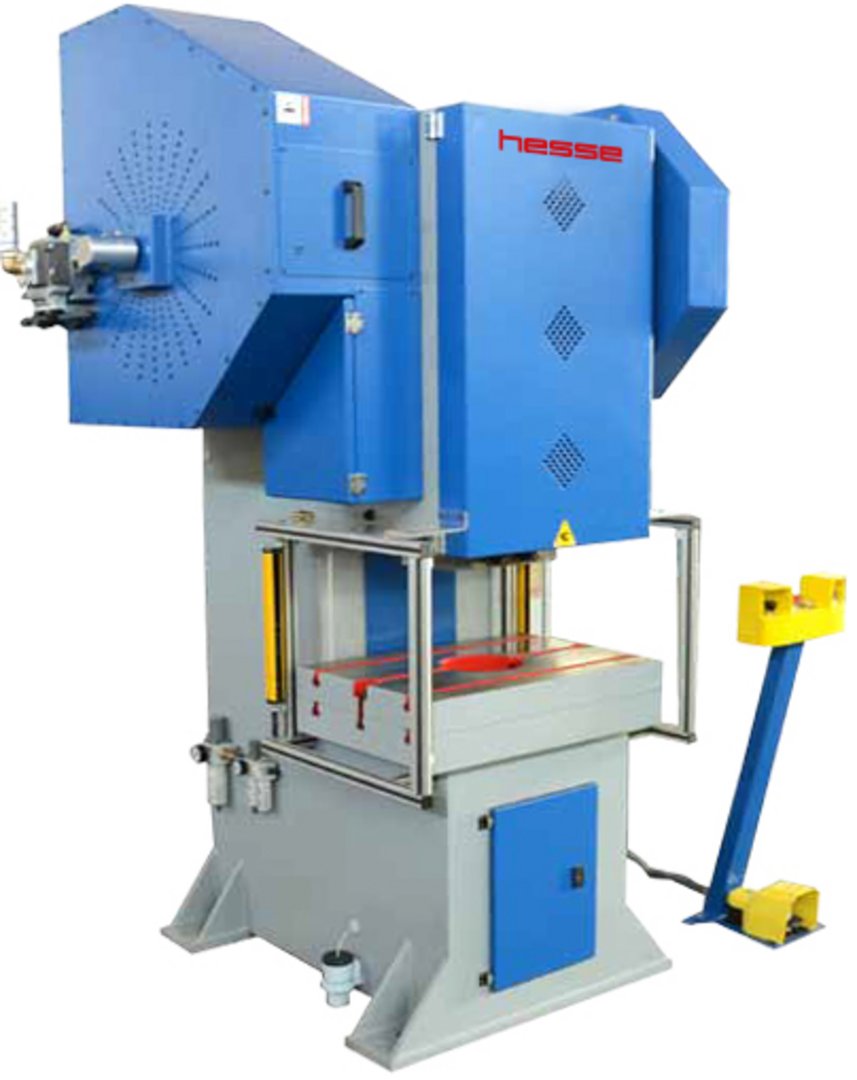

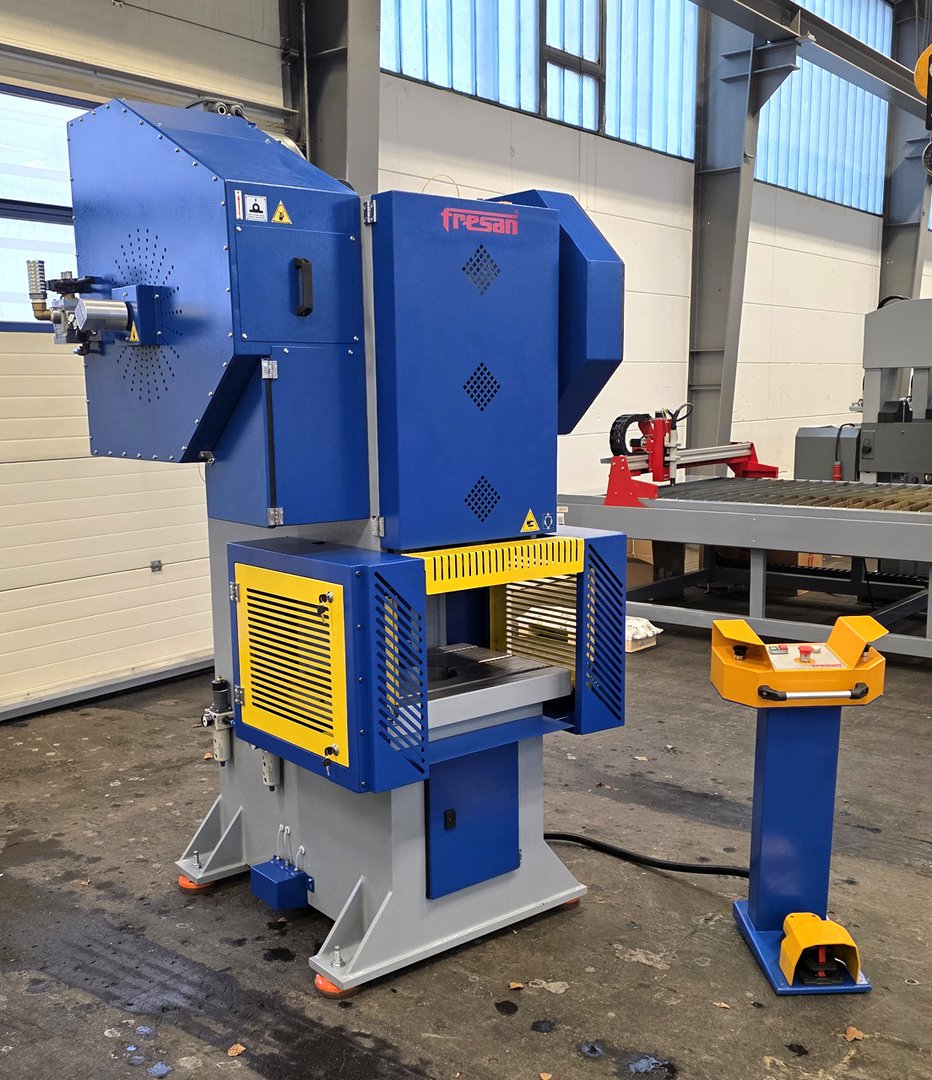

Symbolic photos, picture incl. optional available bolster plate
Options:
| vibration pads | € 192,00 |
| bolster plate | o.r. |
| hydr. overload safety device | o.r. |
etc.
