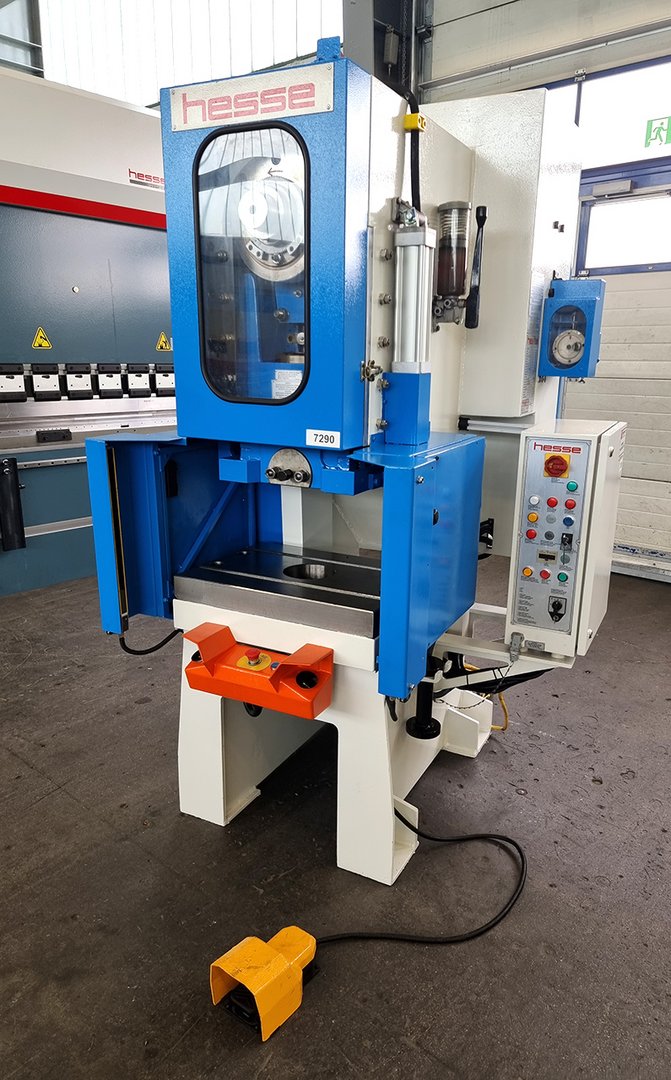

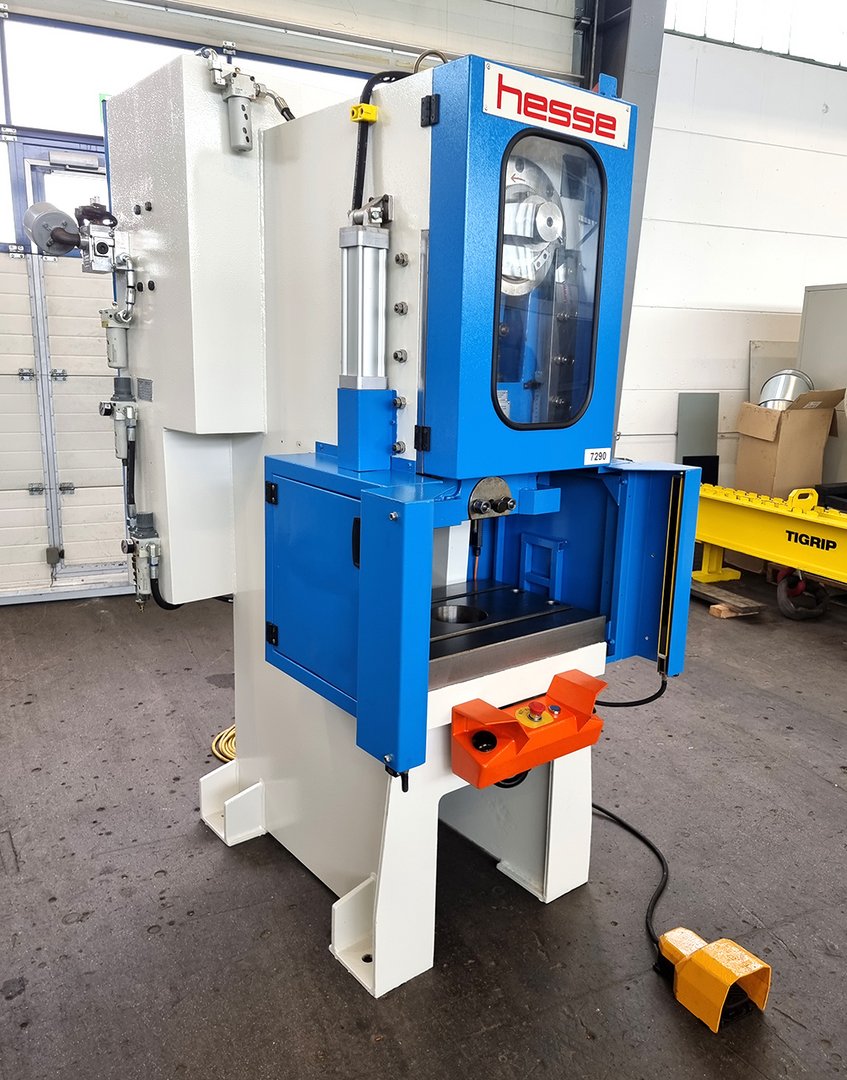

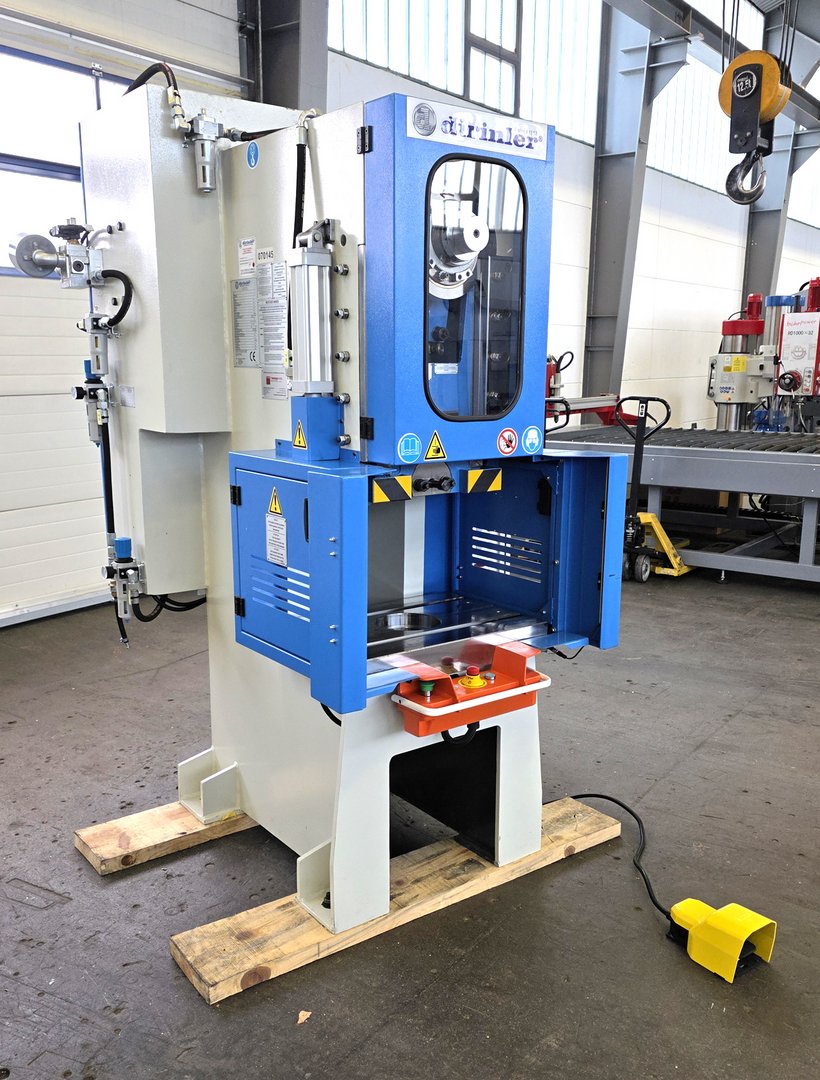

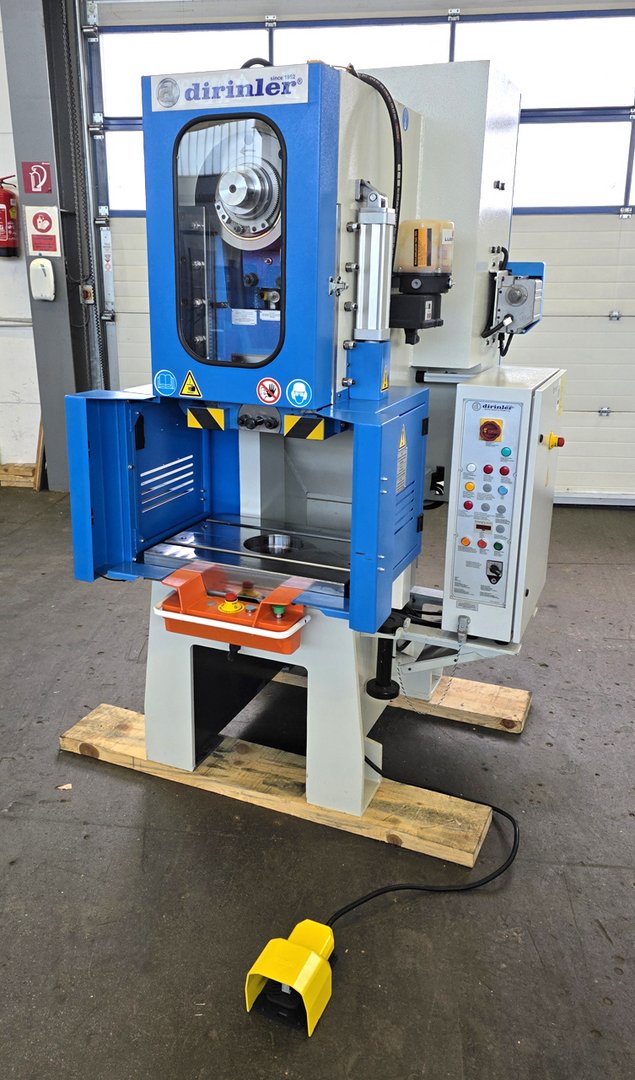

C-frame eccentric press HESSE by DIRINLER CDCS 401 P81
| Model | CDCS 401 P81 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 40 to |
| Strokes | 150 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 40 to |
| Tonnage rating point | 4 mm |

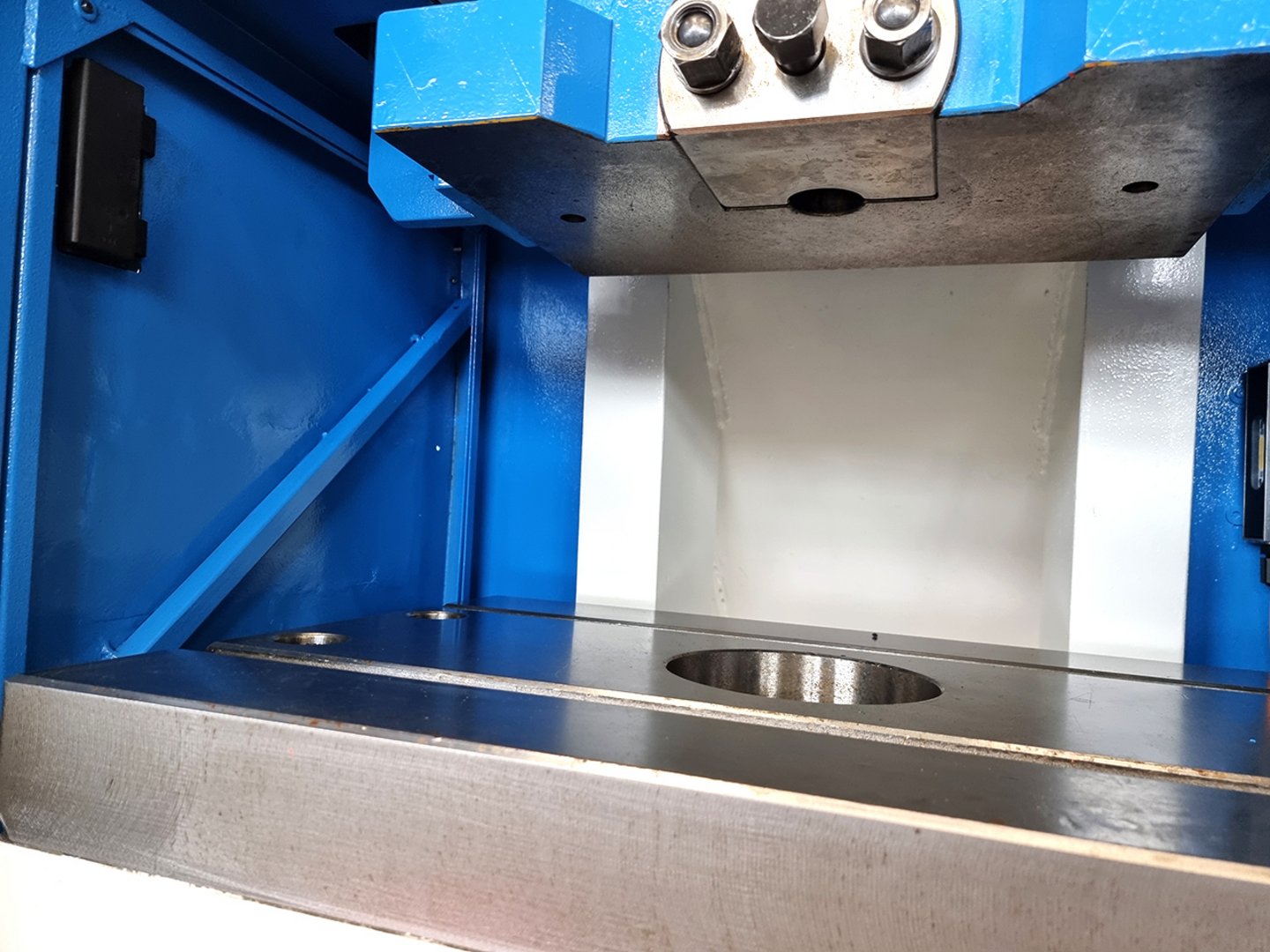

| Table length | 630 mm |
| Table width | 450 mm |
| Hole in table | 160 mm |

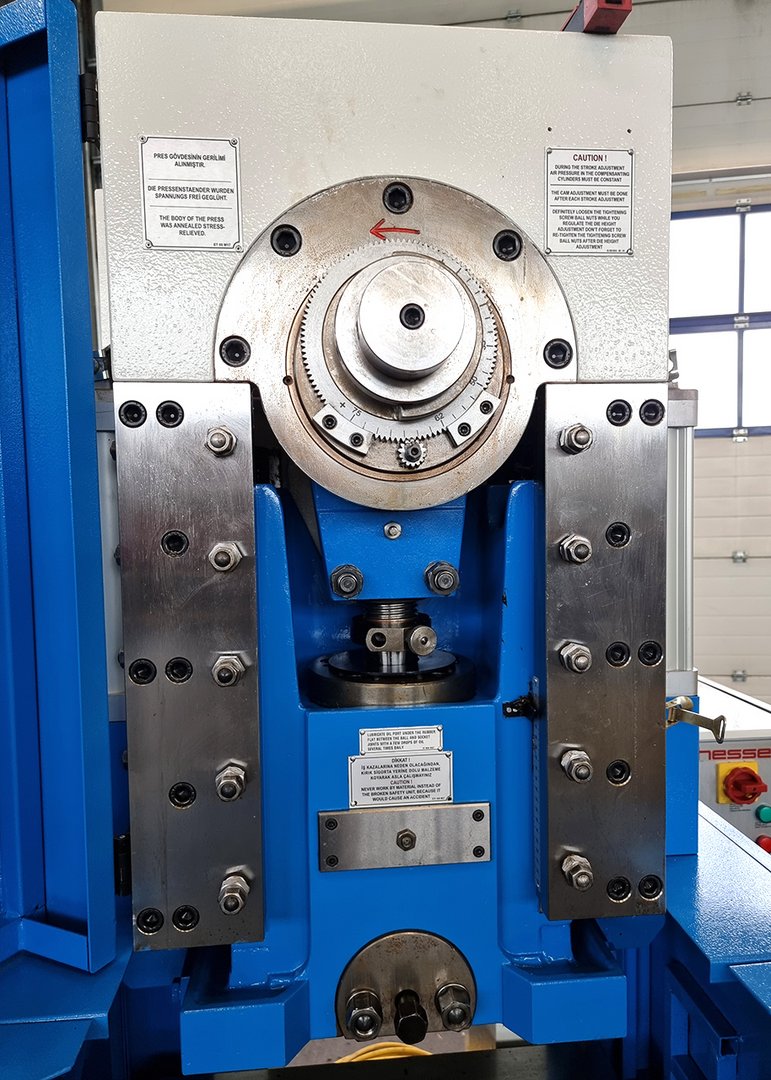

| Stroke | 5 - 75 mm |
| Strokes | 150 1/min |
| Ram | 415 x 275 mm |
| Ram guides | 8 |
| Ram adjustment | 65 mm |
| Ram hole | 40 mm |
| Throat depth | 230 mm |
| Daylight | 280 mm |
| Motor | 4 kW |
Dimensions and weight
| Length | 1174 mm |
| Width | 1740 mm |
| Height | 2106 mm |
| Weight | 2850 kg |
Description

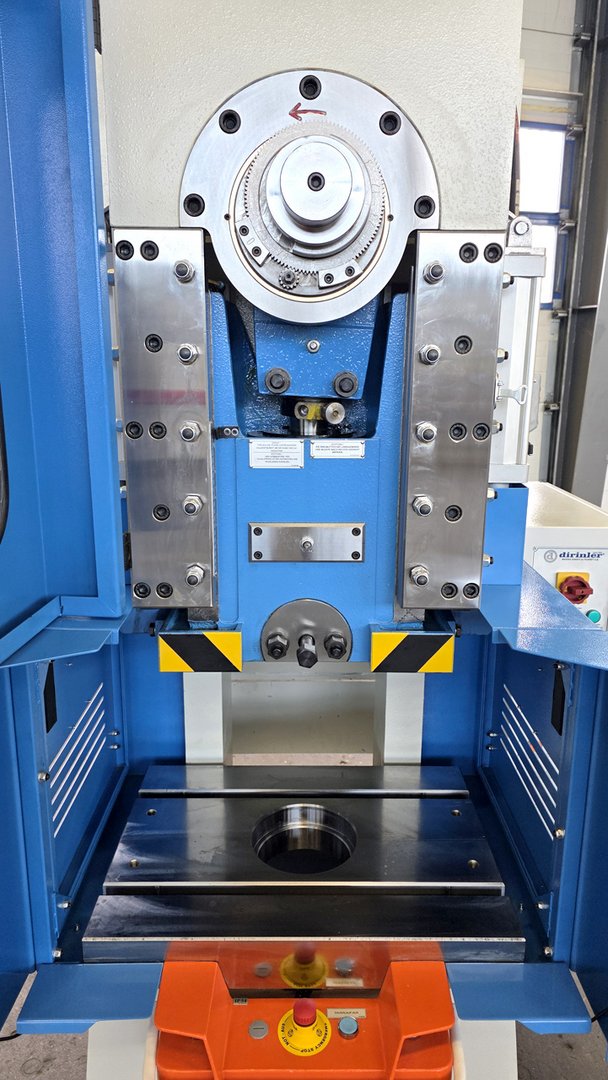

8-fold ram guide

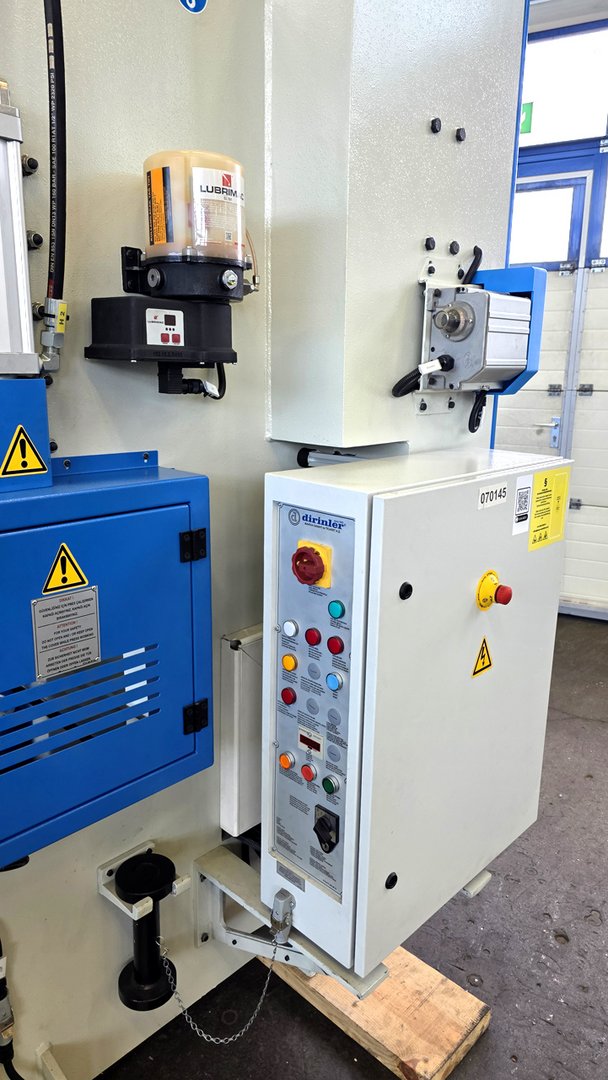

2-hand control panel and foot pedal

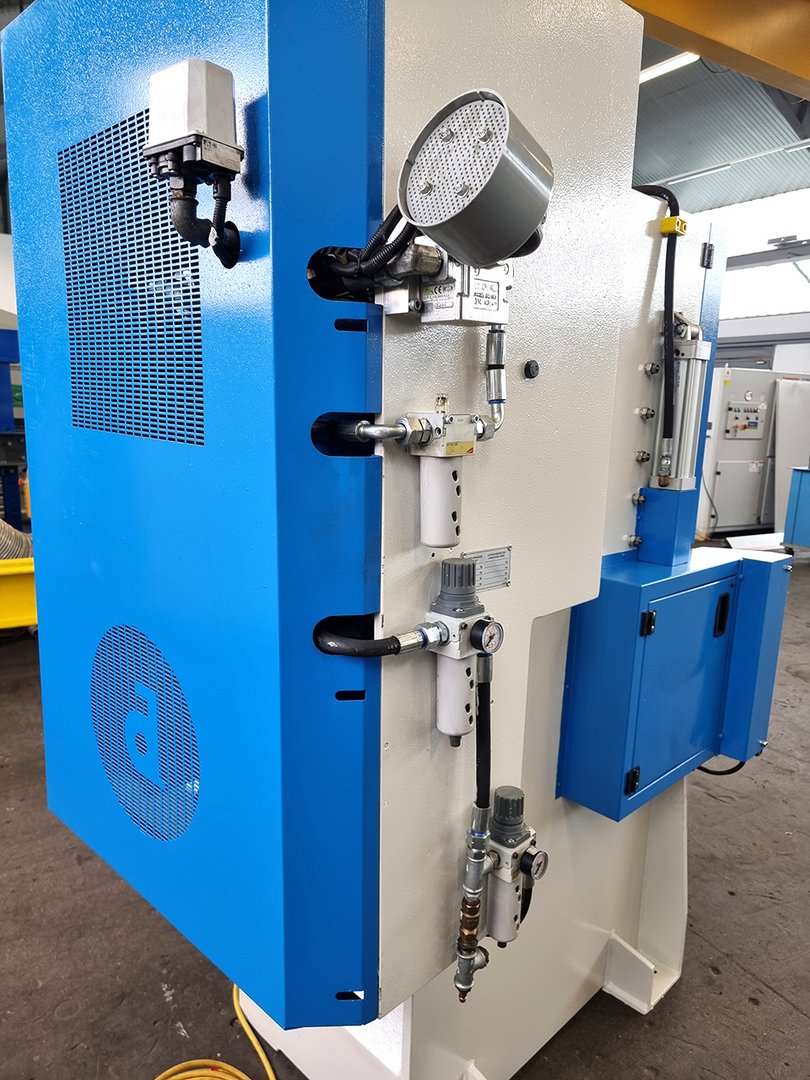

Automatic central lubrication
Front light guard
Vibration pads
User Manual in German with CE Declaration of Conformity
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
