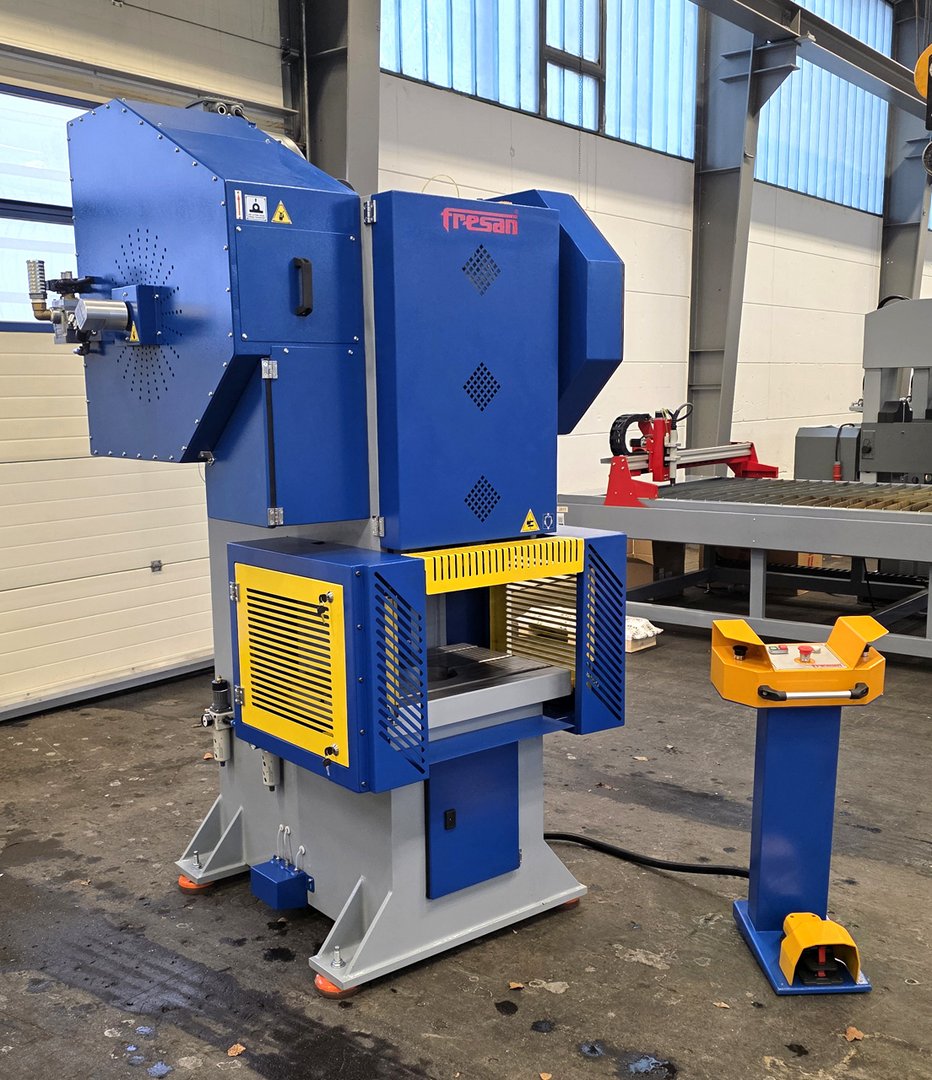

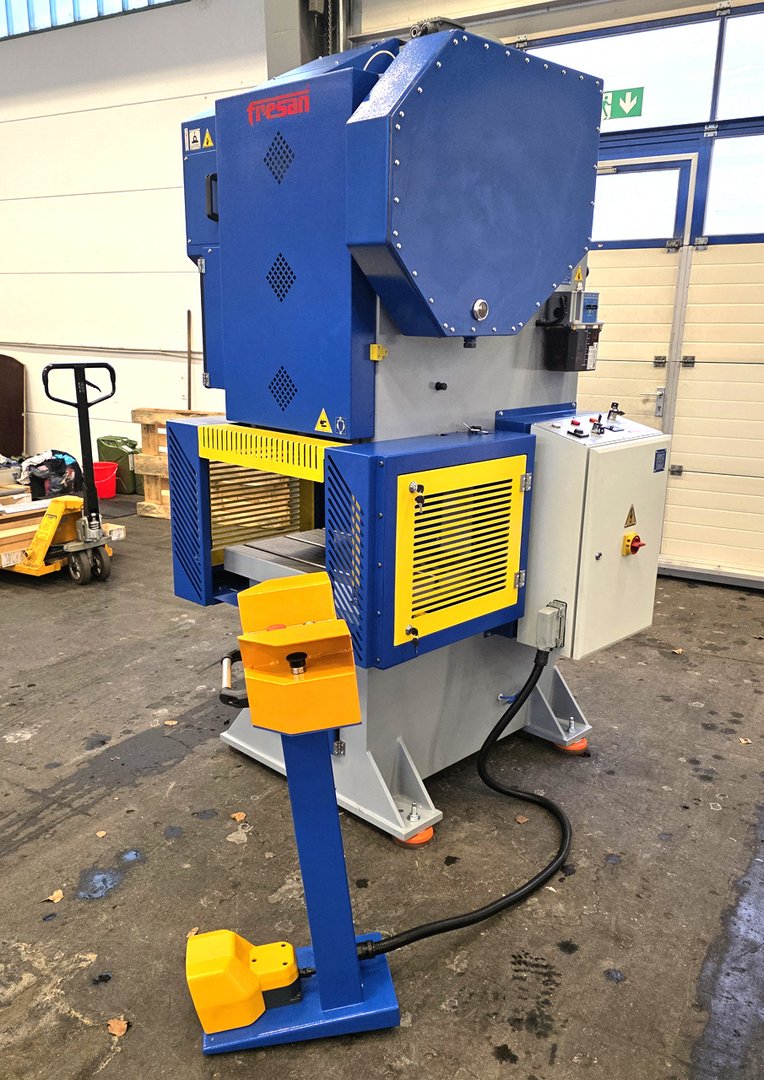

C-frame eccentric press HESSE by FRESAN FP 60 P
| Model | FP 60 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| Year of manufacture | 2026 |
| pressing capacity | 60 to |
| Strokes | 65 1/min |
| Stock number | 70126 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 60 to |
| Tonnage rating point | 3.5 mm |
| Table length | 500 mm |
| Table width | 700 mm |
| Hole in table | 190 mm |
| Stroke | 1 - 100 mm |
| Strokes | 65 1/min |
| Ram guides | 4 |
| Ram adjustment | 70 mm |
| Ram hole | 45 mm |
| Throat depth | 260 mm |
| Daylight | 340 mm |
| Motor | 5.5 kW |
Dimensions and weight
| Length | 1250 mm |
| Width | 1350 mm |
| Height | 2400 mm |
| Weight | 3500 kg |
Description
Welded steel frame construction
4-fold ram guide
Pneumatic clutch-brake combination

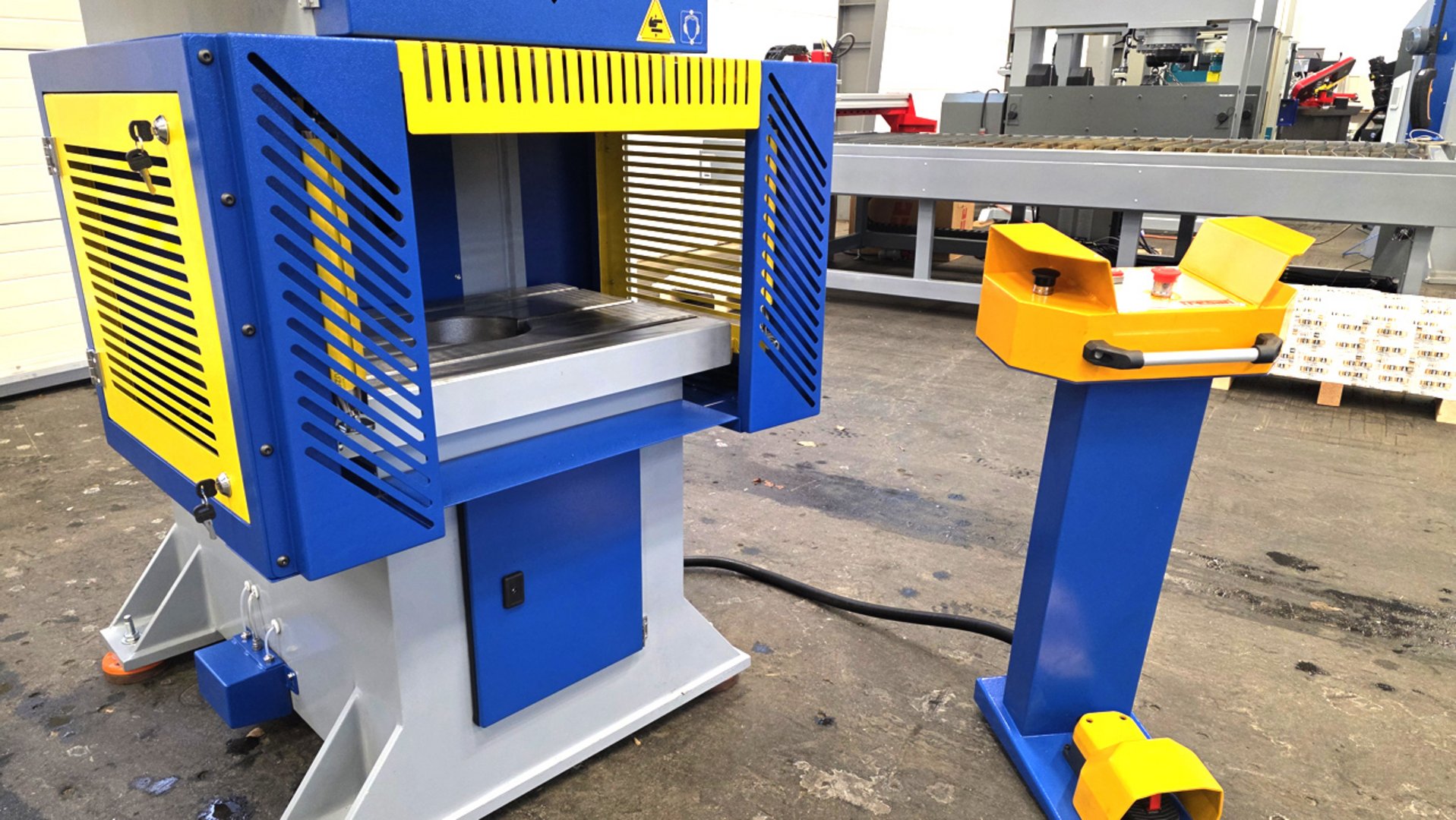

Protective enclosure with light barriers and side doors
Mechanical overload protection
Two-hand and foot pedal operation
Manual stroke adjustment
Manual ram adjustment
Operating modes:
- Adjustment mode
- Two-hand release
- Foot release
- 2-stroke operation via light barriers
- Continuous operation
Automatic central lubrication
Equipment in accordance with CE regulations
options:
vibrations pads
bolster plate
