C-frame eccentric press HESSE by FRESAN FP 15 P
| Model | FP 15 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| Year of manufacture | 2026 |
| pressing capacity | 15 to |
| Strokes | 200 1/min |
| Stock number | 70224 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 15 to |
| Tonnage rating point | 1.4 mm |
| Table length | 320 mm |
| Table width | 490 mm |
| Hole in table | 130 mm |
| Stroke | 1 - 40 mm |
| Strokes | 200 1/min |
| Ram guides | 4 |
| Ram adjustment | 40 mm |
| Ram hole | 30 mm |
| Throat depth | 210 mm |
| Daylight | 215 mm |
| Motor | 1.5 kW |
Dimensions and weight
| Length | 1160 mm |
| Width | 1180 mm |
| Height | 1730 mm |
| Weight | 922 kg |
Description
Welded steel frame construction
4-fold ram guide
Pneumatic clutch-brake combination

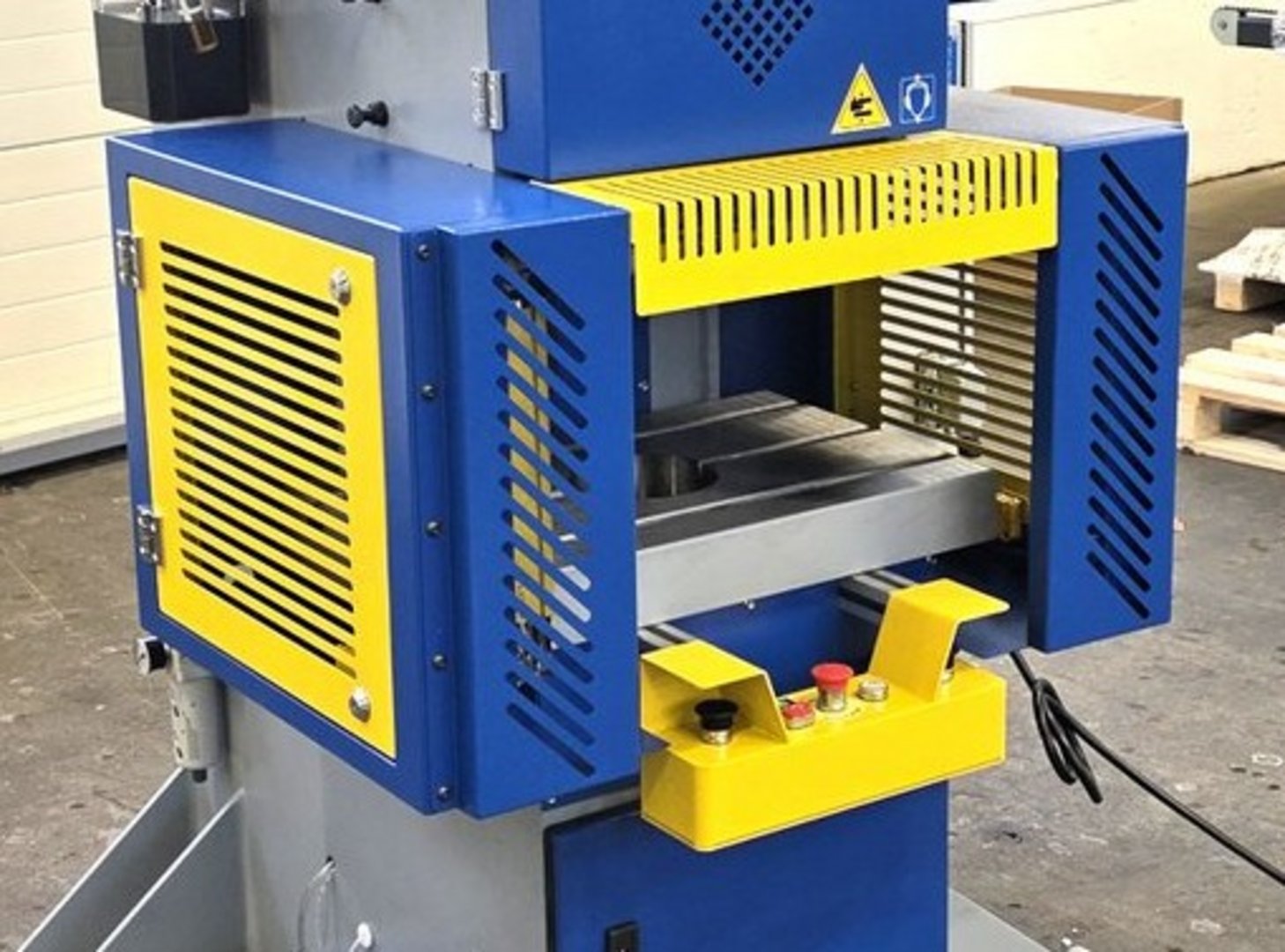

Protective enclosure with light barriers and side doors
Two-hand and foot pedal operation
Manual stroke adjustment
Manual ram adjustment
Variable stroke rate via frequency converter
Operating modes:
- Adjustment mode
- Two-hand release
- Foot release
- 2-stroke operation via light barriers
- Continuous operation
Touchscreen for
- Stroke counter with preselection for continuous operation
- Stroke rate adjustment
- Lubrication intervals and duration
- Alarm messages
- Motor direction of rotation
- Monitoring of inputs and outputs
2 free cams for connecting peripherals

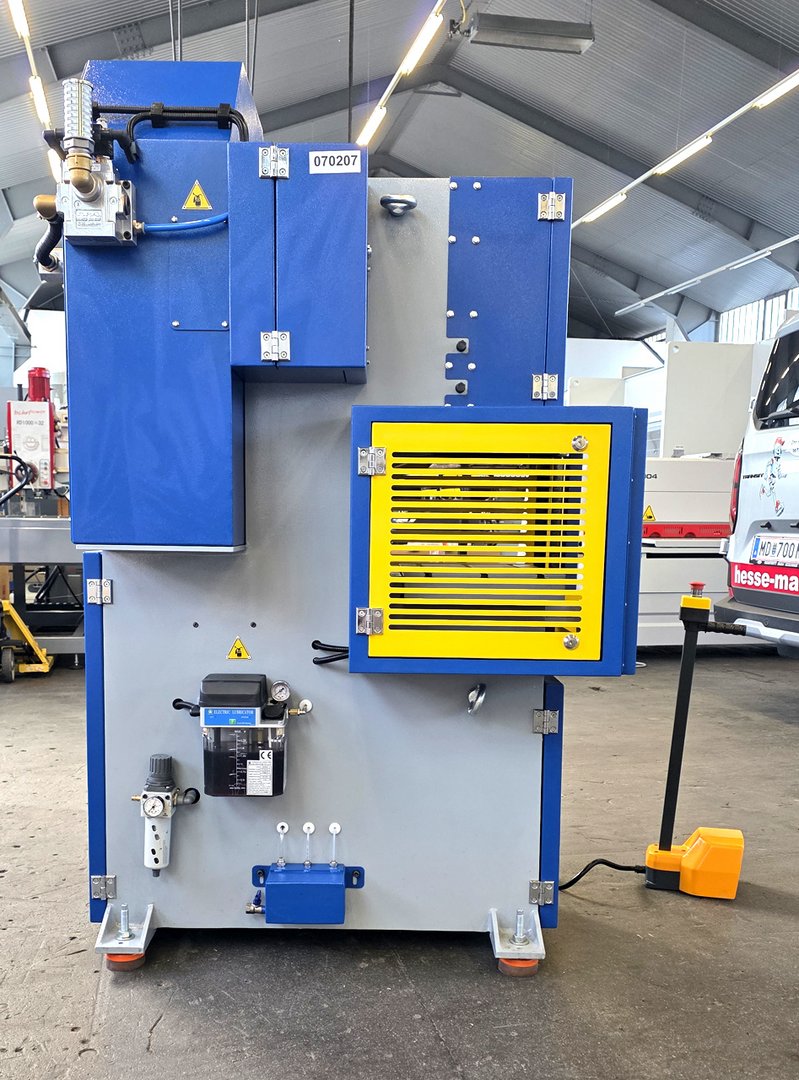

Automatic central lubrication
Equipment in accordance with CE regulations

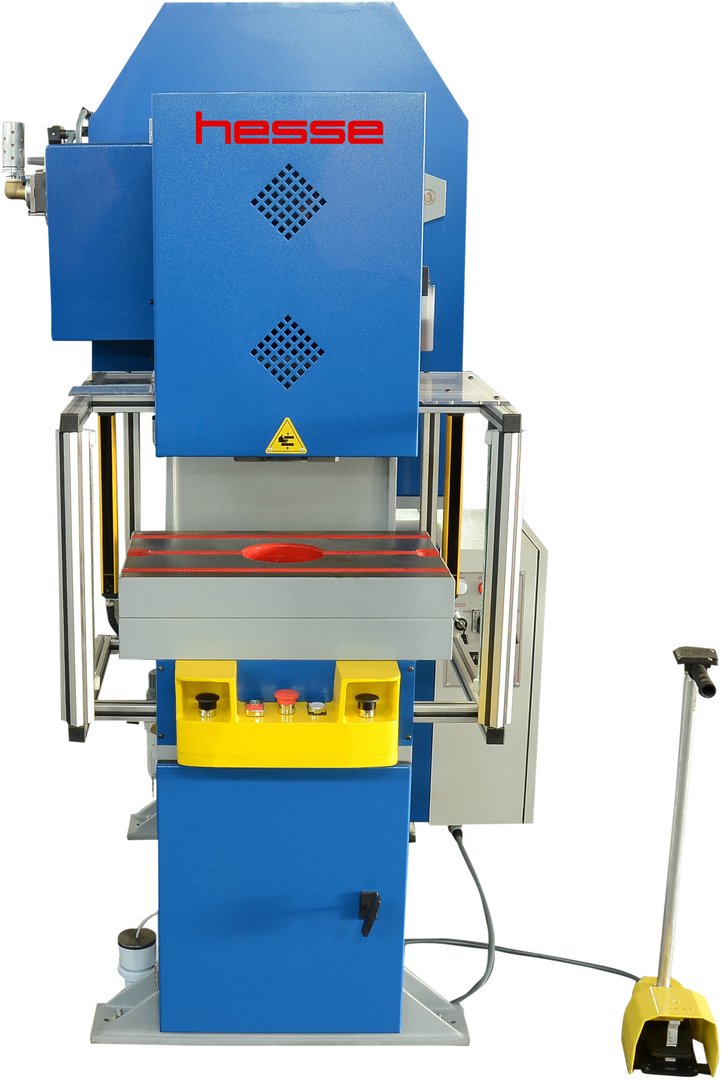

Symbolic photos, picture incl. optional available bolster plate
