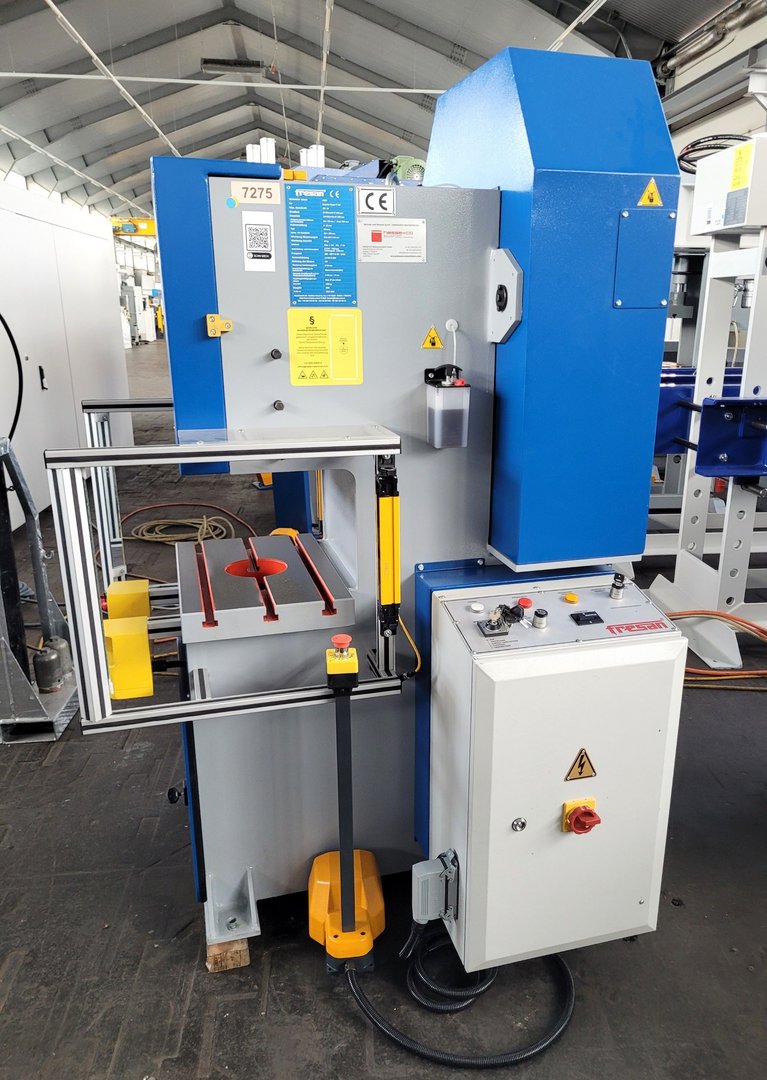

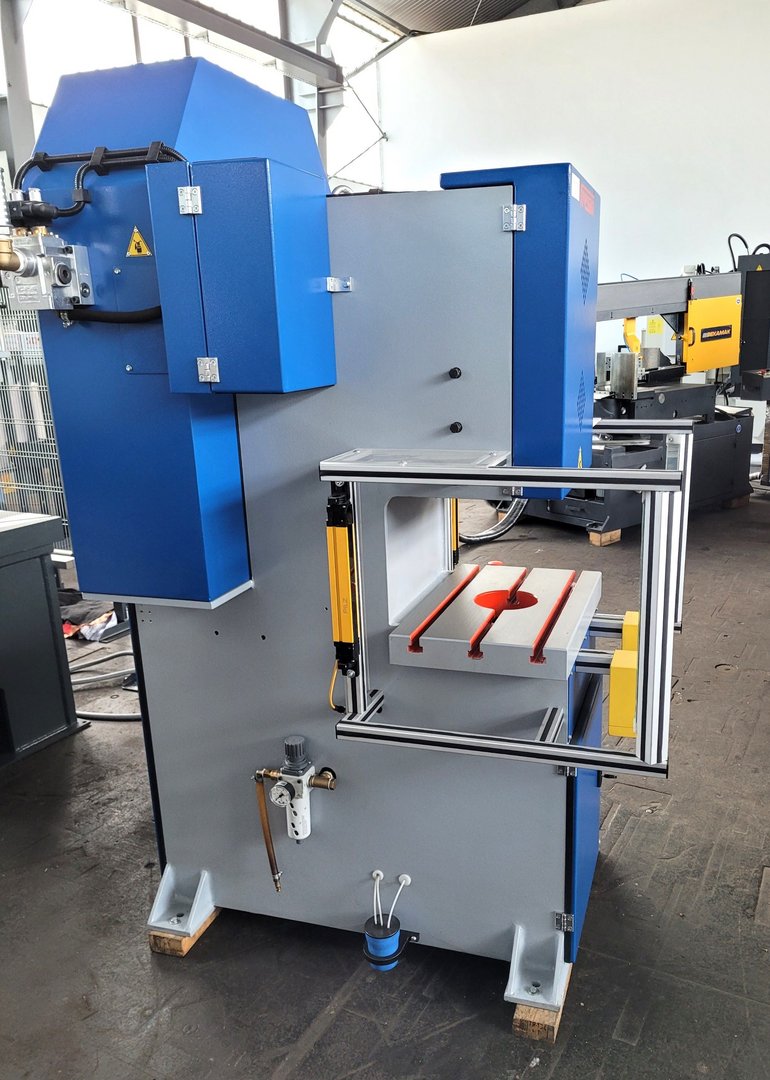

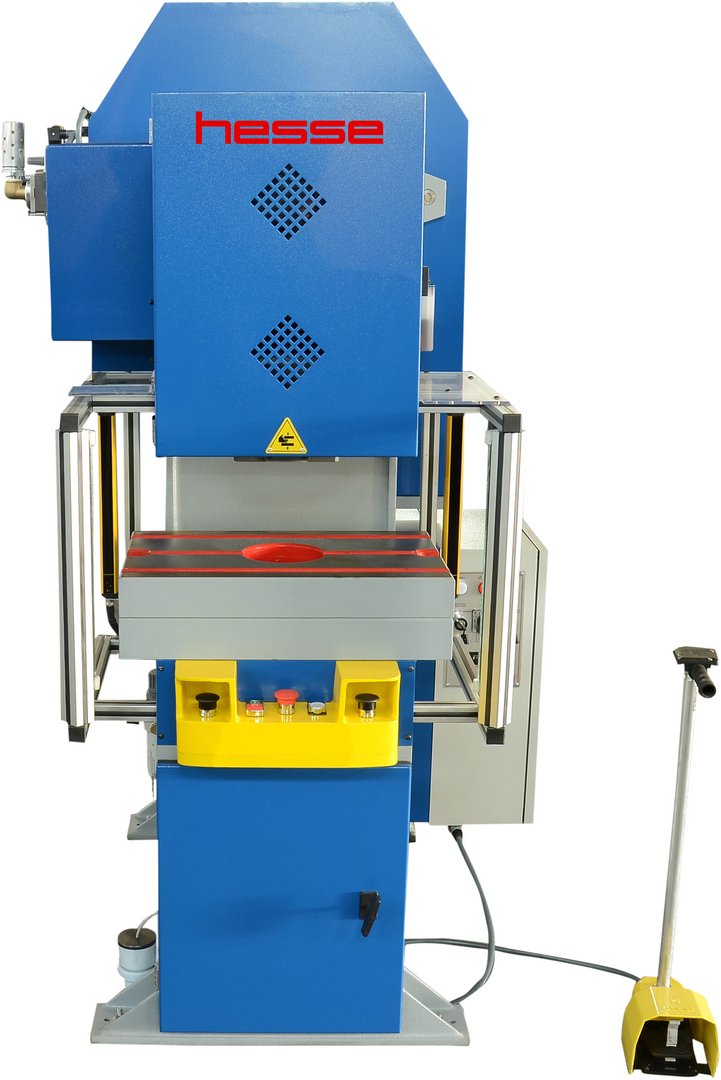

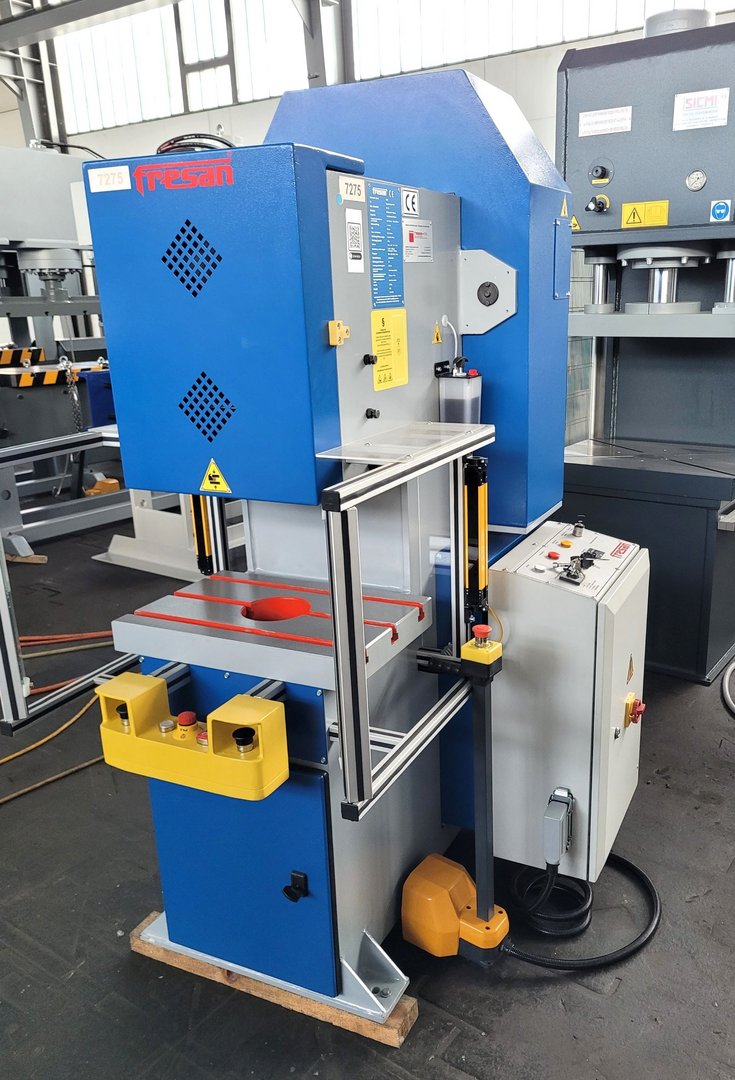

C-frame eccentric press HESSE by FRESAN FP 20 P
| Model | FP 20 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| pressing capacity | 20 to |
| Strokes | 160 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 20 to |
| Tonnage rating point | 1.7 mm |

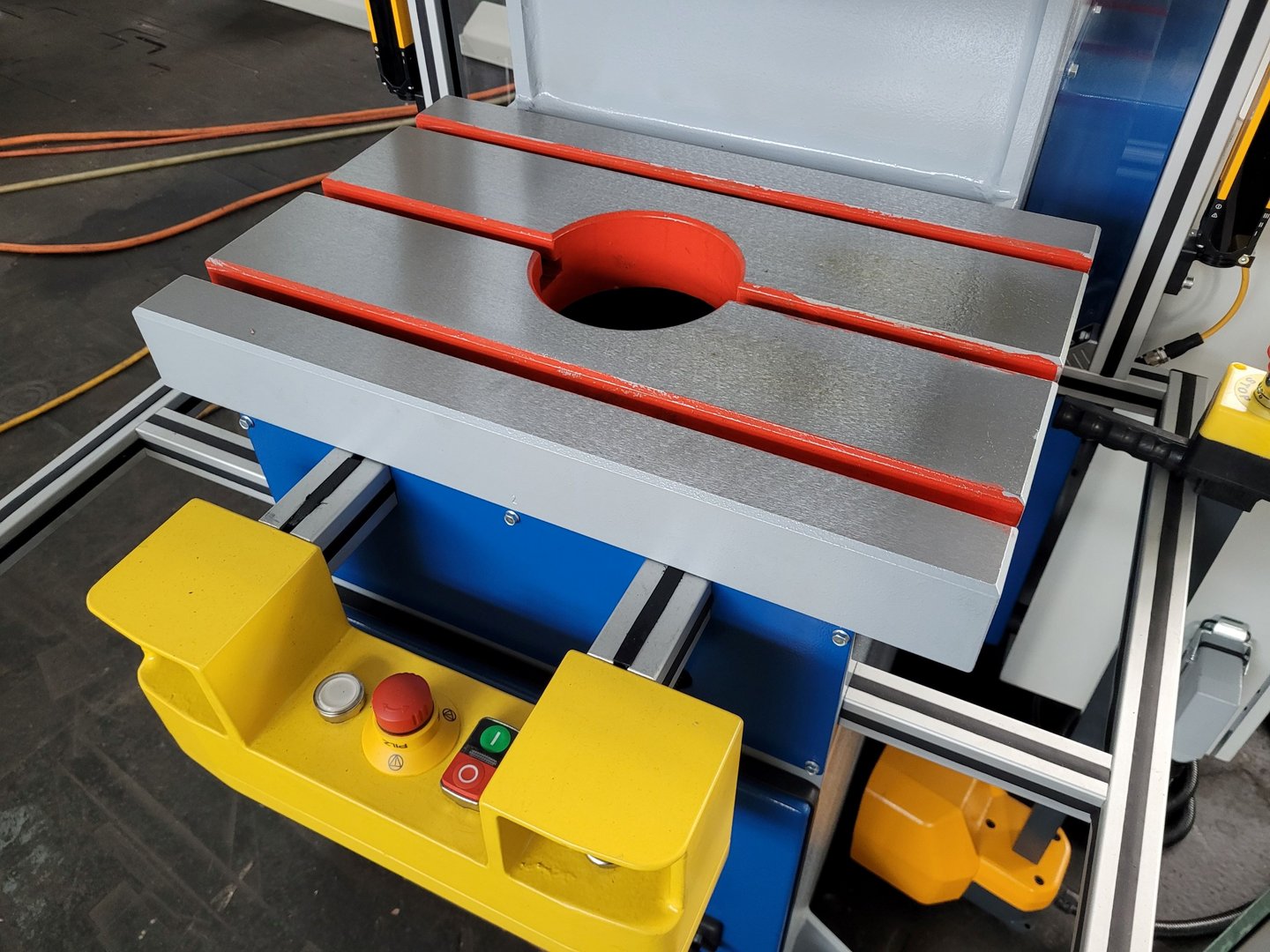

| Table length | 360 mm |
| Table width | 550 mm |
| Hole in table | 140 mm |
| Stroke | 1 - 50 mm |
| Strokes | 160 1/min |
| Ram guides | 4 |
| Ram adjustment | 40 mm |

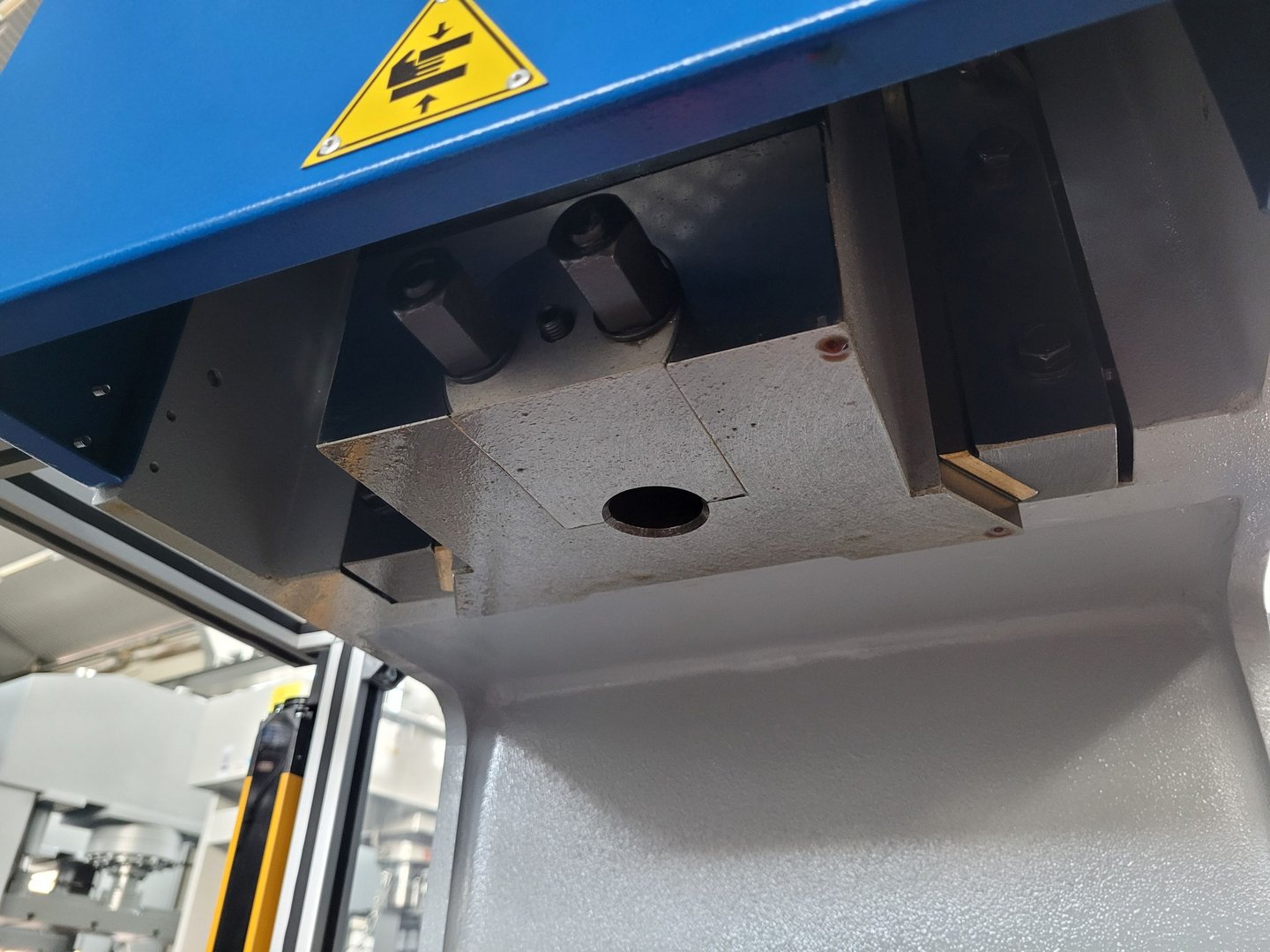

| Ram hole | 35 mm |
| Throat depth | 200 mm |
| Daylight | 240 mm |
| Motor | 2.2 kW |
Dimensions and weight
| Length | 1360 mm |
| Width | 1100 mm |
| Height | 1860 mm |
| Weight | 1250 kg |
Description
Welded steel frame construction

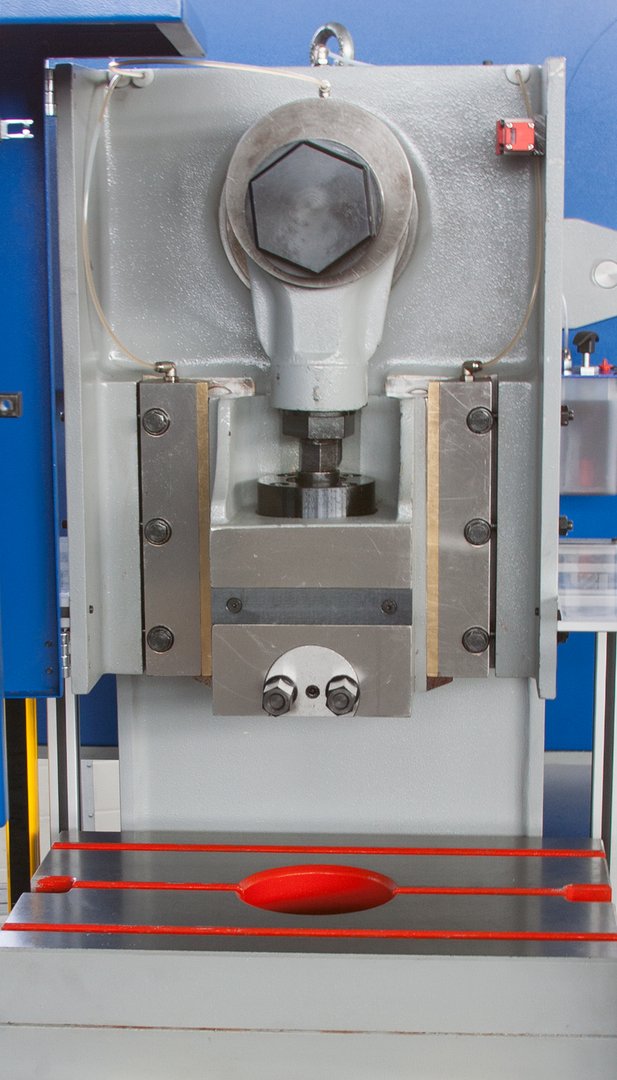

4-fold ram guide
Pneumatic clutch-brake combination

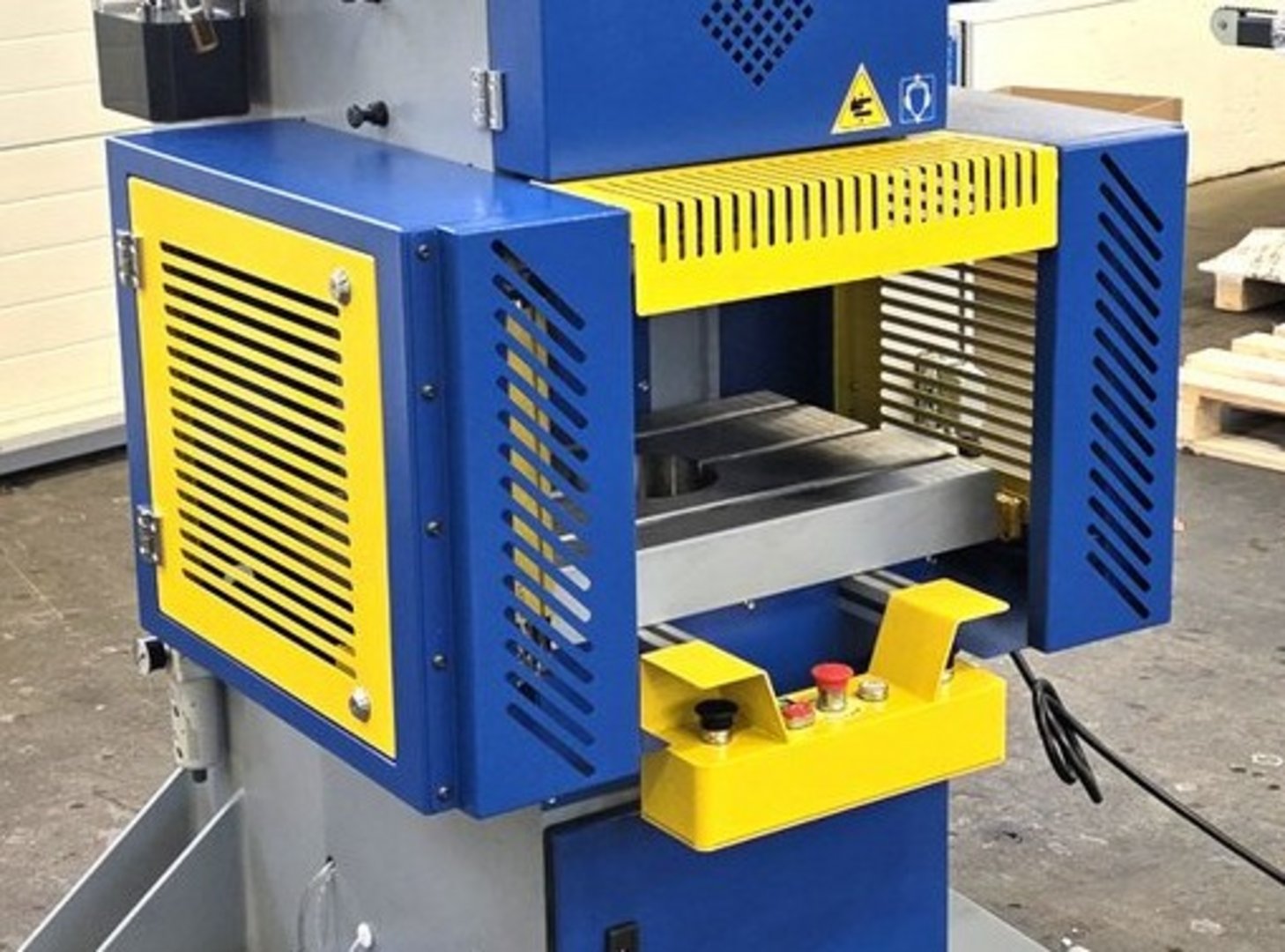

Protective enclosure with light barriers and side doors
Mechanical overload protection
Two-hand and foot pedal operation
Manual stroke adjustment
Manual ram adjustment
Variable stroke rate via frequency converter
Operating modes:
- Adjustment mode
- Two-hand release
- Foot release
- 2-stroke operation via light barriers
- Continuous operation
Touchscreen for
- Stroke counter with preselection for continuous operation
- Stroke rate adjustment
- Lubrication intervals and duration
- Alarm messages
- Motor direction of rotation
- Monitoring of inputs and outputs
2 free cams for connecting peripherals
Automatic central lubrication
Equipment in accordance with CE regulations
Option: Vibration pads € 132,--
