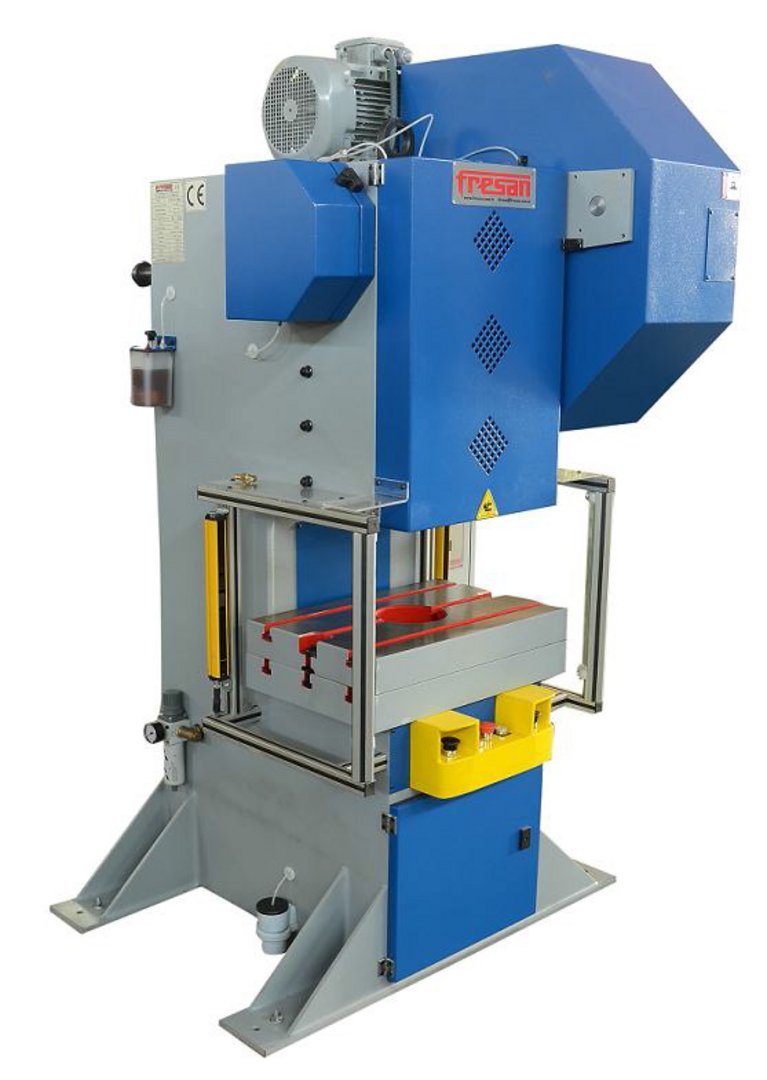

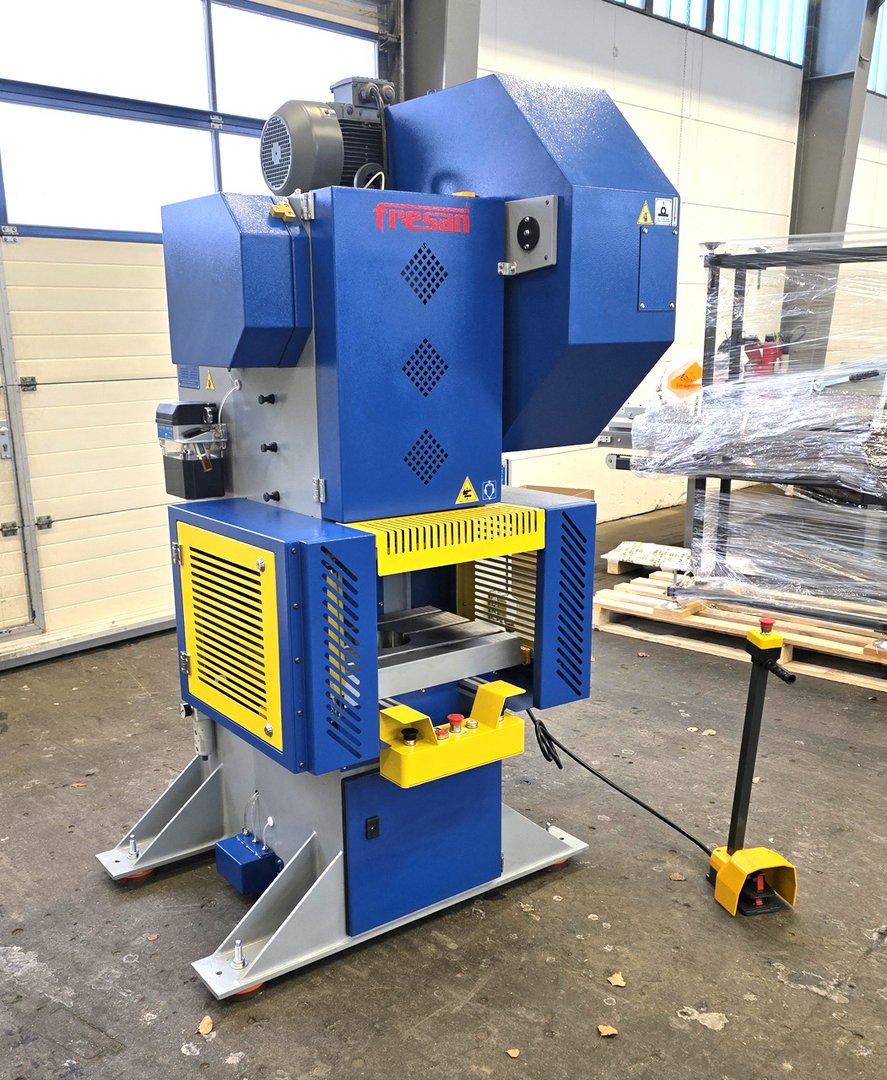

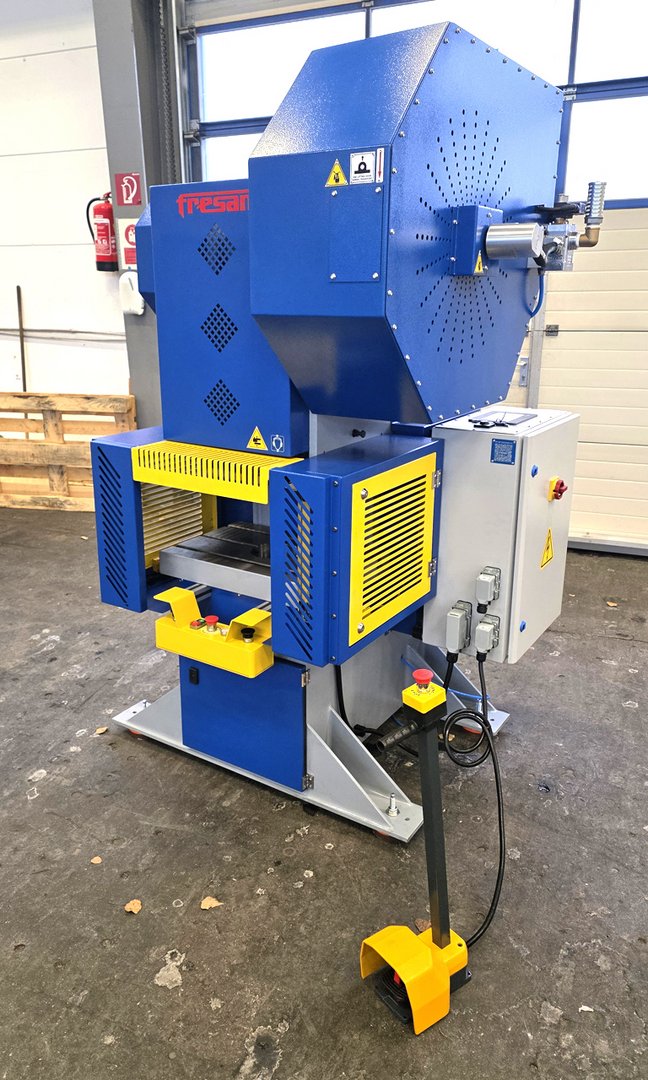

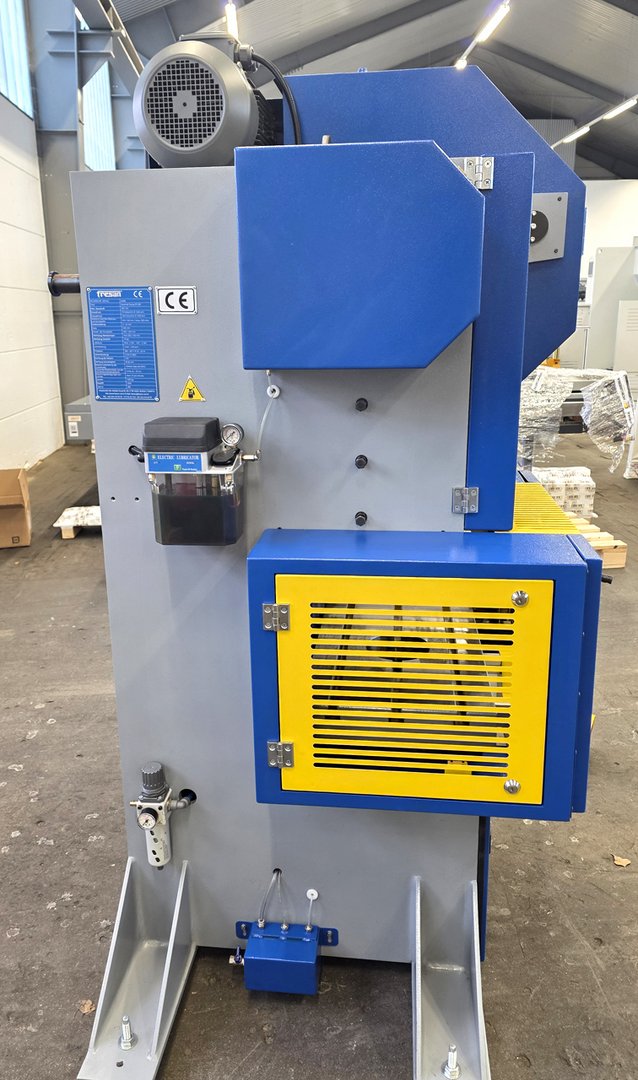

C-frame eccentric press HESSE by FRESAN FP 30 P
| Model | FP 30 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| pressing capacity | 30 to |
| Strokes | 140 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 30 to |
| Tonnage rating point | 2 mm |
| Table length | 400 mm |
| Table width | 600 mm |
| Hole in table | 150 mm |
| Stroke | 1 - 60 mm |
| Strokes | 140 1/min |
| Ram guides | 4 |
| Ram adjustment | 60 mm |
| Ram hole | 40 mm |
| Throat depth | 200 mm |
| Daylight | 300 mm |
| Motor | 3 kW |
Dimensions and weight
| Length | 1300 mm |
| Width | 1150 mm |
| Height | 2050 mm |
| Weight | 1670 kg |
Description
Welded steel frame construction
4-fold ram guide
Pneumatic clutch-brake combination

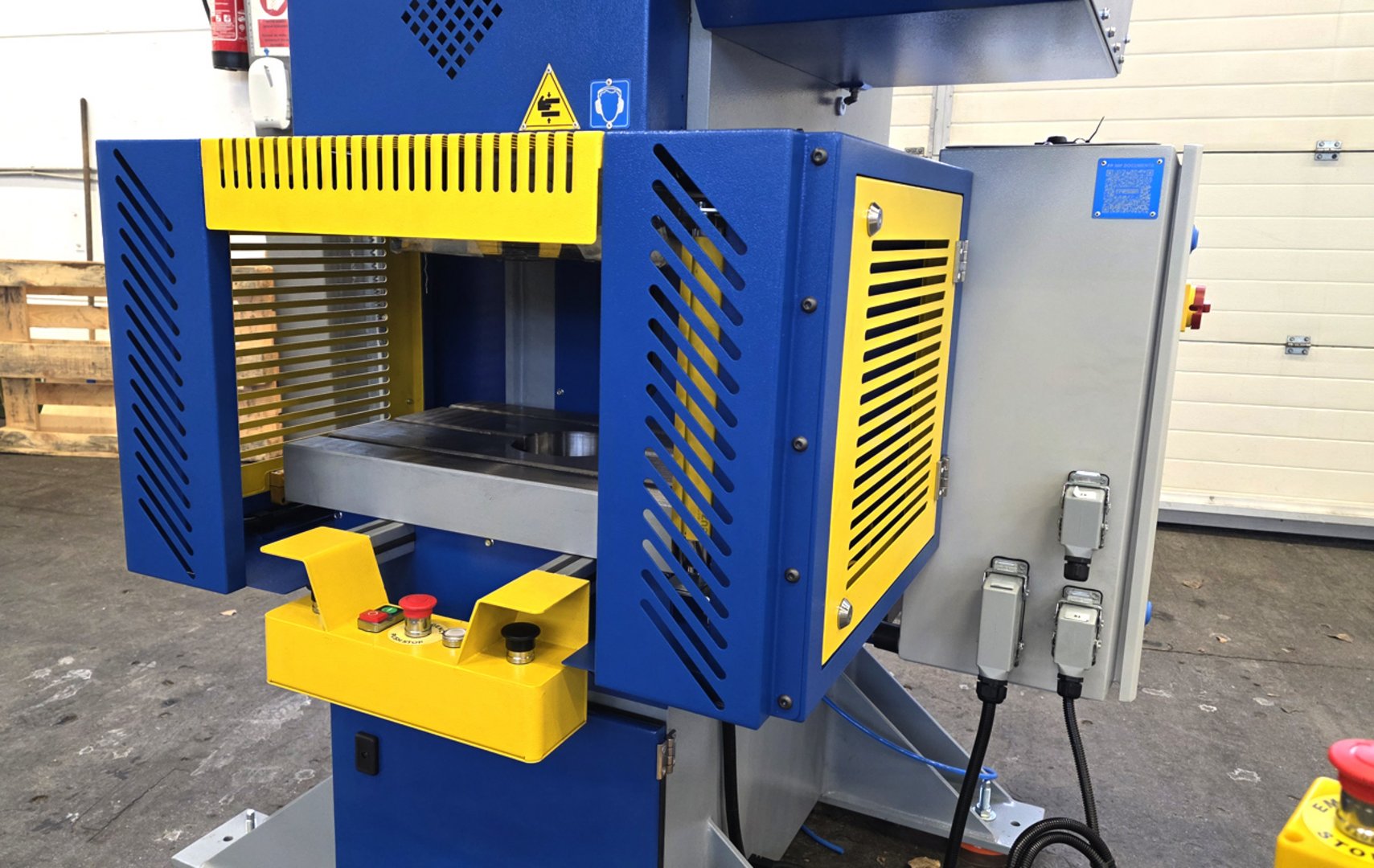

Protective enclosure with light barriers and side doors
Mechanical overload protection
Two-hand and foot pedal operation
Manual stroke adjustment
Manual ram adjustment
Variable stroke rate via frequency converter
Operating modes:
- Adjustment mode
- Two-hand release
- Foot release
- 2-stroke operation via light barriers
- Continuous operation
Touchscreen for
- Stroke counter with preselection for continuous operation
- Stroke rate adjustment
- Lubrication intervals and duration
- Alarm messages
- Motor direction of rotation
- Monitoring of inputs and outputs
2 free cams for connecting peripherals
Automatic central lubrication
Equipment in accordance with CE regulations
Options:
| vibrations pads | € | 132,- |
| bolster plate | € | 720,- |
Further information
Brochures
Product video
C-frame eccentric press FP 30 P
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
