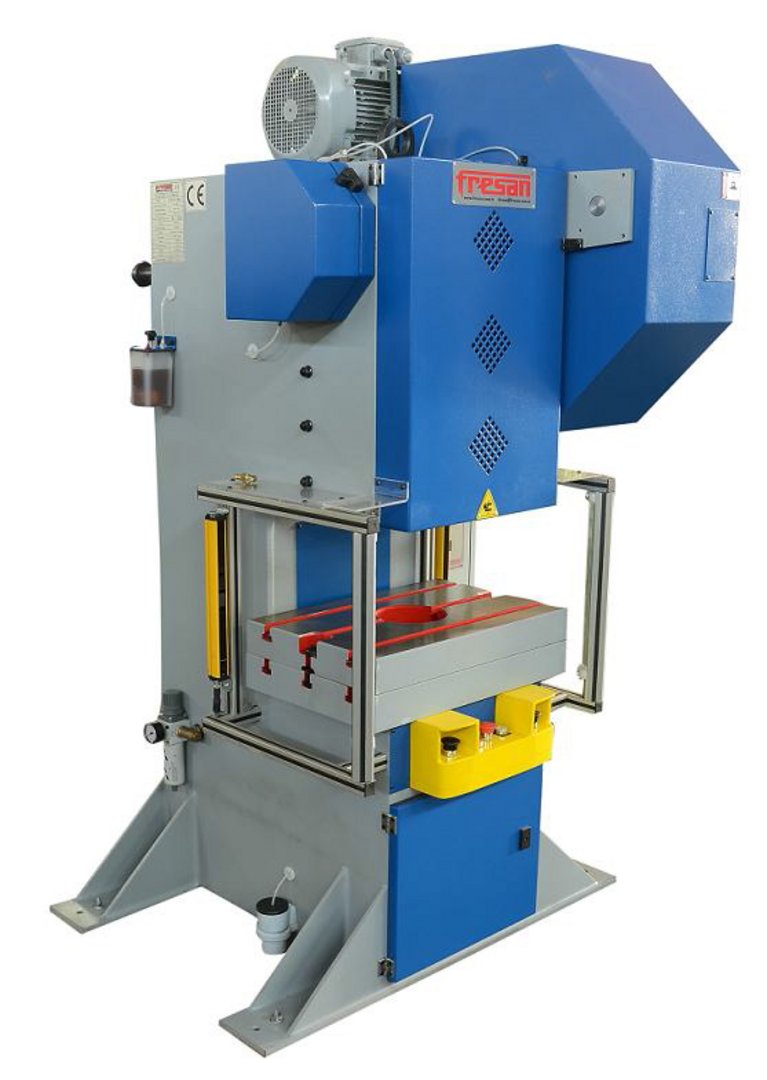

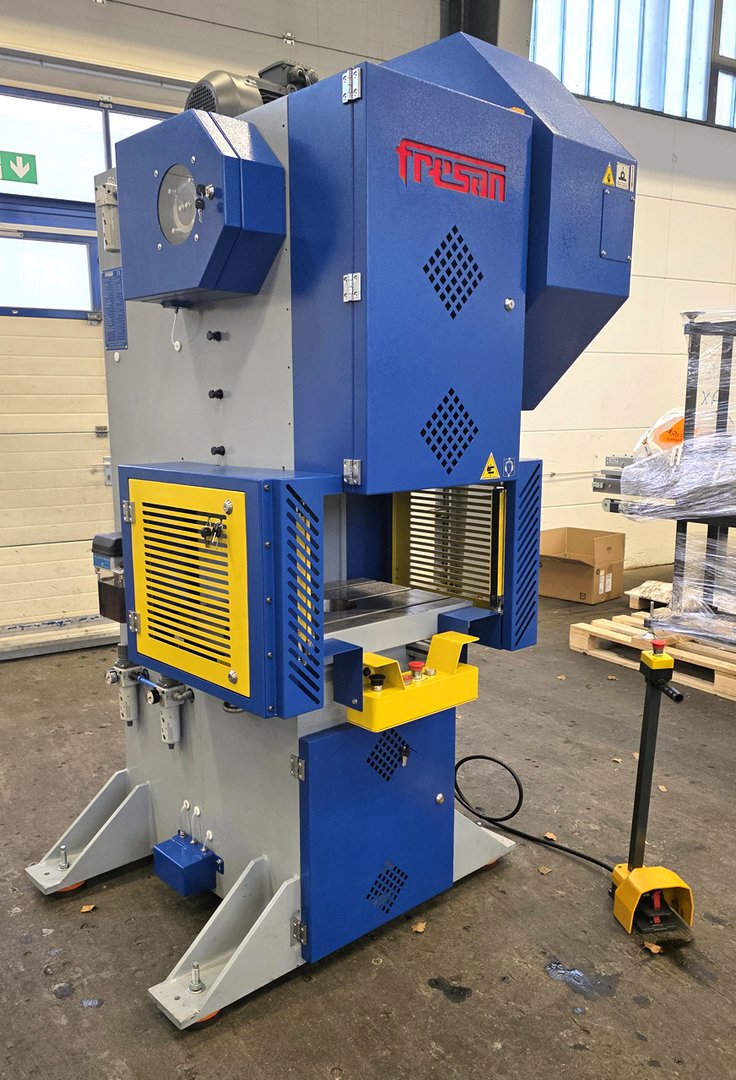

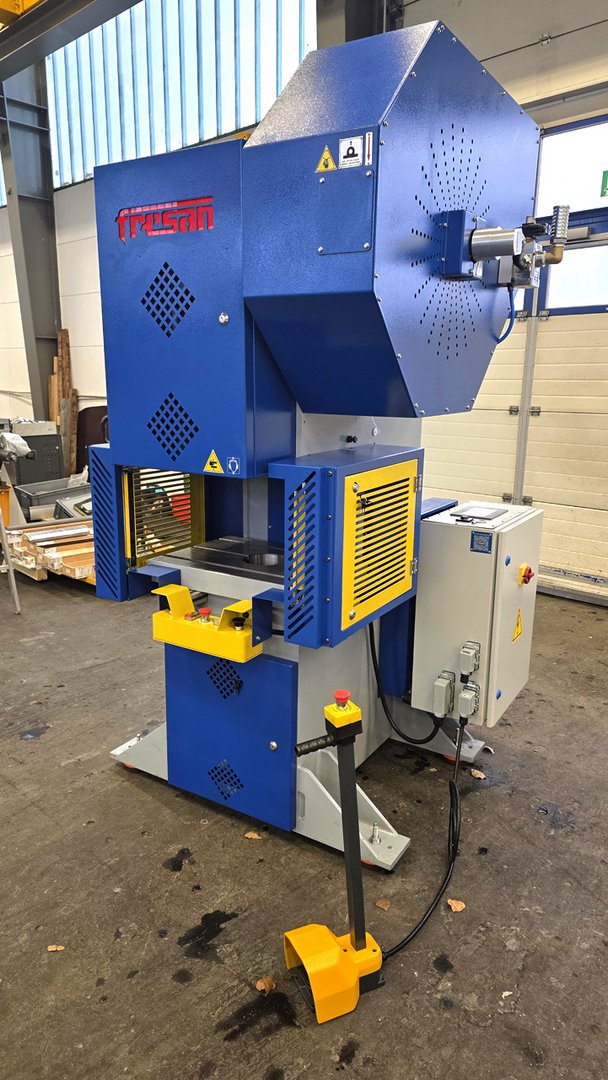

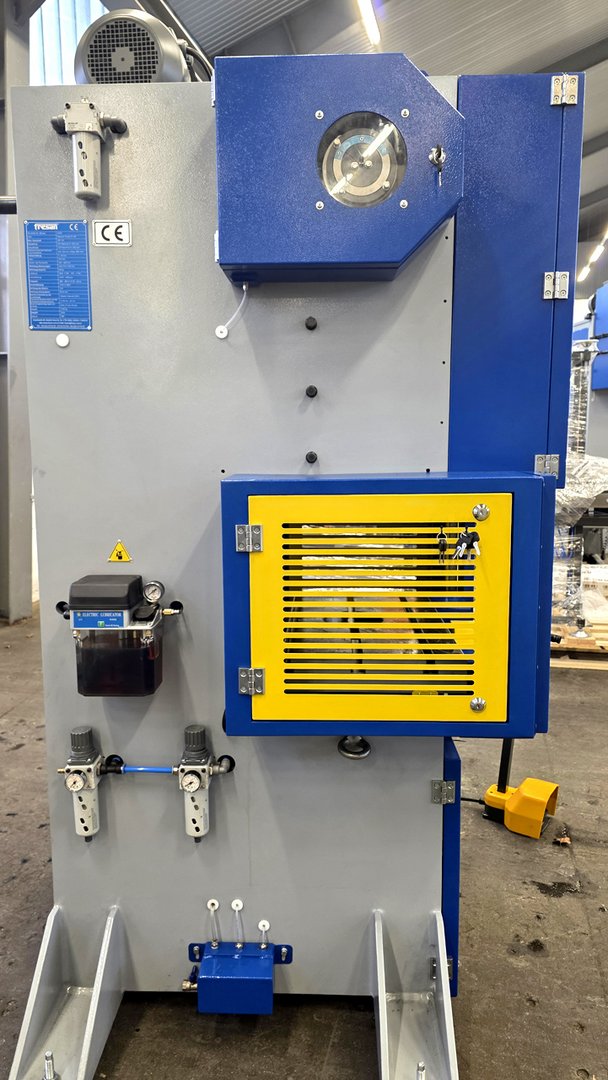

C-frame eccentric press HESSE by FRESAN FP 40 P
| Model | FP 40 P |
| Brand | HESSE by FRESAN |
| Condition | new |
| Year of manufacture | 2026 |
| pressing capacity | 40 to |
| Strokes | 125 1/min |
| Stock number | 70125 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 40 to |
| Tonnage rating point | 2.5 mm |
| Table length | 450 mm |
| Table width | 650 mm |
| Hole in table | 150 mm |
| Stroke | 1 - 80 mm |
| Strokes | 125 1/min |
| Ram guides | 4 |
| Ram adjustment | 75 mm |
| Ram hole | 40 mm |
| Throat depth | 225 mm |
| Daylight | 300 mm |
| Table height | 835 mm |
| Motor | 4 kW |
Dimensions and weight
| Length | 1350 mm |
| Width | 1370 mm |
| Height | 2330 mm |
| Weight | 2100 kg |
Description
Welded steel frame construction
4-fold ram guide
Pneumatic clutch-brake combination

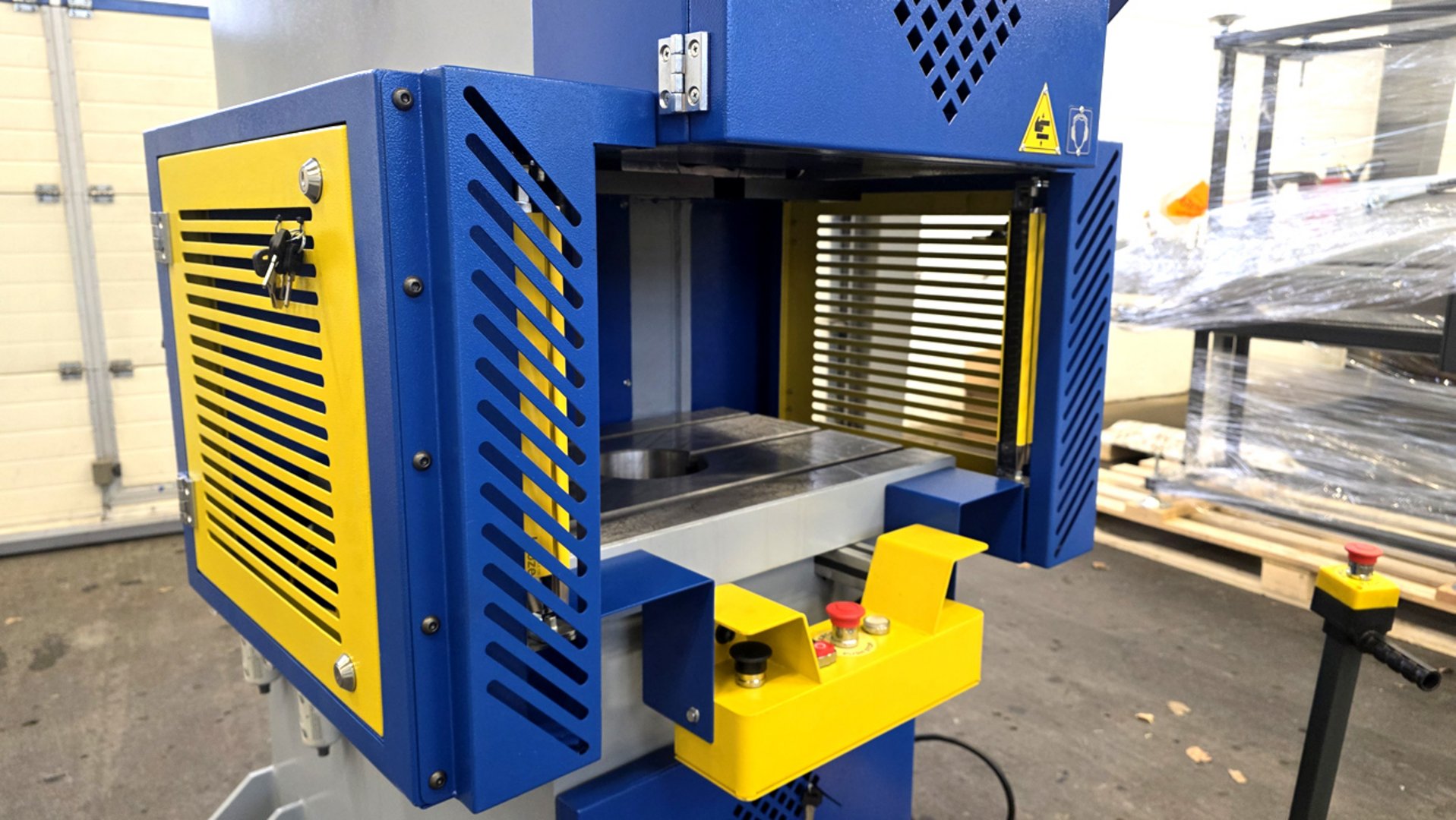

Protective enclosure with light barriers and side doors
Mechanical overload protection
Two-hand and foot pedal operation
Manual stroke adjustment
Manual rammer adjustment
Variable stroke rate via frequency converter
Operating modes:
- Adjustment mode
- Two-hand release
- Foot release
- 2-stroke operation via light barriers
- Continuous operation
Touchscreen for
- Stroke counter with preselection for continuous operation
- Stroke rate adjustment
- Lubrication intervals and duration
- Alarm messages
- Motor direction of rotation
- Monitoring of inputs and outputs
2 free cams for connecting peripherals
Automatic central lubrication
Equipment in accordance with CE regulations
Option:
Vibration pads € 192,--
Bolster plate € 830,--
