C-frame eccentric press HESSE by FRESAN FP 60 P
| Model | FP 60 P |
| Brand | HESSE by FRESAN |
| Condition | used |
| Year of manufacture | 2023 |
| pressing capacity | 60 to |
| Strokes | 65 1/min |
| Stock number | 7300 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 60 to |
| Tonnage rating point | 3.5 mm |
| Table length | 500 mm |
| Table width | 700 mm |
| Hole in table | 190 mm |
| Stroke | 1 - 100 mm |
| Strokes | 65 1/min |
| Ram guides | 4 |
| Ram adjustment | 70 mm |
| Ram hole | 45 mm |
| Throat depth | 260 mm |
| Daylight | 365 mm |
| Motor | 5.5 kW |
Dimensions and weight
| Length | 1250 mm |
| Width | 1350 mm |
| Height | 2400 mm |
| Weight | 3500 kg |
Description
demo machine / mint condition
net price (price for new machine € 48.500,00)
welded steel construction body frame
4-fold ram guide
pneumatic clutch-brake combination
fully closed gearbox working in oil bath
photocell light barriers
mechanical overload protection
two hand and foot pedal control
manual adjustable stroke
automatic central lubrication
according to CE rules
Options:
| vibrations pads | € | 192,- |
| bolster plate | € | 930,- |

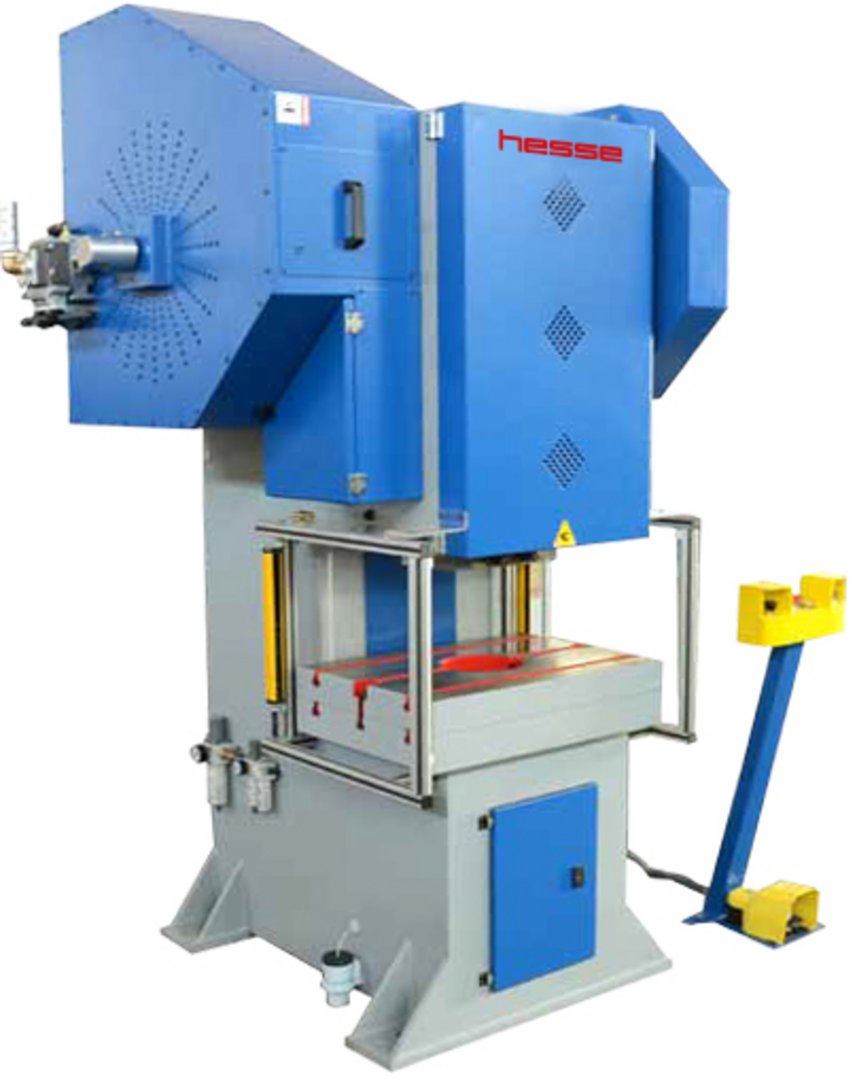

picture incl. optional available bolster plate
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
