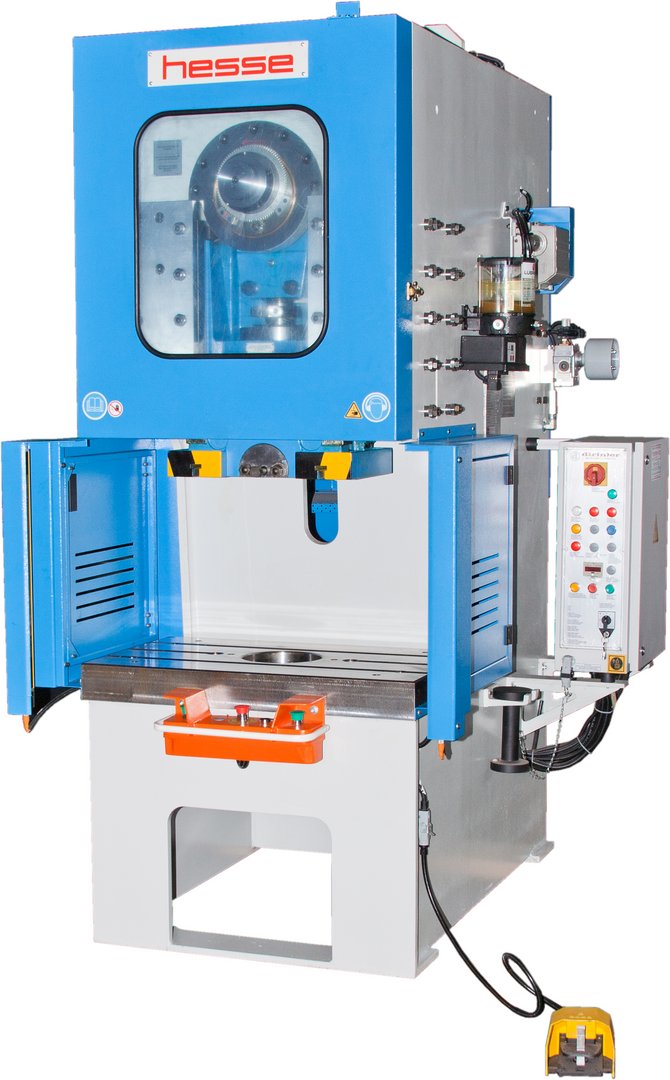

C-frame eccentric press HESSE by DIRINLER CDCS 800 P81
| Model | CDCS 800 P81 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 80 to |
| Strokes | 54 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 80 to |
| Table length | 900 mm |
| Table width | 540 mm |
| Hole in table | 180 mm |
| Stroke | 4 - 102 mm |
| Strokes | 54 1/min |
| Ram | 490x325 mm |
| Throat depth | 280 mm |
| Daylight | 380 mm |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 2010 mm |
| Width | 1390 mm |
| Height | 2750 mm |
| Weight | 5400 kg |
Description
8-fold ram guide
front protection by light guard
manual stroke adjustment
ram adjustment witch ratchet
drive over gear
combined clutch brake unit with pneumatic control
fix table
single and continuous stroke
foot pedal and 2 hand control
mech. overload safety device
automatic central lubrication
user manual in GERMAN and ENGLISH
according to CE rules
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
