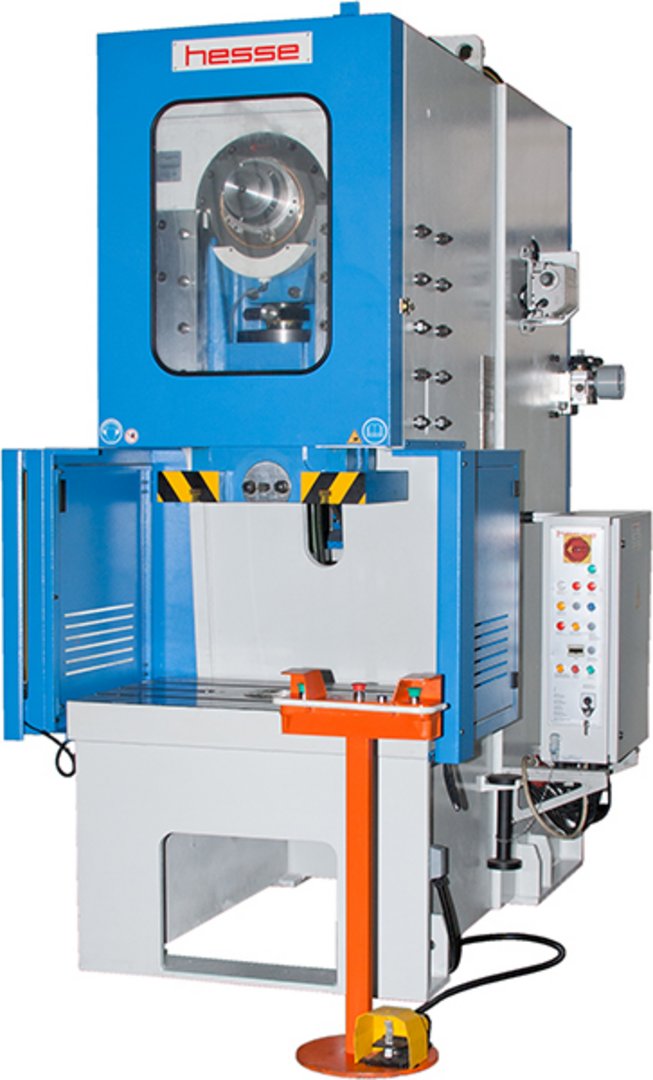

C-frame eccentric press HESSE by DIRINLER CDCS 1100 P81
| Model | CDCS 1100 P81 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 110 to |
| Strokes | 60 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 110 to |
| Table length | 900 mm |
| Table width | 540 mm |
| Hole in table | 180 mm |
| Stroke | 14 - 114 mm |
| Strokes | 60 1/min |
| Ram | 490x325 mm |
| Ram adjustment | 90 mm |
| Throat depth | 280 mm |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 1870 mm |
| Width | 1320 mm |
| Height | 2800 mm |
| Weight | 5600 kg |
Description
8-fold ram guide
front protection by light guard
manual ram adjustment
mech. overload safety device
automatic lubrication
user manual in GERMAN and ENGLISH
according to CE rules
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
