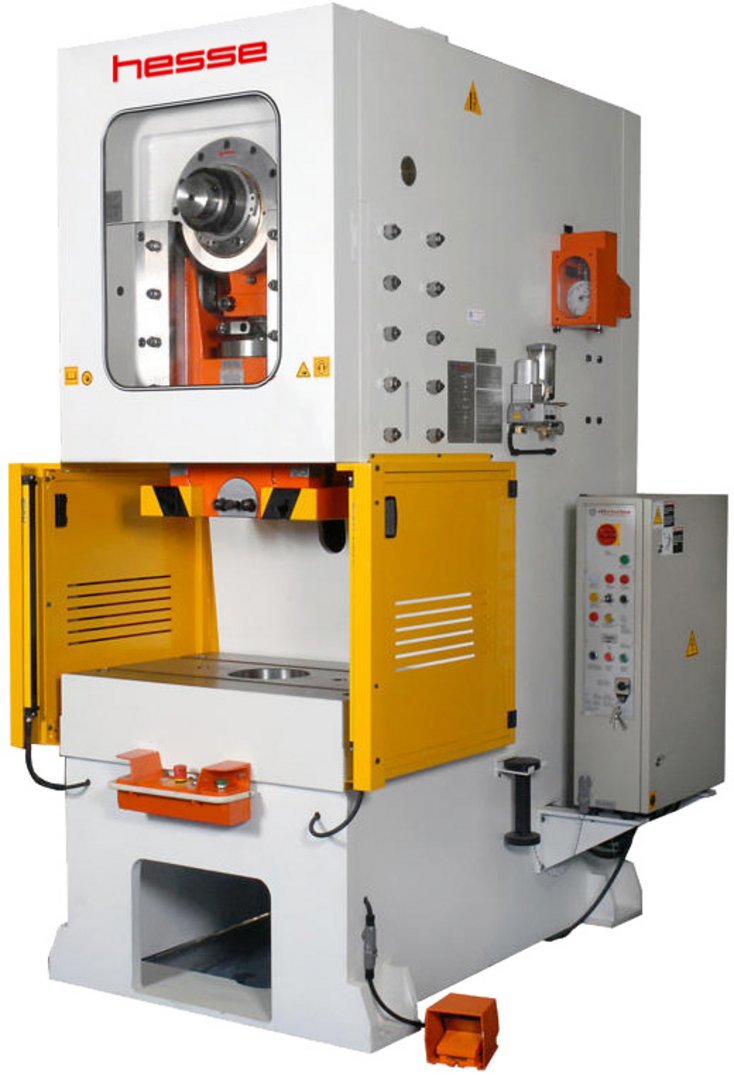

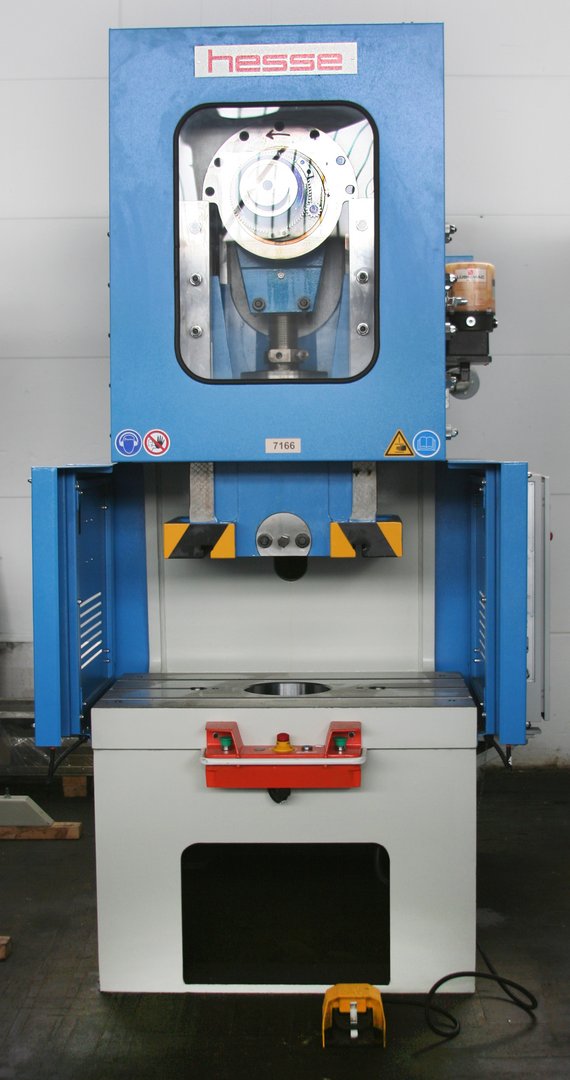

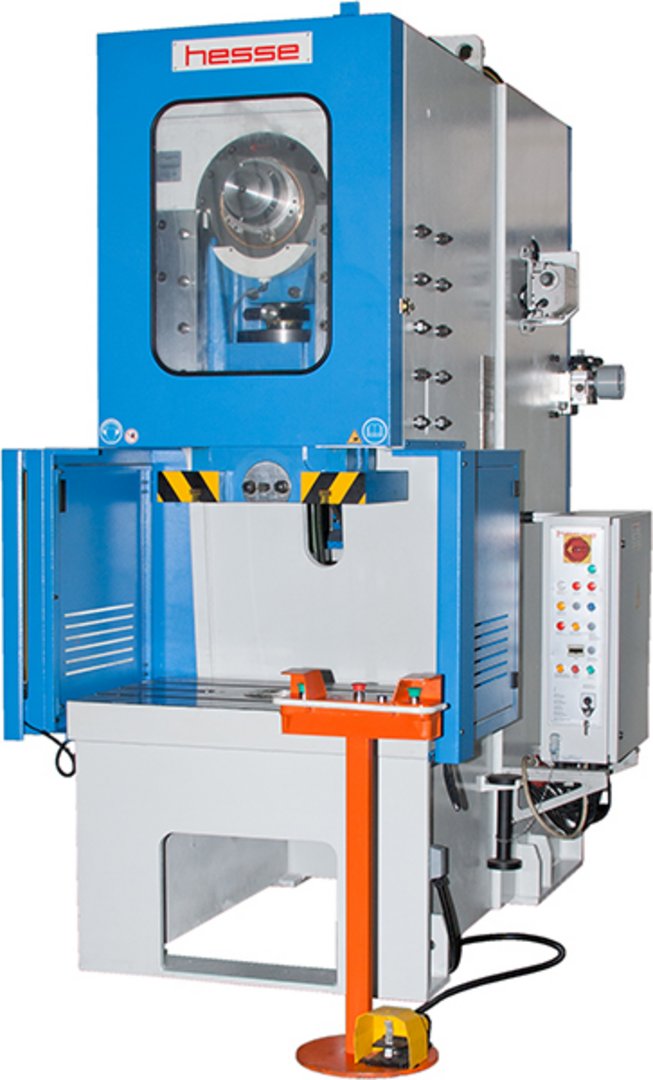

C-frame eccentric press HESSE by DIRINLER CDCS 1300 P81
| Model | CDCS 1300 P81 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 130 to |
| Strokes | 60 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 130 to |
| Table length | 1000 mm |
| Table width | 640 mm |
| Hole in table | 210 mm |
| Stroke | 5 - 110 mm |
| Strokes | 60 1/min |
| Ram | 630x400 mm |
| Ram adjustment | 90 mm |
| Throat depth | 330 mm |
| Motor | 11 kW |
Dimensions and weight
| Length | 2200 mm |
| Width | 1372 mm |
| Height | 3000 mm |
| Weight | 8200 kg |
Description
8-fold ram guide
front protection by light guard
manual ram adjustment
mech. overload safety device
automatic lubrication
user manual in GERMAN and ENGLISH
according to CE rules
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
