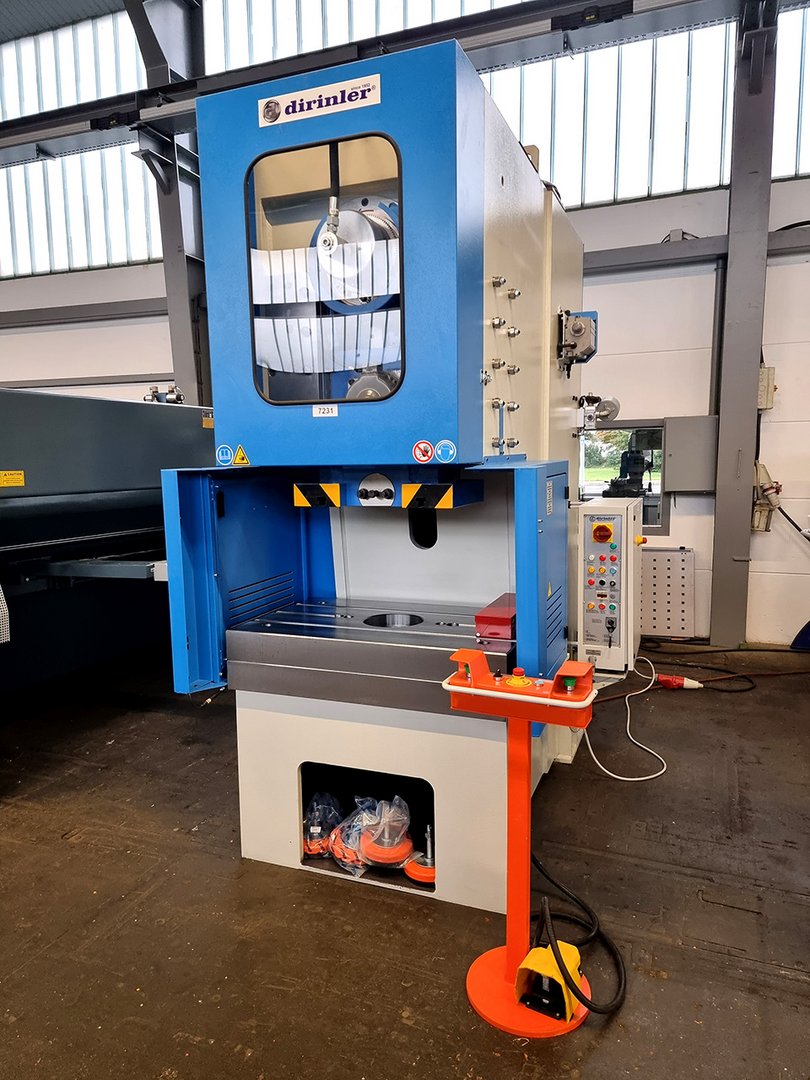

C-frame eccentric press HESSE by DIRINLER CDCS 1600 P81
| Model | CDCS 1600 P81 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 160 to |
| Strokes | 60 1/min |
| Origin | Türkiye |
General characteristics
| pressing capacity | 160 to |

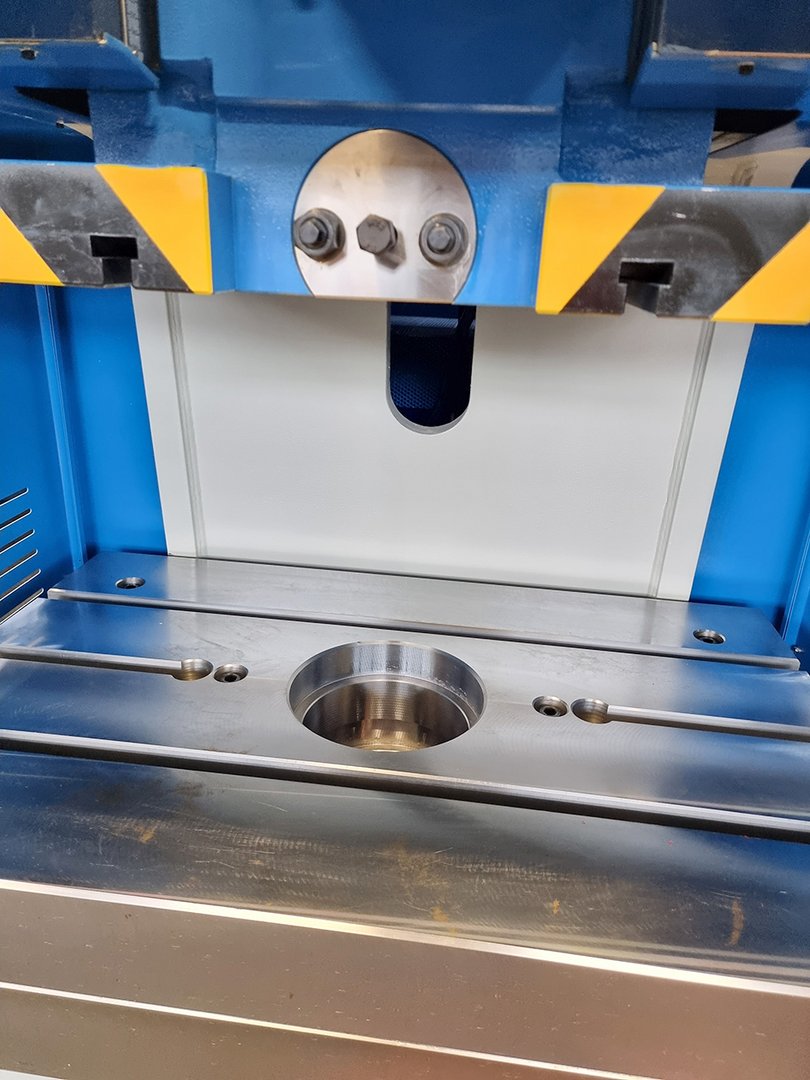

| Table length | 1100 mm |
| Table width | 700 mm |
| Hole in table | 210 mm |
| Stroke | 23 - 110 mm |
| Strokes | 60 1/min |

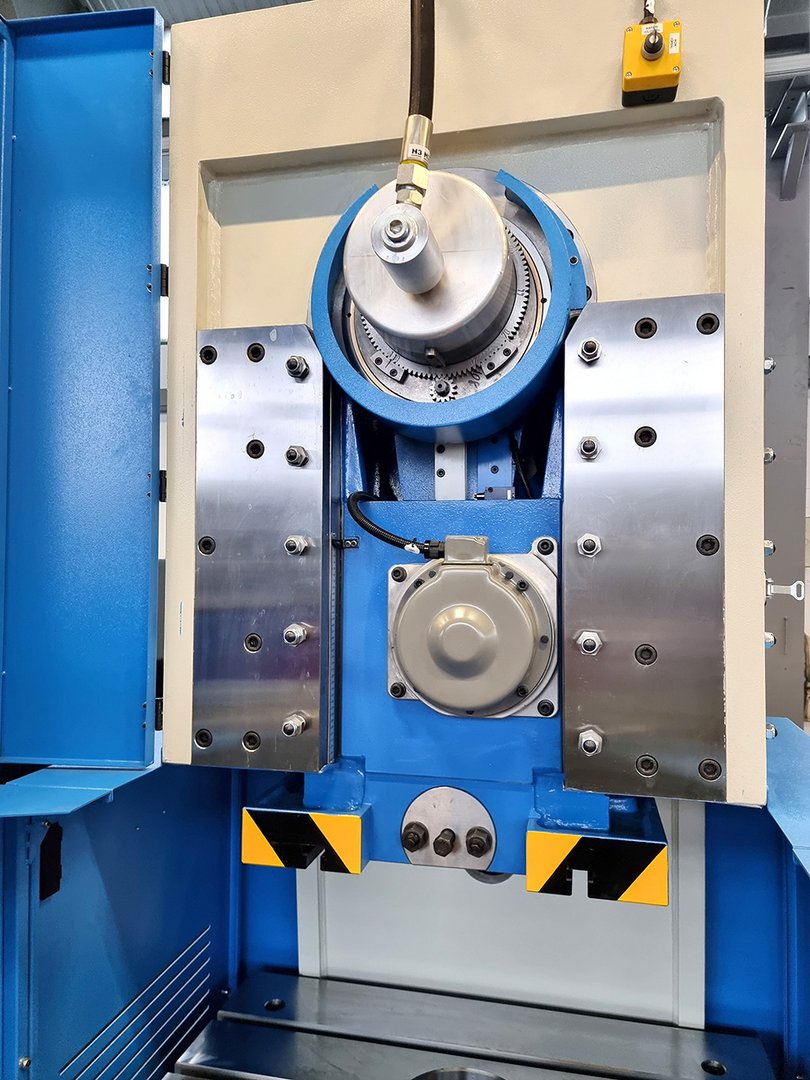

| Ram | 630x400 mm |
| Ram guides | 8 |
| Ram adjustment | 95 mm |
| Ram hole | 65 mm |
| Throat depth | 325 mm |
| Daylight | 480 mm |
Dimensions and weight
| Length | 2400 mm |
| Width | 1430 mm |
| Height | 3200 mm |
| Weight | 9950 kg |
Description
8-fold ram guide
light guard
mot. ram adjustment
hyd. overload safety device
automatic lubrication
according to CE rules
user manual in GERMAN and ENGLISH
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
