General characteristics
| pressing capacity | 50 to |
| Tonnage rating point | 3.5 mm |
| Table length | 800 mm |
| Table width | 450 mm |
| Stroke | 22 - 110 mm |
| Strokes | 60 - 100 1/min |
| Ram | 70 mm |
| Ram guides | 8 |
| Ram adjustment | 70 mm |
| Throat depth | 235 mm |
| Daylight | 290 mm |
| Motor | 5.5 kW |
Dimensions and weight
| Length | 1330 mm |
| Width | 1000 mm |
| Height | 2650 mm |
| Weight | 4500 kg |
Description
touch screen control
semi automatic stroke adjustment
die space adjustment with mechanical display decimal resolution
adjustable motor speed
overload protector
double bolster plate

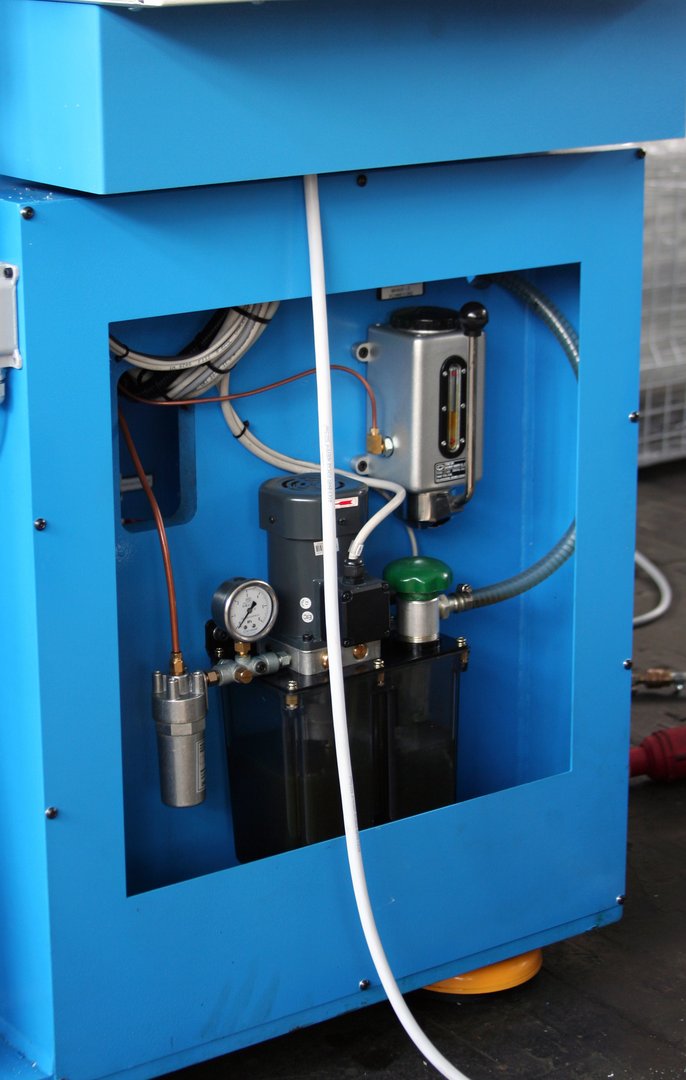

oil circular lubrication
dynamic brake

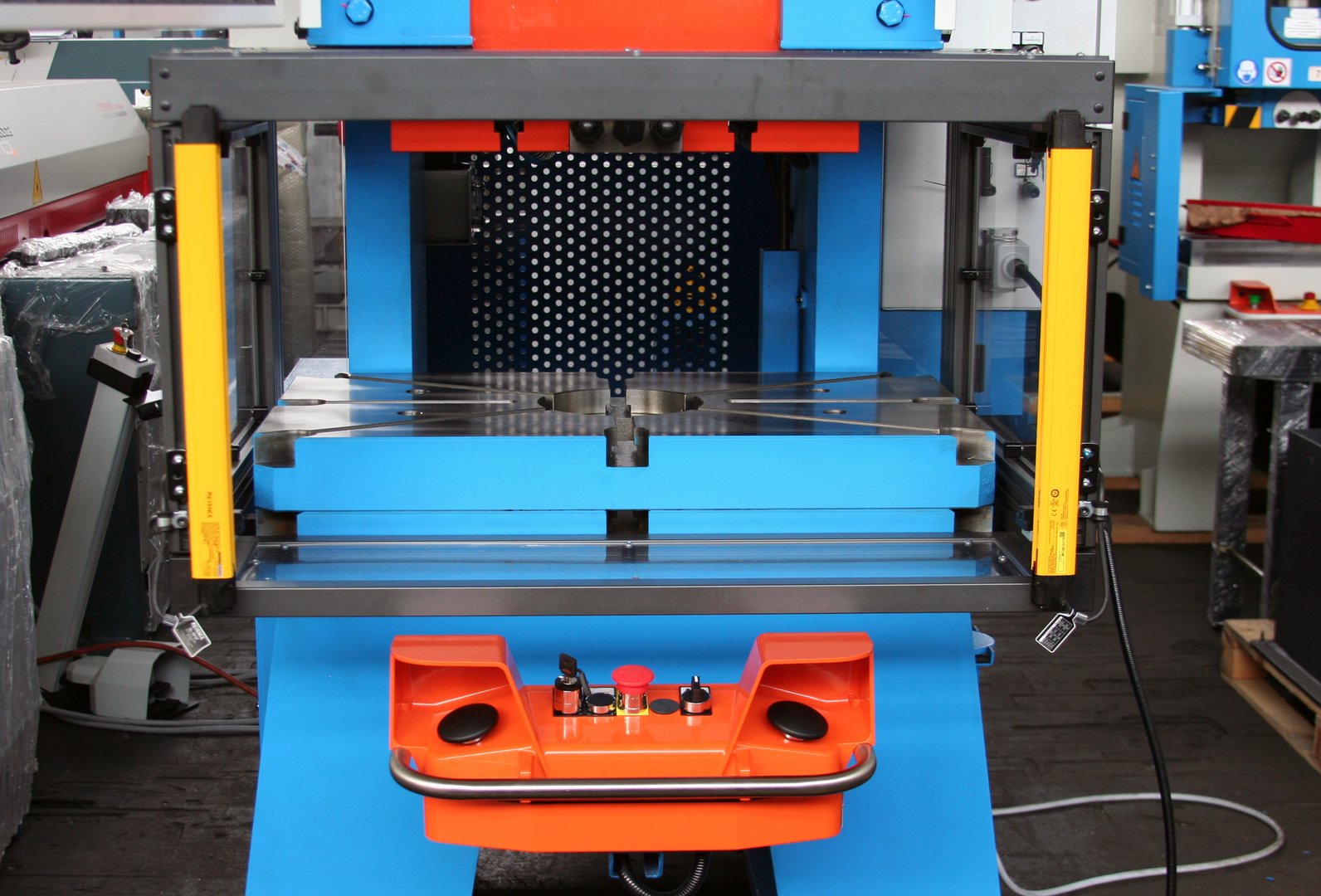

safety light guard Keyence

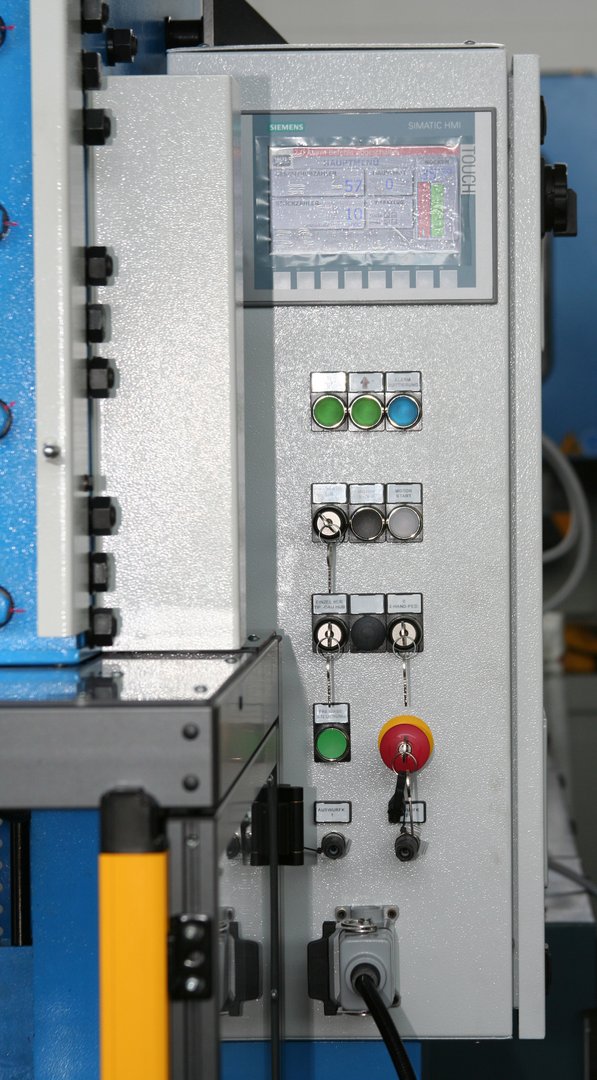

Automation and control of press parameters by PLC, alarms and informations displayd on human machine interface touch screen.
Standard monitoring:
- press speed view and adjustment
- programmable piece counter and maintenance piece counter
- die space adjustment with brake motor
- Semi automatic or automatic stroke adjustment
- die safety control
- alarms view
- overload protector
Further information
Brochures
Product video

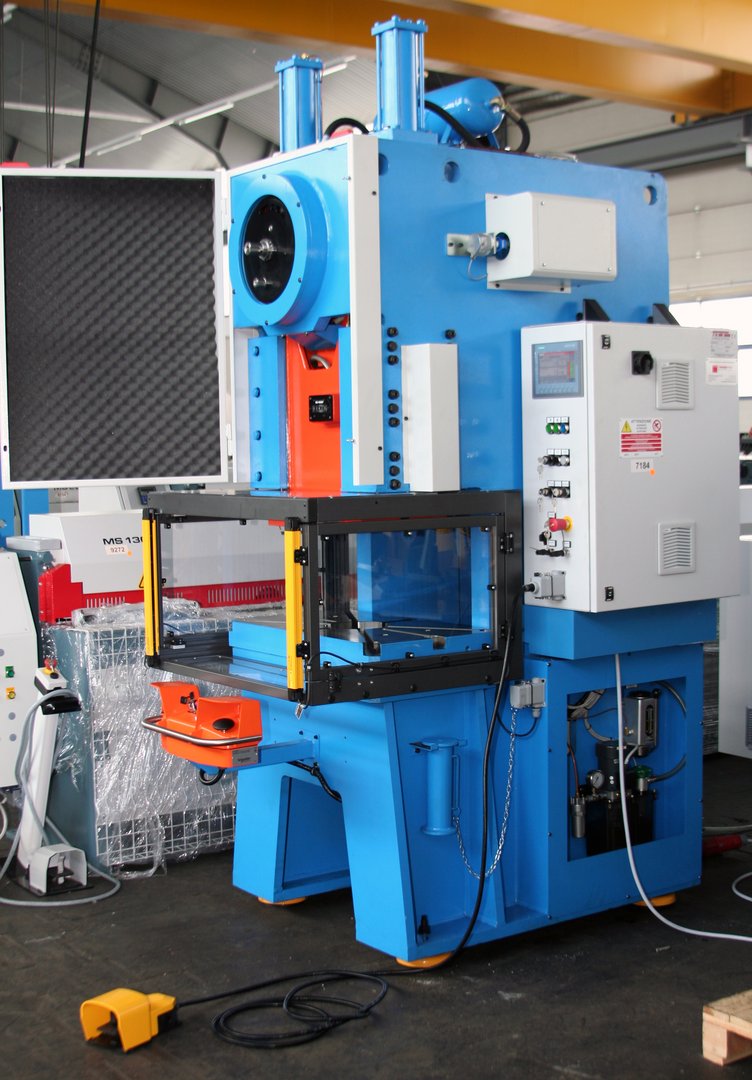

C-frame eccentric press MC-50
