General characteristics
| pressing capacity | 70 to |
| Tonnage rating point | 4 mm |
| Table length | 920 mm |
| Table width | 500 mm |
| Hole in table | 180 mm |
| Stroke | 12 - 120 mm |
| Strokes | 50 - 80 1/min |
| Ram guides | 8 |
| Ram adjustment | 80 mm |
| Throat depth | 260 mm |
| Distance between columns | 560 mm |
| Motor | 7 kW |
Dimensions and weight
| Length | 1225 mm |
| Width | 1865 mm |
| Height | 3060 mm |
| Weight | 7000 kg |
Description
touch screen control
semi automatic stroke adjustment
die space adjustment with mechanical display decimal resolution
adjustable motor speed
overload protector

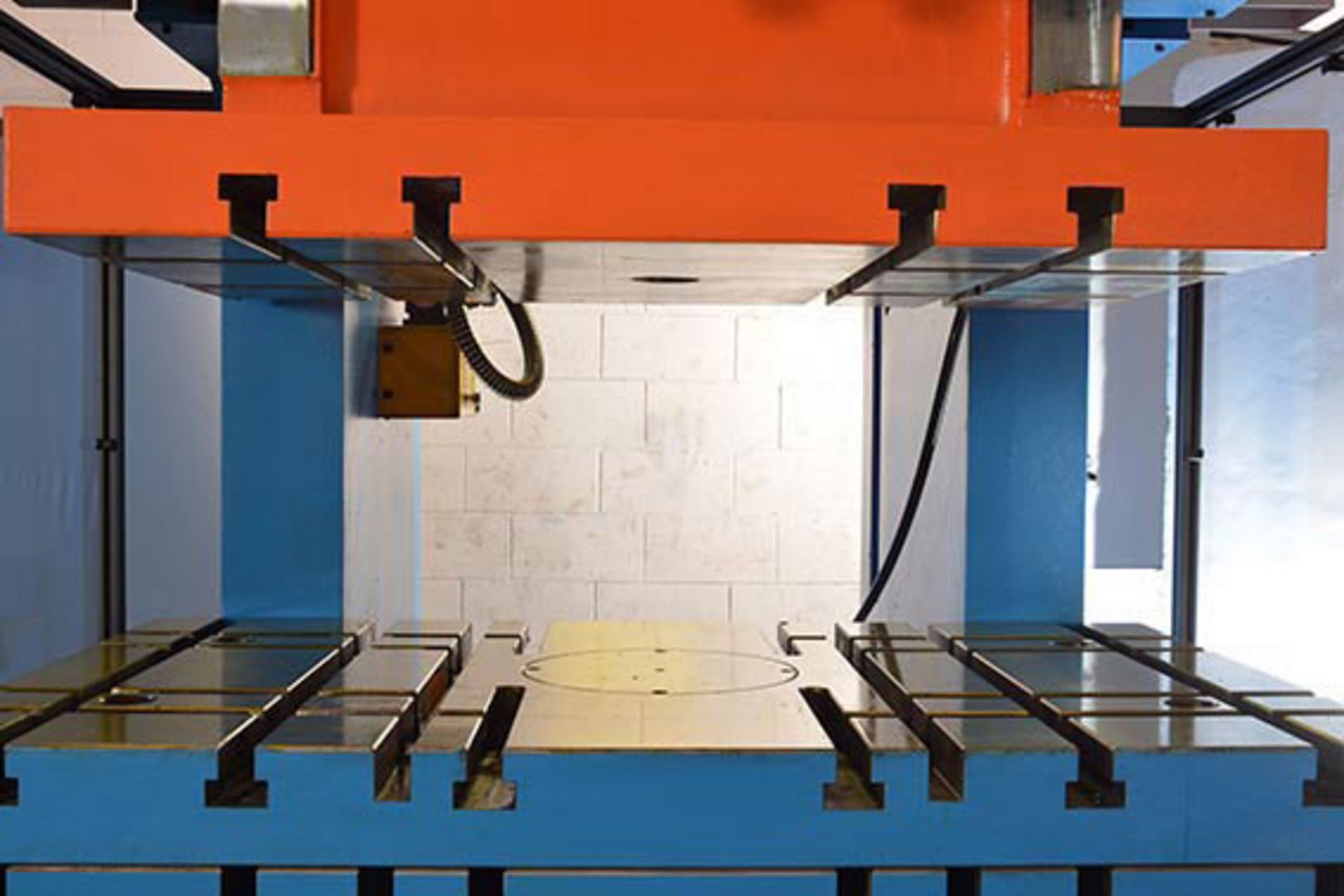

double bolster plate
oil circular lubrication
dynamic brake
safety light guard Keyence
Automation and control of press parameters by PLC, alarms and informations displayed on human machine interface touch screen.
Standard monitoring:
- press speed view and adjustment
- programmable piece counter and maintenance piece counter
- die space adjustment with brake motor
- semi automatic or automatic stroke adjustment
- die safety controls
- alarms view
- overload protector
