General characteristics
| pressing capacity | 125 to |
| Tonnage rating point | 5.5 mm |
| Table length | 1100 mm |
| Table width | 630 mm |
| Hole in table | 180 mm |
| Stroke | 15 - 150 mm |
| Strokes | 42 - 65 1/min |
| Ram | 700x400 mm |
| Ram guides | 8 |
| Ram adjustment | 90 mm |
| Throat depth | 320 mm |
| Distance between columns | 610 mm |
| Motor | 15 kW |
Dimensions and weight
| Length | 1400 mm |
| Width | 2200 mm |
| Height | 3120 mm |
| Weight | 12500 kg |
Description
touch screen control
semi automatic stroke adjustment
die space adjustment with mechanical display decimal resolution
adjustable motor speed
overload protector
automatic cams reset

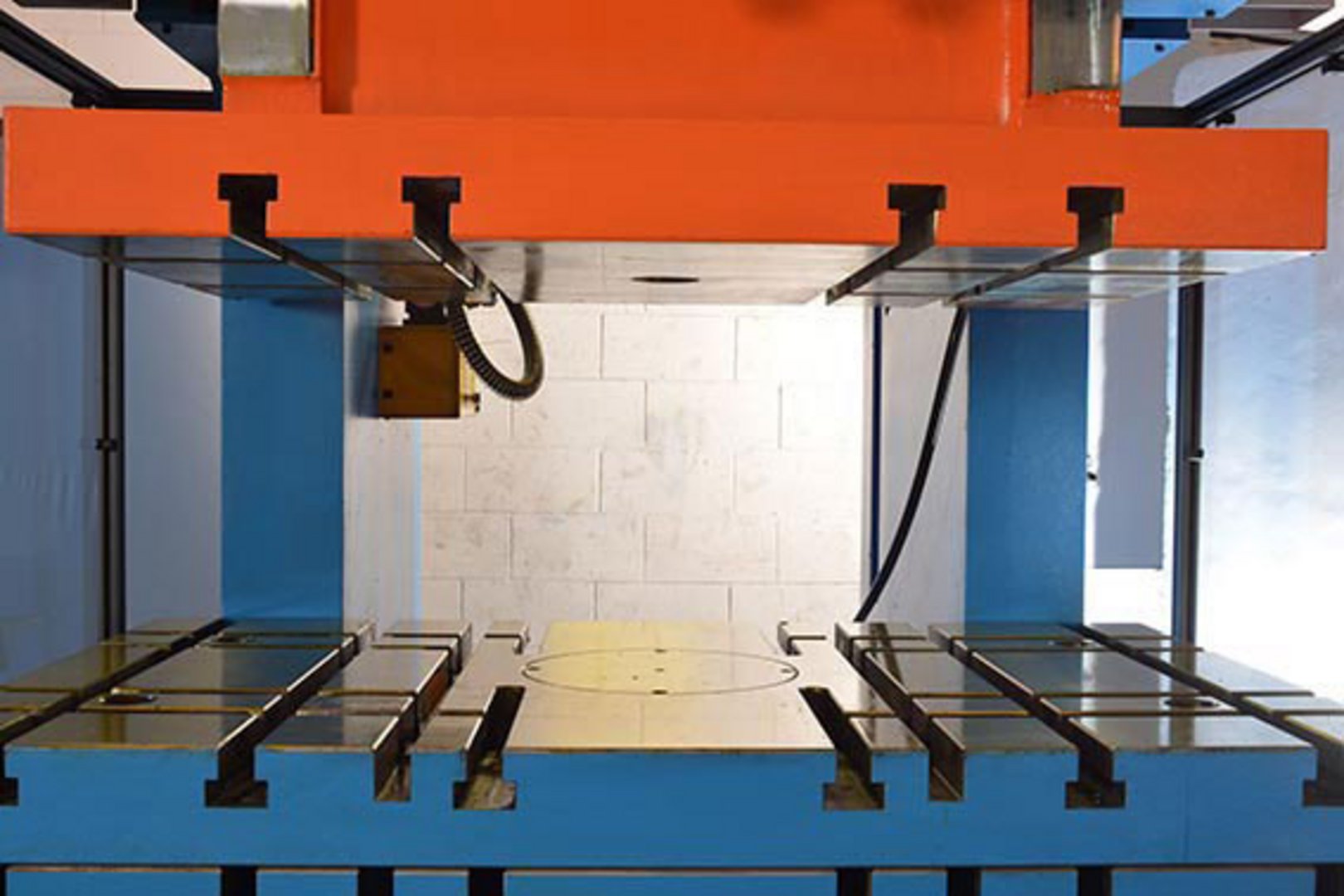

double bolster plate
oil circular lubrication
dynamic brake
safety light guard Keyence
Automation and control of press parameters by PLC, alarms and informations displayd on human machine interface touch screen.
Standard monitoring:
- press speed view and adjustment
- programmable piece counter and maintenance piece counter
- die space adjustment with brake motor
- Semi automatic or automatic stroke adjustment
- die safety control
- alarms view
- overload protector
