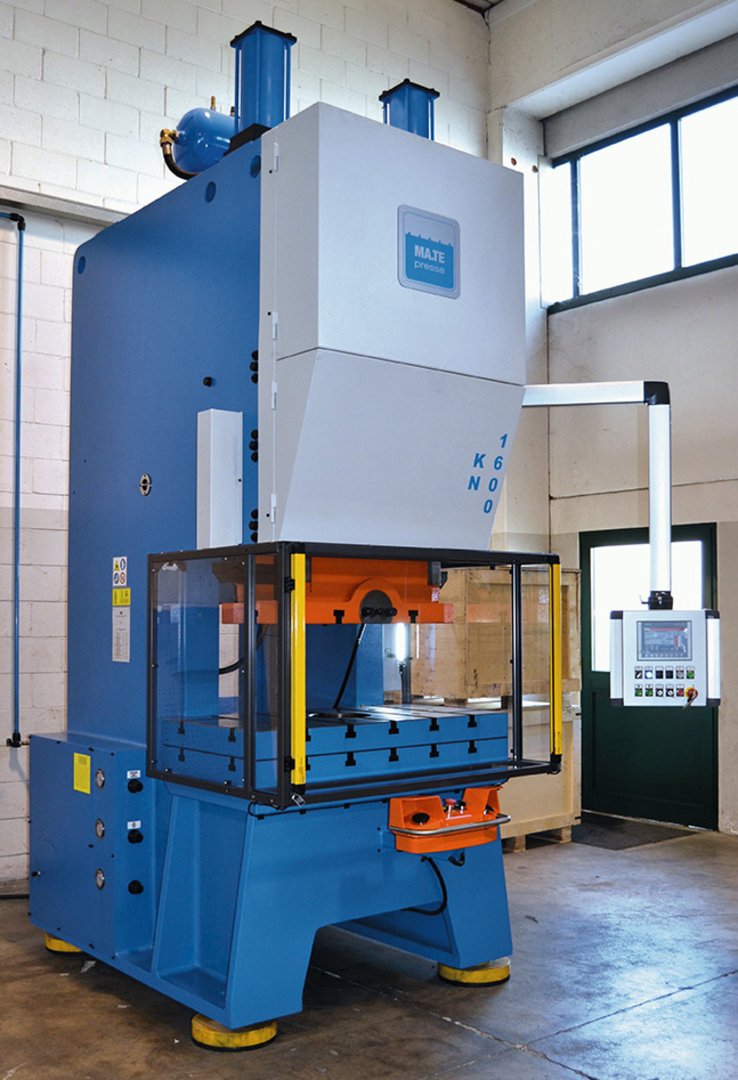

General characteristics
| pressing capacity | 160 to |
| Tonnage rating point | 6 mm |
| Table length | 1200 mm |
| Table width | 650 mm |
| Hole in table | 200 mm |
| Stroke | 16 - 160 mm |
| Strokes | 35 - 55 1/min |
| Ram | 740x420 mm |
| Ram guides | 8 |
| Ram adjustment | 100 mm |
| Throat depth | 330 mm |
| Distance between columns | 690 mm |
| Motor | 15 kW |
Dimensions and weight
| Length | 1410 mm |
| Width | 2220 mm |
| Height | 3544 mm |
| Weight | 16000 kg |
Description
touch screen control
semi automatic stroke adjustment
die space adjustment with mechanical display decimal resolution
adjustable motor speed
overload protector
automatic cams reset

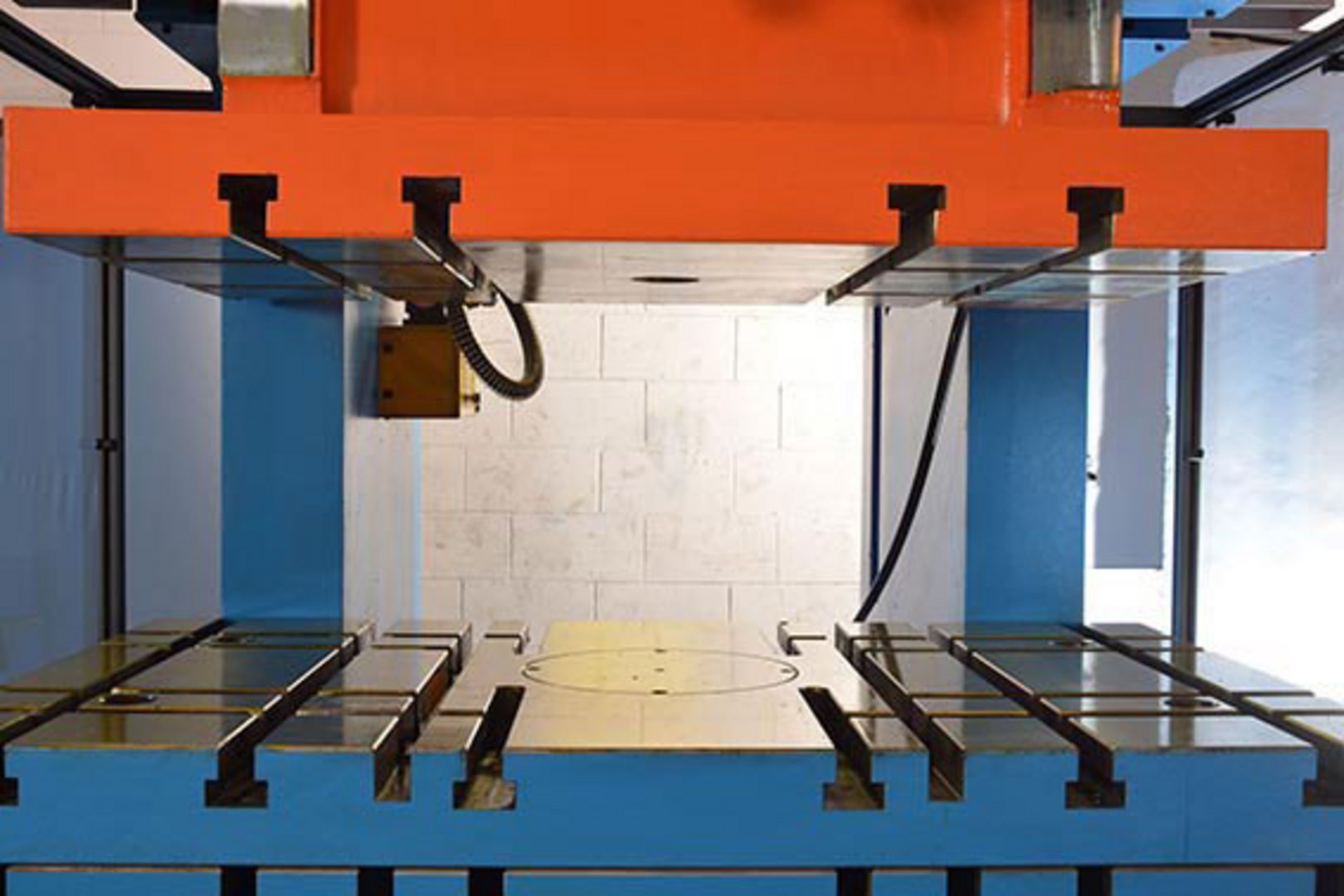

double bolster plate
oil circular lubrication
dynamic brake
safety light guard Keyence
Automation and control of press parameters by PLC, alarms and informations displayd on human machine interface touch screen.
Standard monitoring:
- press speed view and adjustment
- programmable piece counter and maintenance piece counter
- die space adjustment with brake motor
- Semi automatic or automatic stroke adjustment
- die safety control
- alarms view
- overload protector
