General characteristics
| pressing capacity | 200 to |
| Tonnage rating point | 7 mm |
| Table length | 1350 mm |
| Table width | 800 mm |
| Hole in table | 250 mm |
| Stroke | 18 - 180 mm |
| Strokes | 35 - 50 1/min |
| Ram | 900x570 mm |
| Ram guides | 8 |
| Ram adjustment | 110 mm |
| Throat depth | 410 mm |
| Distance between columns | 820 mm |
| Motor | 22 kW |
Dimensions and weight
| Length | 1500 mm |
| Width | 2633 mm |
| Height | 3950 mm |
| Weight | 20000 kg |
Description
touch screen control
semi automatic stroke adjustment
die space adjustment with mechanical display decimal resolution
adjustable motor speed
overload protector
automatic cams reset

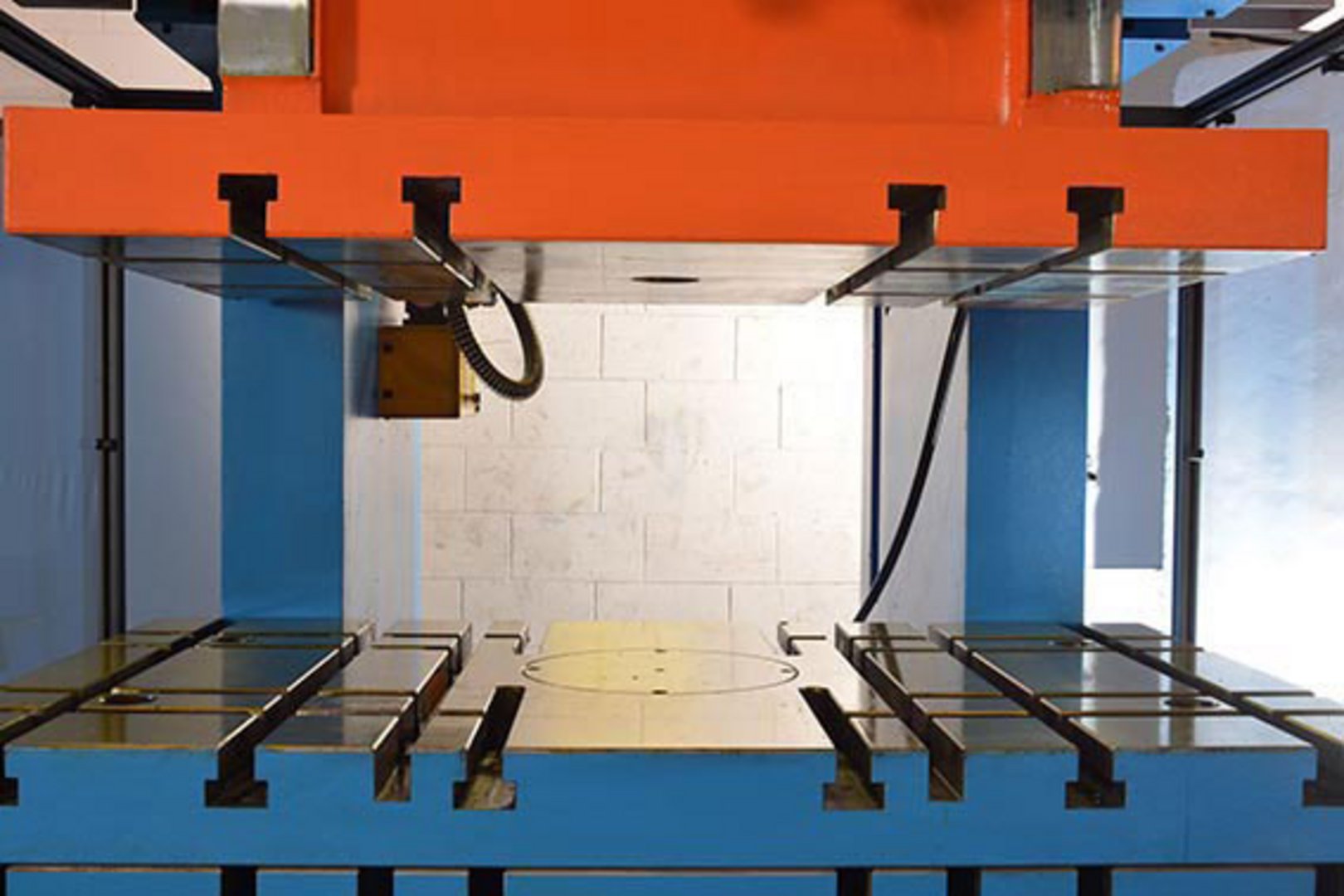

double bolster plate
oil circular lubrication
dynamic brake
safety light guard Keyence
Automation and control of press parameters by PLC, alarms and informations displayd on human machine interface touch screen.
Standard monitoring:
- press speed view and adjustment
- programmable piece counter and maintenance piece counter
- die space adjustment with brake motor
- Semi automatic or automatic stroke adjustment
- die safety control
- alarms view
- overload protector
