General characteristics
| pressing capacity | 250 to |
| Tonnage rating point | 8 mm |
| Table length | 1400 mm |
| Table width | 800 mm |
| Hole in table | 250 mm |
| Stroke | 23 - 220 mm |
| Strokes | 25 - 50 1/min |
| Ram | 950x620 mm |
| Ram guides | 8 |
| Ram adjustment | 120 mm |
| Throat depth | 410 mm |
| Distance between columns | 820 mm |
| Motor | 33 kW |
Dimensions and weight
| Length | 1600 mm |
| Width | 2900 mm |
| Height | 4250 mm |
| Weight | 25000 kg |
Description
touch screen control
semi automatic stroke adjustment

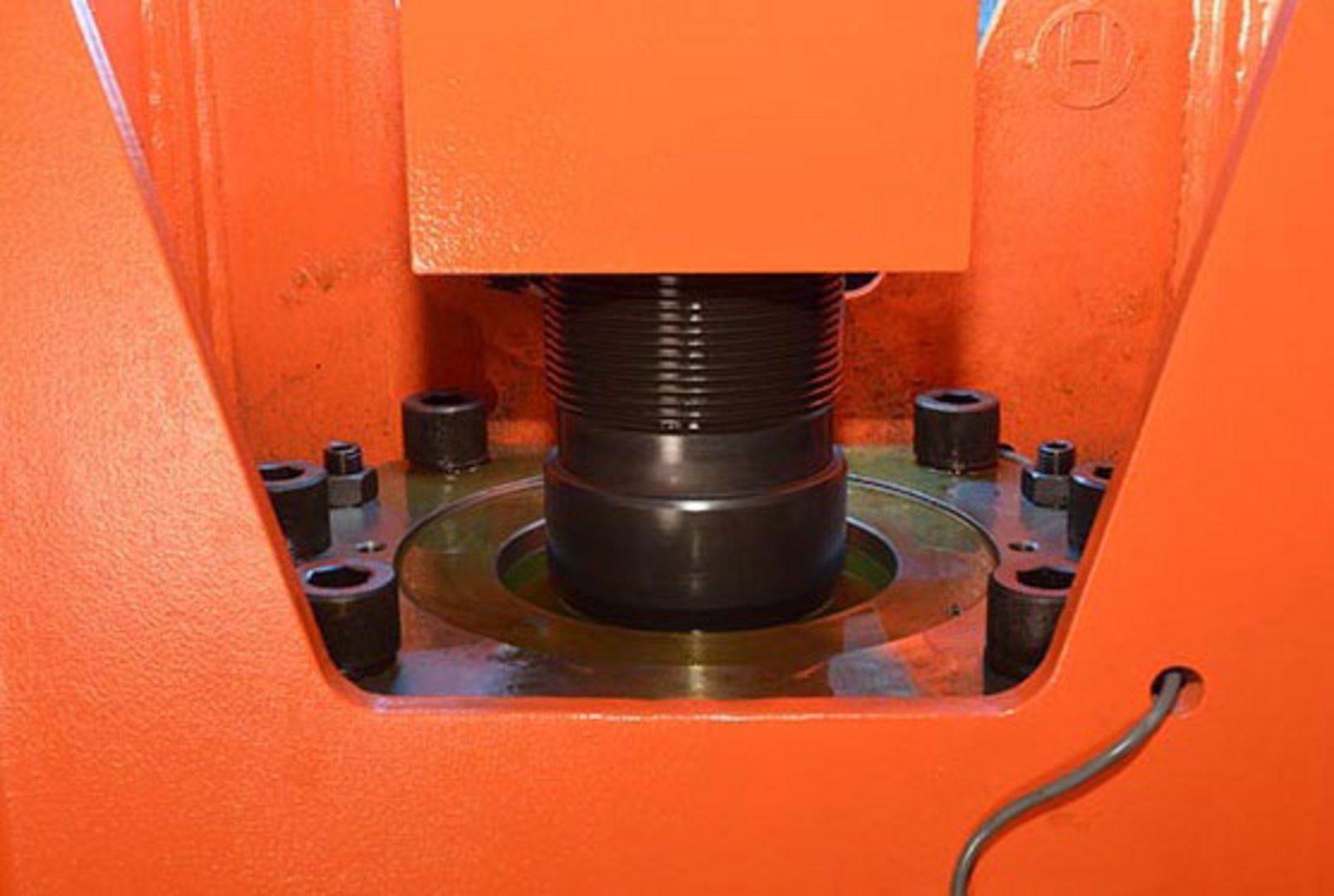

die space adjustment with mechanical display decimal resolution
adjustable motor speed
overload protector
automatic cams reset

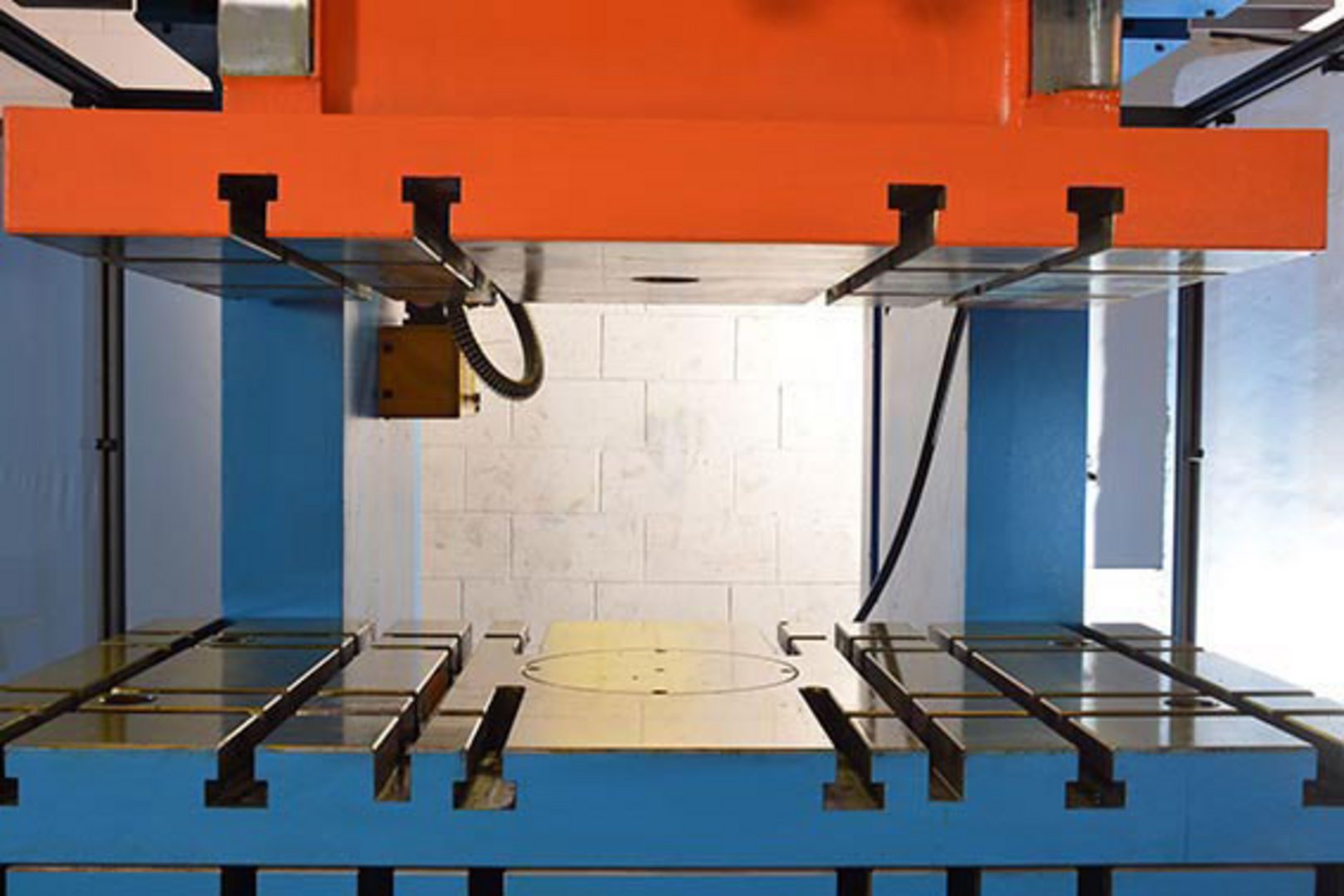

double bolster plate
oil circular lubrication
dynamic brake
safety light guard Keyence
Automation and control of press parameters by PLC, alarms and informations displayed on human machine interface touch screen.
Standard monitoring:
- press speed view and adjustment
- programmable piece counter and maintenance piece counter
- die space adjustment with brake motor
- semi automatic or automatic stroke adjustment
- die safety controls
- alarms view
-overload protector
