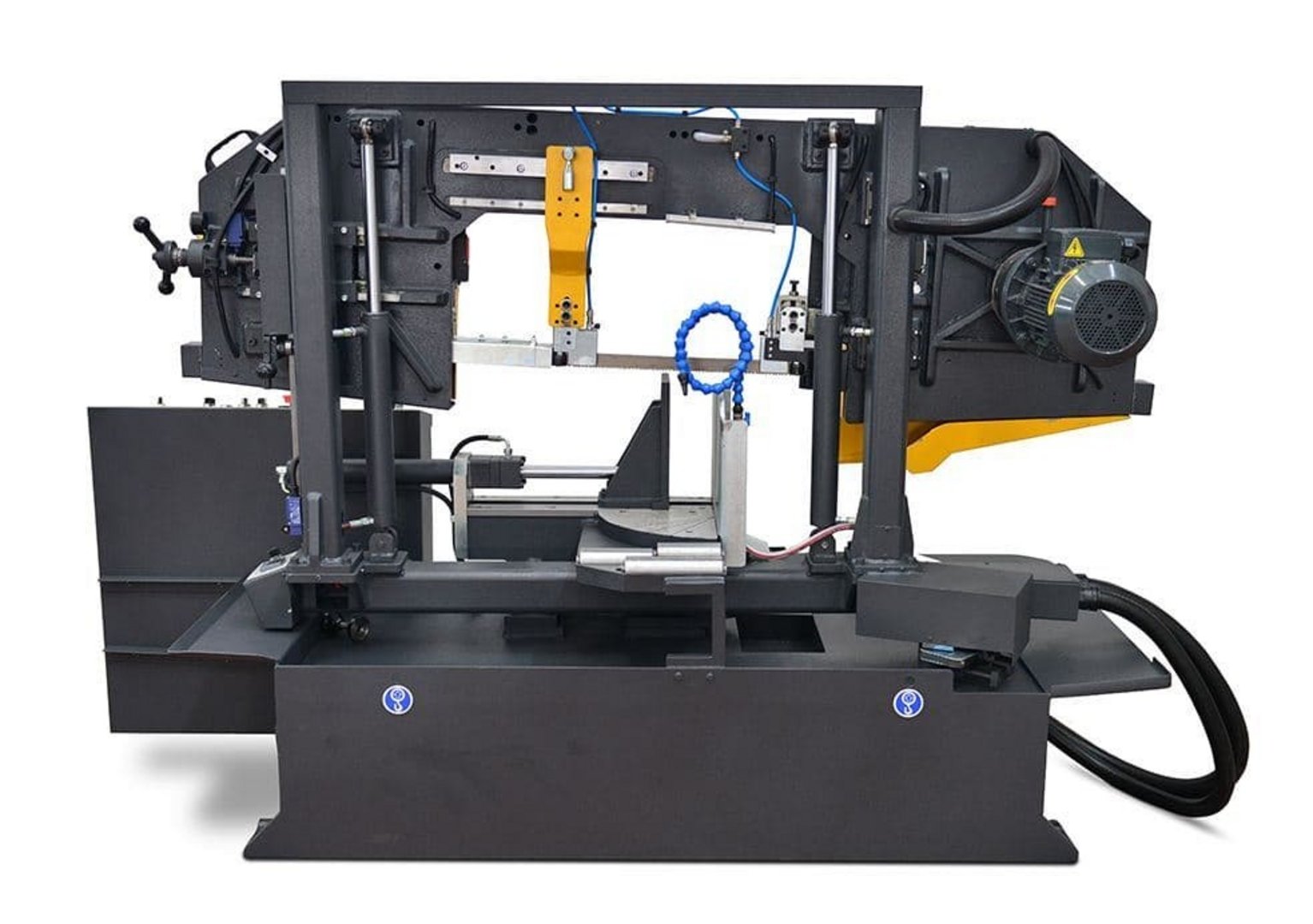

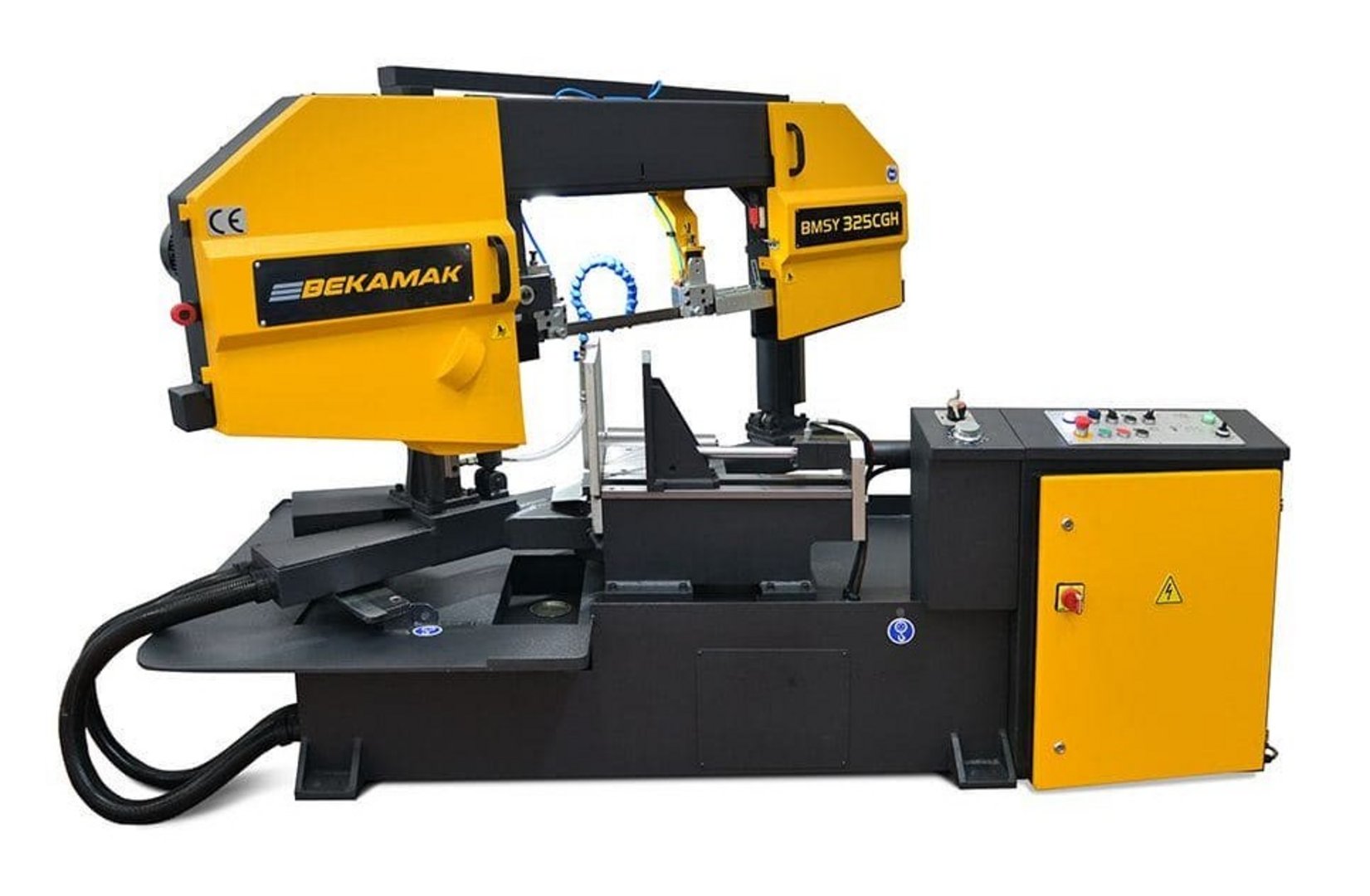

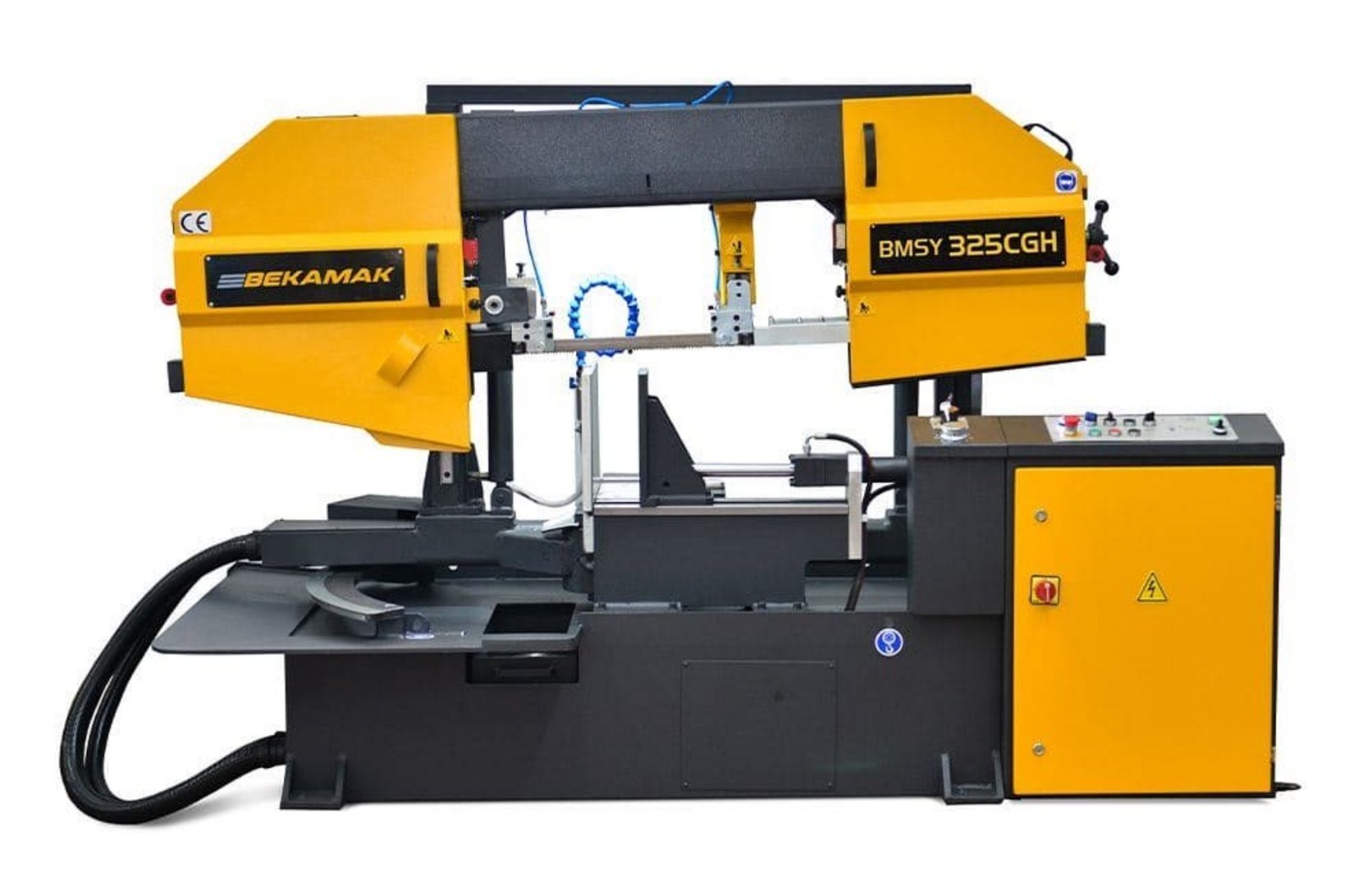

Semiautomatic band saw HESSE by BEKAMAK BMSY 325 CGH
| Model | BMSY 325 CGH |
| Brand | HESSE by BEKAMAK |
| Condition | new |
| Cutting capacity 0° round | 325 mm |
| Cutting capacity 0° square | 320 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 4900 x 3,4 x 1,1 mm |
| Band speed continous | 15 - 120 m/min |
| Cutting capacity 0° round | 325 mm |
| Cutting capacity 0° square | 320 mm |
| Cutting capacity 0° flat | 400 x 320 mm |
| Cutting capacity 45° | round 280 mm, square 240 x 320 mm, rectuangular 260 mm |
| Cutting capacity 60° | round 180 mm, square 180 x 220 mm, rectangular 180 mm |
| Working height | 650 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2425 mm |
| Width | 1050 mm |
| Height | 1600 mm |
| Weight | 1250 kg |
Description
Linear guides
Sensitive cutting pressure control
Bi-metal saw blade (34 mm)
Coolant system
Thermal overload protection
Hydraulic-mechanical blade tensioning
Saw blade brush
Hydraulic clamping of the vise
Optical height adjustment
Heavy-duty gearbox
Band inclined at 2°
Infinitely variable cutting speed
Digital display for miter angle
Hydraulic locking of the miter adjustment
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
