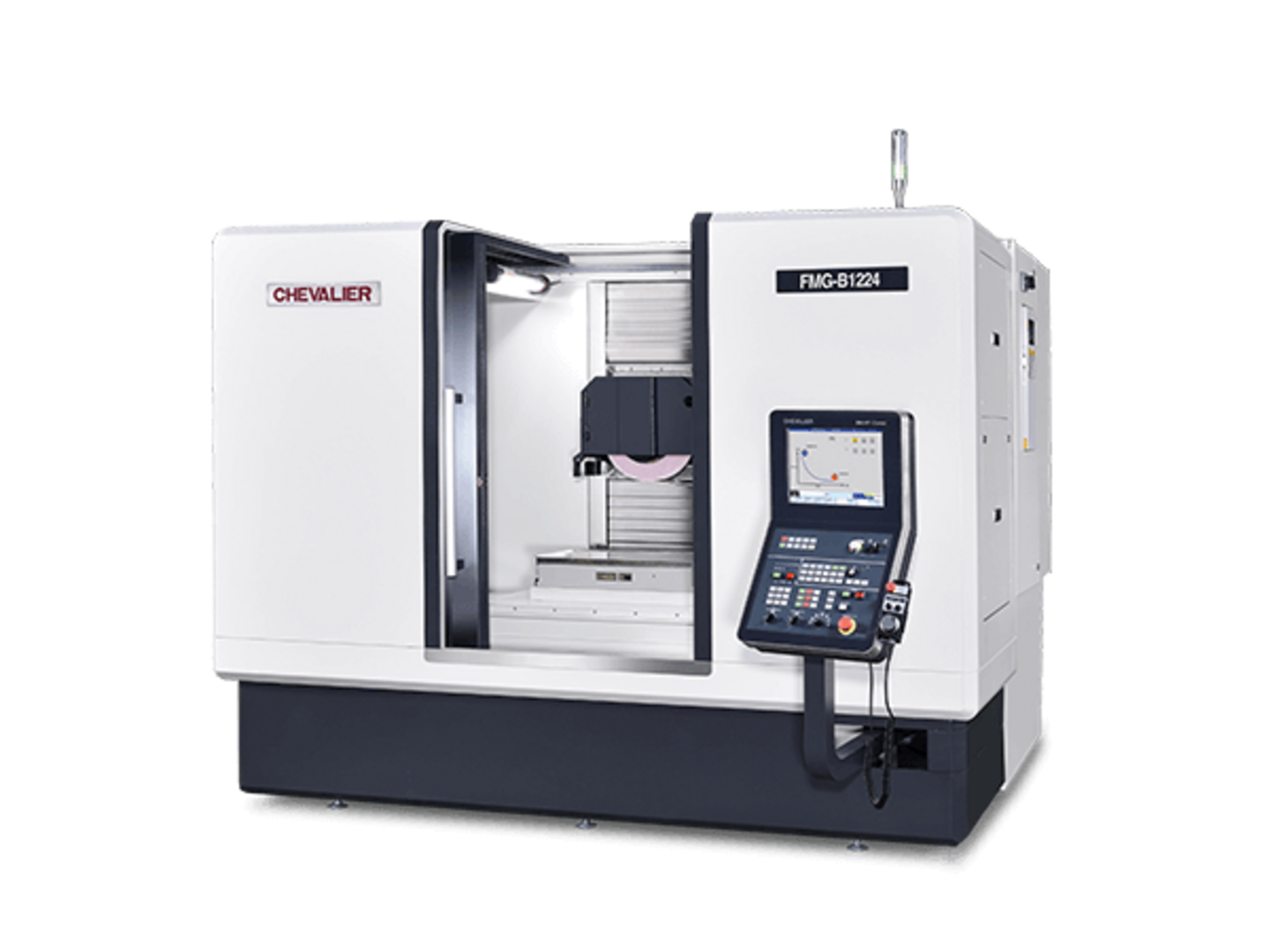

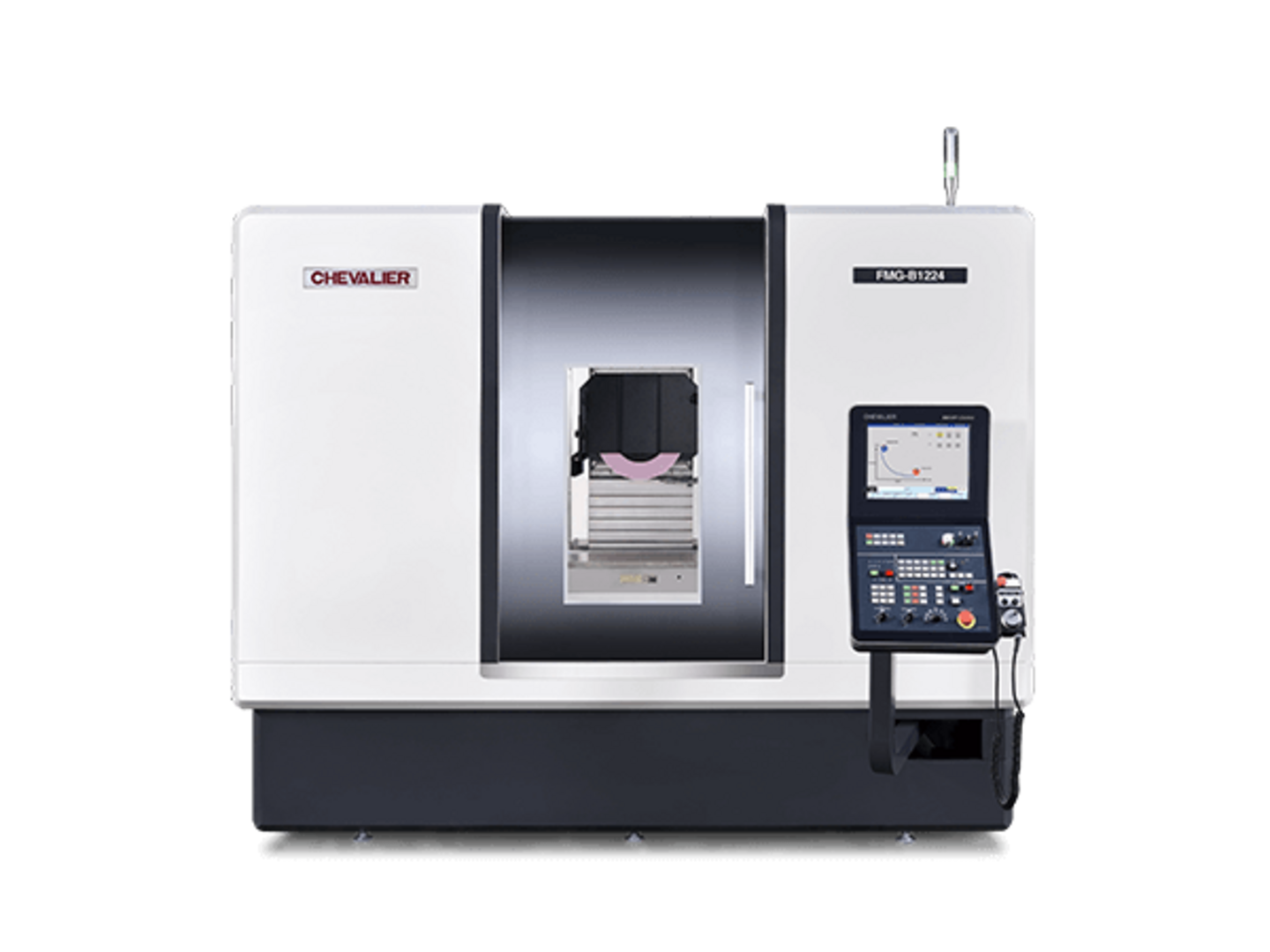

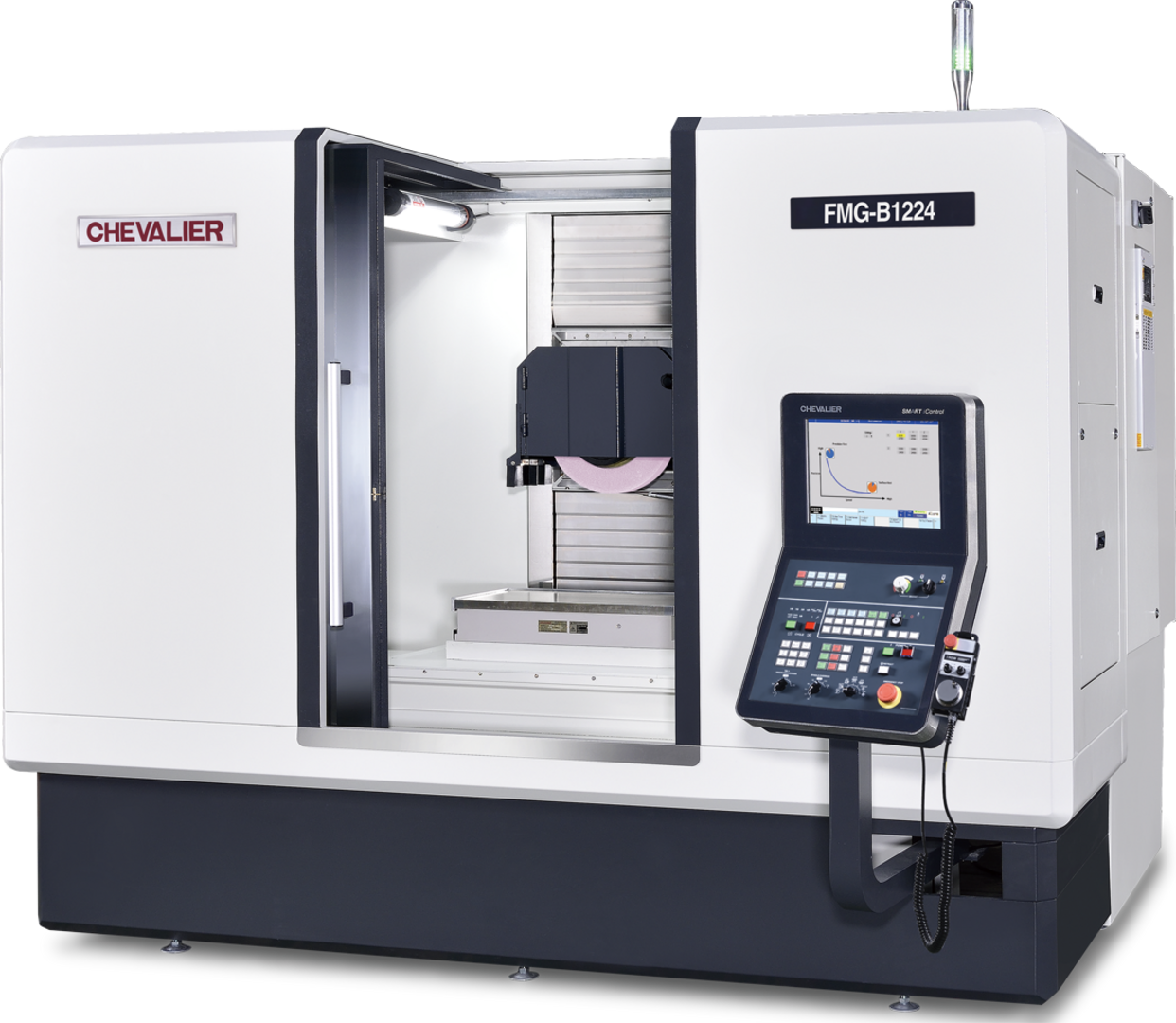

General characteristics
| Grinding lenght | 1010 mm |
| Distance spindle - table | 590 mm |
| Table | 1000 x 400 mm |
| Magnetic table | 1000 x 400 mm |
| Table speed | 0 -25 m/min |
| Cross feed | 0 - 4000 m/min |
| Max. cross feed | 450 mm |
| Automatic vertical feed | 450 mm |
| Vertical feed | 0 - 3800 mm/min |
| Vertical feed incremental | 0.001 mm |
| Spindle revs | 600 - 3600 rpm |
| Spindle motor | 11 kW |
| Max. workpiece weight on magnetic table | 423 kg |
| Max. workpiece weight on t-slot table | 670 kg |
| Grinding wheel dimensions | 405 x 50 x 127 mm |
| Servo-axis motors Y/Z | 2,4 / 3,9 |
| Servo-axis motor X | 5.9 kW |
Dimensions and weight
| Length | 3675 mm |
| Width | 4055 mm |
| Height | 2480 mm |
| Weight | 6500 kg |
Description
Rigid machine construction with a movable column
for effective stability to ensure high grinding performance and machining accuracy
Smart iControlIV control with 15" touchscreen with electronic wired handwheel
PC-based control with graphical dialog programming or G-code programming
Infinitely variable speed
Surface grinding cycle, cross grinding cycle, plunge grinding cycle, multi-groove grinding cycle, contour grinding cycle, dressing cycle
Spindle with 6 angular contact ball bearings (4 front and 2 rear)
All 3 axes with precision ball screws and AC servo motors
A balancing system is attached to the spindle housing to reduce stress on the machine structure
Full enclosure with lighting
Electromagnetic chuck
Coolant system 300 l/min with drum paper filter and magnetic separator
Driven wheel dressing device mounted on the table, 1.7 kW, with double support, width 200 mm, diameter 35 or 52 mm
Grinding wheel
Grinding wheel flange
Grinding wheel balancing scale
Heat exchanger for the control cabinet
Machine and equipment compliant with CE regulations
Operating instructions in GERMAN or ENGLISH
Accuracy standard ISO 1986-1
Options (prices on request):
Linear encoders for Y and Z axes
Oil mist collector
Further information
Product video
CNC profile grinder with traveling column FMG-B1640
