General characteristics
| Grinding lenght | 2100 mm |
| Distance spindle - table | 850 mm |
| Table | 2000 x 600 mm |
| Magnetic table | 2x 1000 x 600 mm |
| Table speed | 0 - 20 m/min |
| Cross feed | 0 - 5000 m/min |
| Max. cross feed | 685 mm |
| Vertical feed | 0 - 2000 mm/min |
| Vertical feed incremental | 0.001 mm |
| Max. elevating movement | 675 mm |
| Spindle revs | 500 - 2200 rpm |
| Spindle motor | 11 kW |
| Table height | 900 mm |
| Max. workpiece weight on magnetic table | 1240 kg |
| Max. workpiece weight on t-slot table | 2000 kg |
| Grinding wheel dimensions | 405 x 50 x 127 mm |
| Servo-axis motors Y/Z | 3,1 / 3,1 |
| Servo-axis motor X | 7.5 kW |
| Positioning accuracy | X: 0,008, Y/Z: 0,005 mm |
| Repeat accuracy | X: 0,006, Y/Z: 0,003 mm |
Dimensions and weight
| Length | 7710 mm |
| Width | 3320 mm |
| Height | 2850 mm |
| Transport dimensions | 6530x3200x3350 mm brutto 13.500 kg 40FR mm |
| Weight | 10200 kg |
Description
Smart i control with 10.4" touchscreen on a swiveling panel, with electronic wired handwheel
- RS232, USB I/O connection
- SMART Grind Cam (dxf transfer in G code)
- PC based control with graphical dialog programming or G-code programming
Infinitely variable speed
Surface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycle
Spindle with 6 angular contact ball bearings (P4, class 7)
Longitudinal guides with double-V-shape with Turcite-B coating
All 3 axix with precision ball screws (class C2) and AC servo motors
Fully enclosed splash guard with lamp
Electromagnetic chuck plate
Coolant system 250 lt with automatic paper filter and magnetic separator
Automatic diamond roller dresser mounted on the table, with automatic compensation *
Grinding wheel
Grinding wheel flange
Grinding wheel balancing scale
Machine and equipment in accordance with CE regulations
Operating manual in GERMAN or ENGLISH
Accuracy standard ISO 1986-1
* The exact configuration of the dresser must be clarified before ordering
Further information
Product video

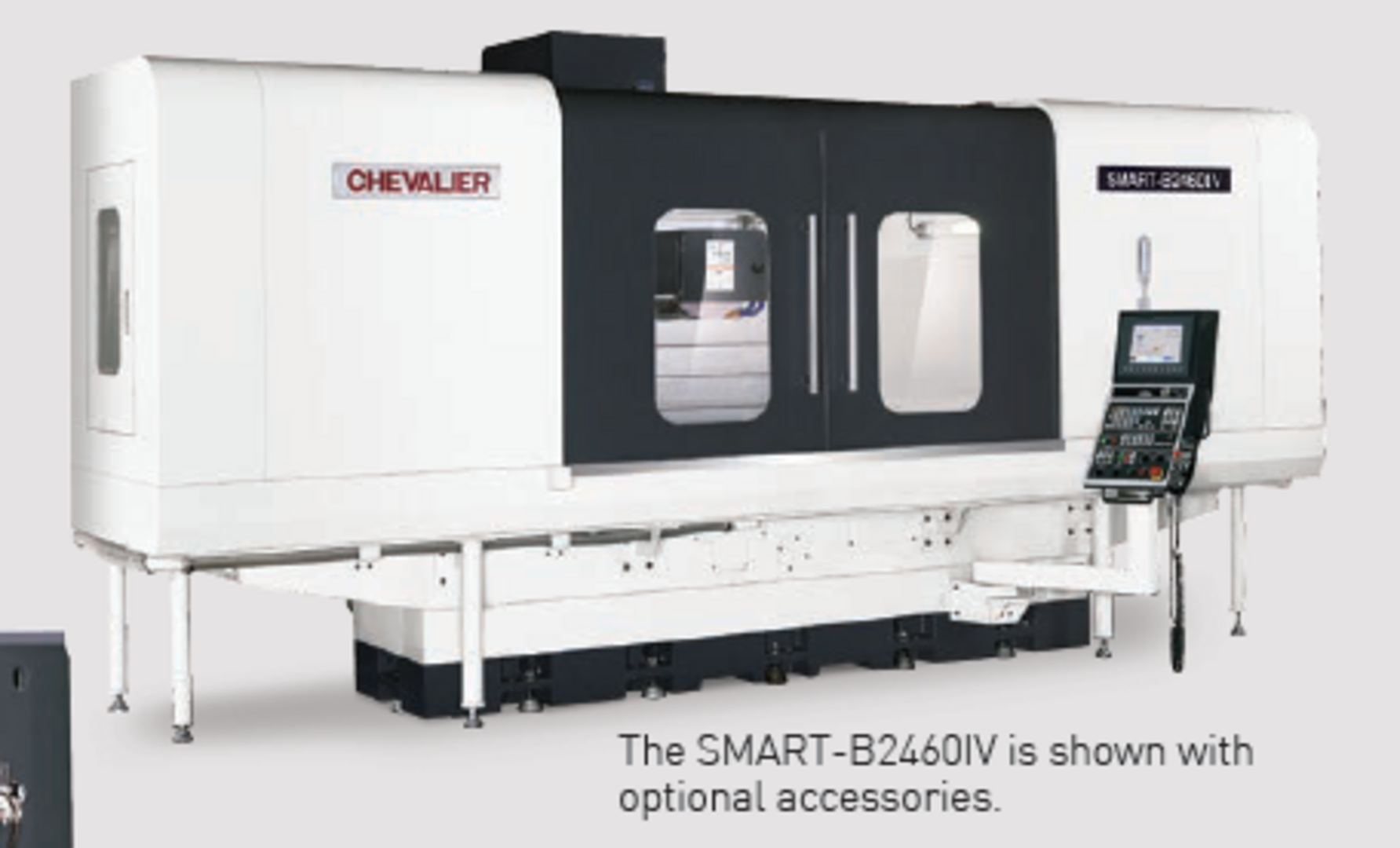

Flachschleifmaschine SMART-B2480IV
