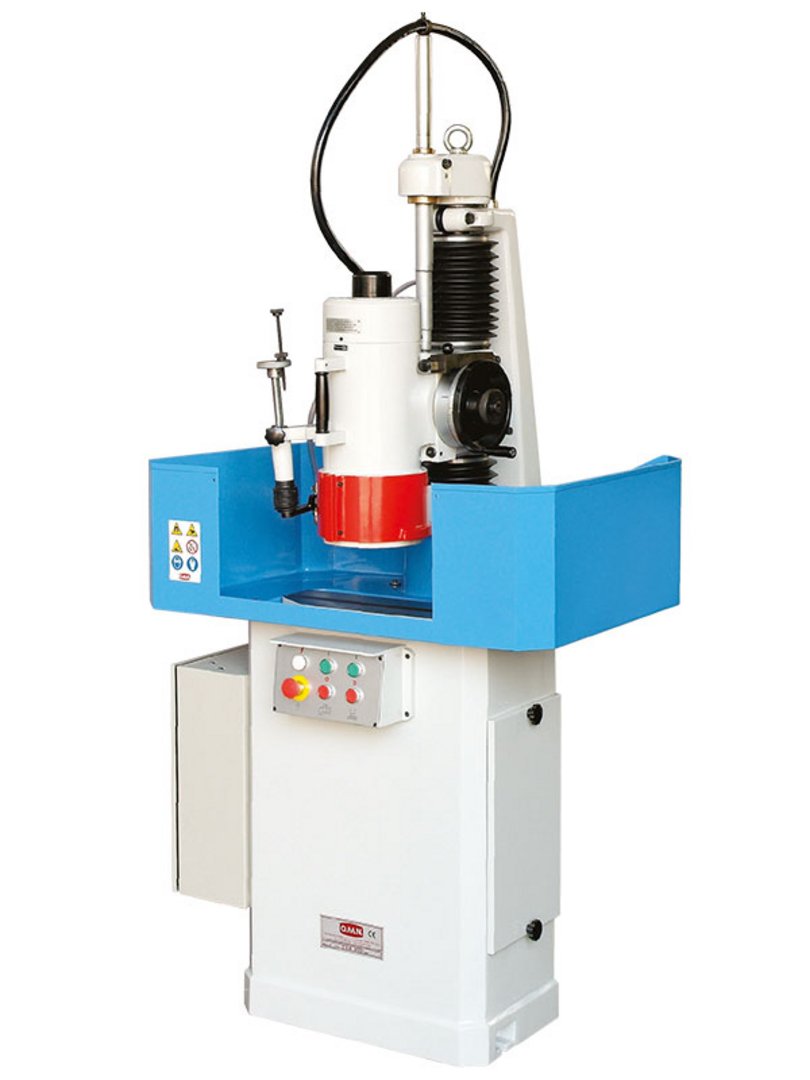

Flat grinding machine / Cup grinding machine O.M.N. C.S.E. 500

This Grinding machine with fixed table derives from the model R.V. 500 but it differs from it as it is
equipped with a long column supported by four bearings and is opportunely stiffened
by a sturdy column support.
This Surface grinding machine, due to its stiffness and geometrical stability,
is highly suitable for grinding with precision pieces of notable height: single or mass-produced
die-shop components, moulds, punches, gears and others.
Moreover, the nuts of the vertical translation screw and the dowels to realign the wheel motor
to the axis, equipping this model of Grinding machine with fixed table,
allow preserving perfect work conditions over the years, too.

CAST IRON BED to maintain the geometric stability of the grinding machine in time, too.
CAST IRON COLUMN, protected by bellows and supported by four adjustable precision bearings,
broadly sized for this type of grinding machine with fixed table.
Three-phase MOTOR air-cooled by double jacket, to prevent the overheating of the grinding
machine motor during continuous machining and to keep the temperature of the motor shaft
and of bearings constant.
Hardened, ground and dynamically balanced SHAFT, supported by precision ball bearings,
widely sized for this type of grinding machine with fixed table and self-adjusting
by means of springs for the backlash preload, to absorb thermal expansions.
VERTICAL TRANSLATION SCREW supported by opposite and adjustable ball bearings,
with apt motion for maintaining, in this model of grinding machine with fixed table,
the wheel work field free from hindrances and for avoiding dust depositions.
Metal BELLOWS for a better protection of the vertical translation screw of the grinding machine.
Opposite bronze NUTS, for the recovery of the eventual wear in time of the vertical translation screw
of the grinding machine with fixed table.
REGISTRATION DOWELS to re-align the wheel motor of the grinding machine to the axis,
obtaining parallel surfaces also in time.
HANDWHEEL of the grinding machine, supported by three bearings and engaged on the screw
by means of a pair of helical gears, equipped with graduated drum, supported by a trust bearing,
for a stock removal of mm 0.01 – 0.02 – 0.03 for each single pass; the rapid feed
per handwheel turn is mm 2.
KNOB WITH JACK, for the programmable micrometric feed of mm 0.01 – 0.02 – 0.03 – 0.04 per pulse,
which allows a simple use by avoiding the constant increment control.
SLOT to permit the maximum use in height of the work field of the grinding machine wheel
and to clamp non-magnetic parts and accessories such as: magnetic chuck, self-centering chuck and squares.
Low-voltage CONTROLS, protection, indicator light and all requisites to comply with safety
and conformity regulations provided for this type of grinding machine with fixed table.
HANDLES, SHAPES AND SIZES of the grinding machine with fixed table designed
to meet the current ergonomic recommendations for work.

With following accessories:

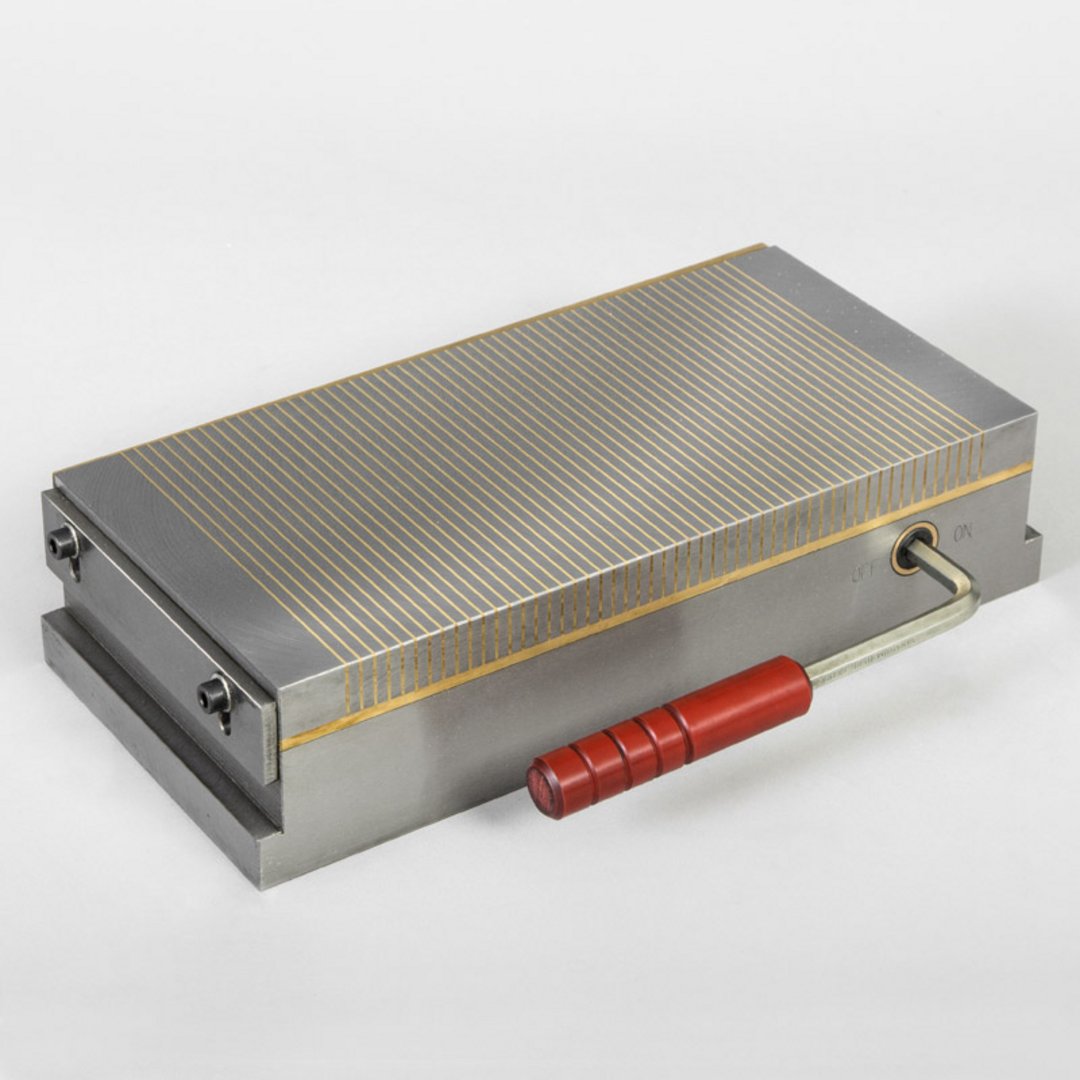

Magnetic chuck 300 x 150 mm
Wheel flange and cup wheel
Semiautomatic dresser with diamond
Coolant system
Operating manual in German or Italian
