General characteristics
| Grinding lenght | 457 mm |
| Distance spindle - table | 450 mm |
| Table | 457 x 203 mm |
| Magnetic table | 200 x 450 mm |
| Table movement hydraulic | 500 mm |
| Table movement manual | 530 mm |
| Table speed | 5 - 25 m/min |
| Cross feed | 960 m/min |
| Cross feed incremental | 0,4 - 6 mm |
| Max. cross feed | 230 mm |
| Vertical feed | 0,002 - 0,04 mm/min |
| Spindle revs | 2850 rpm |
| Spindle motor | 1 kW |
| Hydraulic motor | 0.75 kW |
| Cross feed motor | 0.04 kW |
| Feed motor grinding wheel | 0.19 kW |
| Total power | 3 kW |
| Max. workpiece weight on magnetic table | 215 kg |
| Max. workpiece weight on t-slot table | 250 kg |
| Grinding wheel dimensions | 203 x 12,7 x 31,75 mm |
Dimensions and weight
| Length | 2200 mm |
| Width | 1575 mm |
| Height | 1950 mm |
| Transport dimensions | 1854 x 1549 x 2210 mm |
| Weight | 1320 kg |
Description

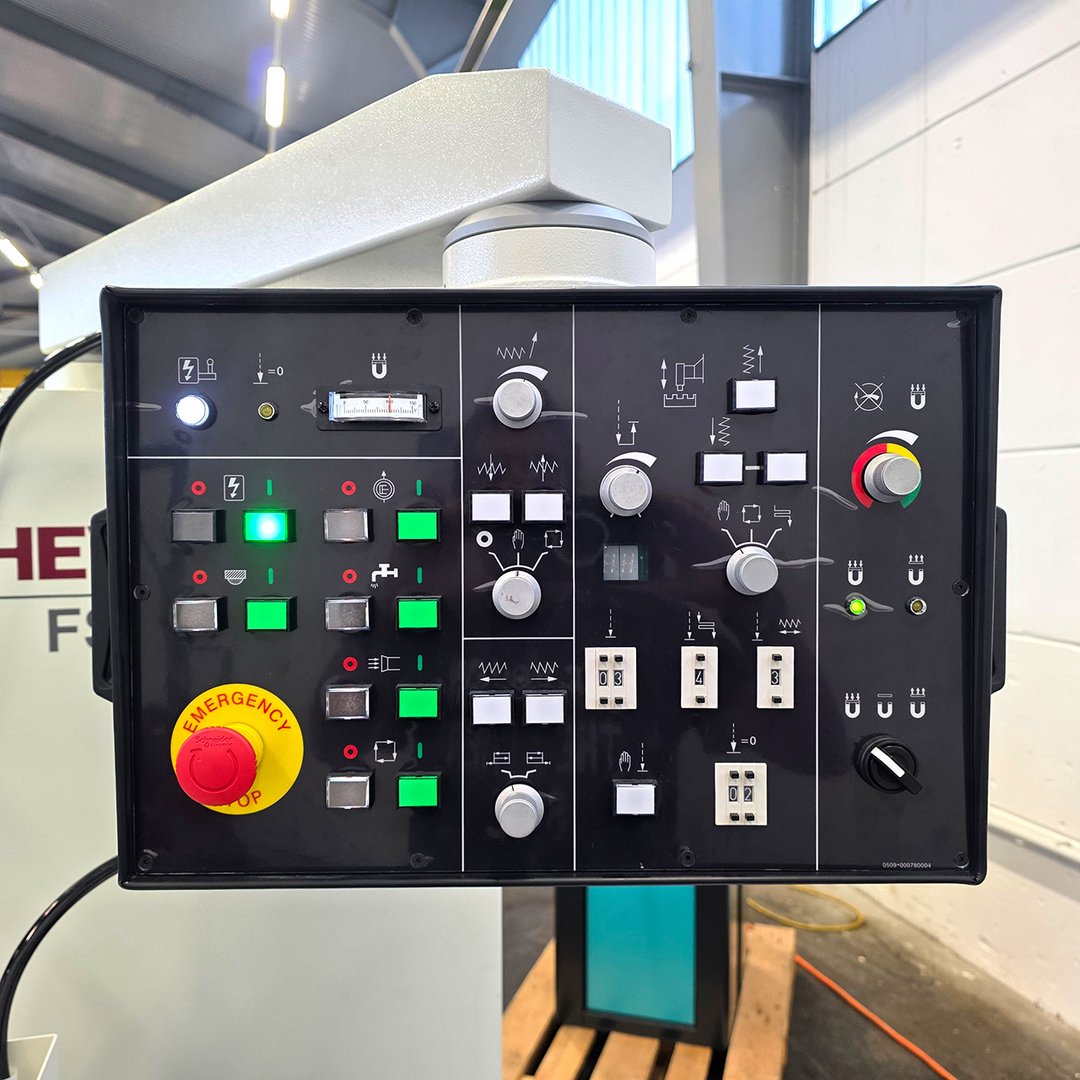

control panel on swiveling arm
aut. vertical feed
grinding wheel spindle on 4 high precision angular contact bearings
electro-magnetic chuck
coolant equiptment 34 lt with magnetic separator and dust exhaust
manual dresser with diamond

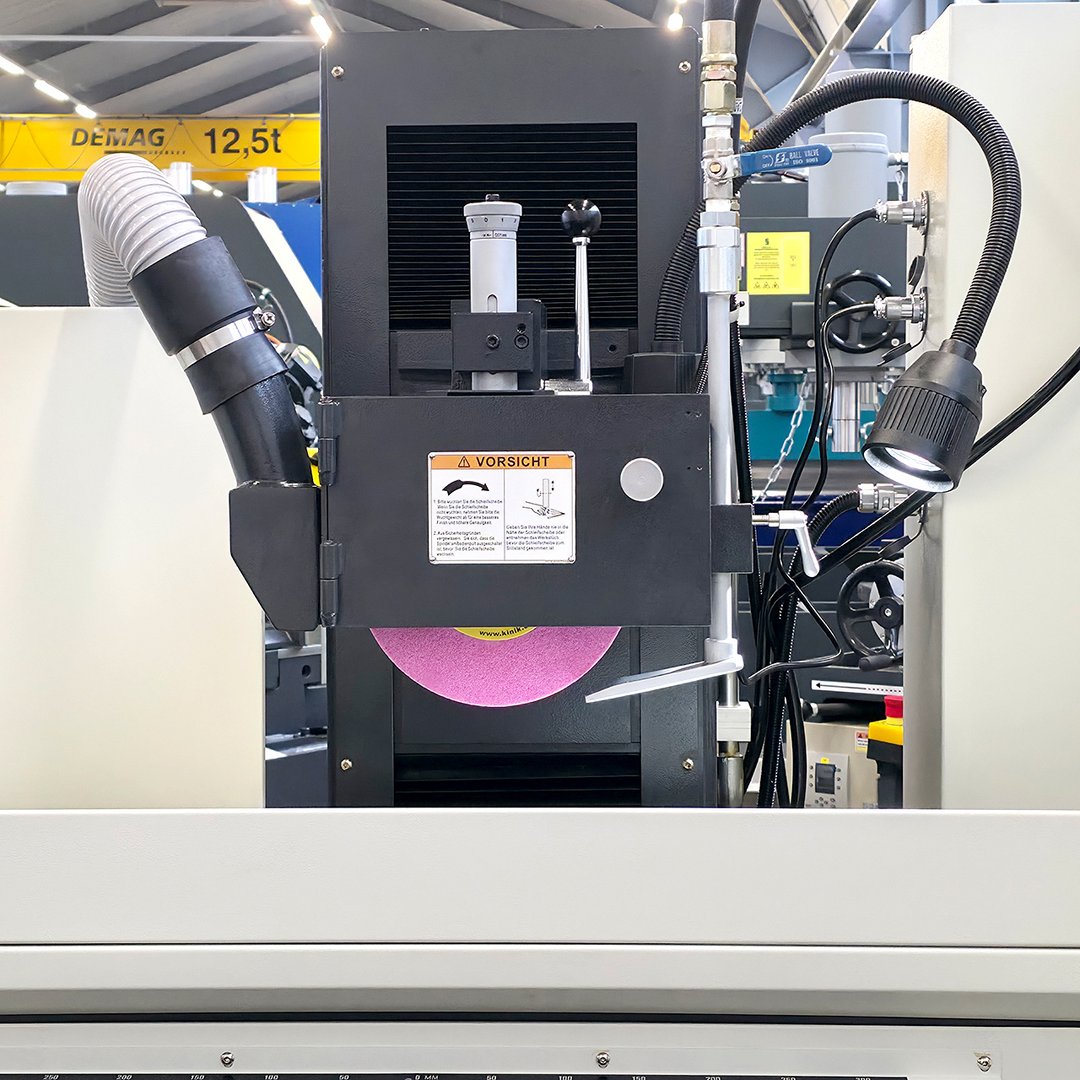

grinding wheel
grinding wheel flange
grinding wheel balancing scale
balance arbor
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
