General characteristics
| Grinding lenght | 610 mm |
| Distance spindle - table | 610 mm |
| Table | 600 x 300 mm |
| Grinding area | 610 x 305 x 610 mm |
| Magnetic table | 300 x 600 mm |
| Table movement hydraulic | 650 mm |
| Table movement manual | 700 mm |
| Table speed | 5 - 25 m/min |
| Cross feed | 0 - 2,250 m/min |
| Cross feed incremental | 3 - 32 mm |
| Max. cross feed | 320 mm |
| Spindle motor | 3.7 kW |
| Hydraulic motor | 0.74 kW |
| Cross feed motor | 1 kW |
| Feed motor grinding wheel | 1 kW |
| Total power | 5 kW |
| Grinding wheel dimensions | 355 x 50 x 127 mm |
| Spindle speed | 1.45 U/min |
Dimensions and weight
| Length | 2950 mm |
| Width | 1490 mm |
| Height | 2080 mm |
| Weight | 2200 kg |
Description

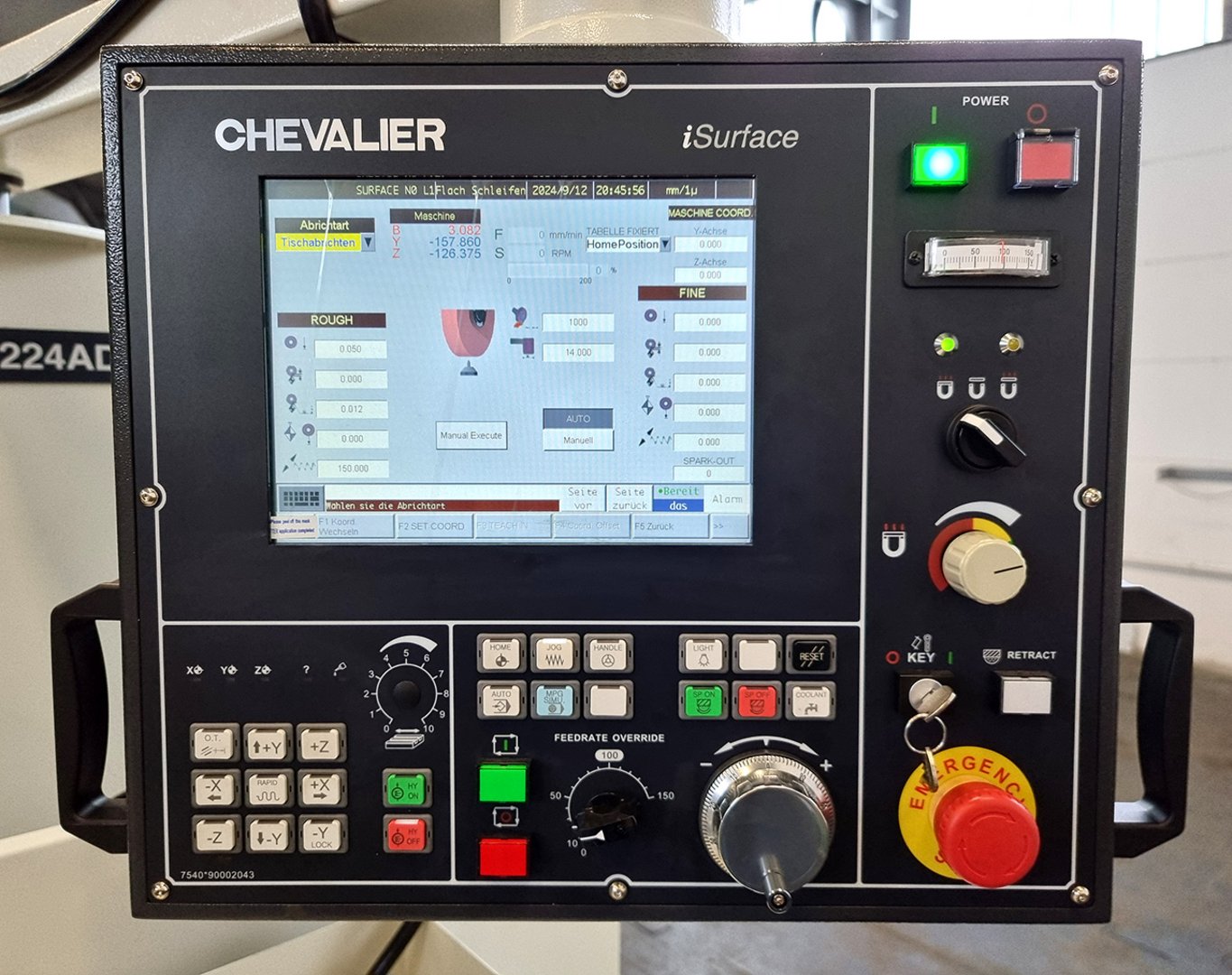

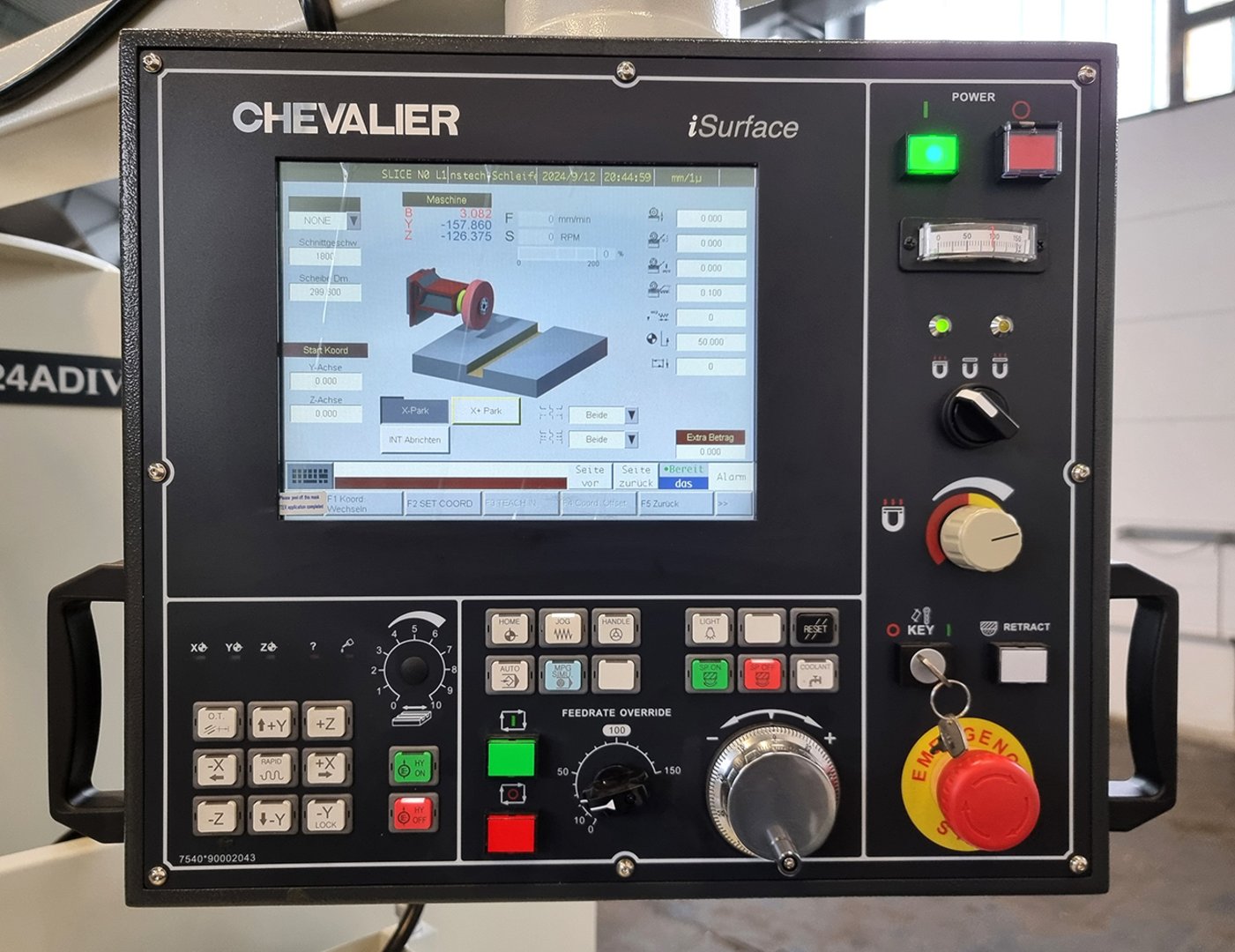

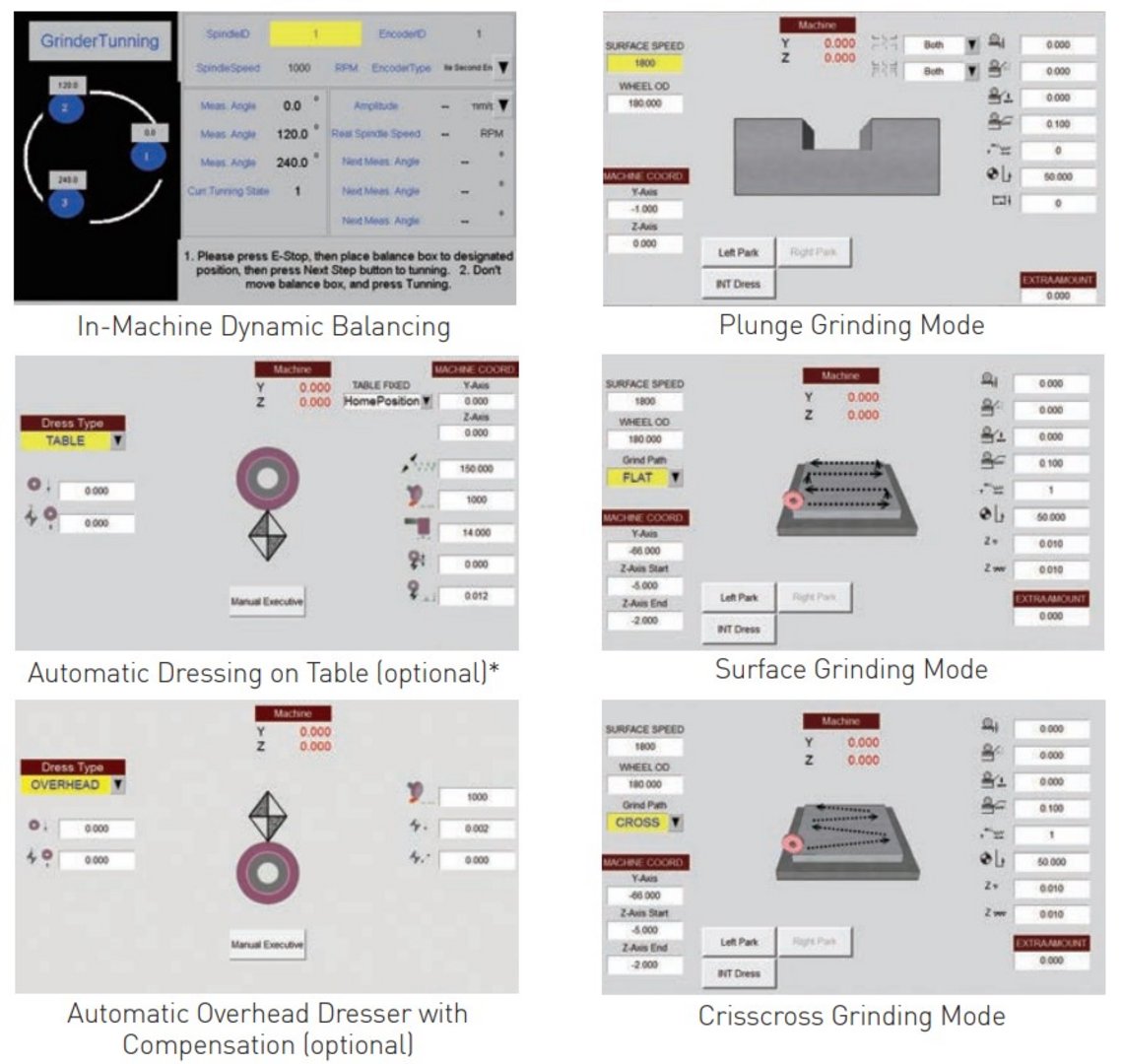

10.4" graphic NC control on a swivel arm with touchscreen for:
Operating mode selection
Cycle selection and program creation
Surface grinding
Cross grinding
Plunge grinding
Dressing with automatic compensation
Semi-automatic balancing in the machine
Automatic spindle speed for constant surface speed
Spindle load visualization
Unbalance control
Graphical status monitoring
Alarm list
aut. vertical feed
servo drive for grinding wheel feed and table cross feed
hardened slide ways in all 3 axes with needle rollers
electro-magnetic chuck

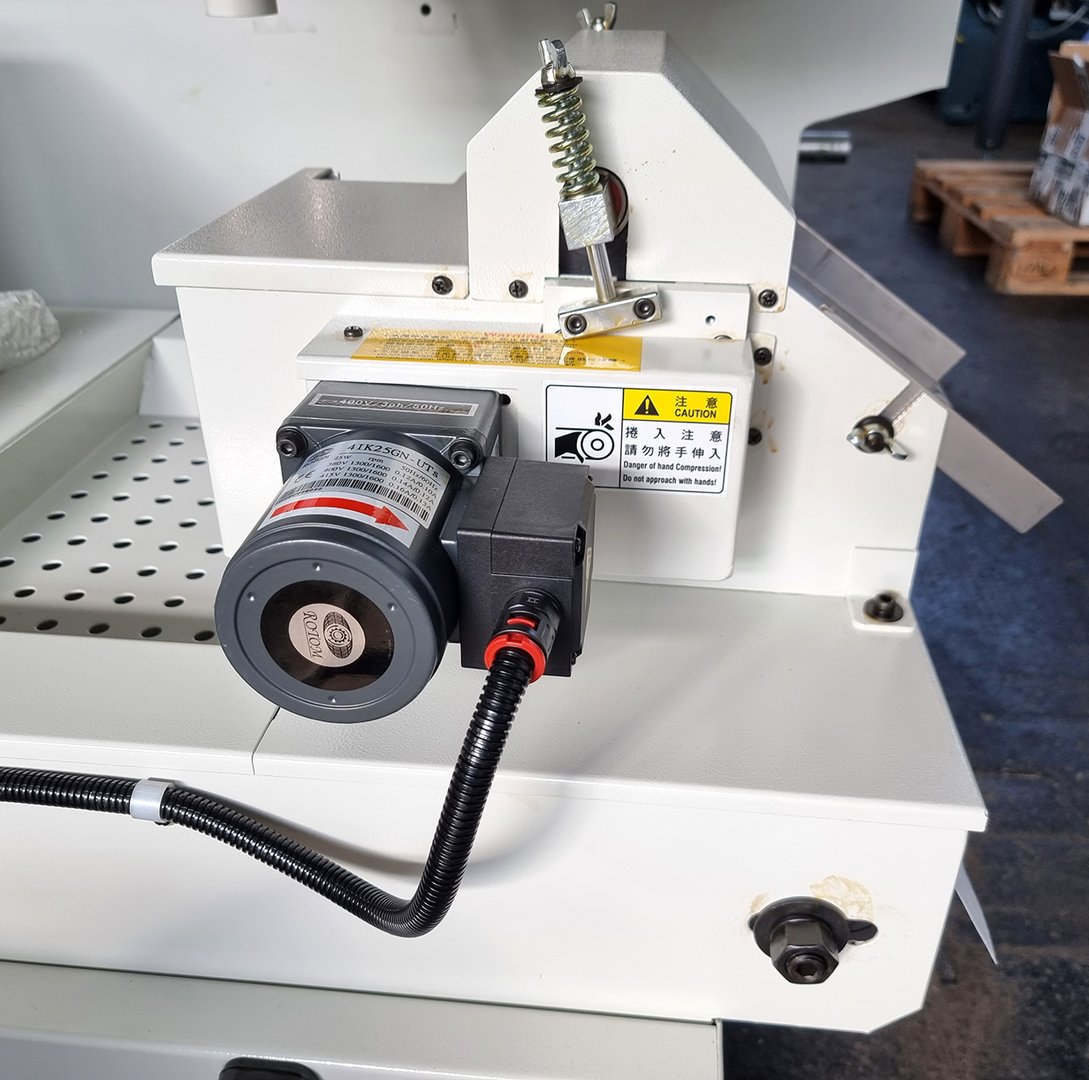

coolant equiptment with aut. paper filter and magnetic separator
automatic dresser over the wheel, with compensation

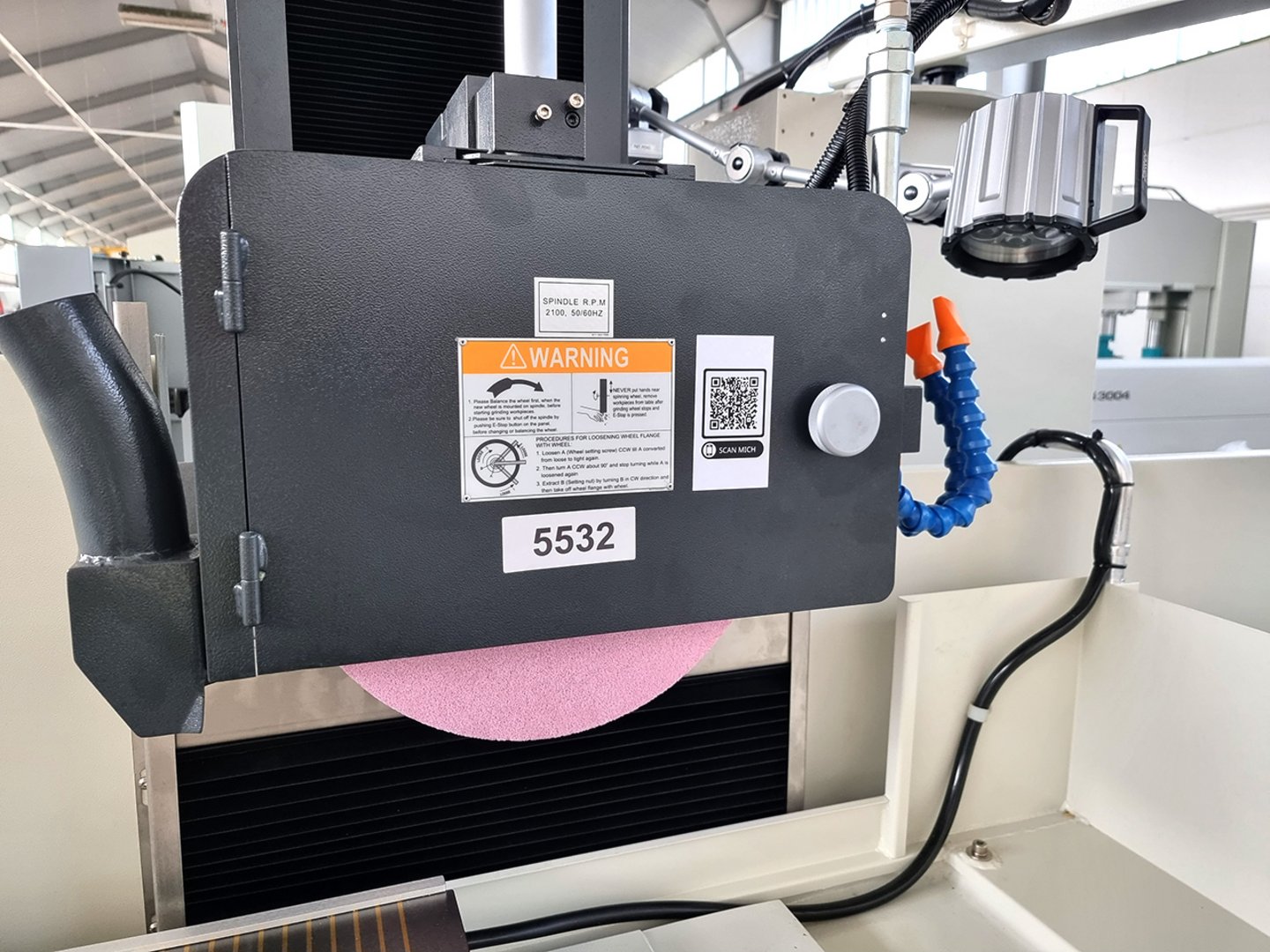

grinding wheel
grinding wheel flange
grinding wheel balancing stand
balance arbor
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
optional equipment:
additional grinding wheel flange € 200,--
Further information
Brochures
Product video

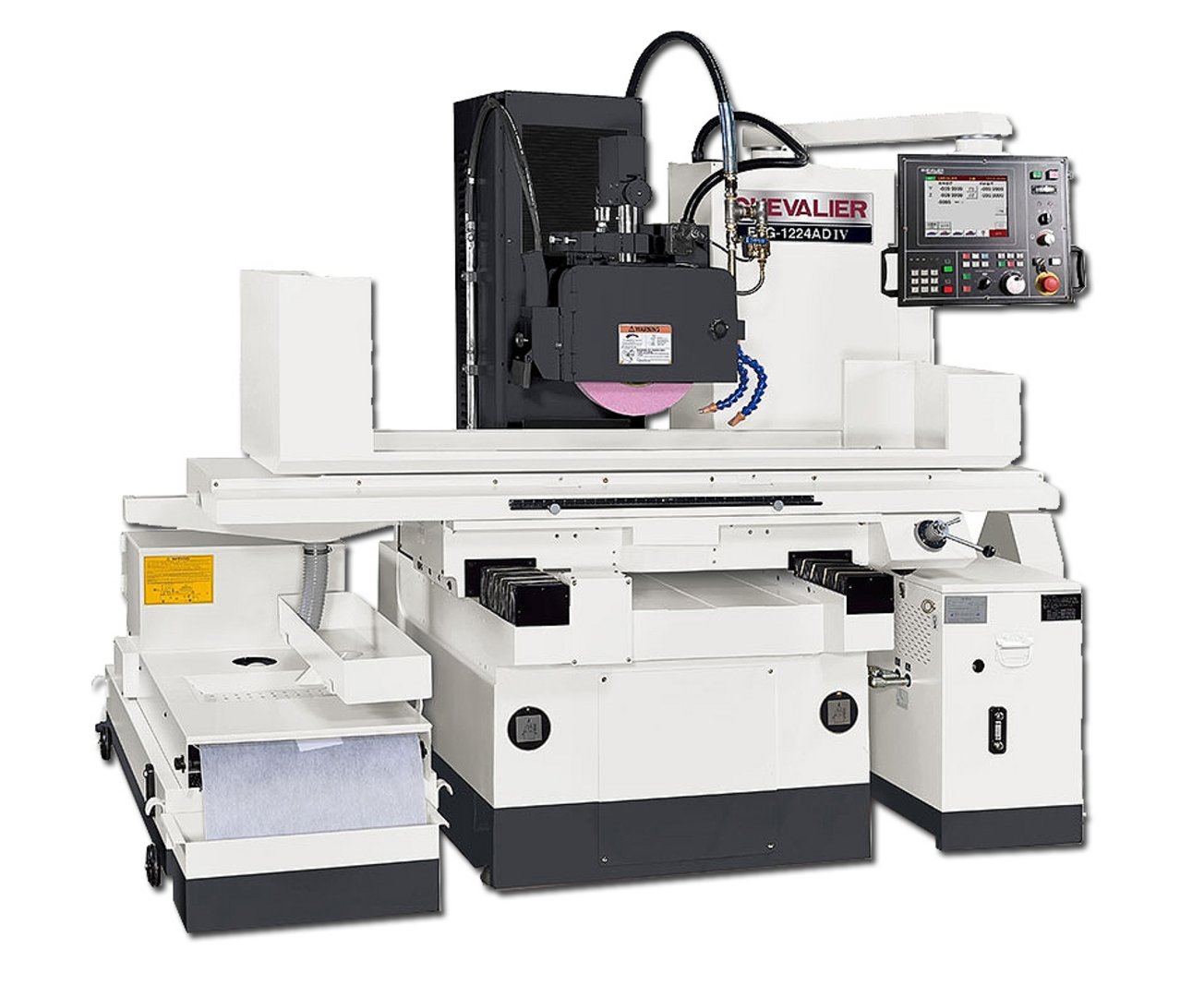

Flat grinding machine FSG-1224ADIV
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
