General characteristics
| Grinding lenght | 800 mm |
| Distance spindle - table | 610 mm |
| Table | 800 x 400 mm |
| Magnetic table | 800 x 400 mm |
| Table movement hydraulic | 810 mm |
| Table speed | 5 - 25 m/min |
| Hydraulic motor | 0.74 kW |
| Total power | 10 kVA kW |
| Table height | 980 mm |
| Maximal table load | 350 kg |
| Grinding wheel dimensions | 355 x 50 x 127 mm |
| Spindle speed | 500 - 1.800 U/min |
| Spindle motor | 3 kW |
| Servo-axis motors Y/Z | 1.1 |
Dimensions and weight
| Length | 3540 mm |
| Width | 2080 mm |
| Height | 2100 mm |
| Weight | 2900 kg |
Description

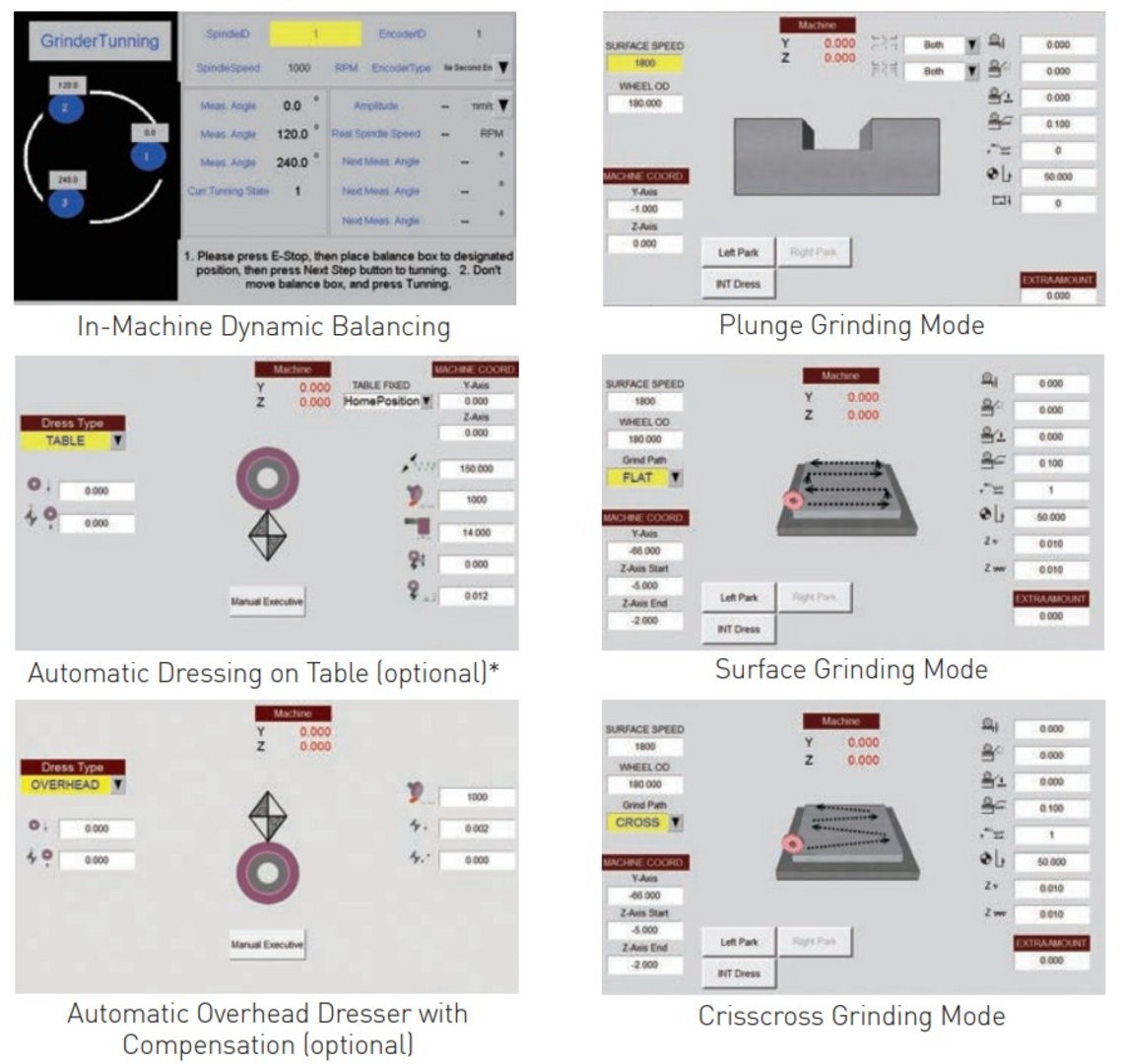

10.4" graphic NC control on a swivel arm with touchscreen for:
Operating mode selection
Cycle selection and program creation
Surface grinding
Cross grinding
Plunge grinding
Dressing with automatic compensation
Semi-automatic balancing in the machine
Automatic spindle speed for constant surface speed
Spindle load visualization
Unbalance control
Graphical status monitoring
Alarm list
aut. vertical feed
servo drive for grinding wheel feed and table cross feed
hardened slide ways in all 3 axes with needle rollers
electro-magnetic chuck
coolant equiptment with aut. paper filter and magnetic separator
autom. dressing attachment table mounted with compensation *
grinding wheel
grinding wheel flange
grinding wheel balancing stand
LED machine lamp
machine and equipment according to the CE-regulations
user manual in GERMAN and ENGLISH
* The exact configuration of the dresser must be clarified before ordering
Further information
Brochures
Product video

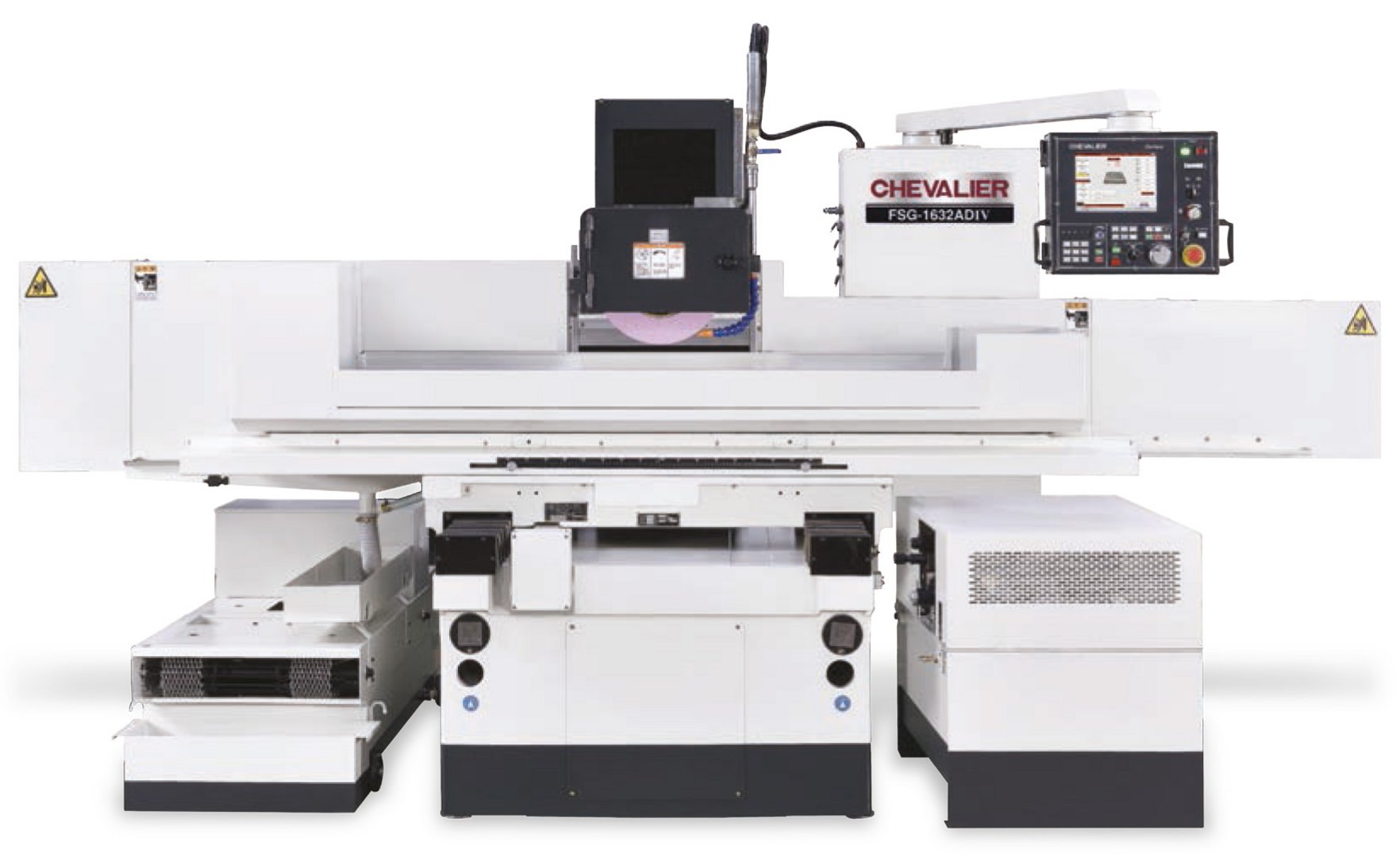

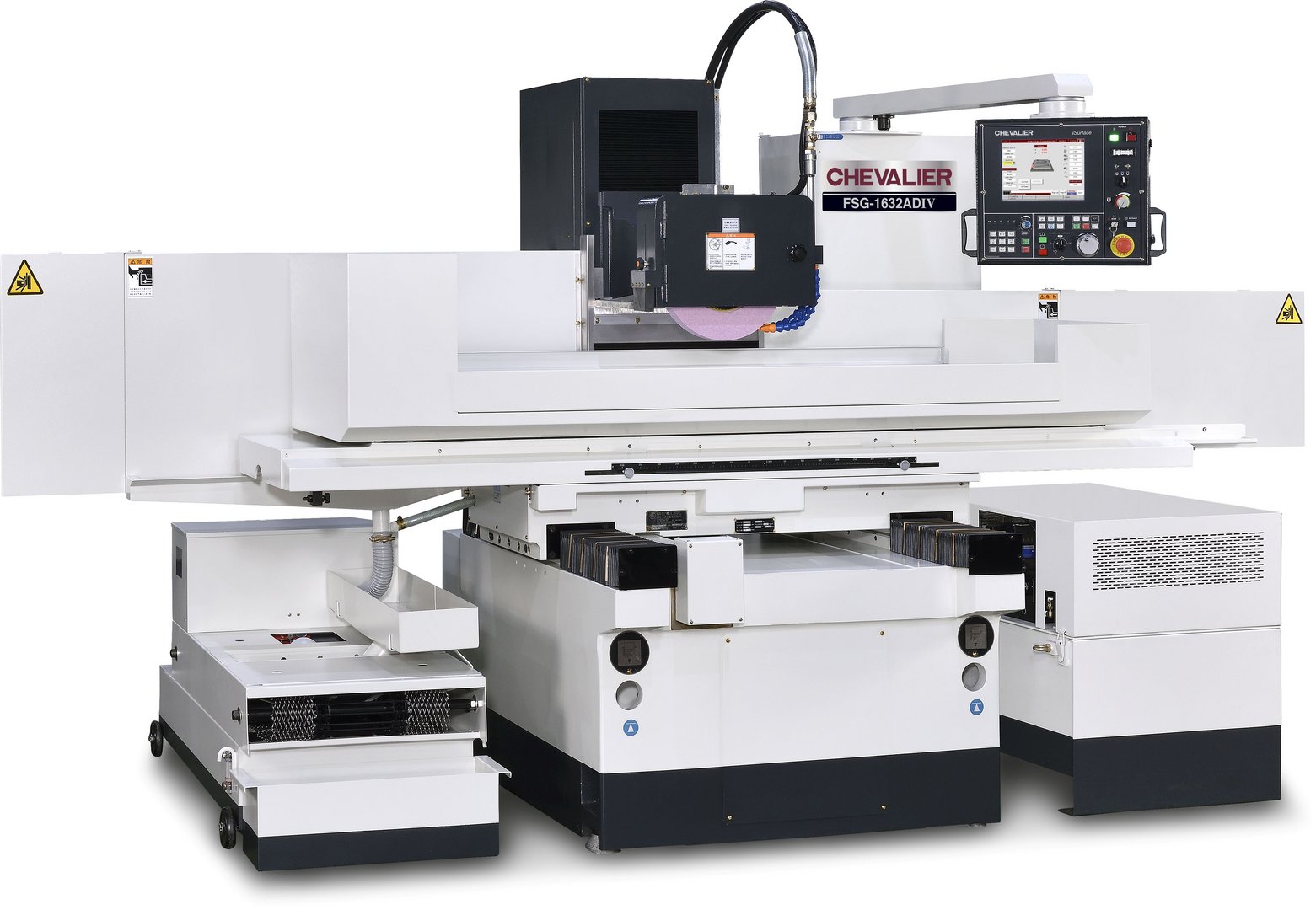

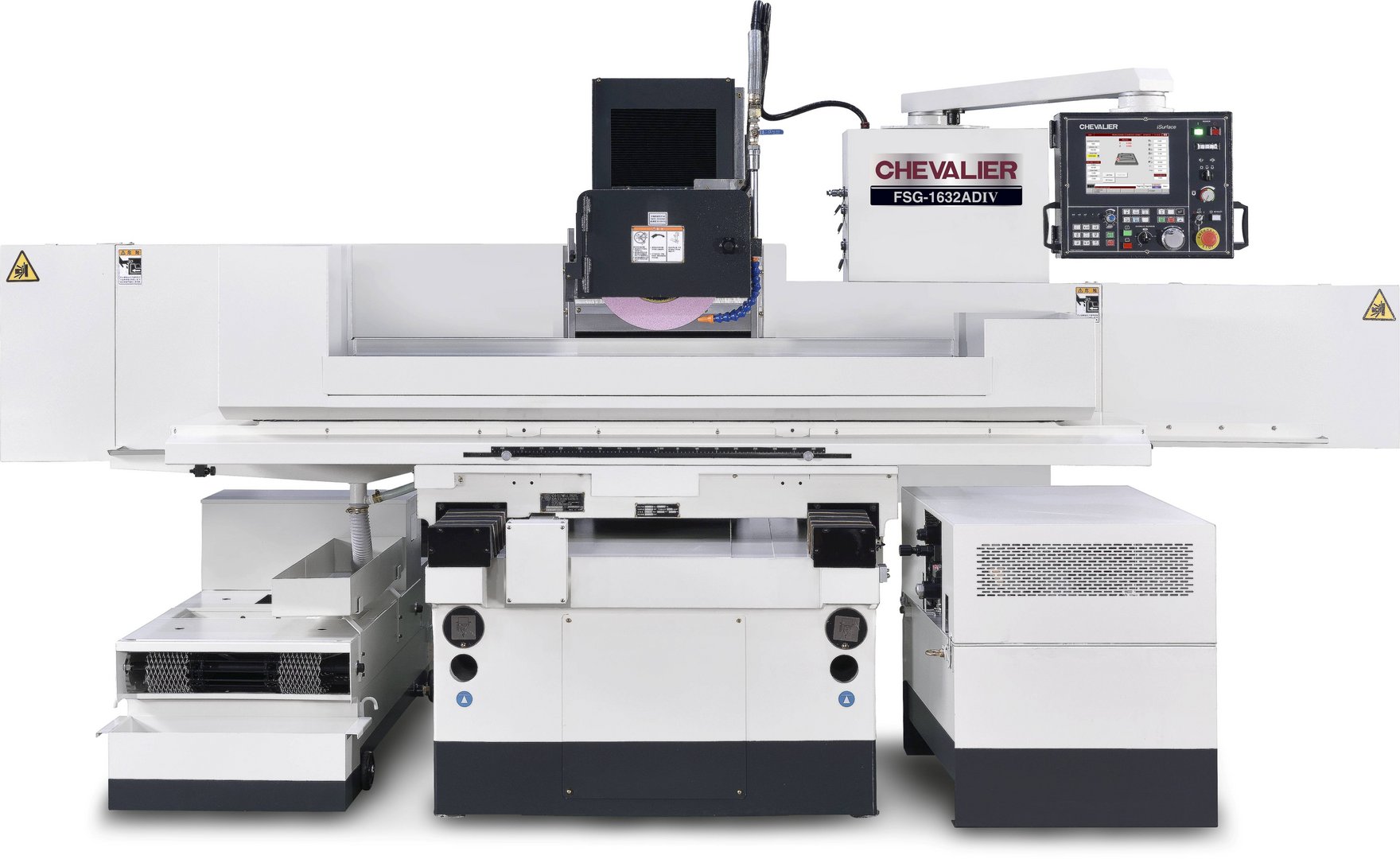

Flat grinding machine FSG-1632ADIV
