General characteristics
| Grinding lenght | 1000 mm |
| Distance spindle - table | 850 mm |
| Table | 1000 x 600 mm |
| Magnetic table | 1000 x 600 mm |
| Table movement hydraulic | 1000 mm |
| Table speed | 5 - 25 m/min |
| Cross feed | 1250 m/min |
| Max. cross feed | 690 mm |
| Automatic vertical feed | max. 400 mm/min mm |
| Vertical feed | 400 mm/min |
| Vertical feed incremental | 0.001 mm |
| Spindle revs | 1450 rpm |
| Spindle motor | 11 kW |
| Hydraulic motor | 3.7 kW |
| Cross feed motor | 0.37 kW |
| Total power | 20 kW |
| Maximal table load | 1500 kg |
| Max. workpiece weight on magnetic table | 1120 kg |
| Max. workpiece weight on t-slot table | 1500 kg |
| Grinding wheel dimensions | 355 x 75 x 127 mm |
Dimensions and weight
| Length | 3700 mm |
| Width | 4000 mm |
| Height | 3250 mm |
| Transport dimensions | 4800 x 2830 x 2800 mm |
| Weight | 7400 kg |
Description
Servo drive for grinding wheel feed, hardened and grounded slide ways
Grinding wheel spindle on 6 high precision angular contact bearings

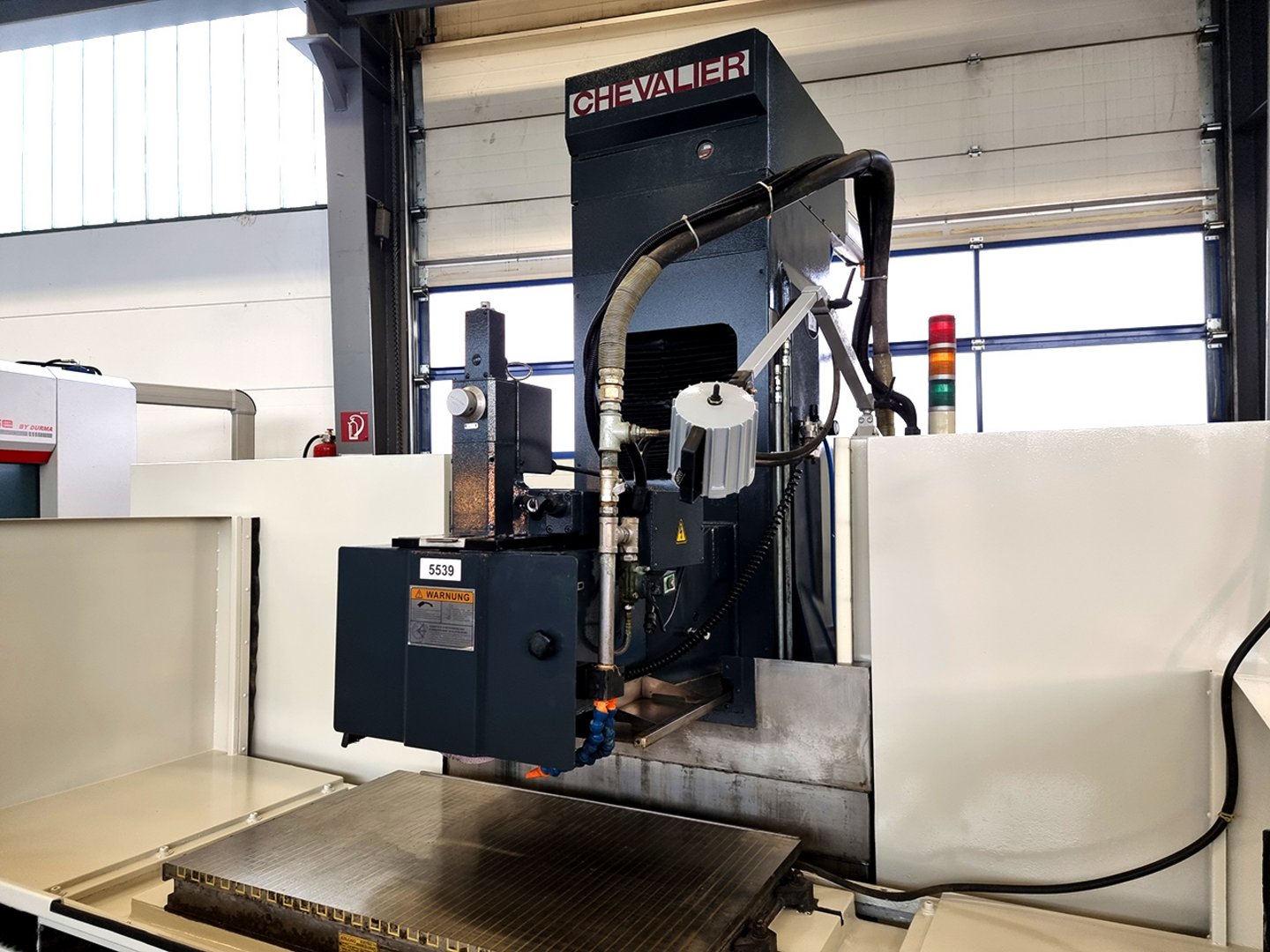

Electro-magnetic chuck

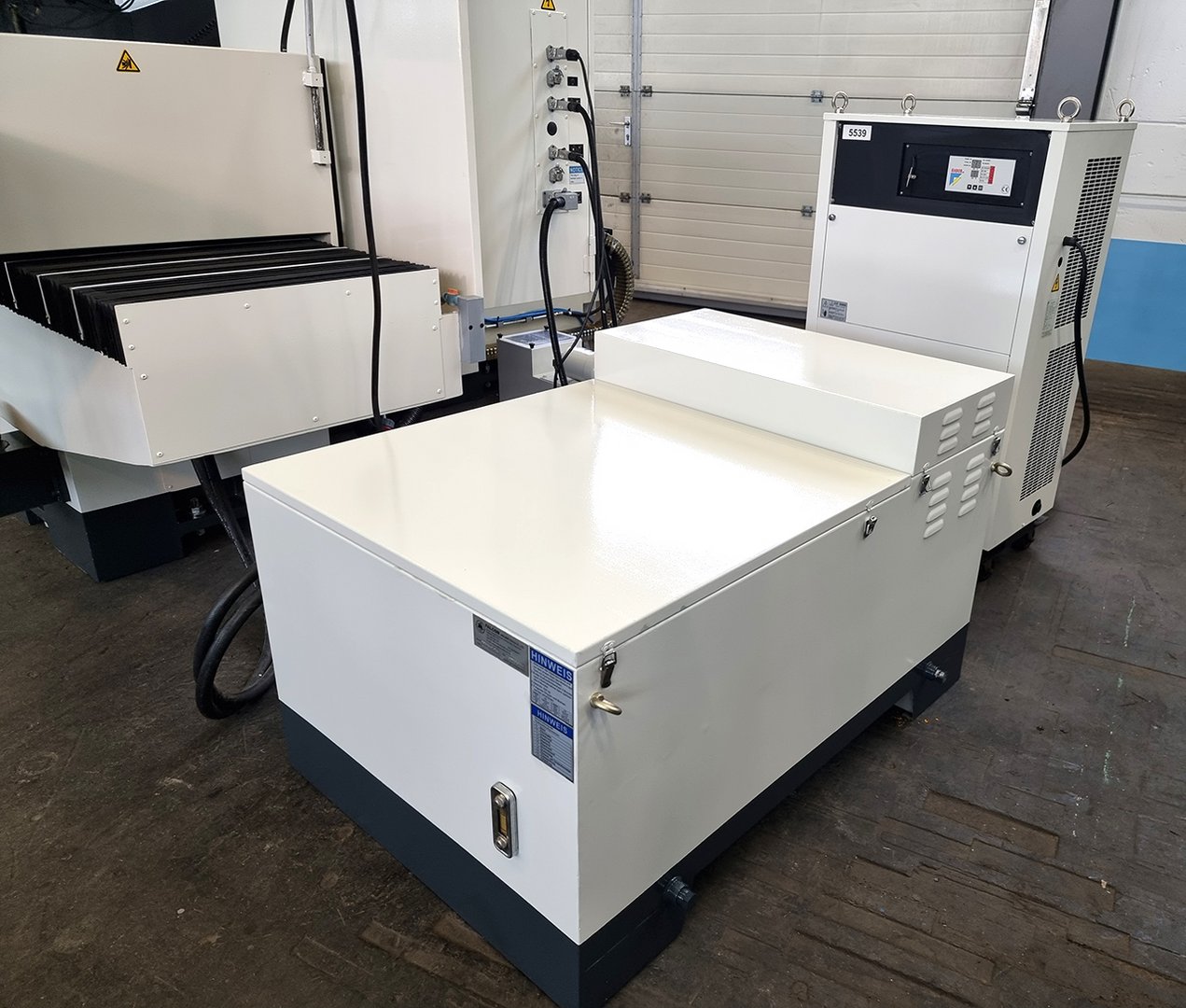

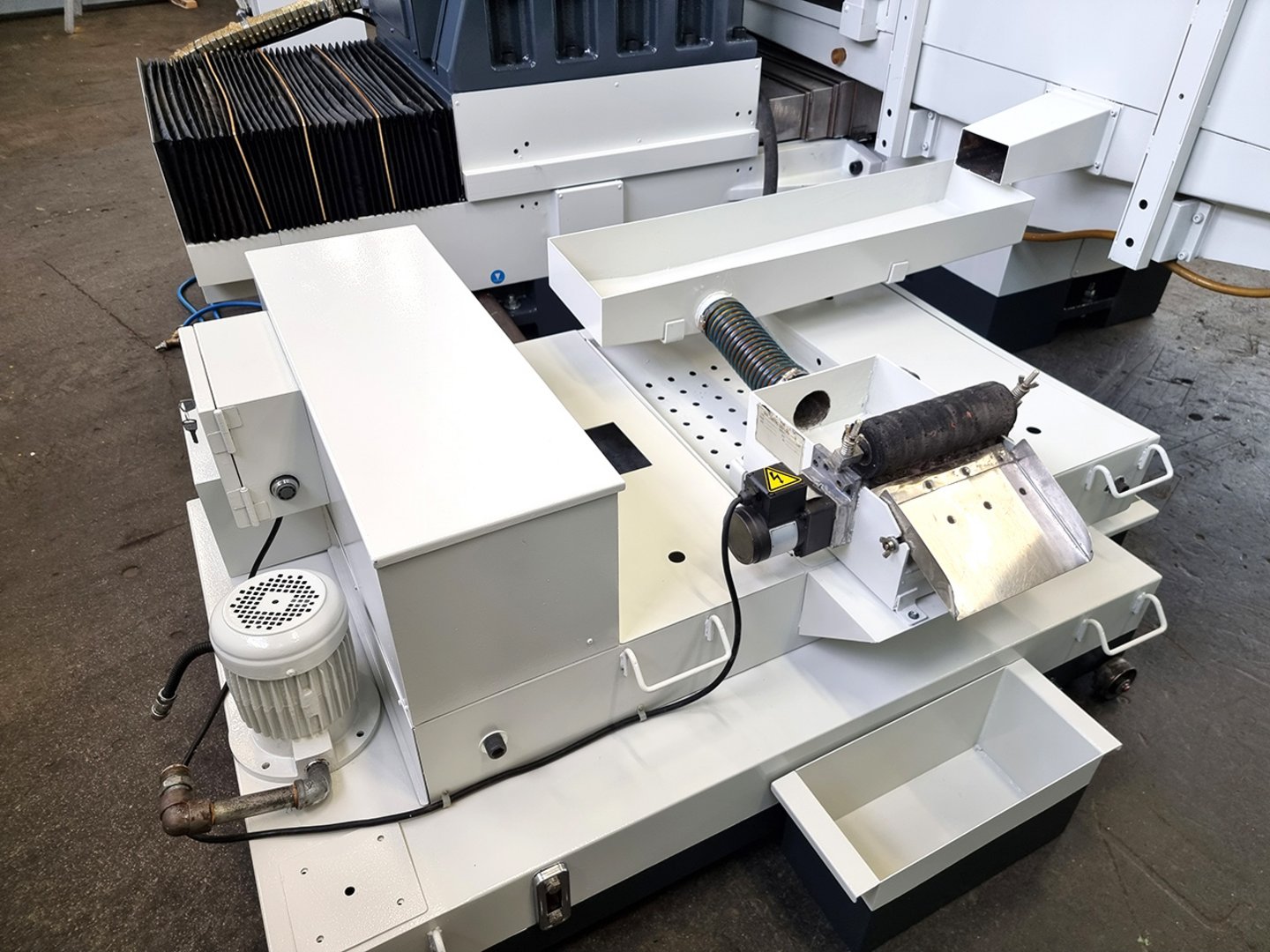

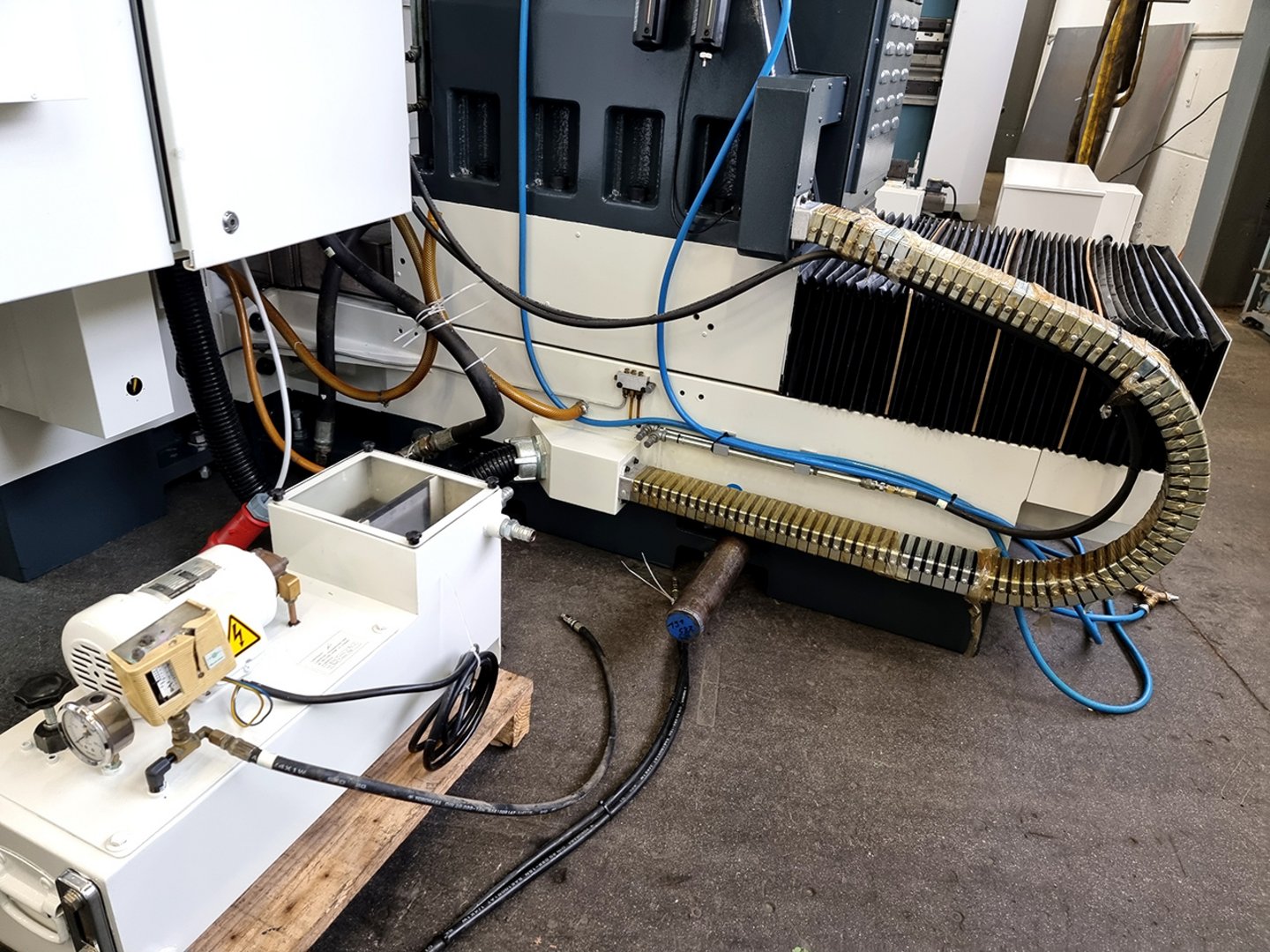

Coolant equiptment with aut. paper filter and magnetic separator

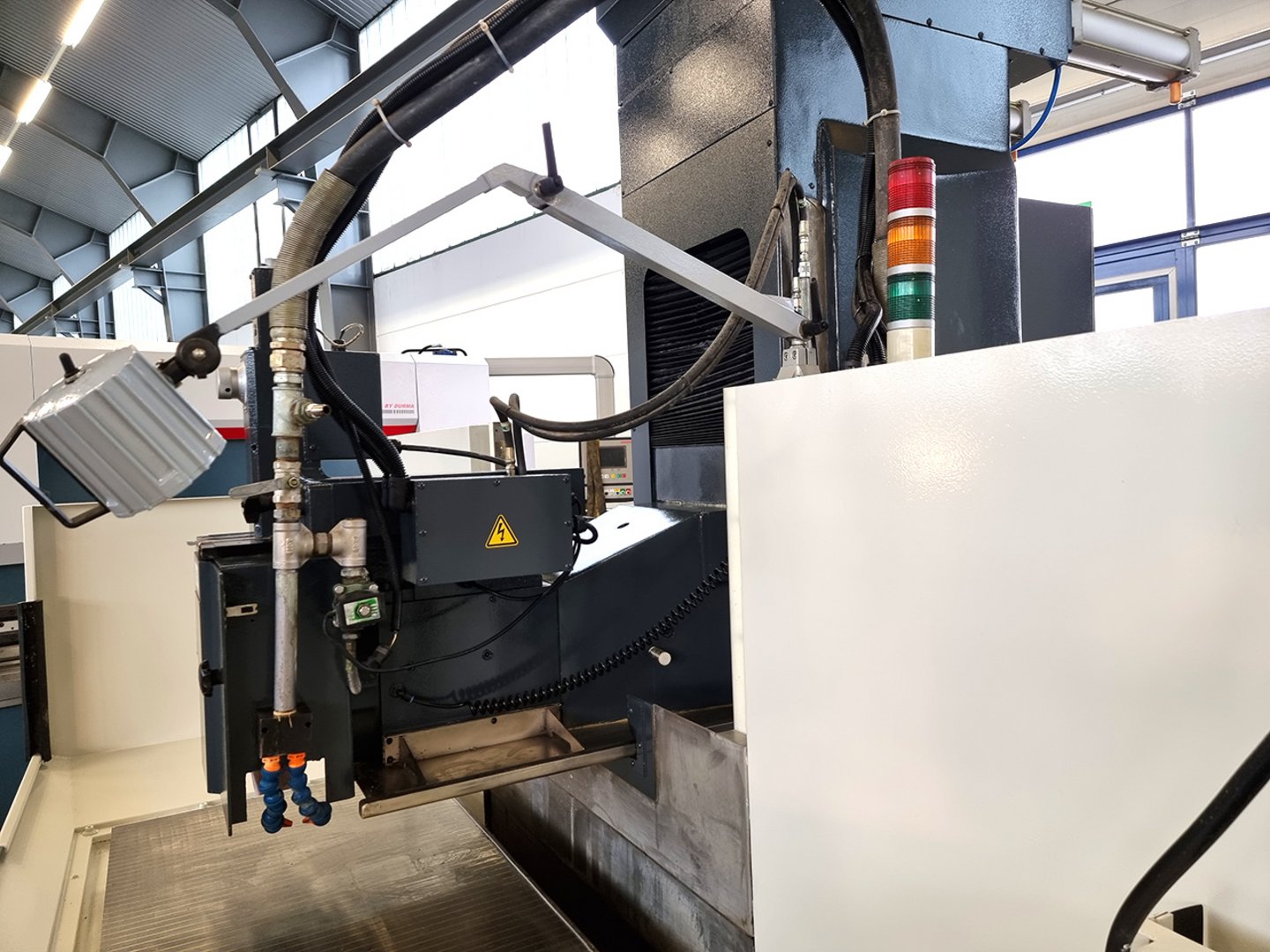

Over the wheel automatic dressing device (with automatic compensation)

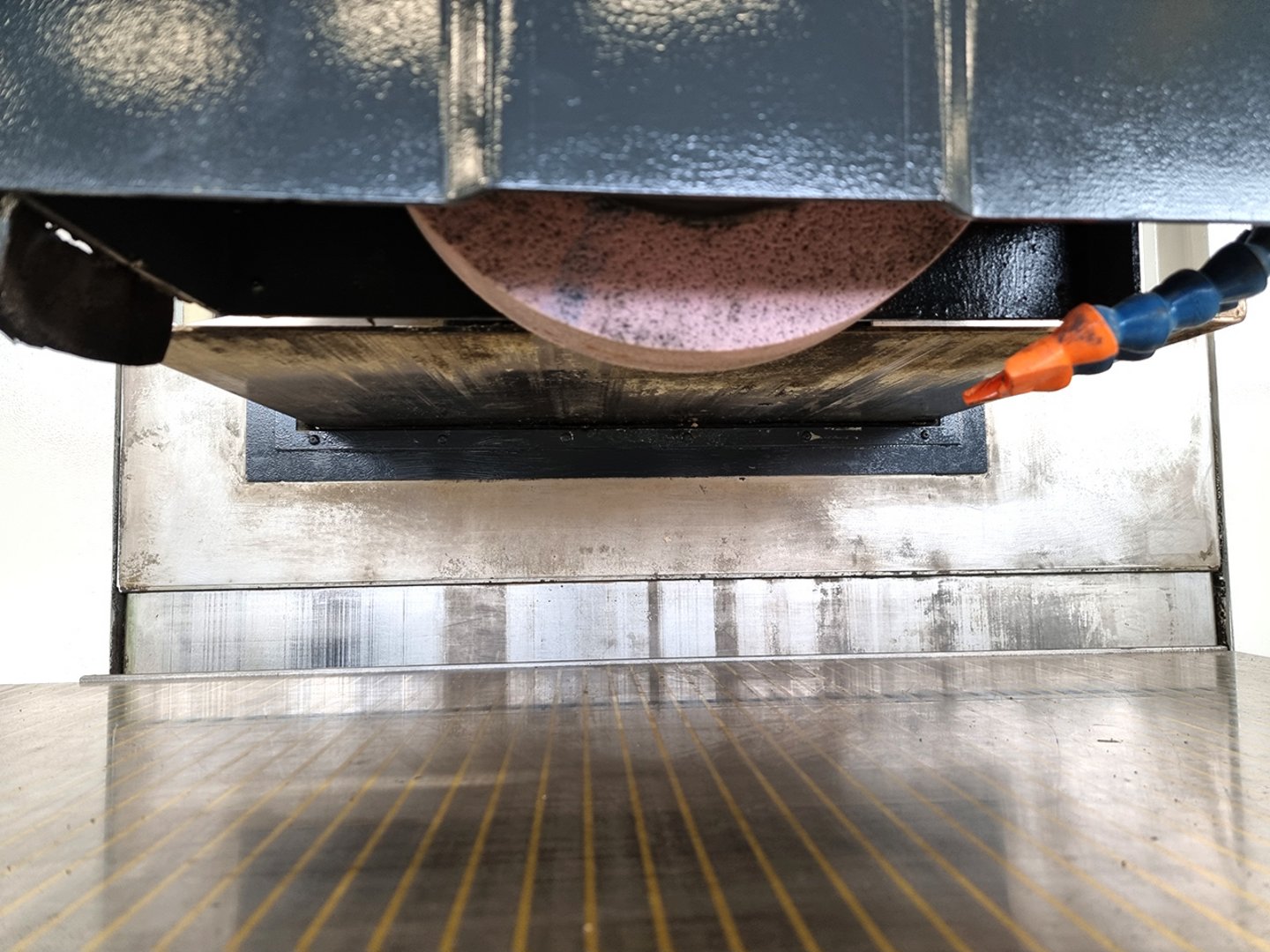

Grinding wheel
Grinding wheel flange
machine lamp
Machine and equipment according to the CE-regulations
User manual in ENGLISH
New grinding spindle, spindle bearings and grinding wheel
Further information
Brochures
Product video

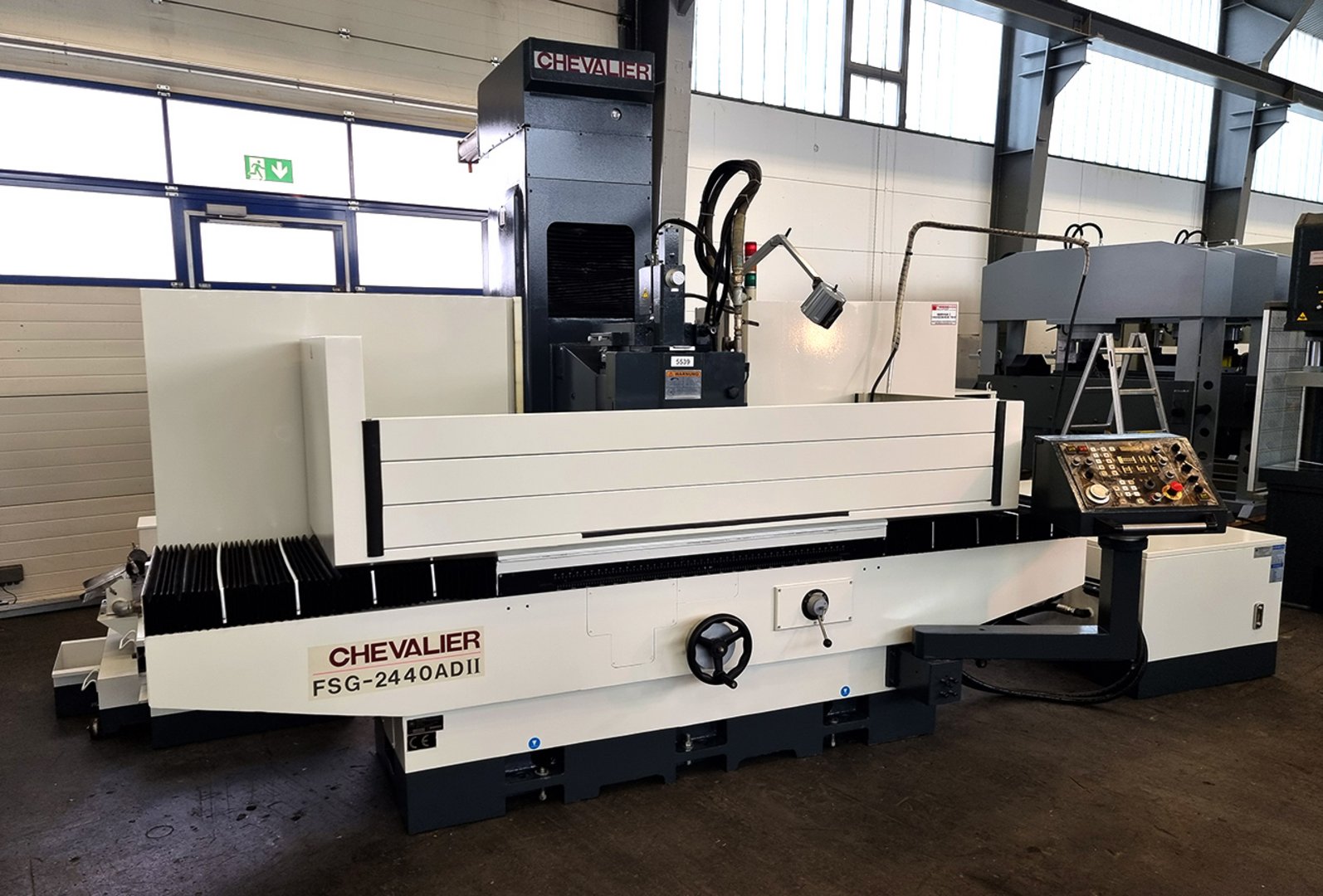

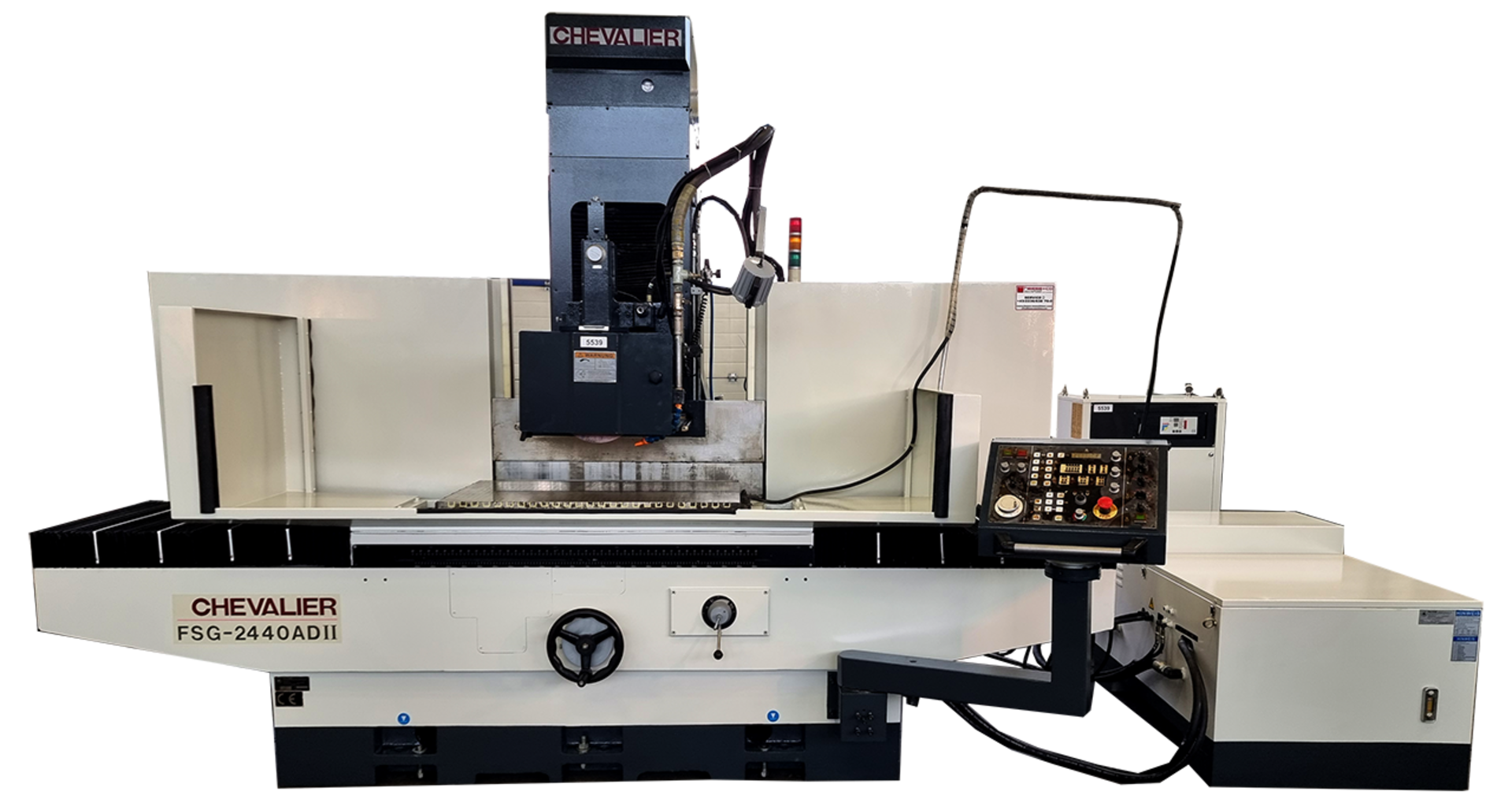

Flat grinding machine FSG-2440ADII
