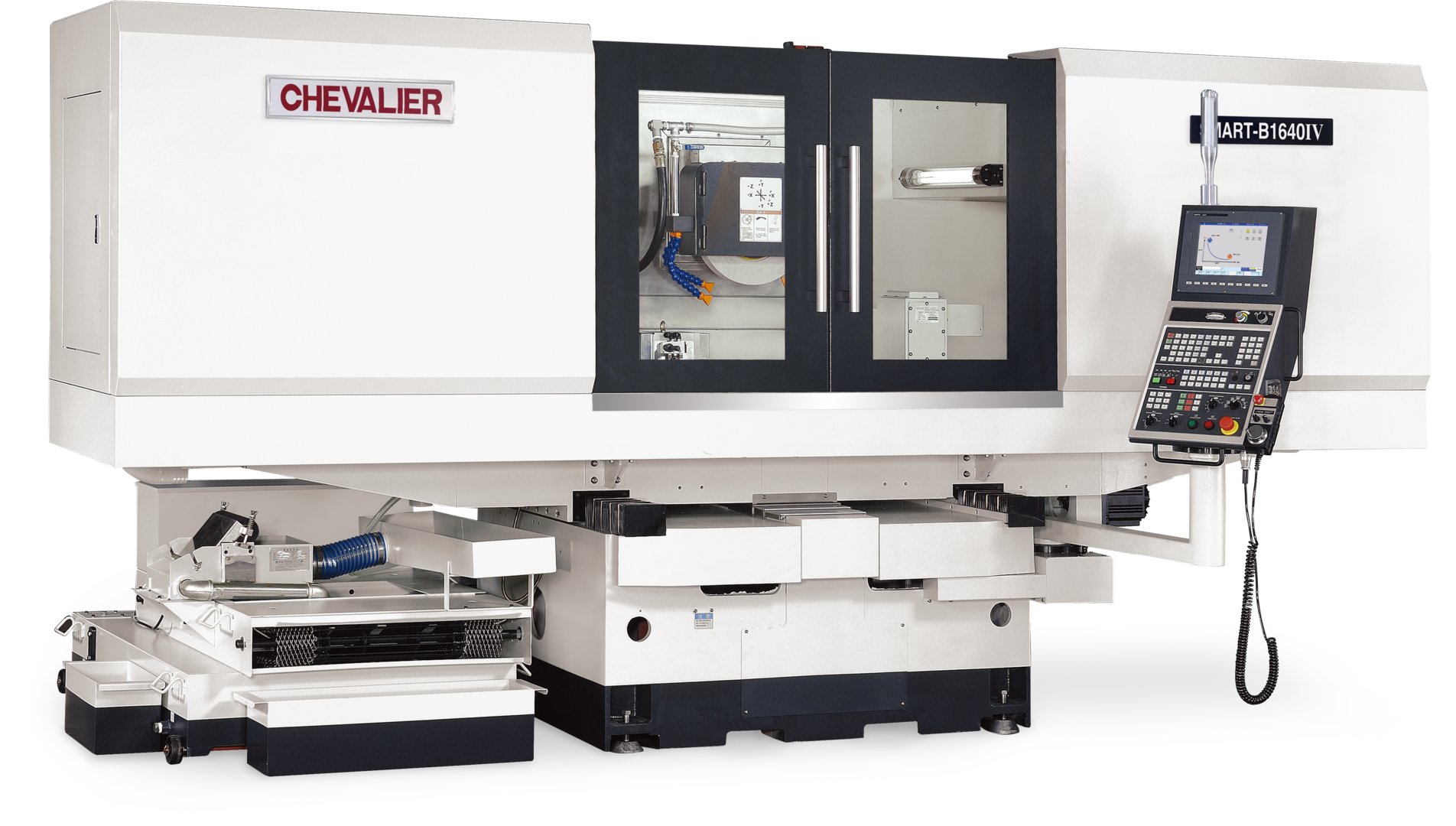

Flat grinding machine CHEVALIER SMART-B1224IV
| Model | SMART-B1224IV |
| Brand | CHEVALIER |
| Condition | new |
| Table | 600 x 300 mm |
| Origin | Taiwan |
General characteristics
| Grinding lenght | 610 mm |
| Distance spindle - table | 600 mm |
| Table | 600 x 300 mm |
| Magnetic table | 600 x 300 mm |
| Table speed | 0 - 20 m/min |
| Cross feed | 0 - 3000 m/min |
| Max. cross feed | 350 mm |
| Automatic vertical feed | 440 mm |
| Vertical feed | 0 - 3000 mm/min |
| Vertical feed incremental | 0.001 mm |
| Spindle revs | 500 - 1800 rpm |
| Spindle motor | 11 kW |
| Table height | 975 mm |
| Max. workpiece weight on magnetic table | 195 kg |
| Max. workpiece weight on t-slot table | 370 kg |
| Grinding wheel dimensions | 355 x 50 x 127 mm |
| Servo-axis motors Y/Z | 1,1 / 1,1 |
| Servo-axis motor X | 3.9 kW |
Dimensions and weight
| Length | 3160 mm |
| Width | 2450 mm |
| Height | 2080 mm |
| Transport dimensions | 3400 x 2200 x 2530 mm |
| Weight | 4000 kg |
Description
Smart i control with 10.4" touchscreen on a swiveling panel, with electronic wired handwheel
- RS232, USB I/O connection
- SMART Grind Cam (dxf transfer in G code)
- PC based control with graphical dialog programming or G-code programming
Infinitely variable speed
Surface grinding cycle, cross grinding cycle, plunge grinding cycle, multiple groove grinding cycle, contour grinding cycle, dressing cycle
Spindle with 4 angular contact ball bearings (P4, class 7)
Longitudinal and cross guides with heavy duty needle roller bearing for low friction, better accuracy and lower maintenance costs
All 3 axix with precision ball screws (class C2) and AC servo motors
Fully enclosed splash guard with lamp
Electromagnetic chuck plate
Coolant system 120 lt with automatic paper filter and magnetic separator
Automatic diamond roller dresser mounted on the table, with automatic compensation *
Grinding wheel
Grinding wheel flange
Grinding wheel balancing scale
Machine and equipment in accordance with CE regulations
Operating manual in GERMAN or ENGLISH
Accuracy standard ISO 1986-1
* The exact configuration of the dresser must be clarified before ordering
