General characteristics
| Bending length | 3100 mm |
| Sheet thickness (420 N/mm²) | 6.5 mm |
| Antrieb | Hydraulic |
| Max. bending angle | 135 ° |
Dimensions and weight
| Length | 4500 mm |
| Width | 1750 mm |
| Height | 2050 mm |
| Weight | 6800 kg |
Description
hydraulic driven

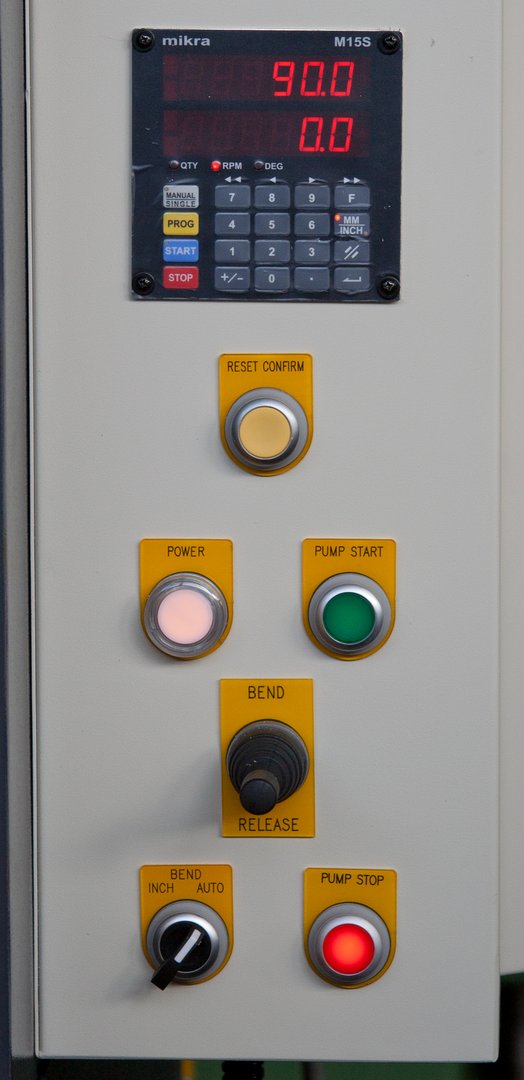

NC control for bending angle

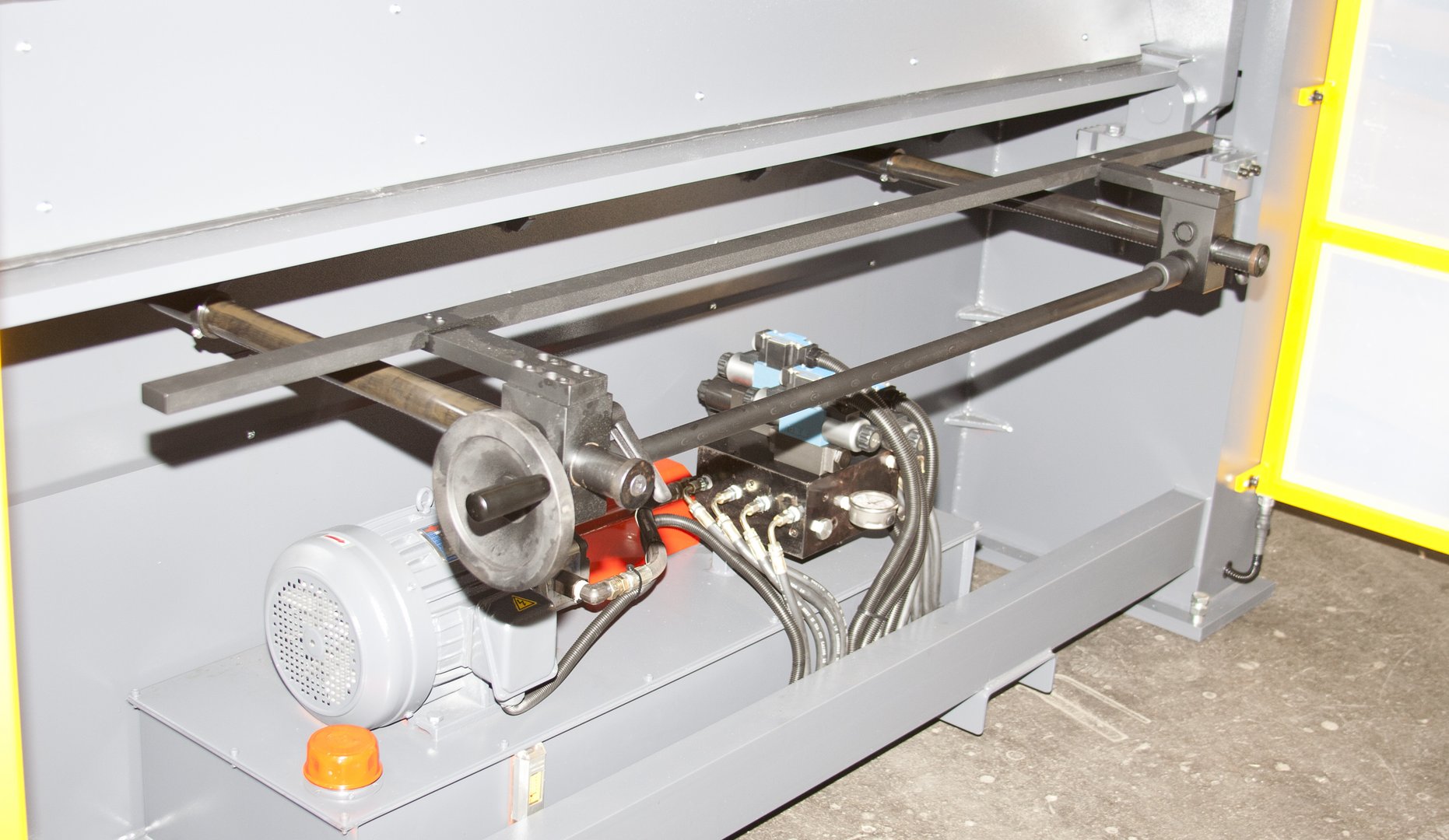

manual back gauge 600 mm
sharp rail 45° (in one piece)
front angle beam 75 mm
mechanical stop adjustment of upper beam
clamping force adjustment of upper beam
according to CE rules
Alternatively:
version AMH-K, with sectioned sharp rail 45° € 52.700,--
option:
2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm € 12.100,--

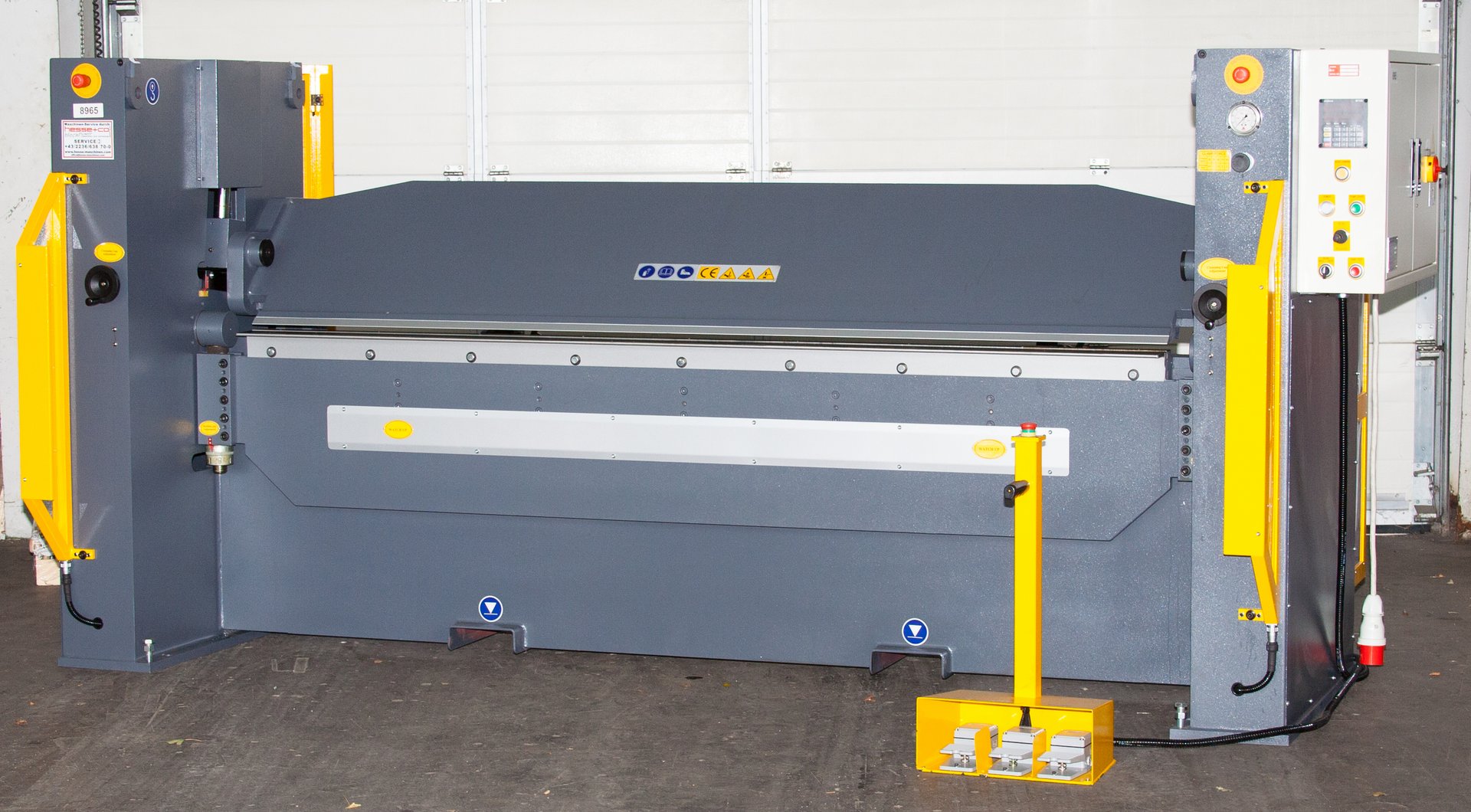

(sample photos)
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
