General characteristics
| Bending length | 2540 mm |
| Sheet thickness (420 N/mm²) | 3.5 mm |
| Antrieb | Hydraulic |
| Max. bending angle | 135 ° |
| Motor | 3 kW |
Dimensions and weight
| Length | 3850 mm |
| Width | 1700 mm |
| Height | 1860 mm |
| Weight | 3700 kg |
Description
NC control for bending angle
manual back gauge 600 mm
hydraulic driven
vertical movement of upper beam
segmented blade
segmented goose neck rail 30°, 110 mm with quick tool change system
one piece flat bottom bar 30 mm
according to CE rules

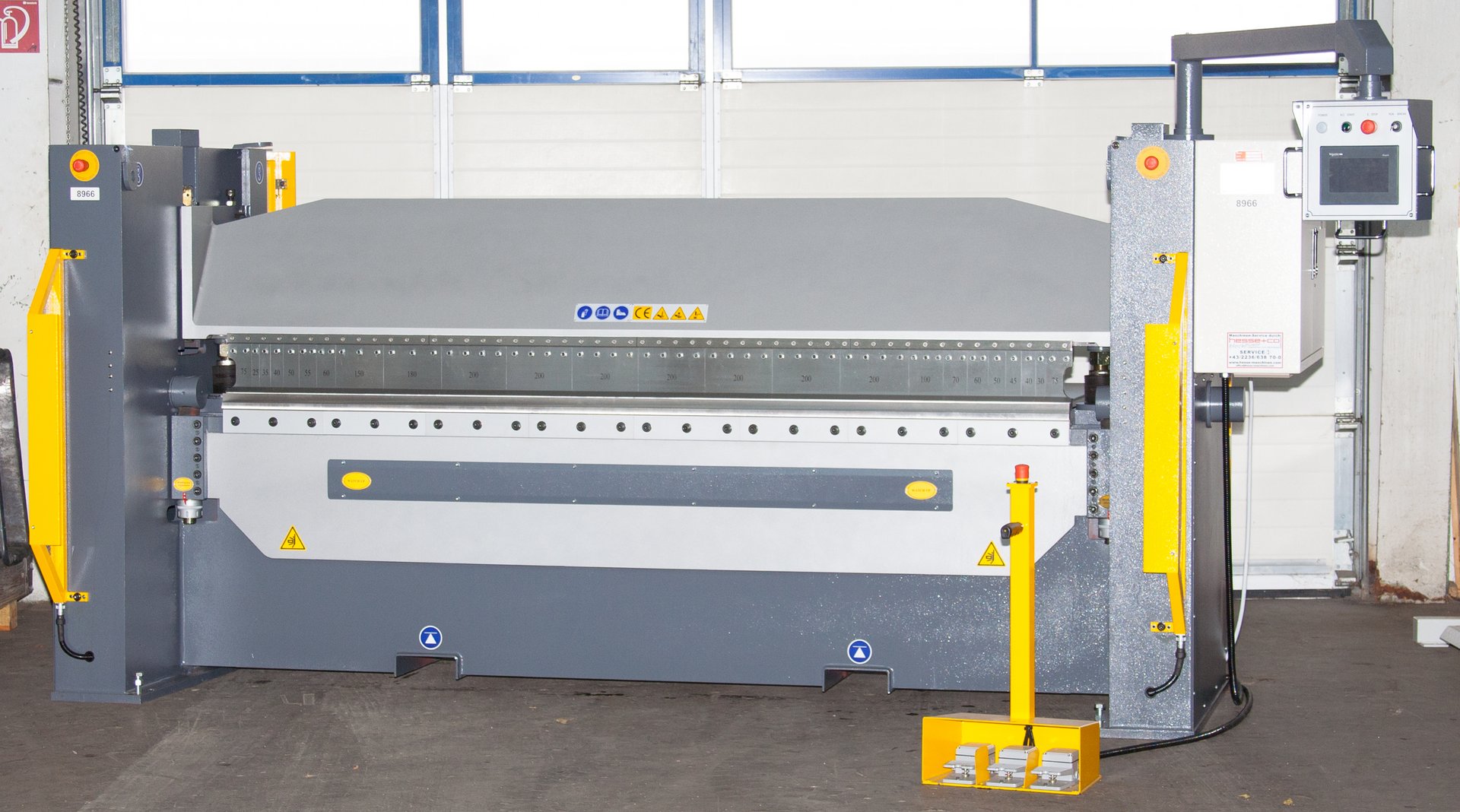

(sample photo showing model V-AMH 2535 2 axes NC control)
option:
2 axes NC control with touchscreen incl. motorized back gauge 800 mm € 11.400,--
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
