General characteristics
| Bending length | 3100 mm |
| Sheet thickness (420 N/mm²) | 2 mm |
| Antrieb | Hydraulic |
| Max. bending angle | 135 ° |
| Motor | 5 kW |
Dimensions and weight
| Length | 4370 mm |
| Width | 1770 mm |
| Height | 1790 mm |
Description
with vertical upper beam movement for the use of flat and high top rails
hydraulic driven
NC control for bending angle
manual back gauge 600 mm

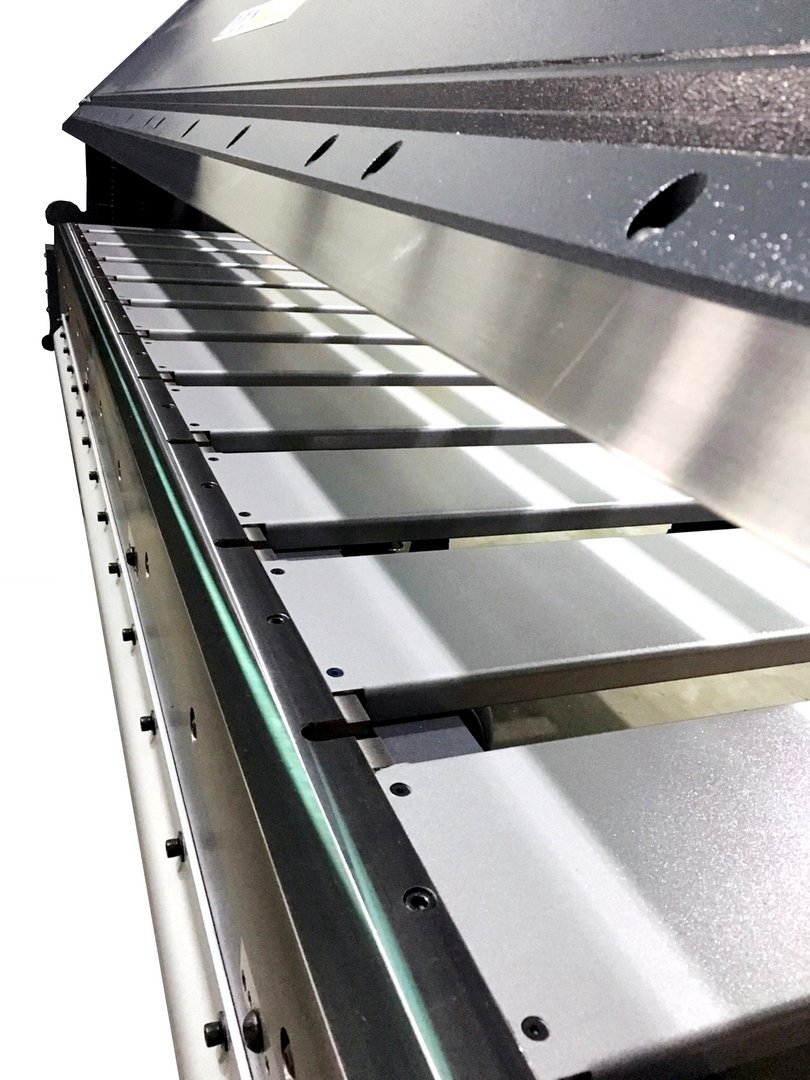

sharp flat upper rail 45° (in one piece)

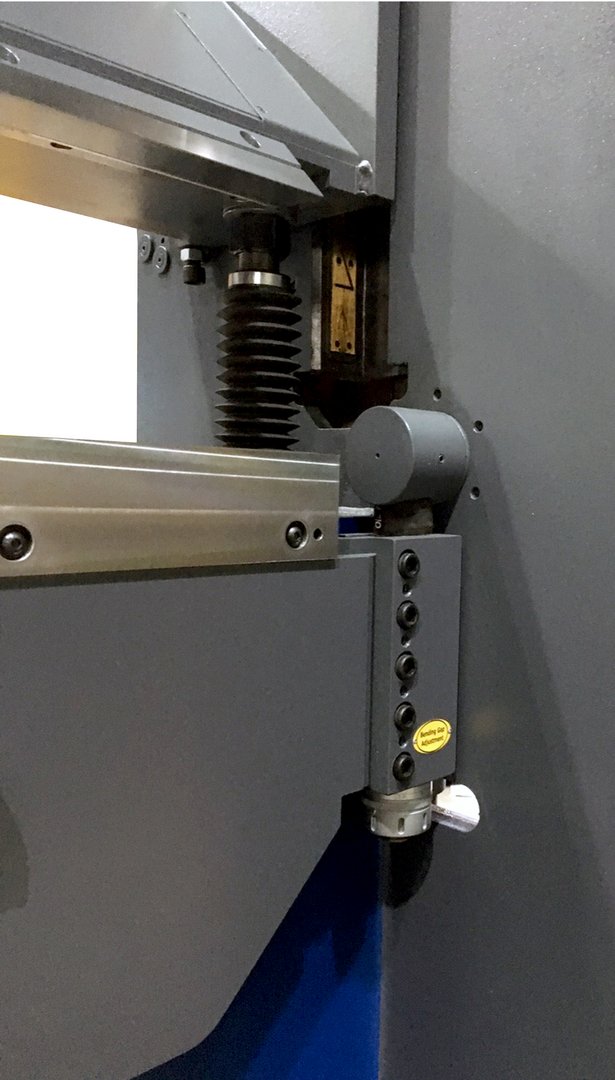

mechanical crowning adjustment
clamping force adjustment
upper beam vertical
according to CE rules
| Optionen: | |
| sectionet upper rail, height 100 mm | € 5.600,-- |
| motorized back gauge, 800 mm with 2-axis touch control | € 11.900,-- |
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
