General characteristics
| Bending length | 1050 mm |
| Sheet thickness (420 N/mm²) | 1.5 mm |
| Max. thickness - stainless steel | 1 mm |
| Max. thickness - aluminium | 2.2 mm |
| Max. bending angle | 150 ° |
| Back gauge manual | 500 mm |
| Max. opening width without tools | 200 mm |
| Upper tool | sectioned, 45° |
| Bending flange | adjustment 35 mm |
Dimensions and weight
| Length | 1300 mm |
| Width | 750 mm |
| Height | 1515 mm |
| Weight | 280 kg |
Description

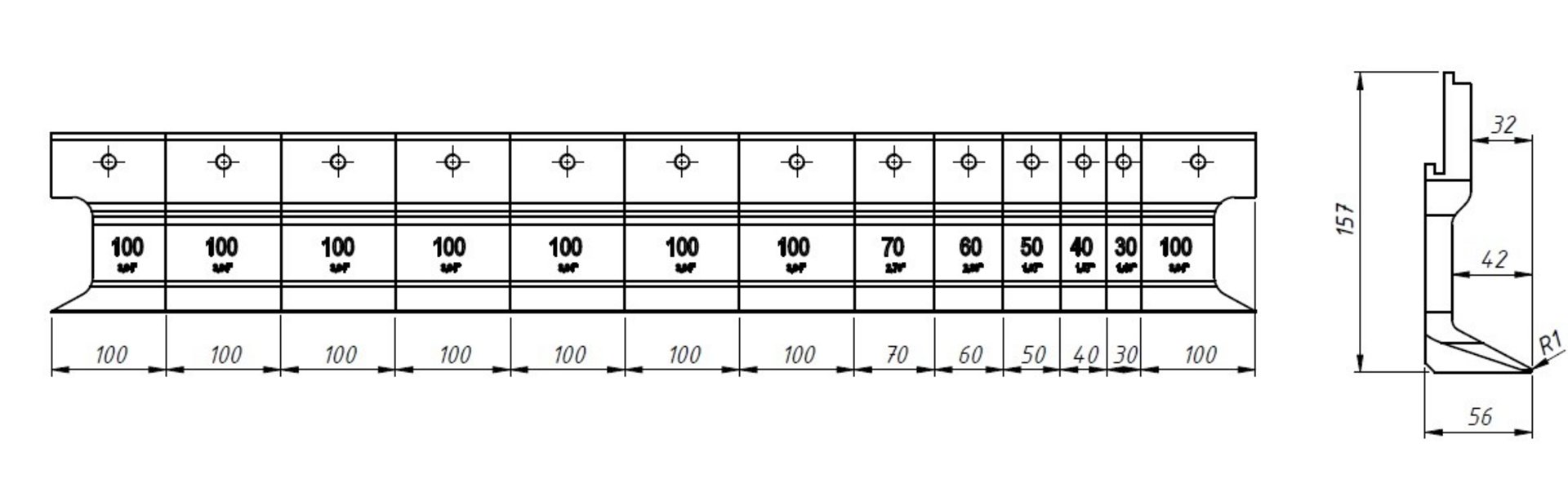

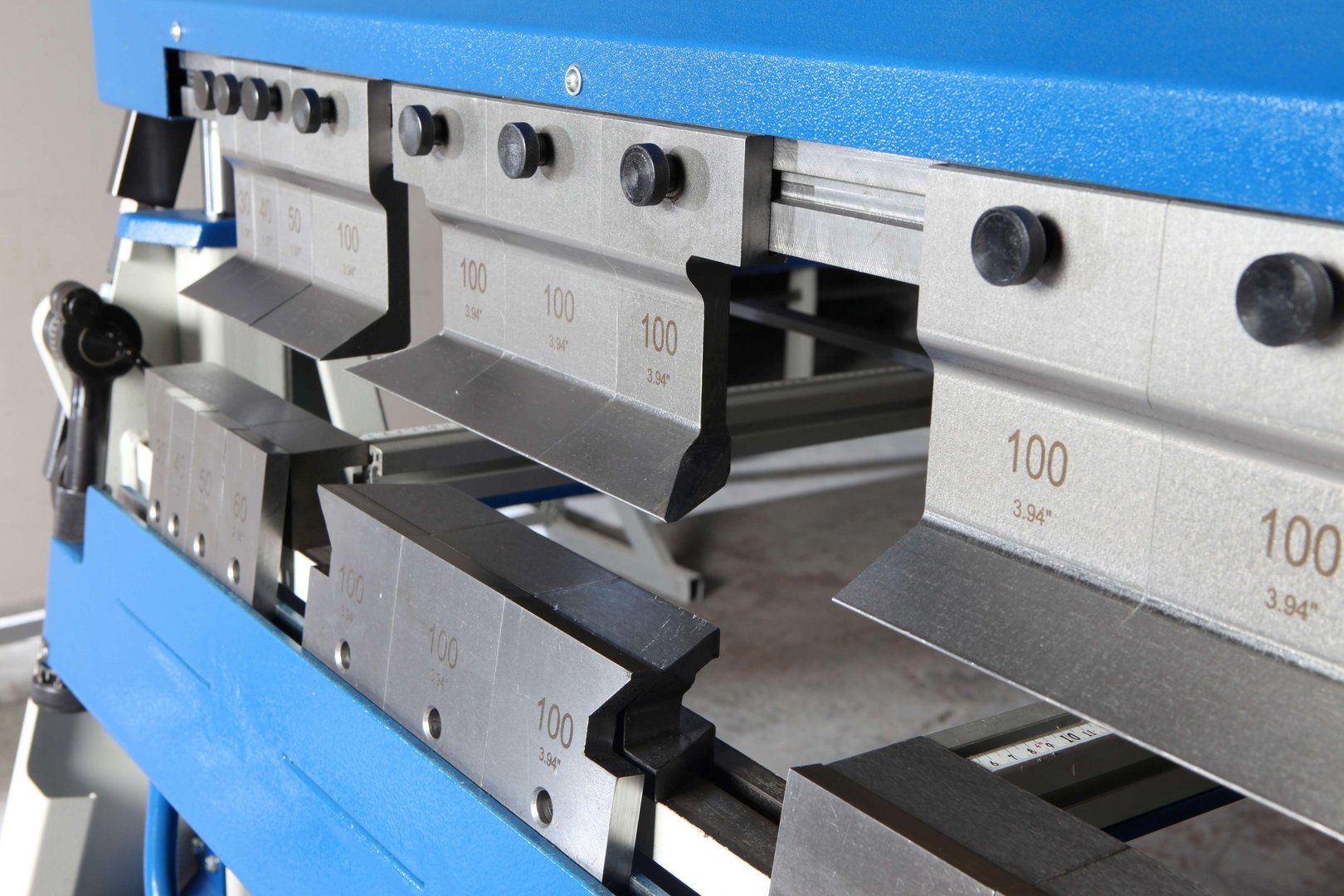

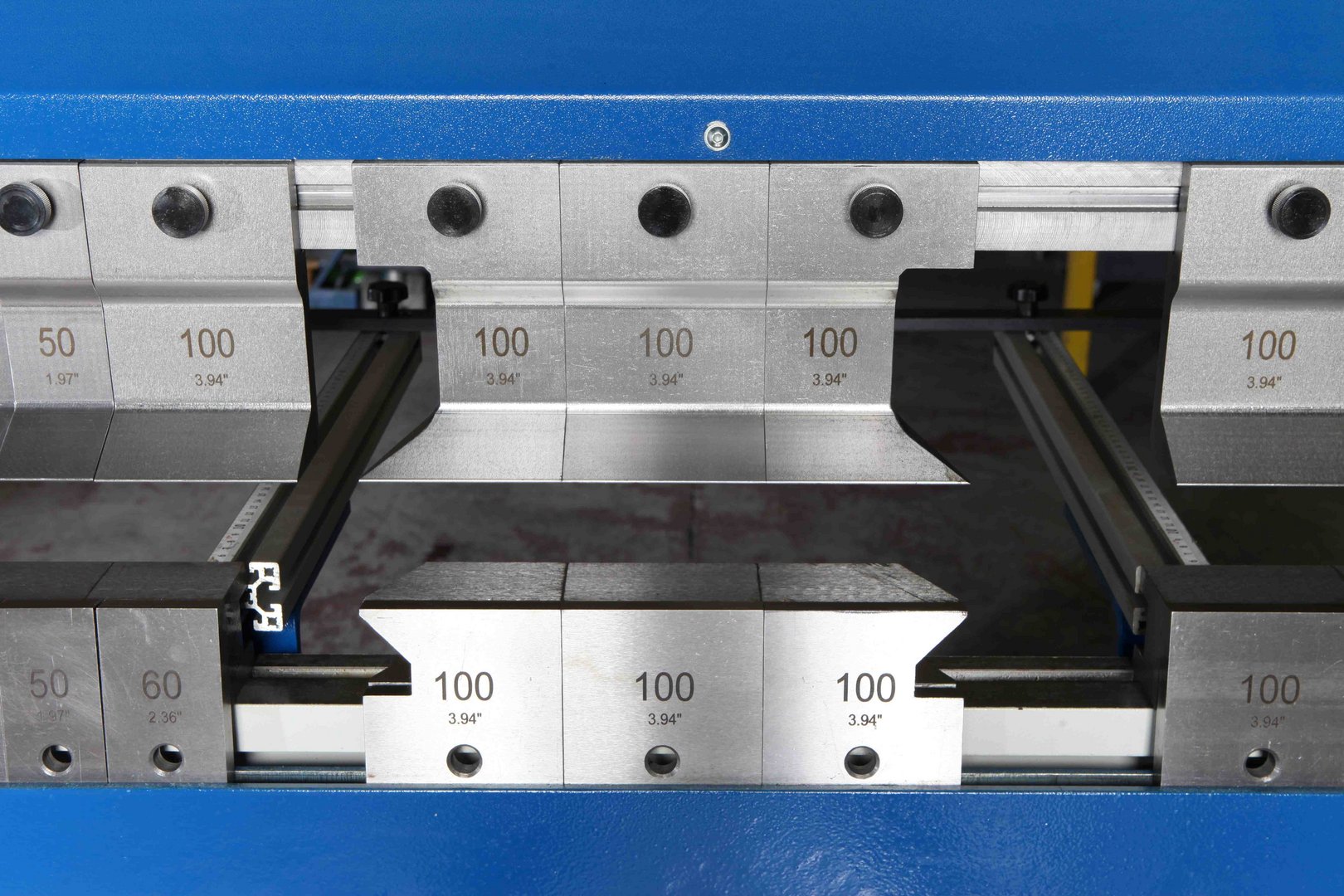

Sectioned upper- lower- and bending tool, material 42CrMo4, hardened to 60HRC

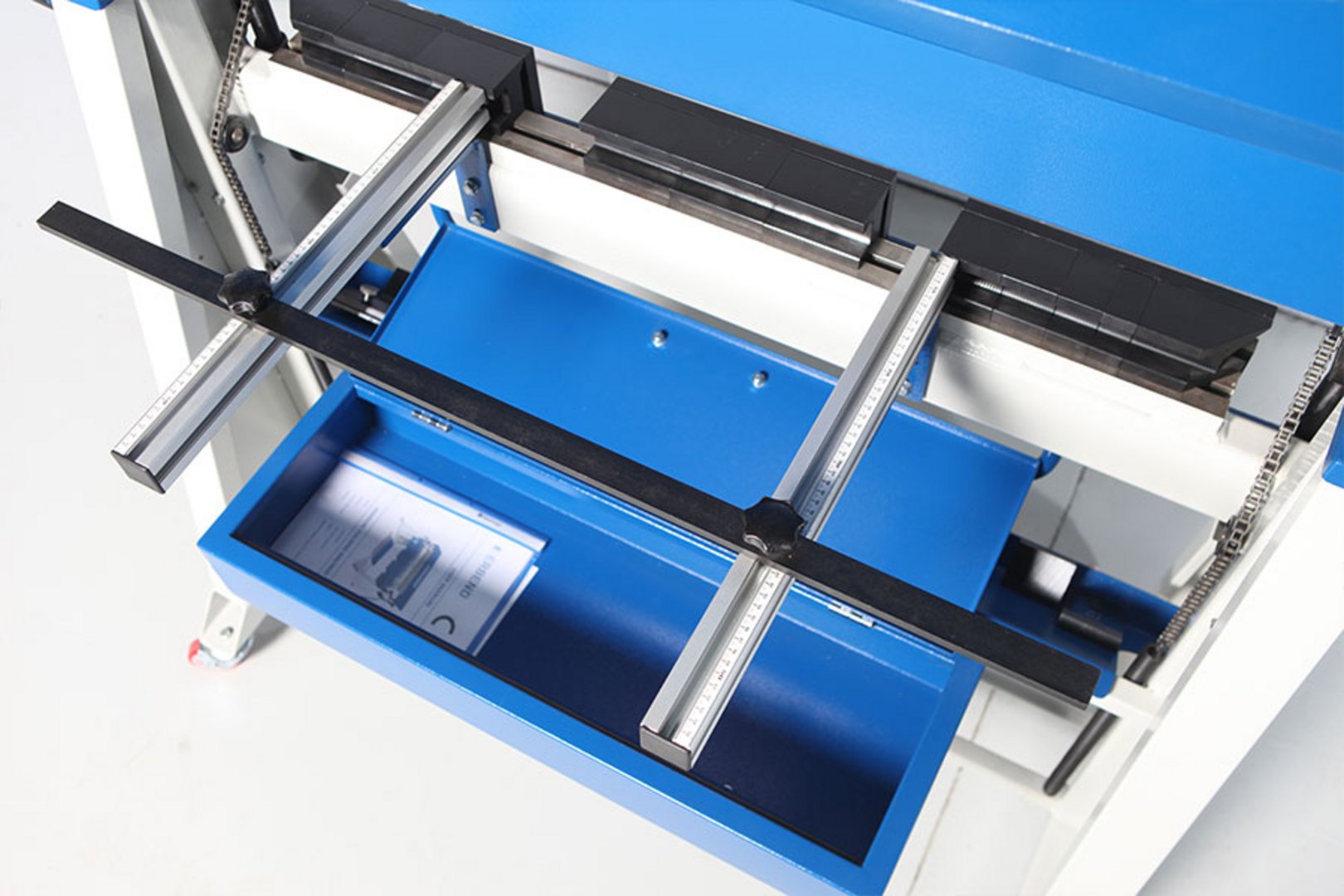

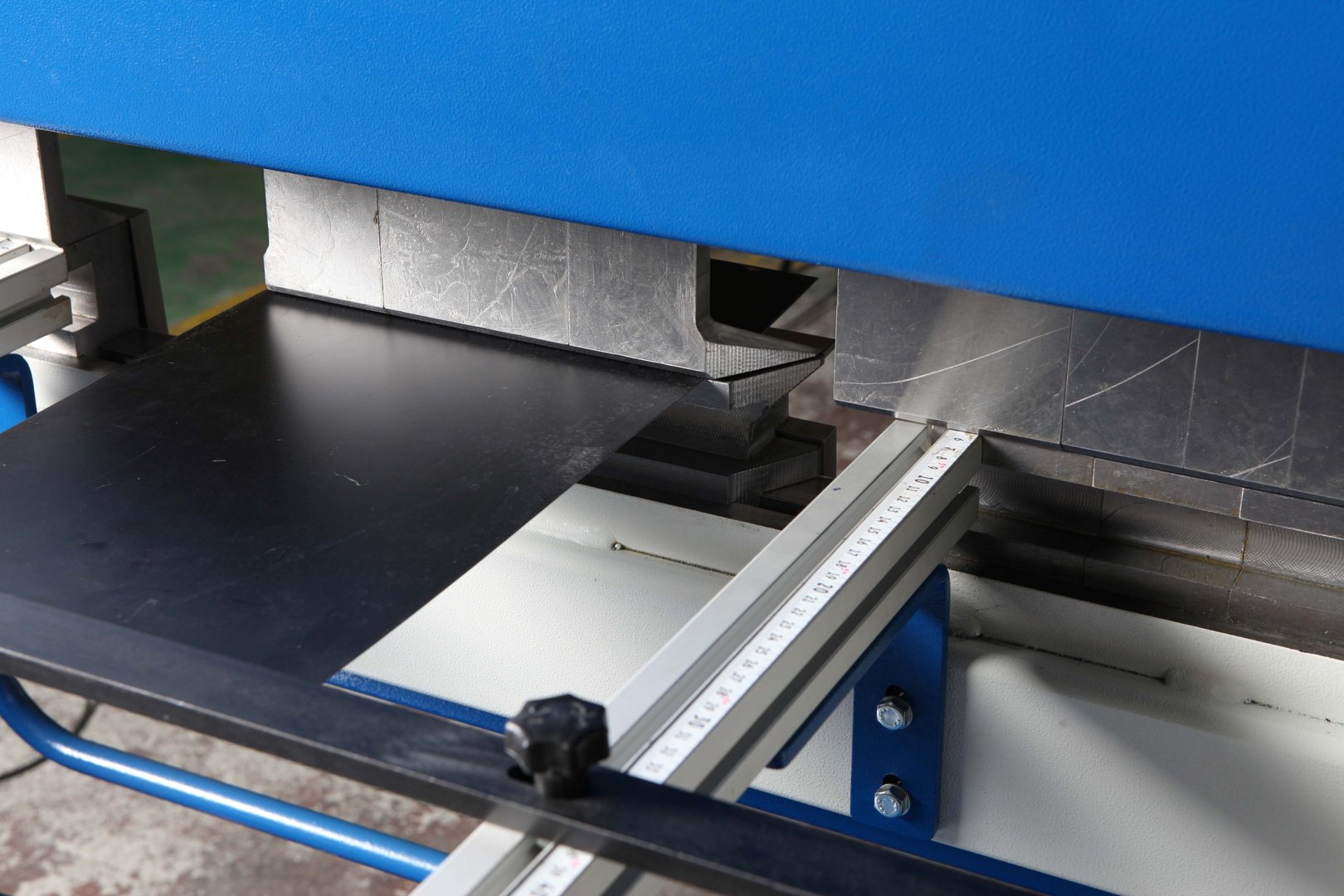

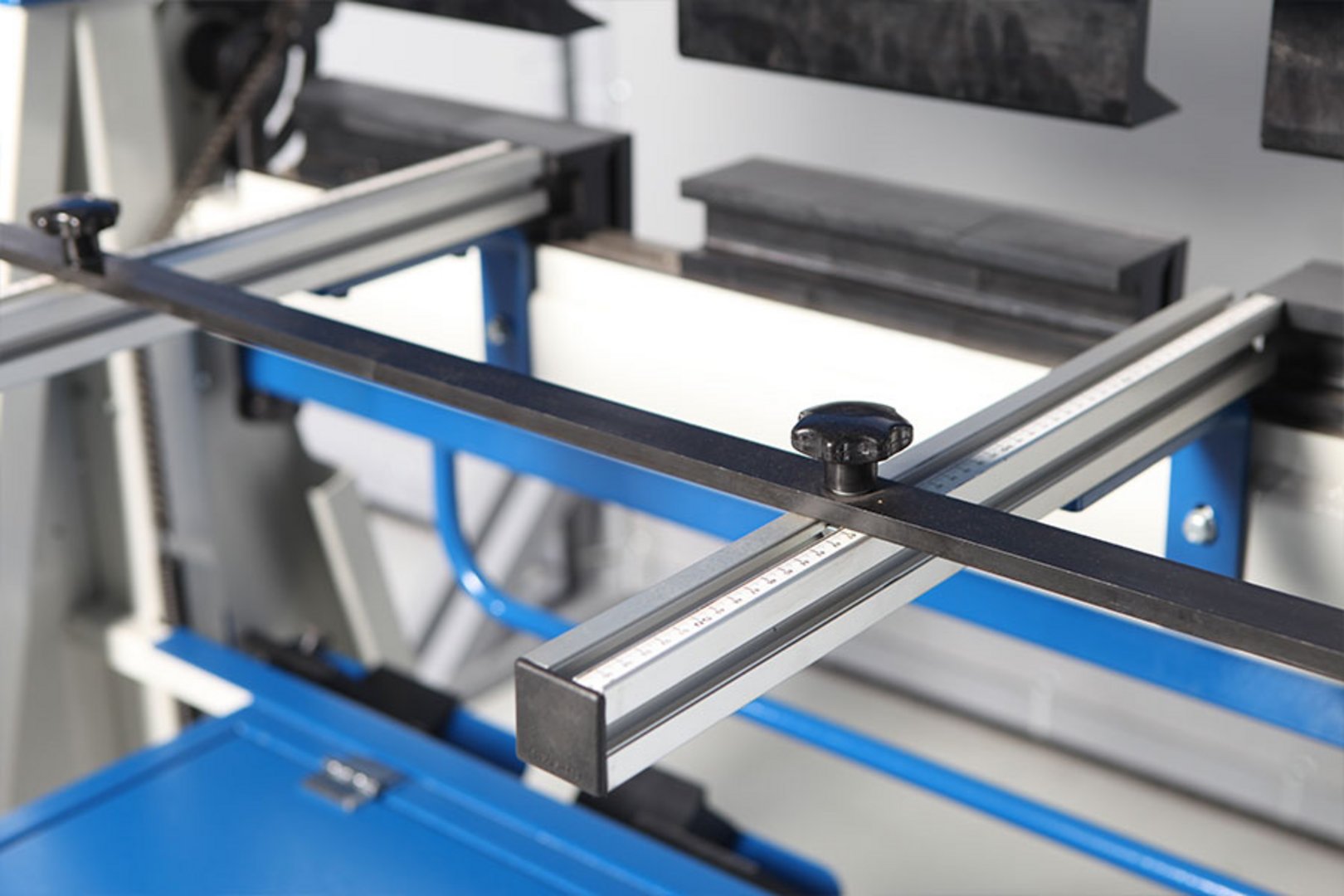

Manual back gauge

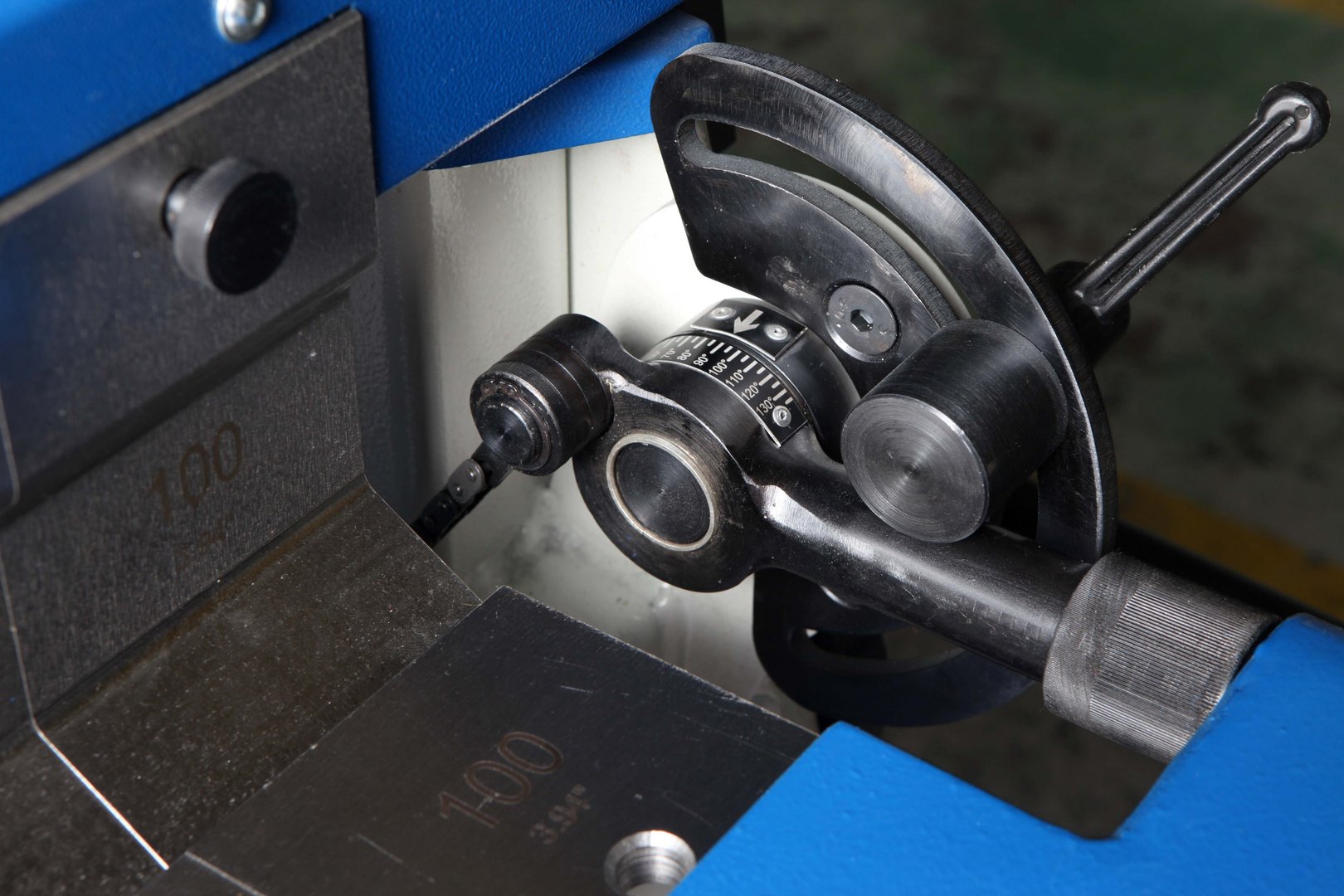

Adjustable angle gauge

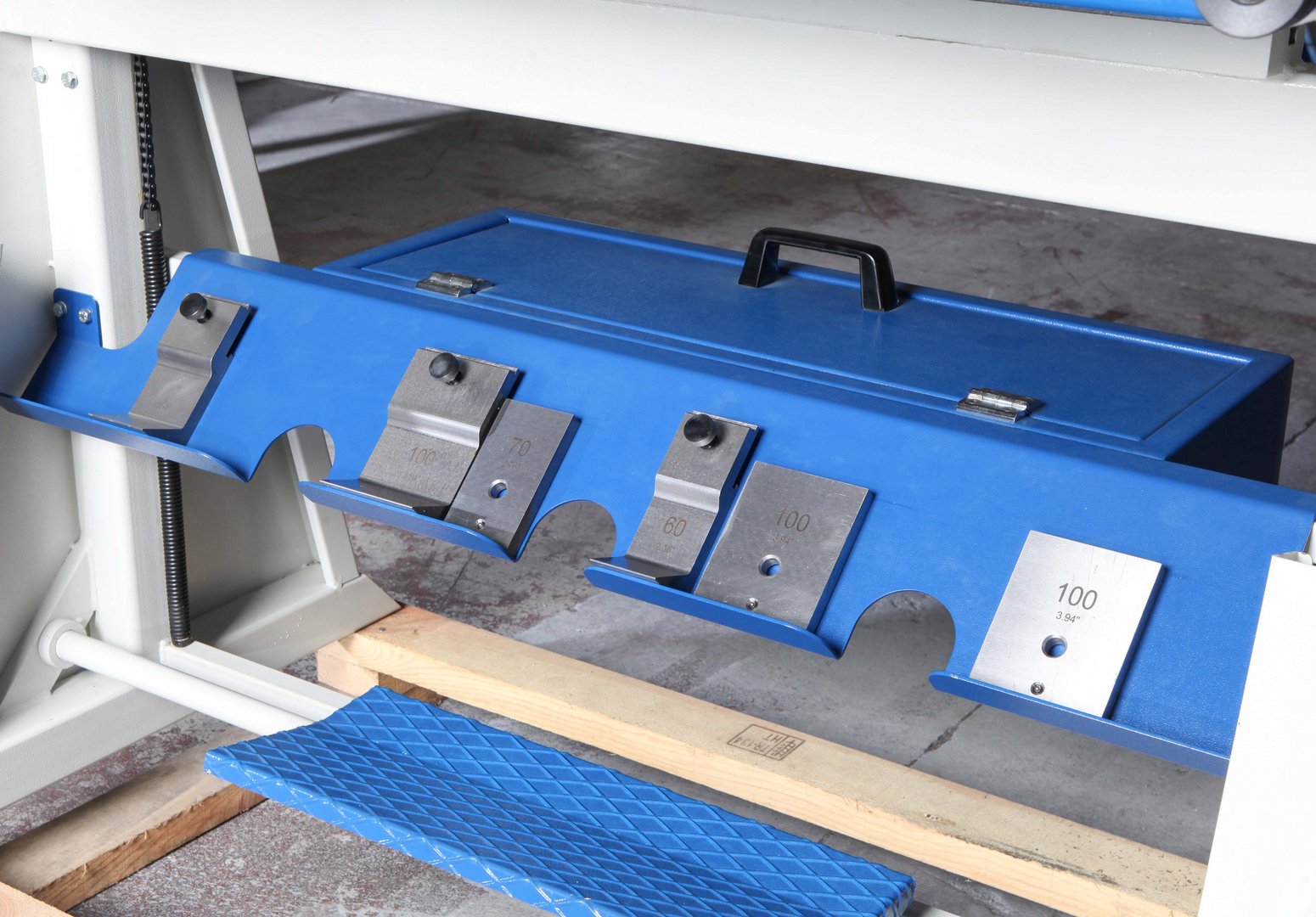

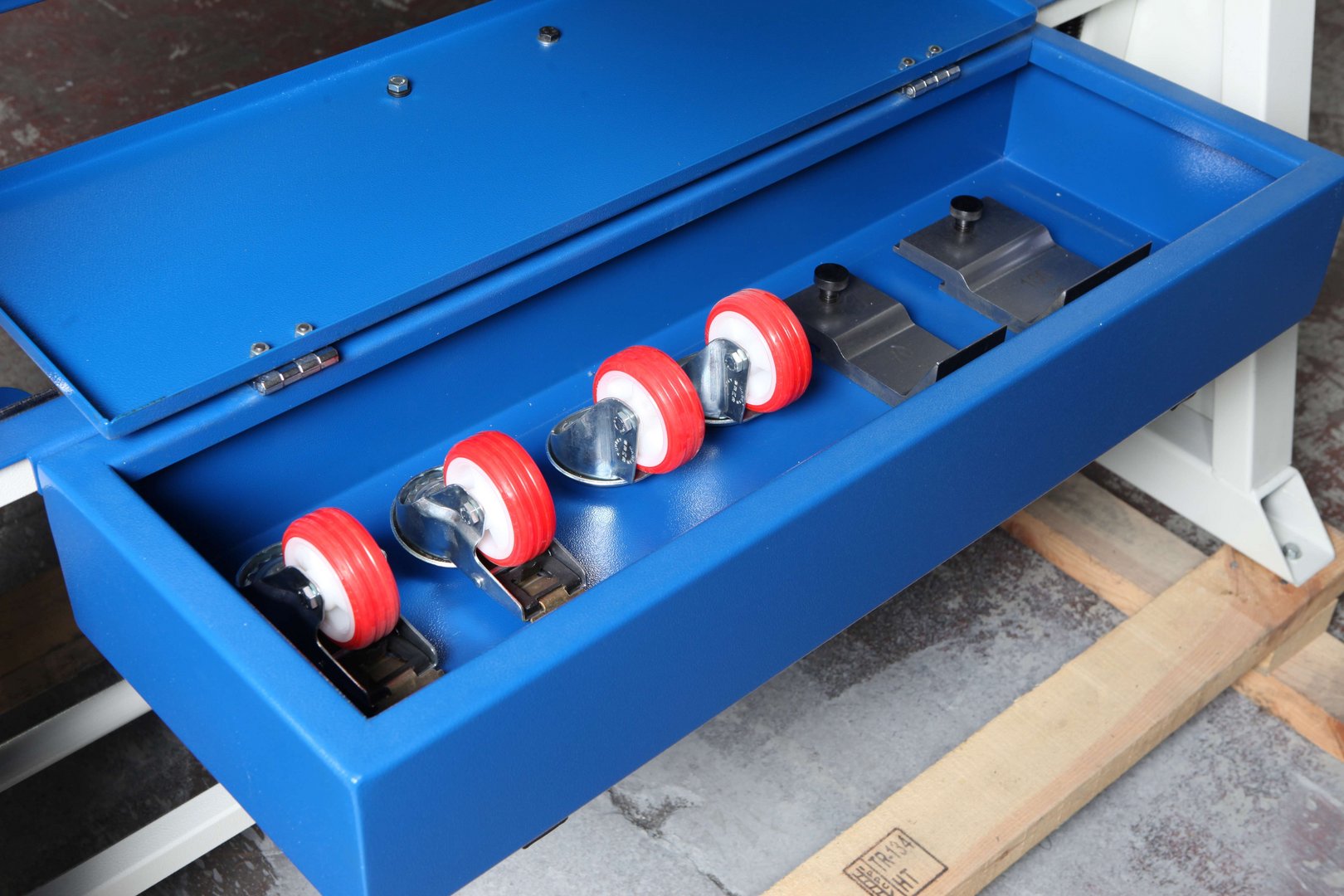

Shelve and box for tools
Machine on rolls with brakes
Operating manual in German or English
Further information
Brochures
Product video

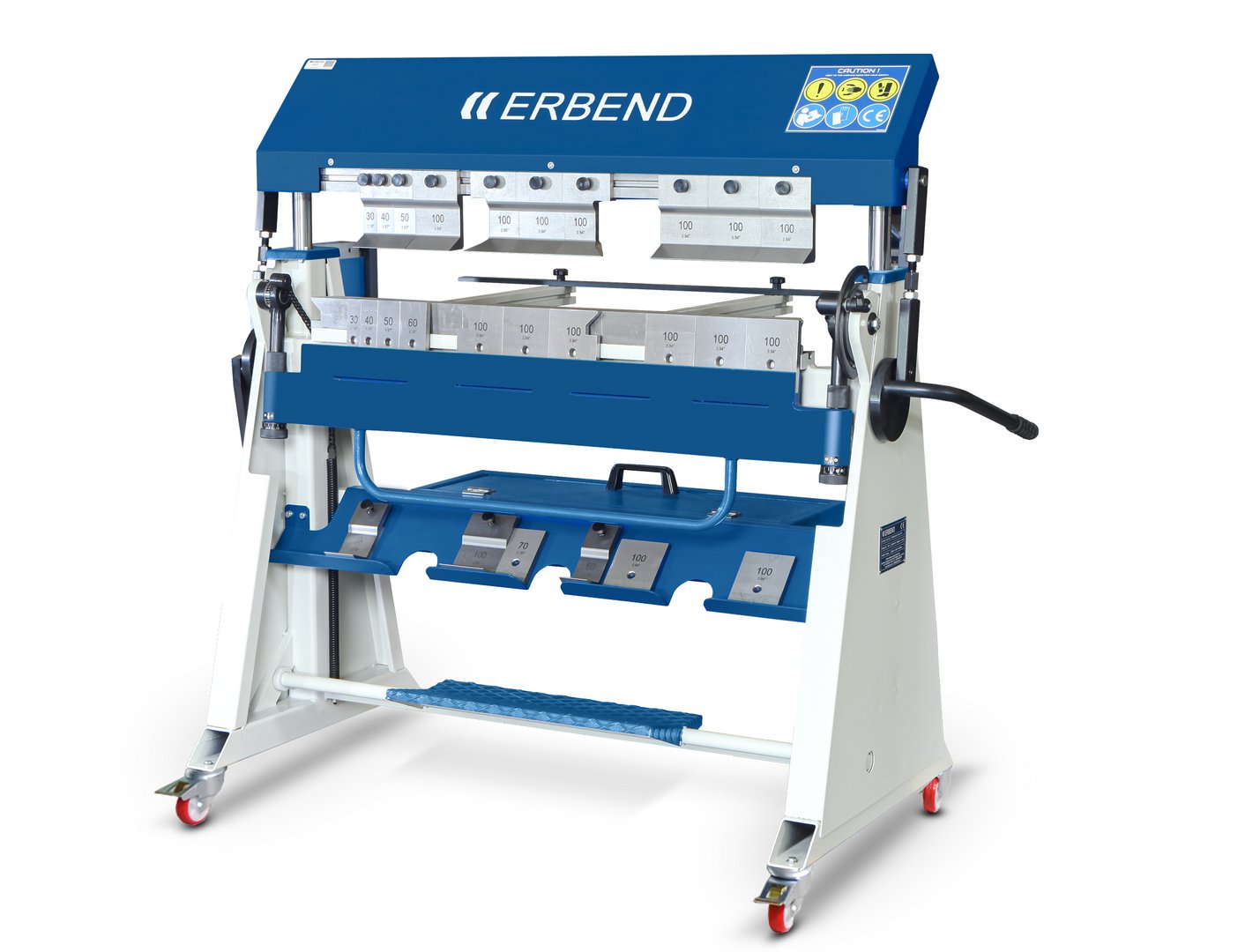

Manual folding machine UFA 1015
