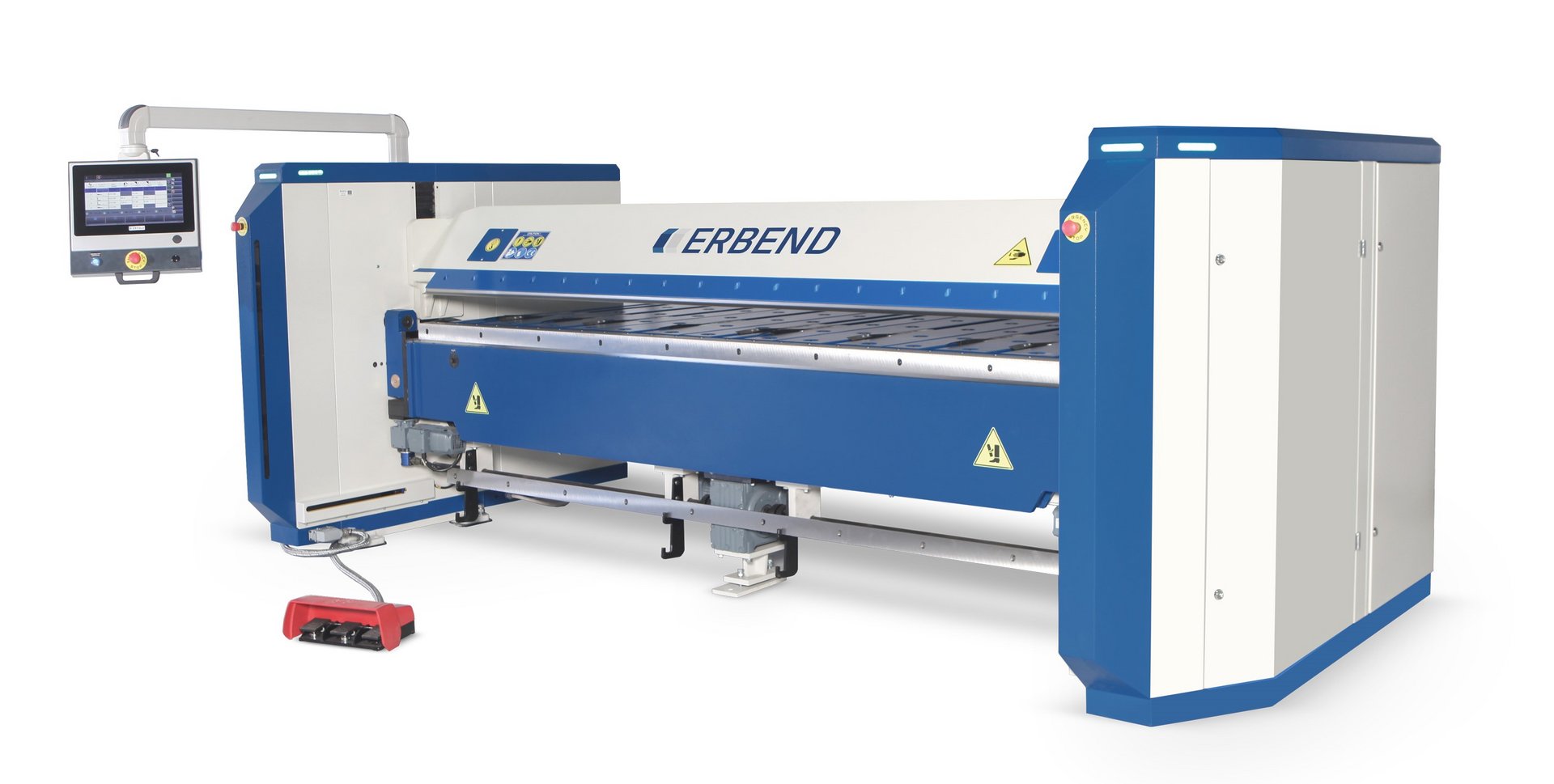

Motorized folding machine ERBEND MFB 4215

CNC control with tabular programming
- 15,6" touchscreen controller on swivel arm
- tabular programming by entering the axes values
- open or drop hemming function
- multi radius bending function as by pressing or by bending
- programming of material quality, thickness, spring back, bending correction
  and creating a data base for every type of material, thickness and length
- piece counter
- autorisiation with password
- 128GB HDD allows almost unlimited data storage
- remote service connection via WLAN
- detailled alarm, tool and paramter page

Motorized drive (AC motors) of the upper and bending beam (Z and Y axes)
Motorized back stop (X axis) with servo drive, 1000 mm, rectangular configuration,
with ball rollers in the sheet metal inserts
Upper beam opening 220 mm (without tools)
Manual bending beam adjustment 35 mm

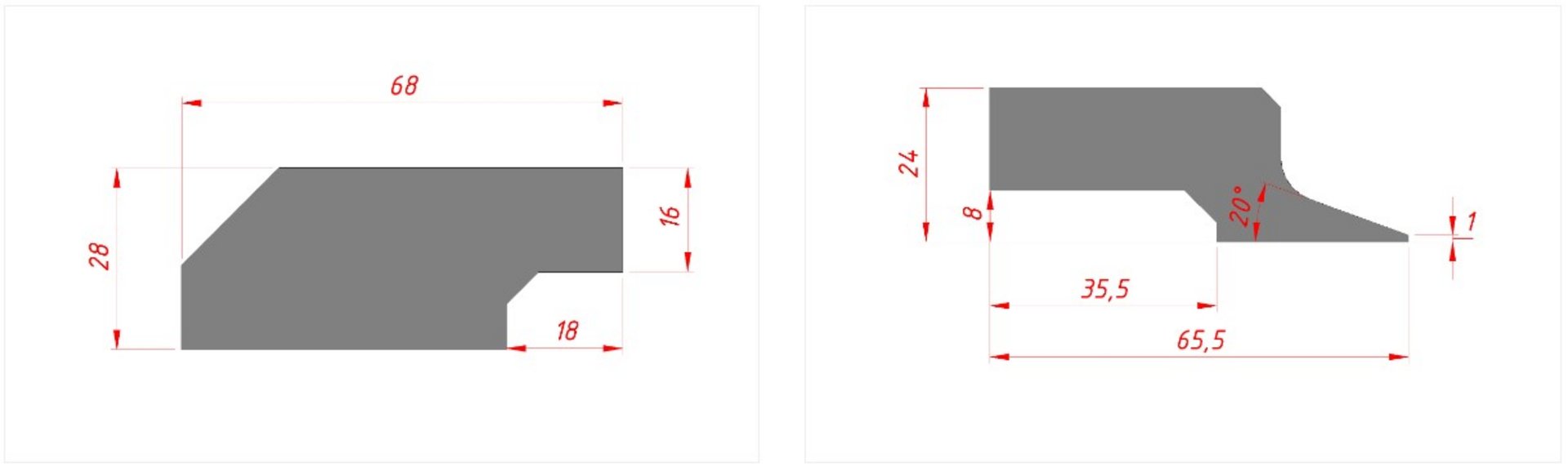

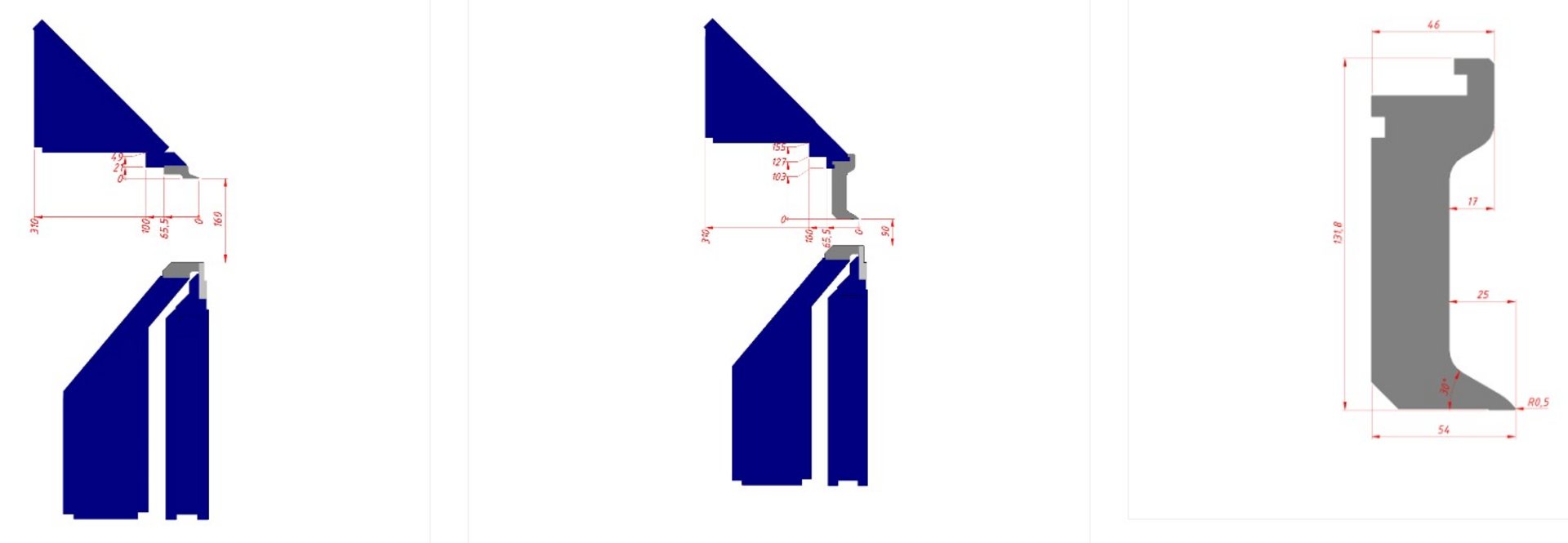

Upper beam with 45° geometry Upper tool 20° with R1, undivided
2 pcs. Bending beam rail (7 or 10 mm, 15 or 25 mm)
Front light barrier protection
3-way foot pedal

Options:
Secstioned goose neck upper tool
Pneumatic tool clamping
Sectioned lower and bending tool
Servo drive for the bending beam
Manual crowning system
Second foot pedal
Side stop
Rear light barrier protection
2D or 3D graphic control
PC software
Special Omega geometry for lower and bending tool
Conical back stop
Back stop extension
Vacuum holder
