General characteristics
| Bending length | 3200 mm |
| Sheet thickness (420 N/mm²) | 2 mm |
| Max. thickness - stainless steel | 1.2 mm |
| Max. thickness - aluminium | 3 mm |
| Antrieb | Motorized |
| Back gauge | 1000 mm |

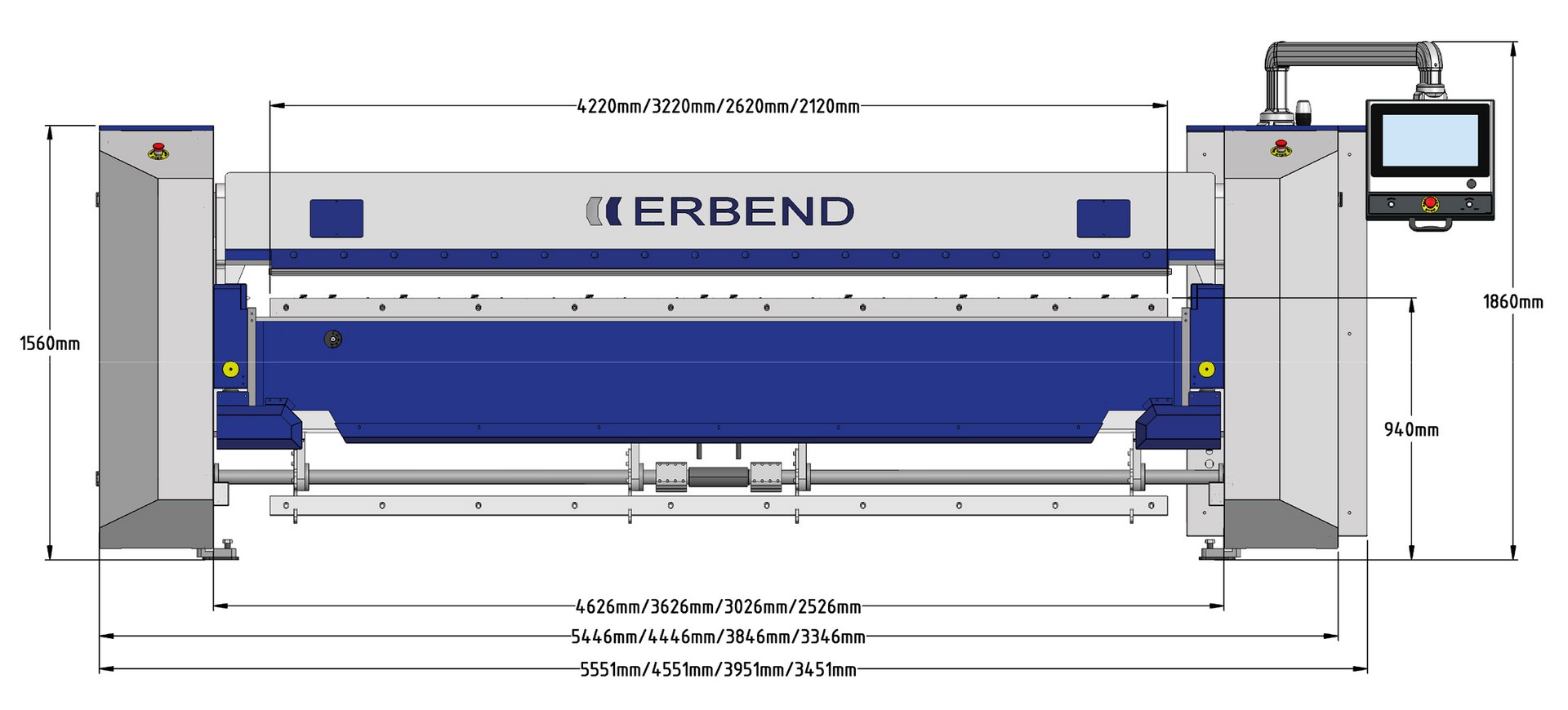

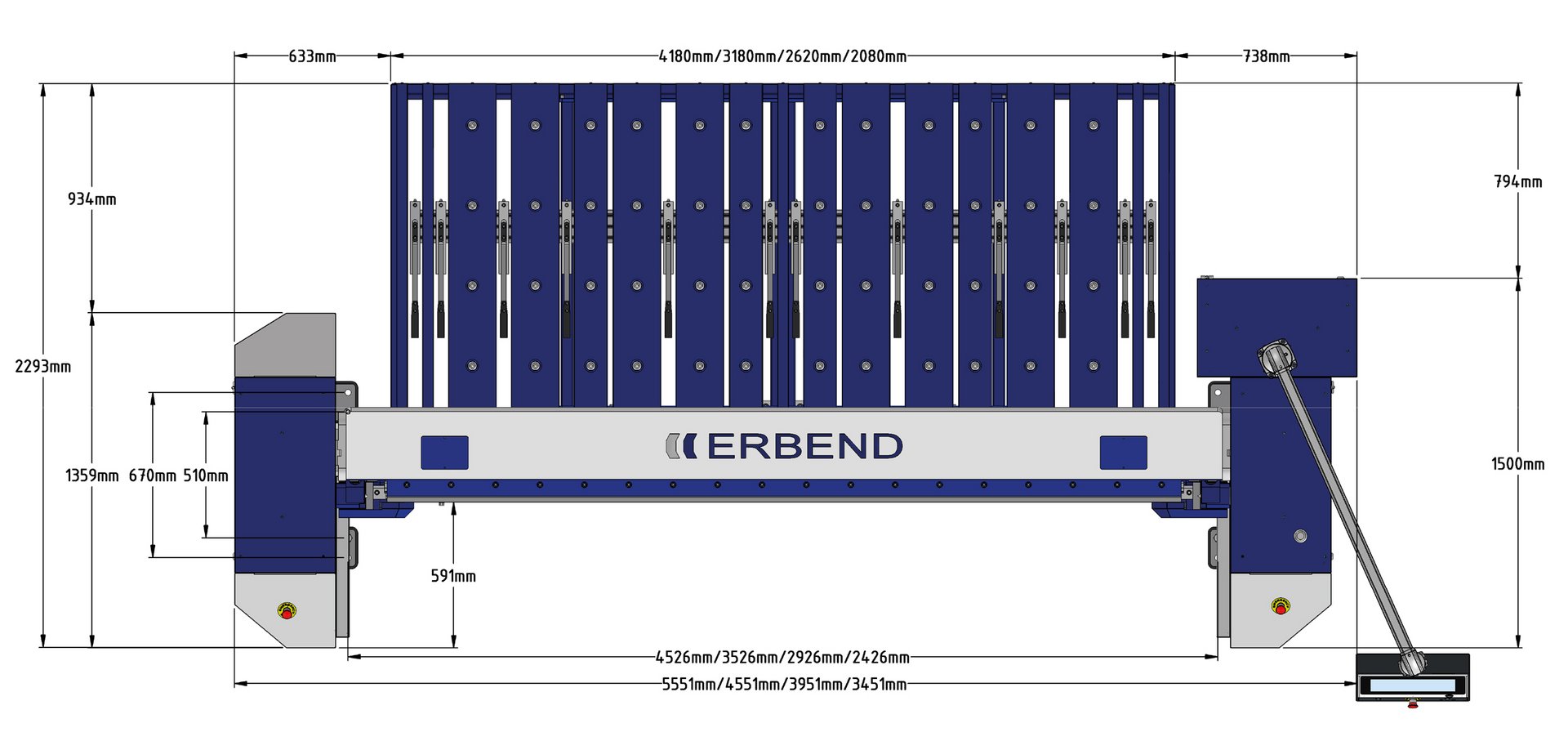

Dimensions and weight
| Length | 4450 mm |
| Width | 2200 mm |
| Height | 1900 mm |
| Weight | 4500 kg |
Description
CNC control with tabular programming
- 15,6" touchscreen controller on swivel arm
- tabular programming by entering the axes values
- open or drop hemming function
- multi radius bending function as by pressing or by bending
- programming of material quality, thickness, spring back, bending correction
and creating a data base for every type of material, thickness and length
- piece counter
- autorisiation with password
- 128GB HDD allows almost unlimited data storage
- remote service connection via WLAN
- detailled alarm, tool and paramter page
Motorized drive (AC motors) of the upper and bending beam (Z and Y axes)
Motorized back stop (X axis) with servo drive, 1000 mm, rectangular configuration,
with ball rollers in the sheet metal inserts
Upper beam opening 220 mm (without tools)
Manual bending beam adjustment 35 mm

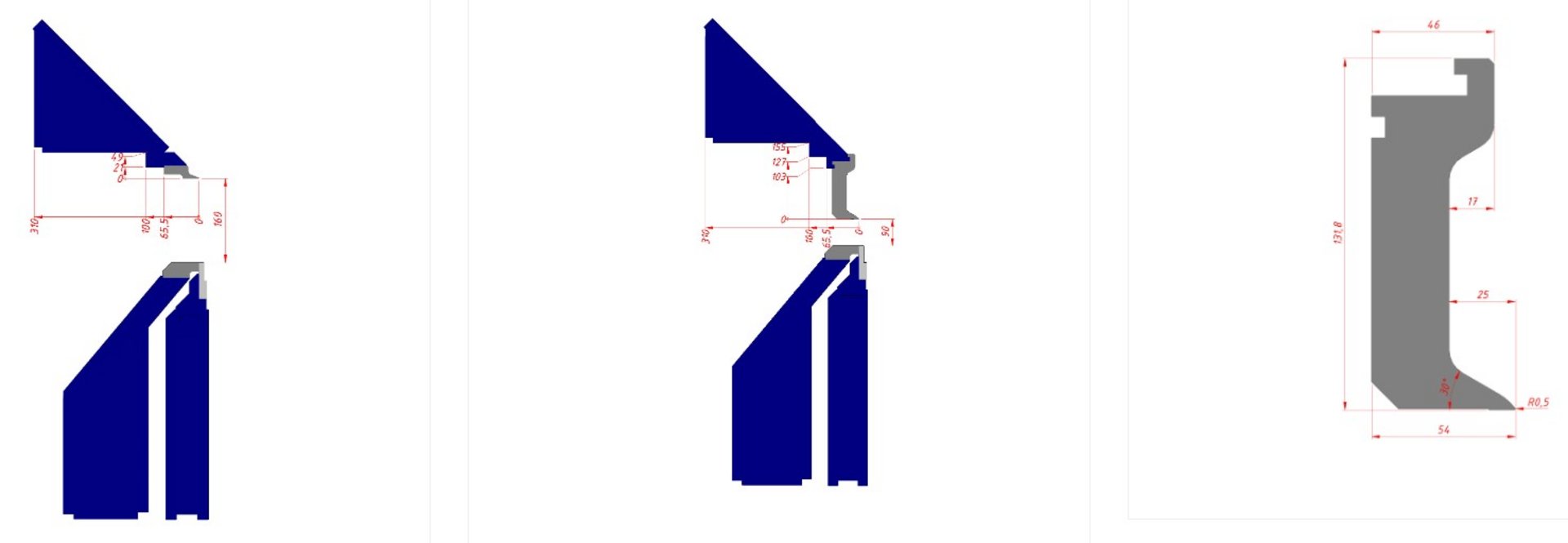

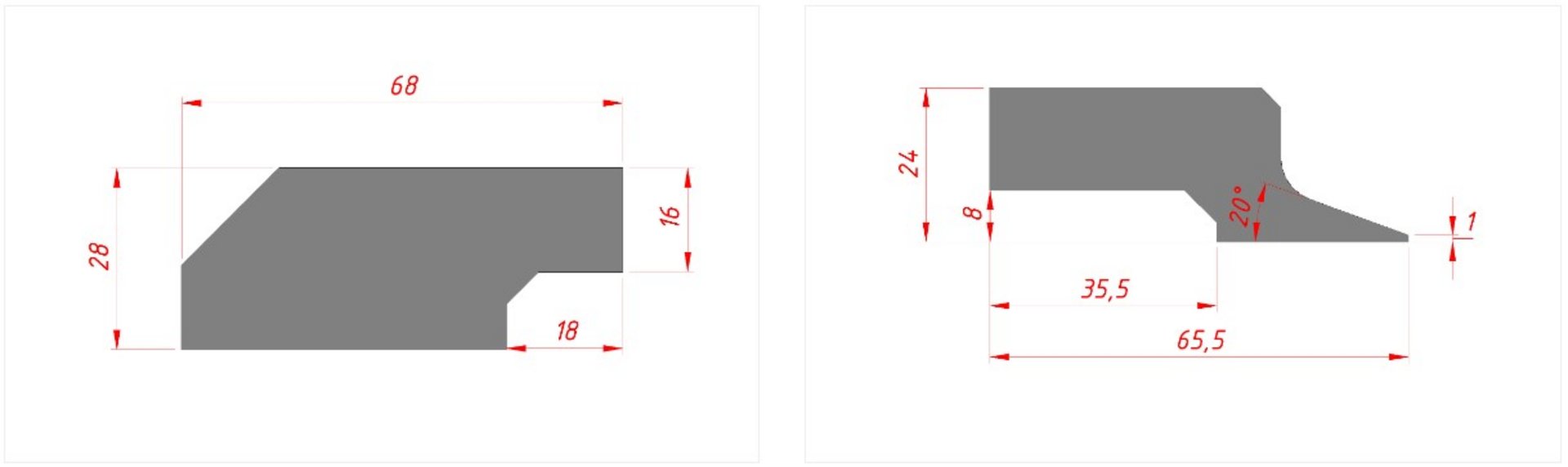

Upper beam with 45° geometry Upper tool 20° with R1, undivided
2 pcs. Bending beam rail (7 or 10 mm, 15 or 25 mm)
Front light barrier protection
3-way foot pedal
Options:
Secstioned goose neck upper tool
Pneumatic tool clamping
Sectioned lower and bending tool
Servo drive for the bending beam
Manual crowning system
Second foot pedal
Side stop
Rear light barrier protection
2D or 3D graphic control
PC software
Special Omega geometry for lower and bending tool
Conical back stop
Back stop extension
Vacuum holder
Further information
Brochures
Product video

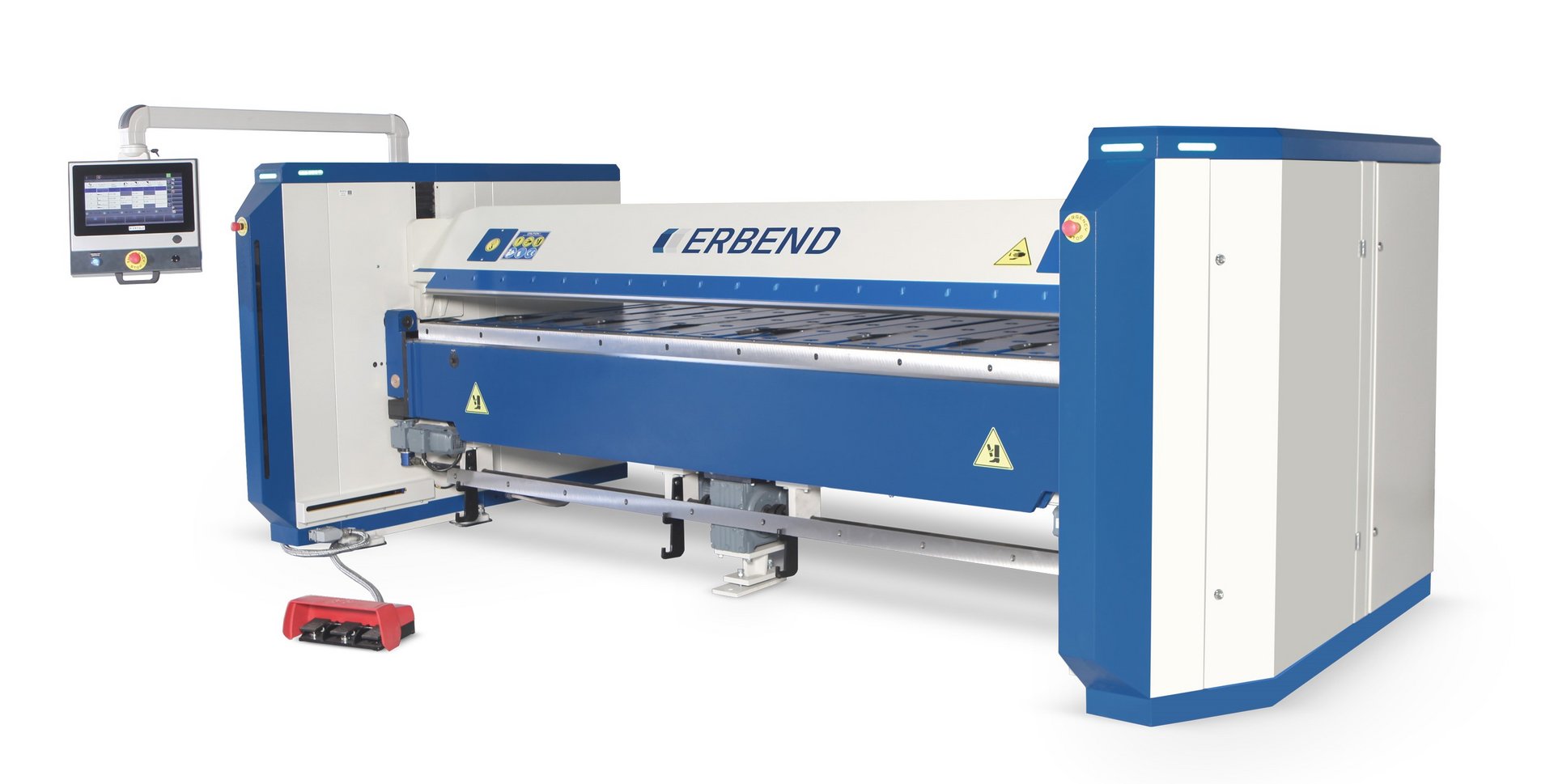

Motorized folding machine MFB 3220
