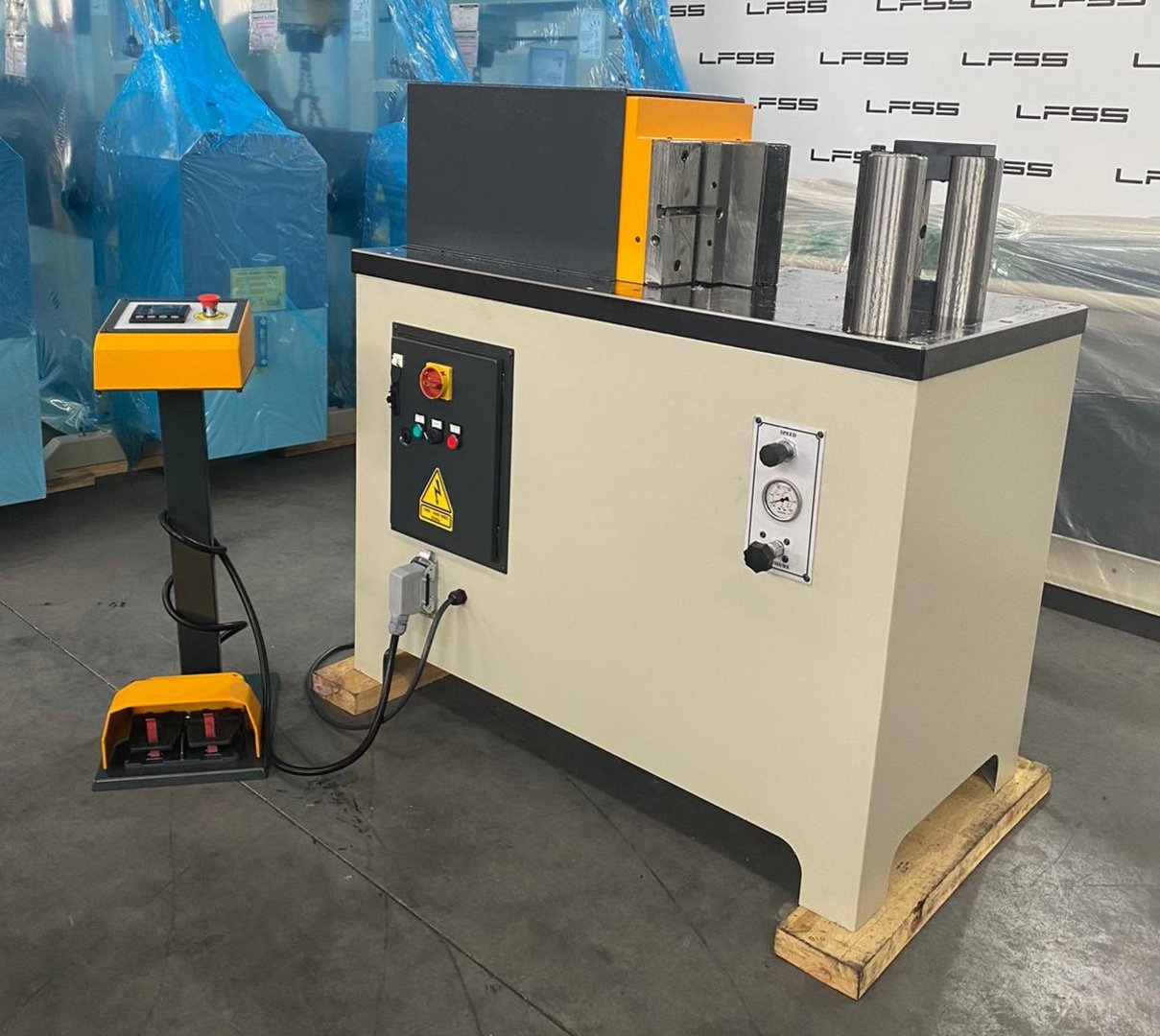

Horizontal bending machine HESSE by LFSS HP 20
| Model | HP 20 |
| Brand | HESSE by LFSS |
| Condition | new |
| Year of manufacture | 2025 |
| pressing capacity | 20 to |
| Stroke | 185 mm |
| Stock number | 90089 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 20 to |
| Stroke | 185 mm |
| Max. bending capacity - mild steel | 200 x 12 mm |
| Table | 480 x 1060 mm |
| Height of pins | 200 mm |
| Pin diameter | 80 mm |
| Working speed | 10 mm/s |
| Retraction speed | 10 mm/s |
| Motor | 2.2 kW |
| Working height | 930 mm |
Dimensions and weight
| Length | 1150 mm |
| Width | 480 mm |
| Height | 1200 mm |
| Weight | 530 kg |
Description
Programmable stroke and retraction point
Adjustable speed and pressure
Manual jog operation and automatic operating mode

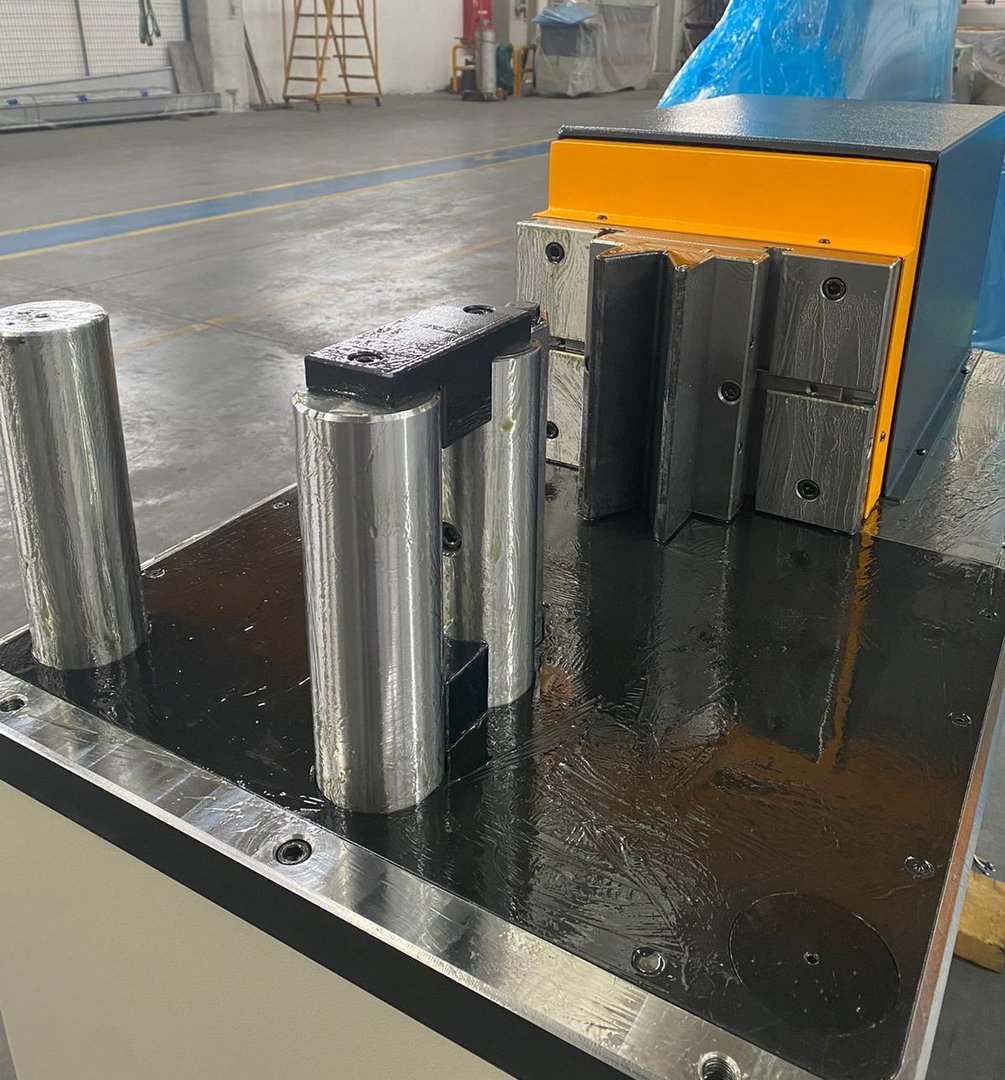

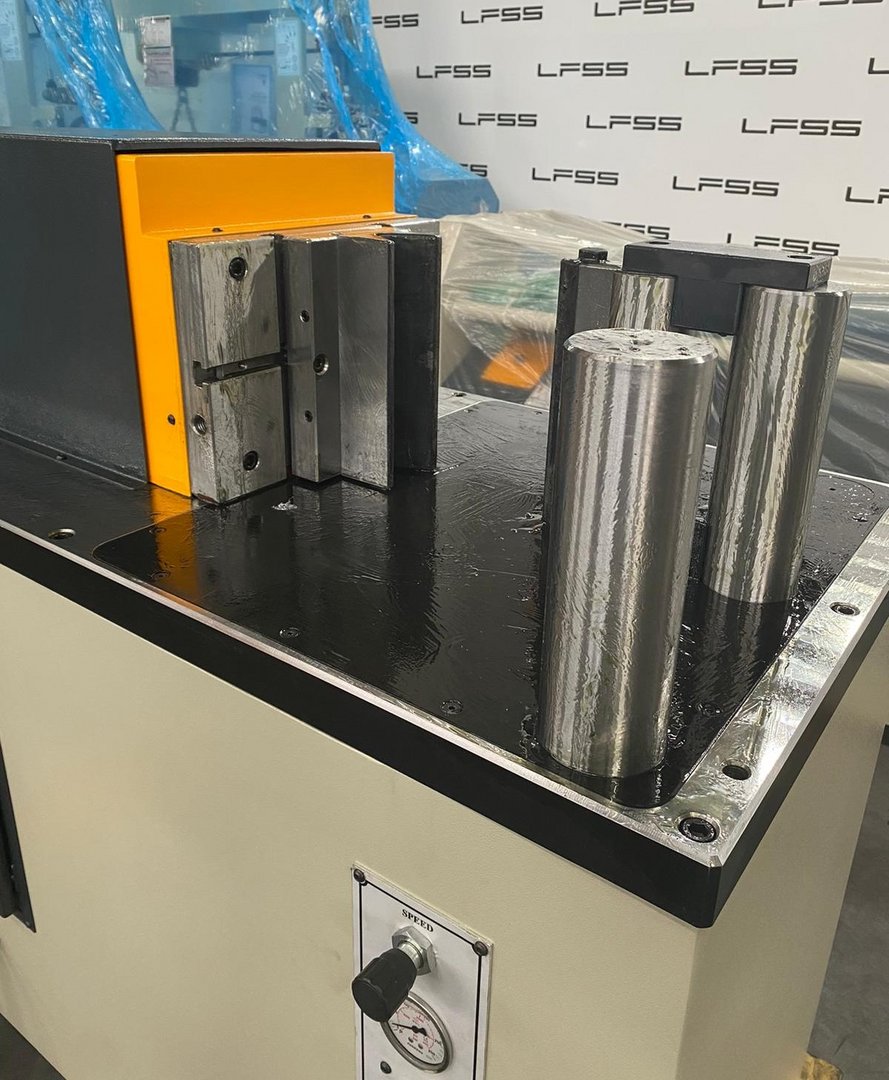

Holding pins and tools hardened and ground
3 holder pins
Bending tool
Manual stop 400 mm
Foot pedal
Options:
Cutting-, punching- or pipe bending tools on request
