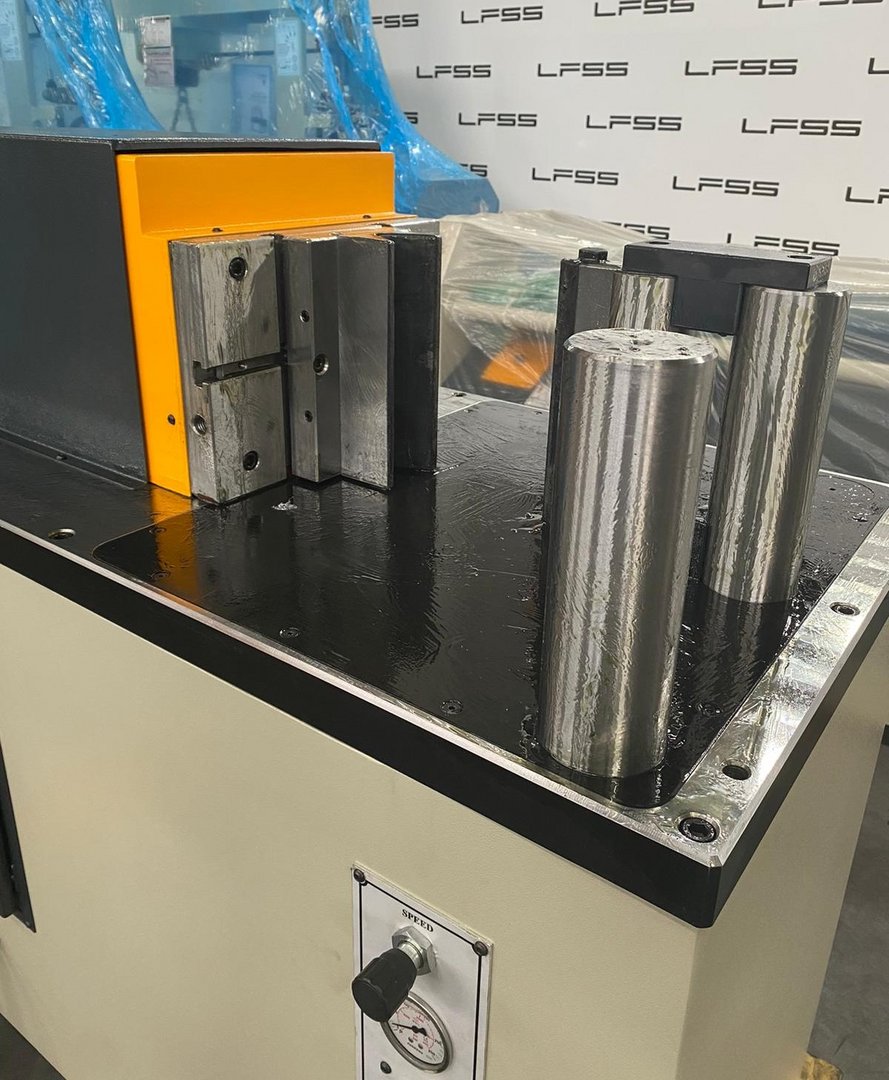

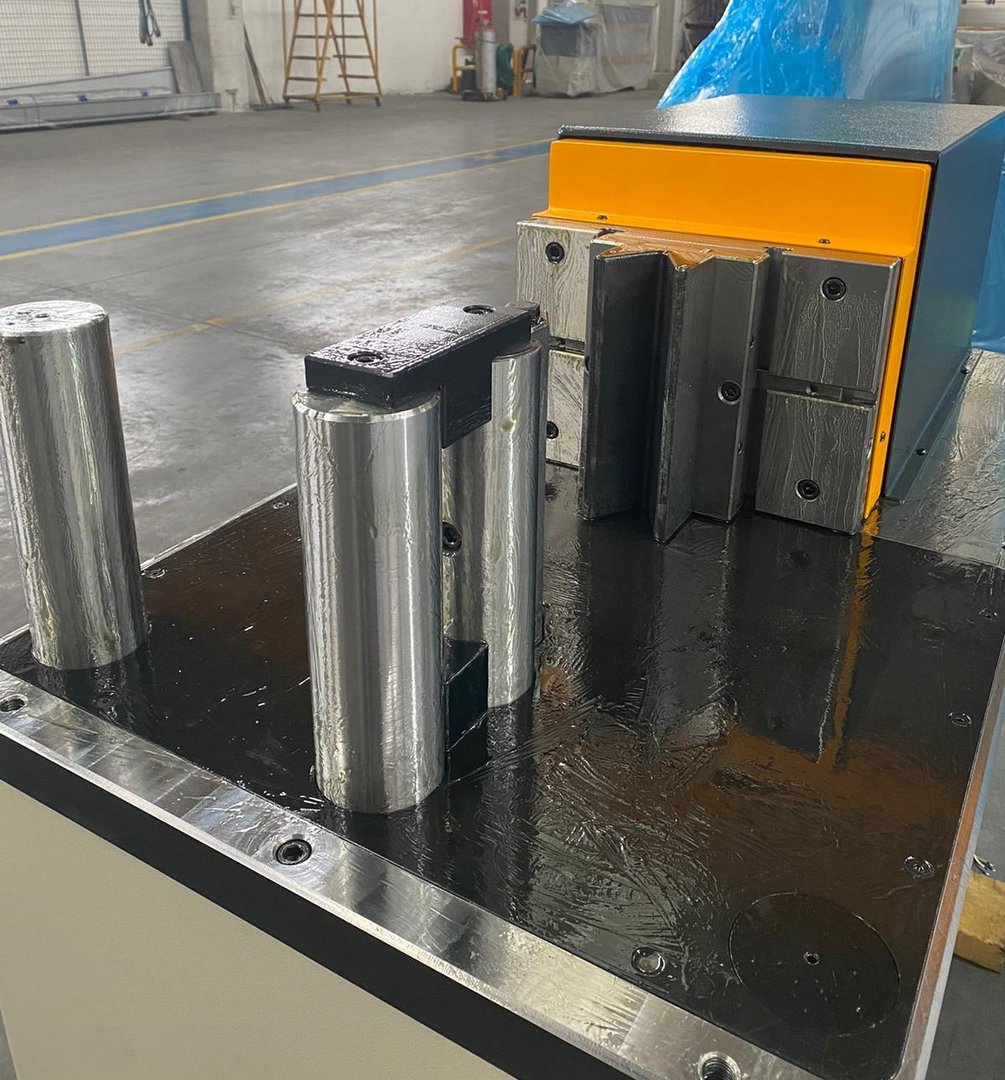

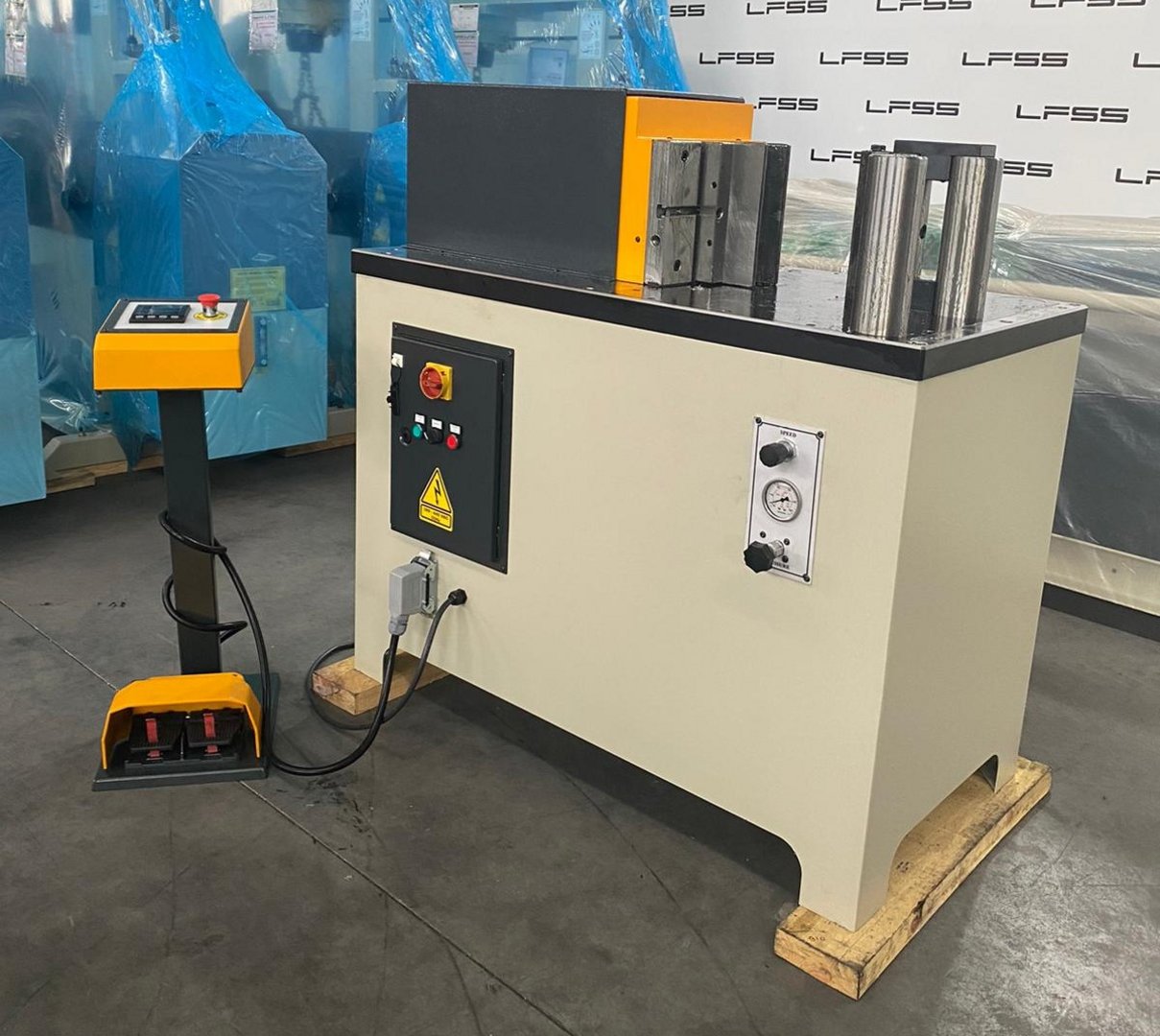

Horizontal bending machine HESSE by LFSS HP 10
| Model | HP 10 |
| Brand | HESSE by LFSS |
| Condition | new |
| Year of manufacture | 2024 |
| pressing capacity | 10 to |
| Stroke | 185 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 10 to |
| Stroke | 185 mm |
| Max. bending capacity - mild steel | 150x8 mm |
| Table | 450x900 mm |
| Height of pins | 150 mm |
| Pin diameter | 60 mm |
| Working speed | 10 mm/s |
| Retraction speed | 10 mm/s |
| Motor | 1.1 kW |
| Working height | 915 mm |
Dimensions and weight
| Length | 900 mm |
| Width | 450 mm |
| Height | 1130 mm |
| Weight | 250 kg |
Description
Stroke adjustment with digital display
Manual and automatic operation mode
Tool holder pins and tools hardened and ground
Bending tool
Foot pedal
Options:
Cutting-, punching- or pipe bending tools on request
