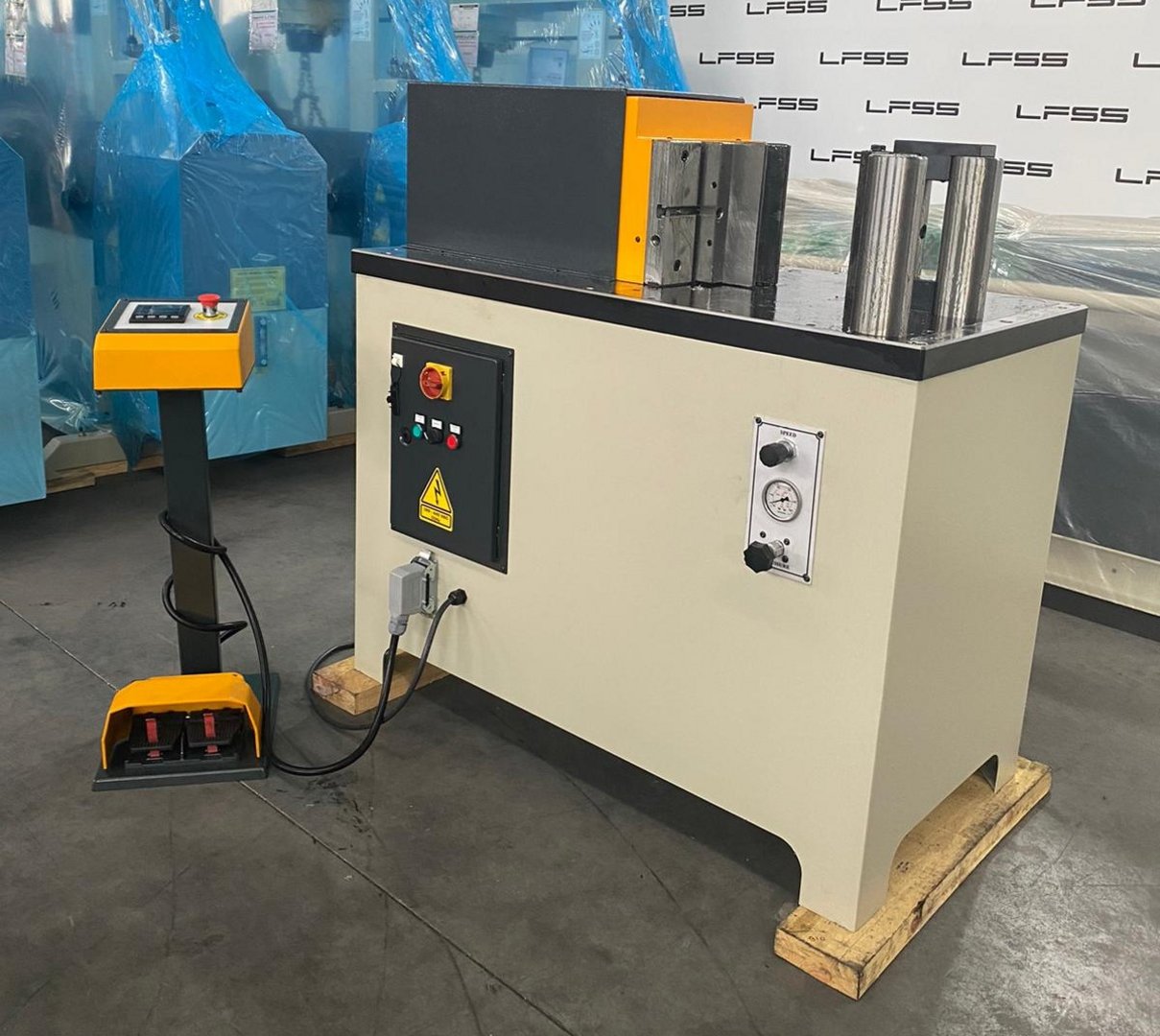

Horizontal bending machine HESSE by LFSS HP 40
| Model | HP 40 |
| Brand | HESSE by LFSS |
| Condition | new |
| Year of manufacture | 2024 |
| pressing capacity | 40 to |
| Stroke | 285 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 40 to |
| Stroke | 285 mm |
| Max. bending capacity - mild steel | 200x24 mm |
| Table | 660x1250 mm |
| Height of pins | 250 mm |
| Pin diameter | 80 mm |
| Working speed | 10 mm/s |
| Retraction speed | 10 mm/s |
| Motor | 4 kW |
| Working height | 930 mm |
Dimensions and weight
| Length | 1250 mm |
| Width | 650 mm |
| Height | 1250 mm |
| Weight | 1100 kg |
Description
Stroke adjustment with digital display
Manual and automatic operation mode
Tool holder pins and tools hardened and ground
Bending tool
Foot pedal
Options:
Cutting-, punching- or pipe bending tools on request
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
