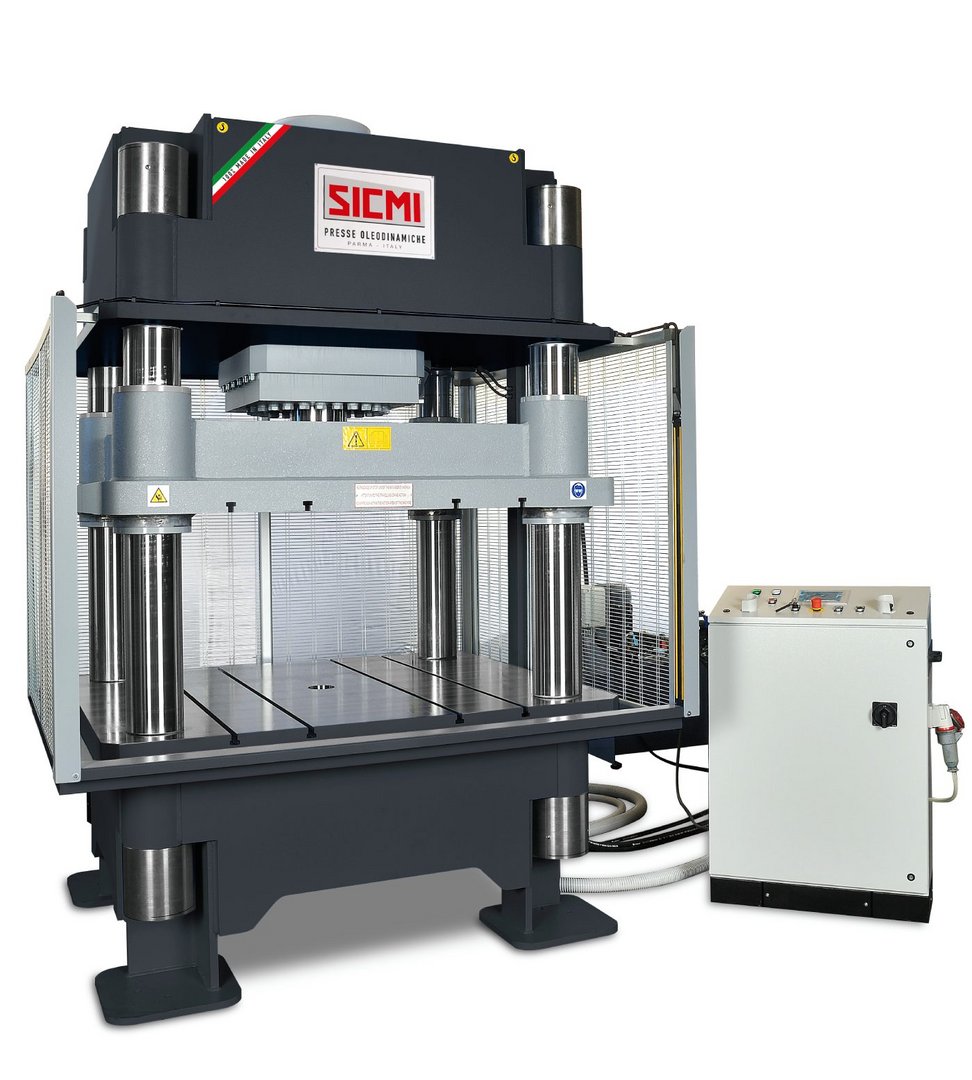

Hydraulic 4-column press SICMI PSQ 300 A
| Model | PSQ 300 A |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 300 to |
| Origin | Italy |
General characteristics
| pressing capacity | 300 to |
| Stroke | 500 mm |
| Space between columns | 1250x1000 mm |
| Daylight | 600 mm |
| Rapid speed | 22 mm/s |
| Working speed | 2 mm/s |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 1750 mm |
| Width | 1500 mm |
| Height | 2800 mm |
Description
4-pillar guide
ram guide round
table and ram with T-slots
2 hand operation
Siemens PLC
manometer
users manual
Options:
| Light barrier | € | on Request |
|
Siemens touchscreen-control, 50 programs storeable, for programming: • Upstroke and downstroke quota |
€ | on Request |
| Working hour counter | € | on Request |
| Stroke counter | € | on Request |
| Decompression valve | € | on Request |
| Oil cooler with decompreission valve | € | on Request |
| Pressur switch | € | on Request |
