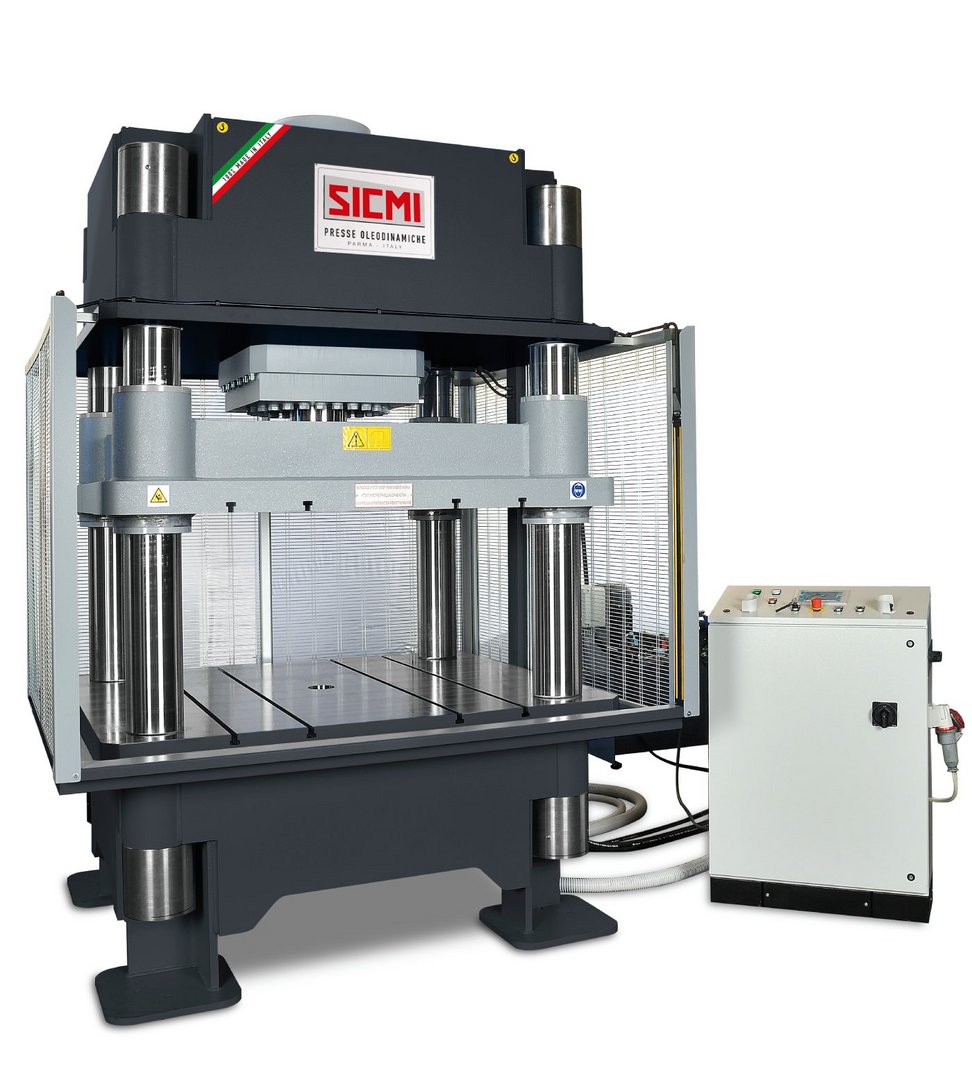

Hydraulic 4-column press SICMI PSQ 70 A
| Model | PSQ 70 A |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 70 to |
| Table | 900x700 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 70 to |
| Stroke | 500 mm |
| Table | 900x700 mm |
| Space between columns | 900x700 mm |
| Daylight | 600 mm |
| Rapid speed | 25 mm/s |
| Working speed | 6 mm/s |
| Motor | 4 kW |
Dimensions and weight
| Length | 1140 mm |
| Width | 940 mm |
| Height | 2350 mm |
Description
4-pillar guide
ram guide round
table and ram with T-slots
2 hand operation
Siemens PLC
manometer
users manual
| Light barrier | € | on Request |
|
Siemens touchscreen-control, 50 programs storeable, for programming: • Upstroke and downstroke quota |
€ | on Request |
| Working hour counter | € | on Request |
| Stroke counter | € | on Request |
| Decompression valve | € | on Request |
| Oil cooler with decompreission valve | € | on Request |
| Pressur switch | € | on Request |
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
