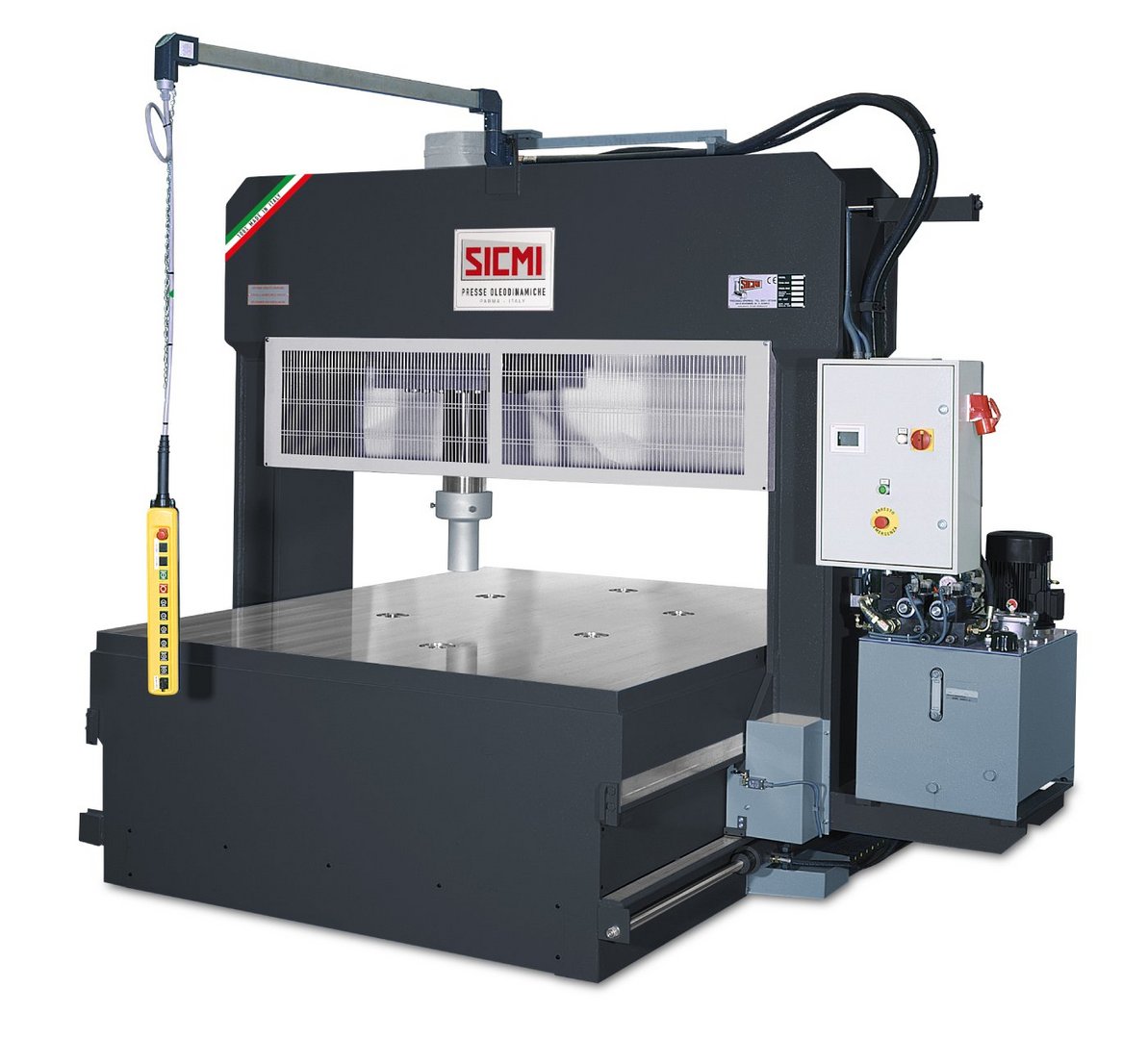

Hydraulic portal straightening press SICMI PMM 500 ME
| Model | PMM 500 ME |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 500 to |
| Table | 5.000 x 2.550 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 500 to |
| Stroke | 500 mm |
| Table | 5.000 x 2.550 mm |
| Daylight | 700 mm |
| Rapid speed | 18 mm/s |
| Working speed | 3 mm/s |
| Cylinder fix or moveable | horizontal moveable |
| Distance between columns | 2550 mm |
| Horizontal movable cylinder | 1.7 mm |
| Hydraulicaly movable stand | 3.6 mm |
Dimensions and weight
| Length | 5000 mm |
| Width | 5000 mm |
| Height | 3000 mm |
| Weight | 32000 kg |
Description
horizontal movable cylinder
hydraulicaly movable stand
control by levers as well as control panel
according to CE regulations user manual in GERMAN and ENGLISH
Options:
Work table, welded to the base frame, with holes on the surface
Control panel on the swivel arm (push buttons for press movement, solenoid valves, Siemens CPU)
Radio control panel (push buttons for press movement, solenoid valves, Siemens CPU)
Siemens control with touchscreen
Lifting cylinders in the table (6, 8 or 10 pcs.)
No-rotation shaft for the piston
2 speeds for stand movement and cylinder
Oil cooler and decompression valve
Further information
Brochures
Product video
Hydraulic portal straightening press PMM 500 ME
