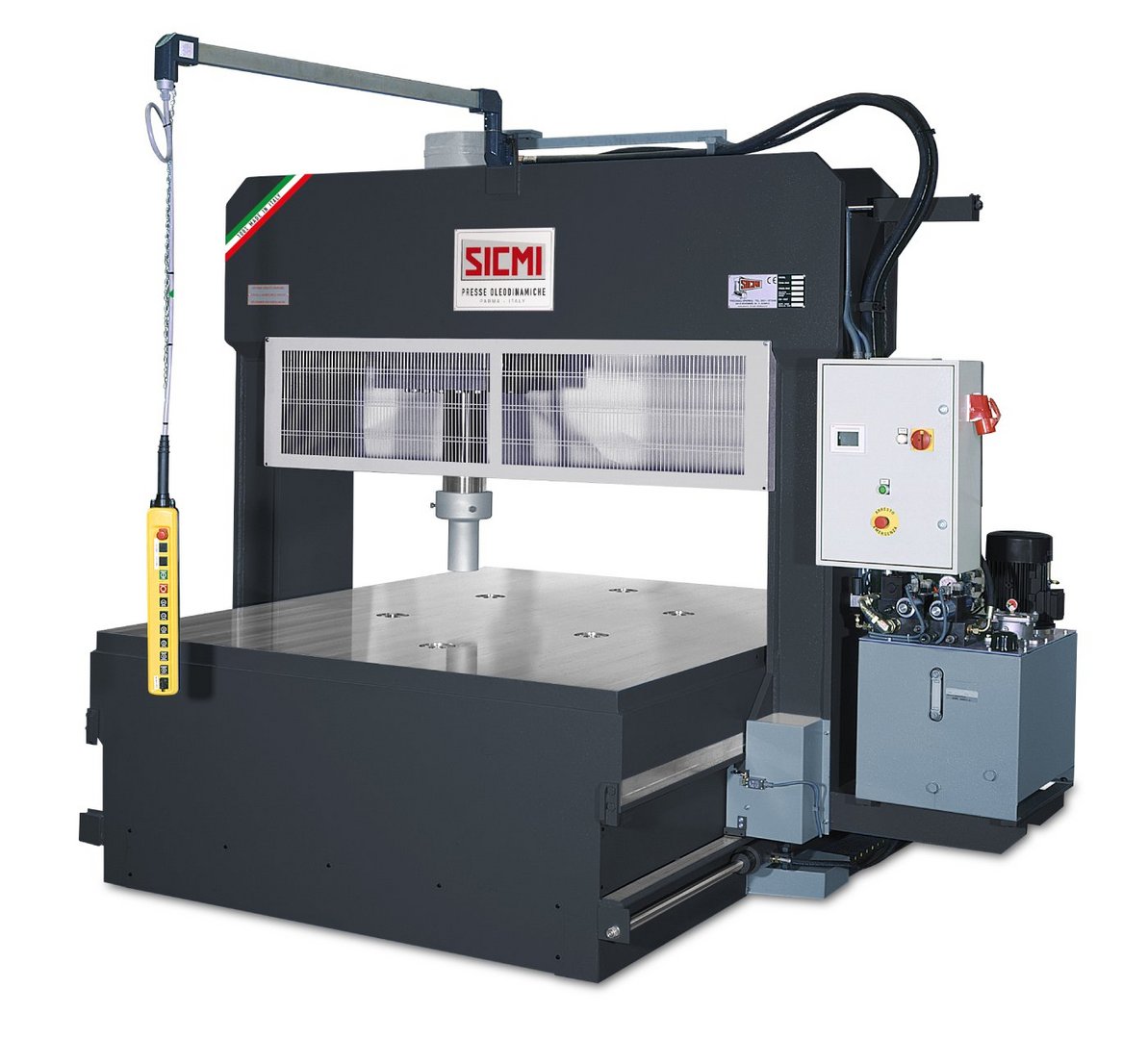

Hydraulic portal straightening press SICMI PMM 300 MD
| Model | PMM 300 MD |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 300 to |
| Table | 3.000 x 2.050 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 300 to |
| Stroke | 500 mm |
| Table | 3.000 x 2.050 mm |
| Daylight | 700 mm |
| Rapid speed | 20 mm/s |
| Working speed | 2 mm/s |
| Cylinder fix or moveable | horizontal moveable |
| Distance between columns | 2050 mm |
| Horizontal movable cylinder | 1300 mm |
| Hydraulicaly movable stand | 2000 mm |
Dimensions and weight
| Length | 3100 mm |
| Width | 3000 mm |
| Height | 2600 mm |
| Weight | 11500 kg |
Description
horizontal movable cylinder
hydraulicaly movable stand
control by levers as well as control panel
according to CE regulations user manual in GERMAN and ENGLISH
Options:
Work table, welded to the base frame, with holes on the surface
Control panel on the swivel arm (push buttons for press movement, solenoid valves, Siemens CPU)
Radio control panel (push buttons for press movement, solenoid valves, Siemens CPU)
Siemens control with touchscreen
Lifting cylinders in the table (6, 8 or 10 pcs.)
No-rotation shaft for the piston
2 speeds for stand movement and cylinder
Oil cooler and decompression valve
Further information
Product video
Hydraulic portal straightening press PMM 300 MD
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
